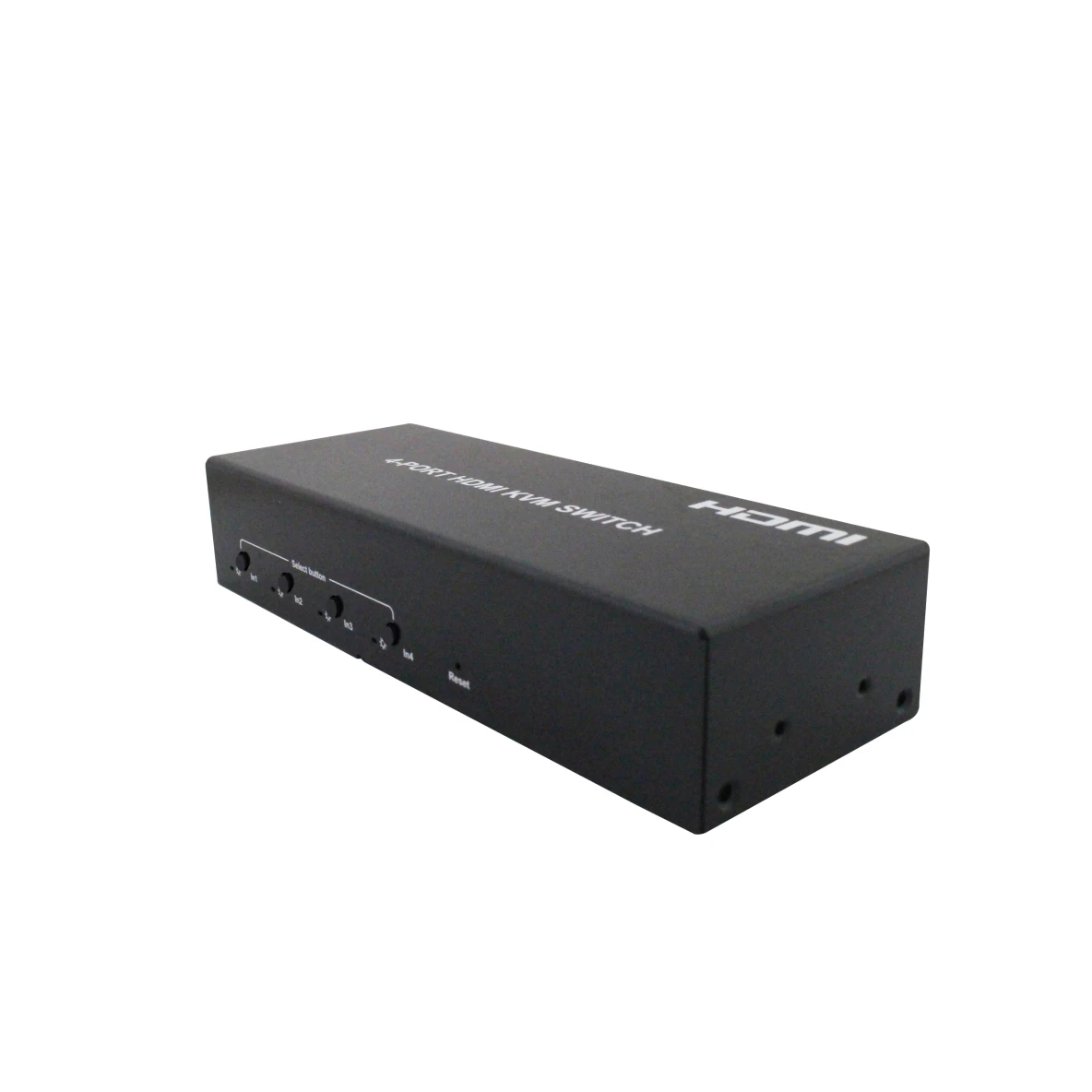

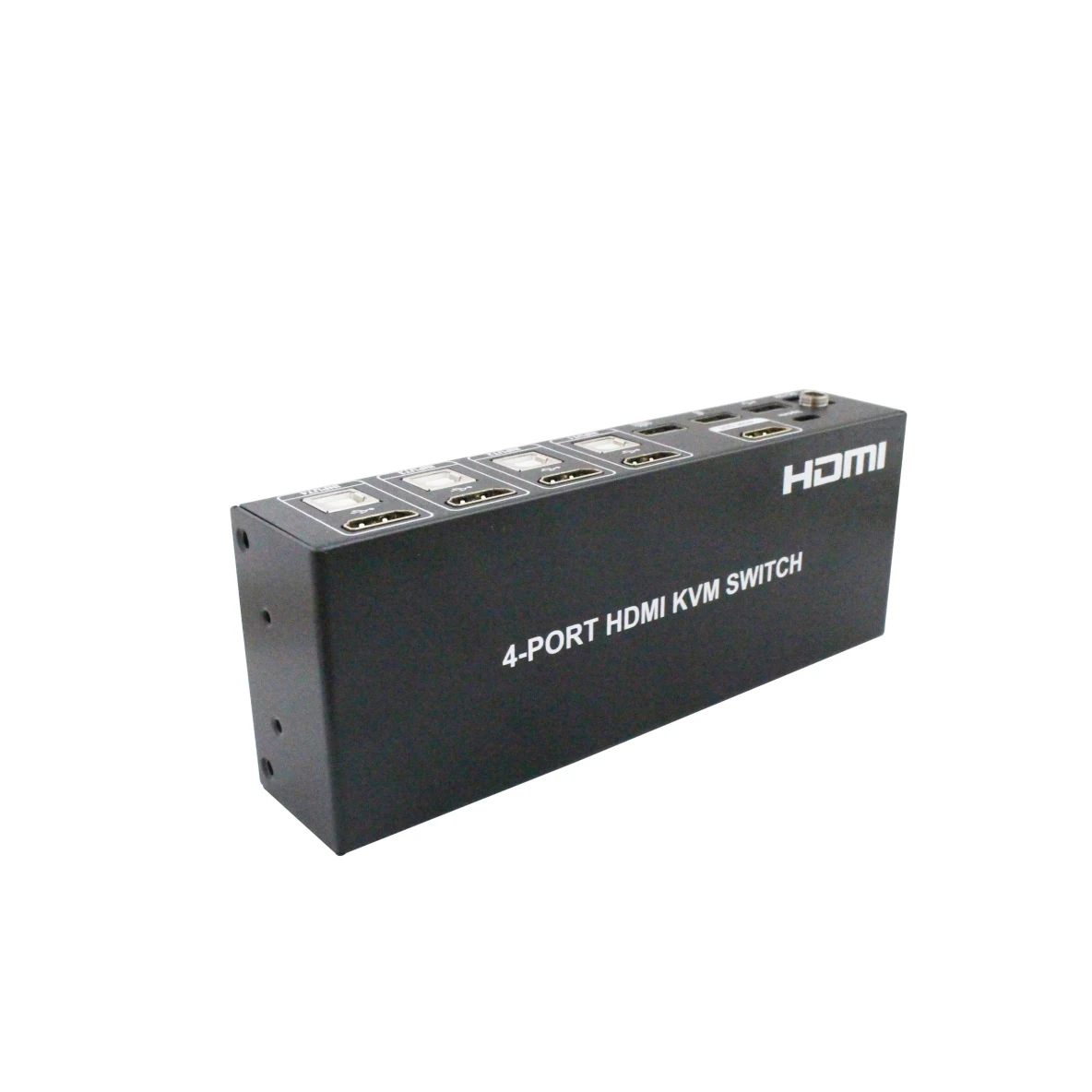

HDMI USB KVM Switch 4 PORT input maximum support 4K2K30Hz RGB4:4:4, 8 Bit
HDMI +USB KVM Switch 4-PORT input maximum support 4K2K30Hz RGB4:4:4, 8 Bit
HDMI +USB KVM Switch 4-PORT input maximum support 4K2K30Hz RGB4:4:4, 8 Bit
HDMI +USB KVM Switch 4-PORT input maximum support 4K2K30Hz RGB4:4:4, 8 Bit
HDMI +USB KVM Switch 4-PORT input maximum support 4K2K30Hz RGB4:4:4, 8 Bit

HDMI USB KVM Switch 4 PORT input maximum support 4K2K30Hz RGB4:4:4, 8 Bit

Share on (60780894029):


Price:

Quantity:


Product Overview

Description



4-PORT 4K HDMI KVM Switch


Features


* Computer: HDMI input maximum support 4K2K30Hz RGB4:4:4, 8 Bit
* Display: HDMI input maximum support 4K2K30Hz YUV 4:4:4, 8 Bit
* The Four USB-TYPE B interface pass through three USB interface to the corresponding host of
HDMI signal channel.
* Operating system support Windows 95/98/2000/2006/NT/XP/WIN7/WIN8/WIN10, Linux, Unix, MAC, etc
* Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices.
* Support auto switching (monitor the devices in a specified time interval.)
* Support keyboard’s hot keys to control the KVM switch.
* Available to use keyboard and mouse without any delay after switching the host devices.
* With mounting ears


Specification


1). Input resolution list


Resolution
I/P
Resolution
Color Space
Support

50Hz
P
720*576
√
√
P
1280*720
√
√
P
1280*720
√
√

59.97/60Hz
P
720*480
√
√
P
1280*720
√
√
P
1280*720
√
√





29.97/30Hz
I
720*480
√
√
P
1280*720
√
√
I
1920*1080
√
√
P
1920*1080
√
√
P
3840*2160
√
√
P
1280*720 3D
√
√
P
1920*1080 3D
√
√



25Hz
I
720*576
√
√
P
1280*720
√
√
I
1920*1080
√
√
P
1920*1080
√
√
P
3840*2160
√
√



23.97/24Hz
P
1280*720
√
√
P
1920*1080
√
√
P
3840*2160
√
√
P
1280*720 3D
√
√
P
1920*1080 3D
√
√


2). VESA Resolution（ RGB8bit）



Output Device

Resolution
Refresh Rate

Copy mode

Only second screen mode
PC
4K TV
















LENOVO
ThinkPad
E470c
800×600
60HZ
60HZ
√
√
1024×768
60HZ
60HZ
√
√
1152×864
60HZ
60HZ
√
√
1280×600
60HZ
30HZ
√
√
1280×720
60HZ
30HZ
√
√
1280×768
60HZ
30HZ
√
√
1280×800
60HZ
30HZ
√
√
1280×960
60HZ
30HZ
√
√
1280×1024
60HZ
60HZ
√
√
1360×768
60HZ
60HZ
√
√
1366×768
60HZ
30HZ
√
√
1400×1050
60HZ
30HZ
√
√
1440×900
60HZ
30HZ
√
√
1600×900
60HZ
30HZ
√
√
1680×1050
60HZ
30HZ
√
√
1920×1080
60HZ
60HZ
√
√
1920×1220
/
30HZ
/
√
1920×1440
/
30HZ
/
√
2048×1152
/
30HZ
/
√
2048×1536
/
30HZ
/
√
2560×1600
/
30HZ
/
√
2560×1920
/
30HZ
/
√
2560×2048
/
30HZ
/
√
2840×2160
/
30HZ
/
√
4096×2160
/
30HZ
/
√

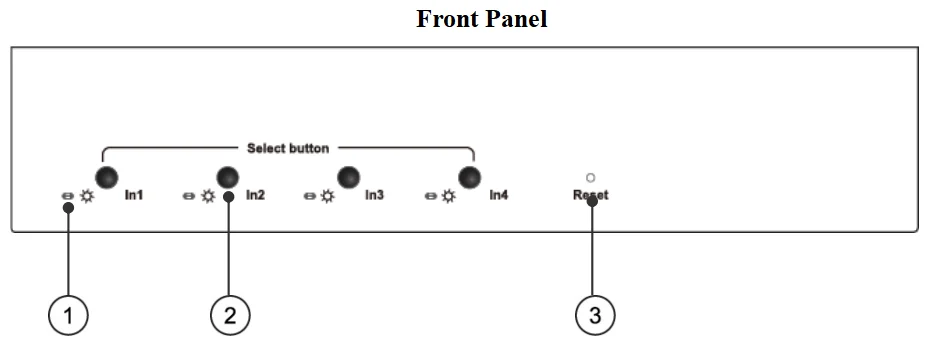

① Bi-coloured light
(Green Status = USB connected; Red Status = HDMI connected Orange Status = USB + HDMI connected)
② Select button(Reset & Swith)
③ Rest status indication

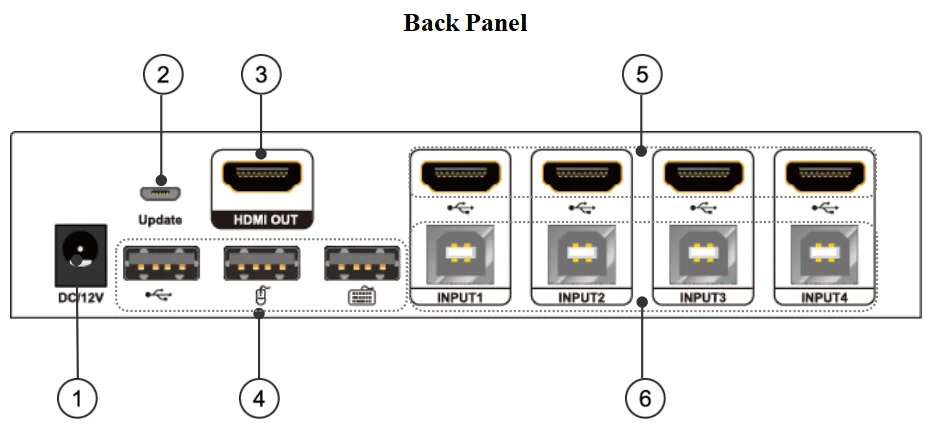

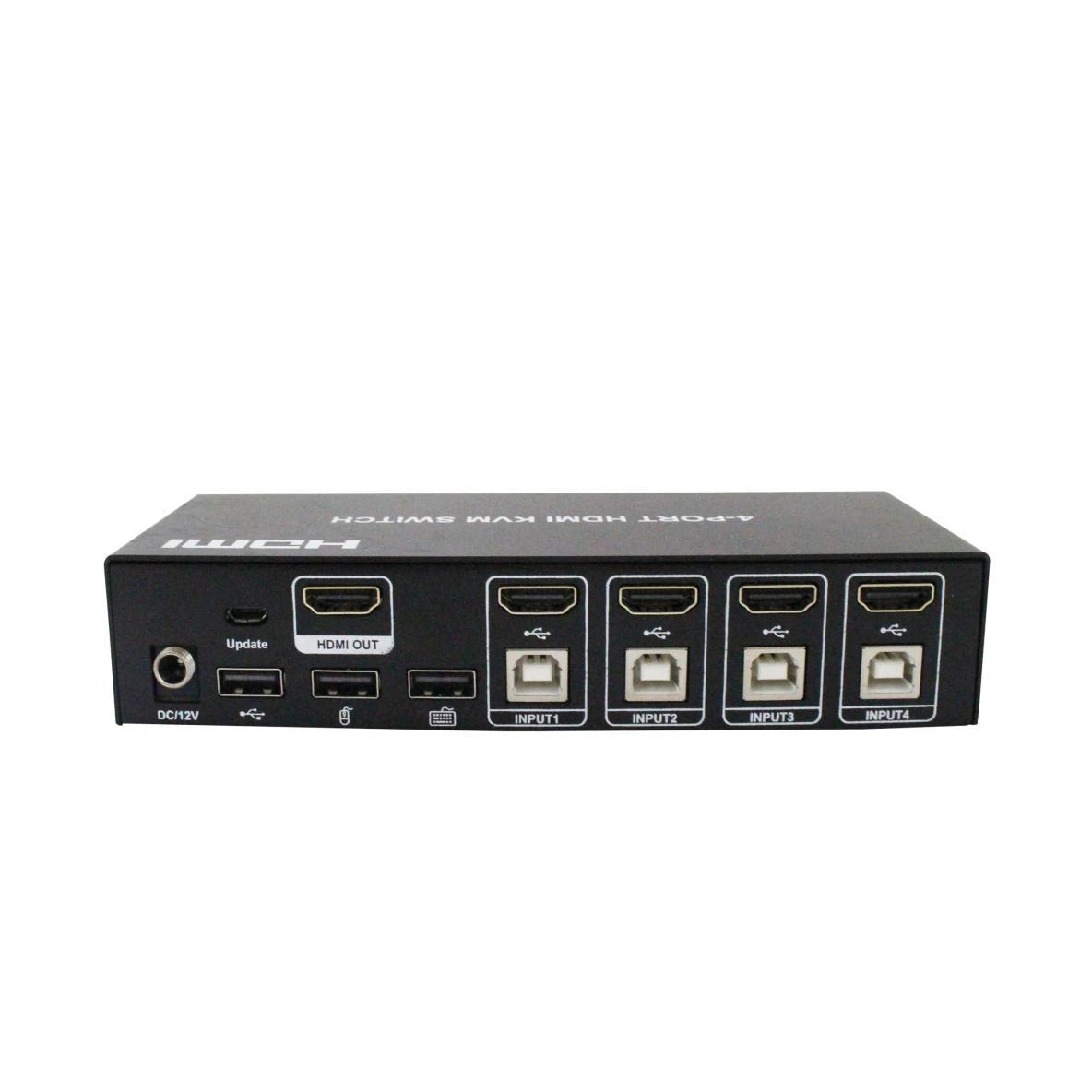

① 12V DC power input
② Upgrading the firmware
③ HDMI out port
④ USB keyboard and mouse output ports
⑤ HDMI in ports
⑥ USB keyboard and mouse input ports
*The transmission speed of USB2.0 ports meets the USB1.1 transport protocol


Wiring Diagram










Certifications






Packing & Delivery


1. HDMI KVM switch, 1 user manual.
2. 12VDC Power Supply.
3. Operating Instructions.
4. Mounting ear 1 pair.
