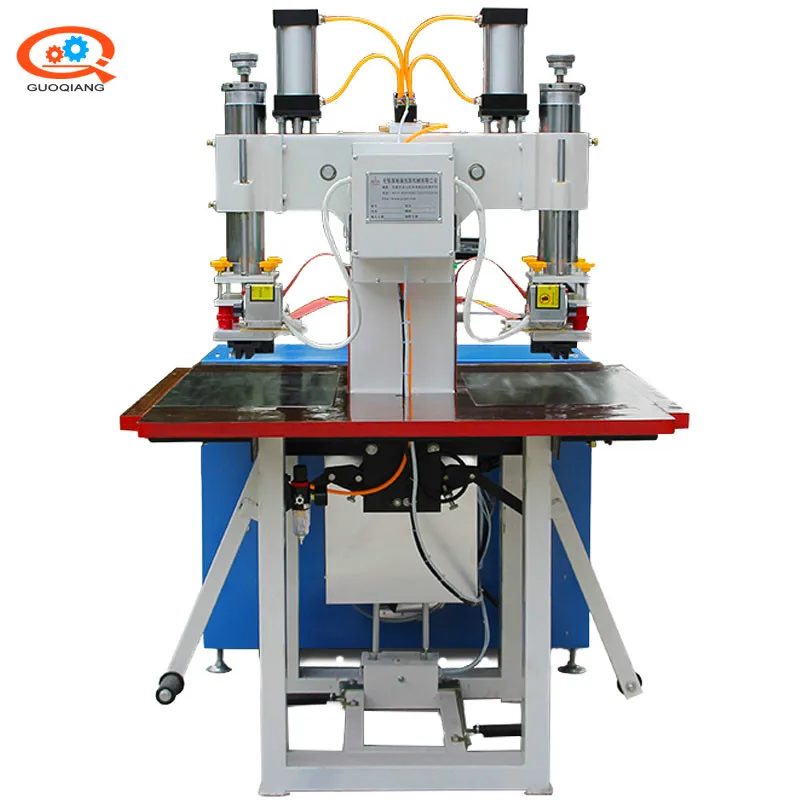

china Customized packing and shopping bag making welding machine

Product Overview

Description

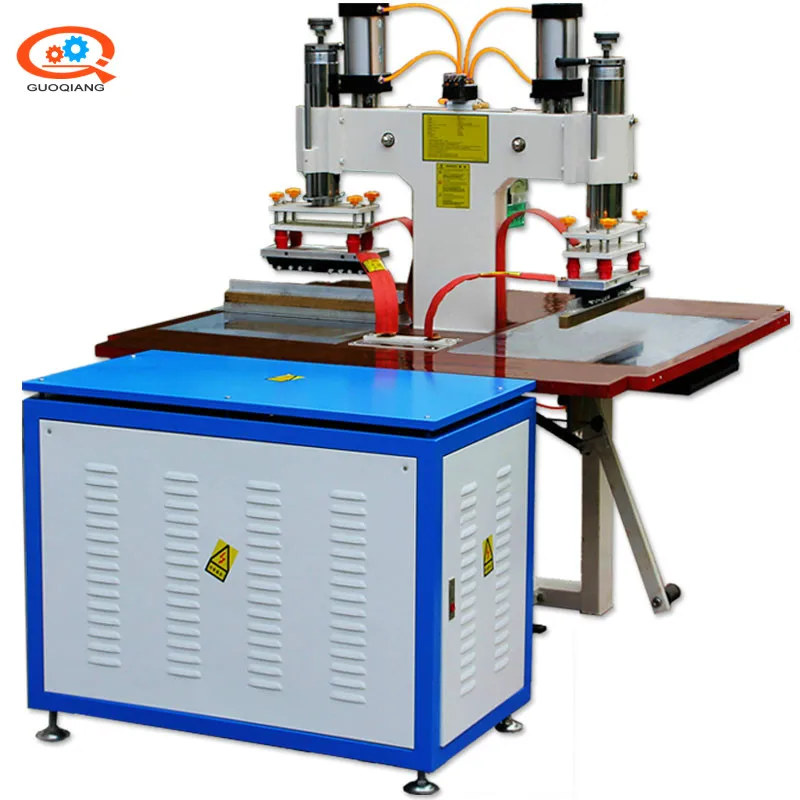

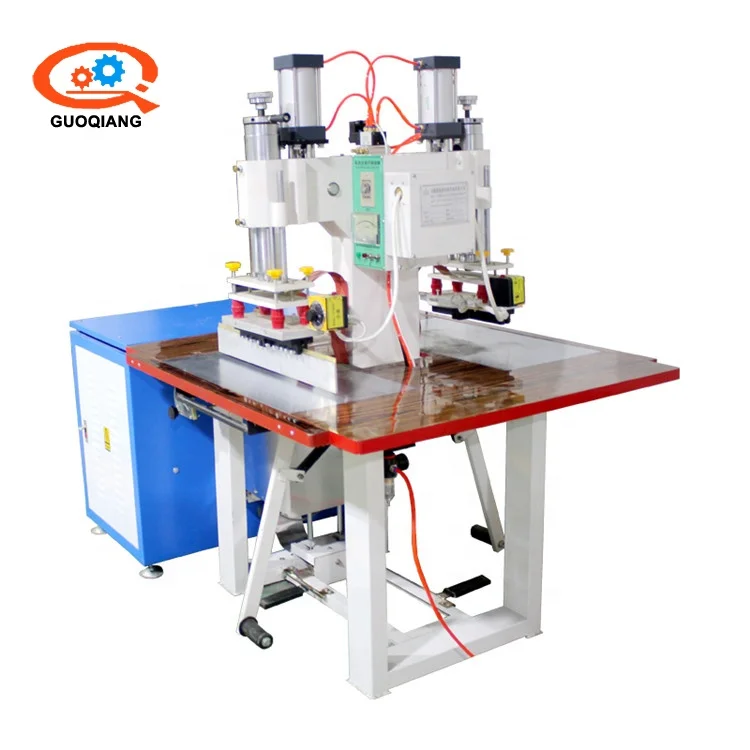

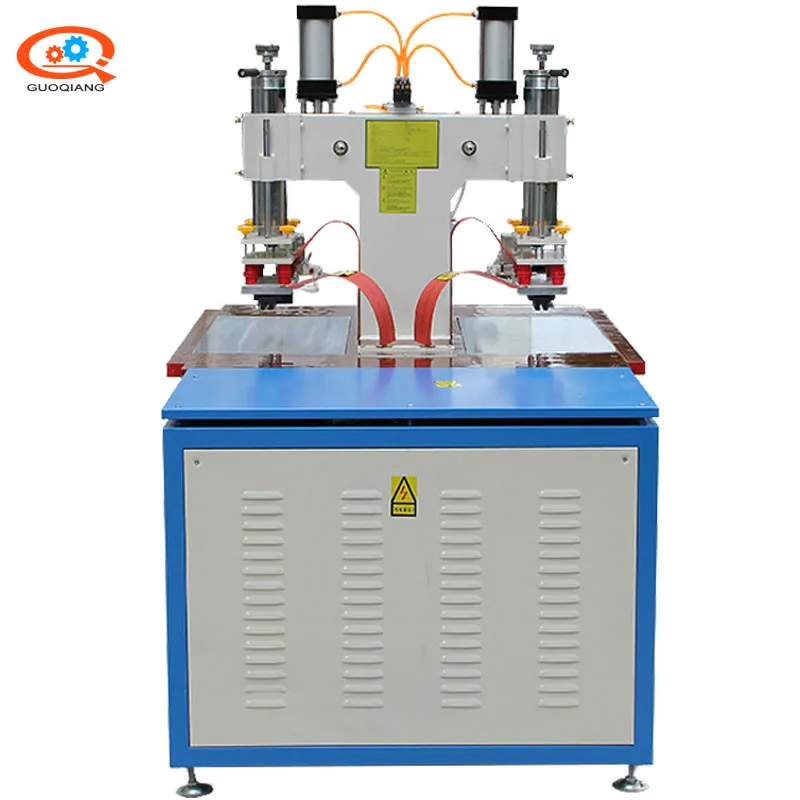

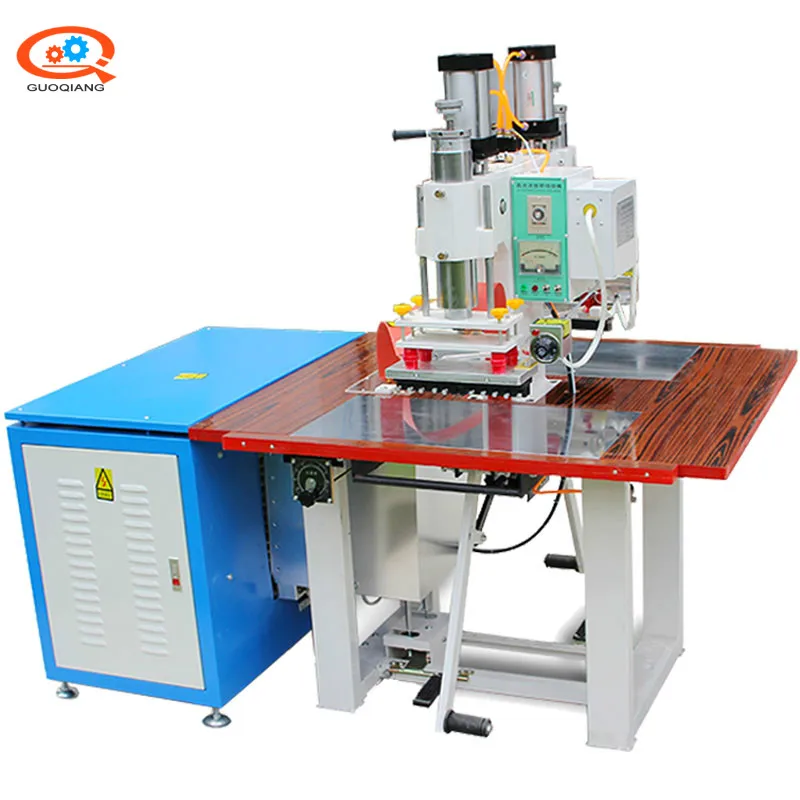

The machine has double head of HF welders with 5, 10KW stable controlled HF power outputs are designed for various industrial HF welding and heat sealing applications requiring precision flat surface for product positioning and complex shape welds. HF welder can be easily converted to a standard Heat Sealer for applications where HF welding is not necessary or impossible (eg: PP or PE materials). Machine is equipped with quick change 4 point electrode holder. Custom built tooling and electrodes are available upon request.





• Specially installed with large pressure output device, Easy for workers.


• With auxiliary heating device, producing in a short time.


• Work two side without interference, can be done two different products


• Equipped with spark suppressor flow, to avoid burning of molds and materials


• Machine will be done all the technical setup before dispatch.





Model No	GCQ-W5KW	GCQ-W8KW	GCQ-W10KW
Voltage	AC220/380/400/415/440V 50/60HZ(Customized)
Output Power	5KW	8KW	10KW
Input Power	8KVA	10KVA	12KVA
HF Frequency	27.12MHZ ±0.6%
Oscillation Tube	8T85RB	8T85RB	8T85RB
Anti-spark Tube	NL-5557	NL-5557	NL-5557
Gap of Electrode	200mm	200mm	200mm
Size of upper electrode	200×400mm	300×500mm	400×600mm
Machine Size	1080*1750*1600	1080*1750*1600	1080*1750*1600
Machine Weight	400KG	420KG	450KG
