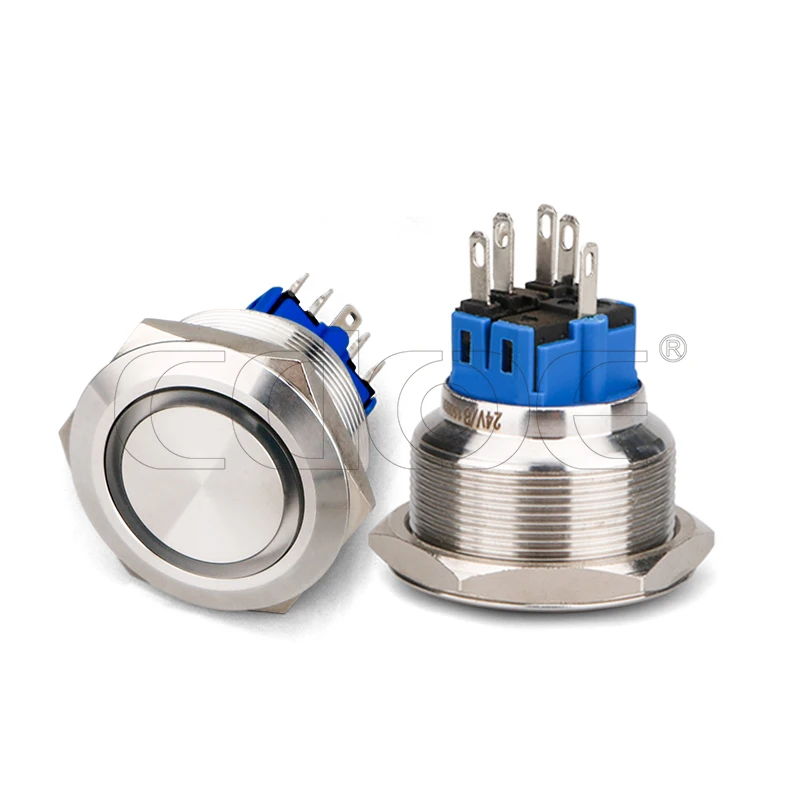

28MM 1no1nc flat round illumination momentary colorful light lock starting switch pin button metal
28MM 1no1nc flat round illumination momentary colorful light lock starting switch pin button metal
28MM 1no1nc flat round illumination momentary colorful light lock starting switch pin button metal
28MM 1no1nc flat round illumination momentary colorful light lock starting switch pin button metal
28MM 1no1nc flat round illumination momentary colorful light lock starting switch pin button metal
28MM 1no1nc flat round illumination momentary colorful light lock starting switch pin button metal

28MM 1no1nc flat round illumination momentary colorful light lock starting switch pin button metal

Share on (60780961856):


Price:

Quantity:


Product Overview

Description



GQ series push button switch surface plating bright nickel treatment，can anodized red, green and black color selection, the shell is made of stainless steel, brass and aluminum alloy.It has a simple and reliable double breakpoint slow moving structure.There are two types of connection: pin feet or screw feet.Different size diameter: 12.16.19.22.25.28.30mm;At the same time, the series also has a micro stroke mini button switch（12/16/19）。Button switch built-in waterproof rubber ring.Can make the waterproof grade up to IP67.Tri-color LED can also be customized, but only at low voltage!!!GQ series push button switch waterproof ip65,Switch contact:1NO or 1NO and 1no1nc ;Two types of switches:reset [Momentary] or self locking[Latching]Switch rating: 2A/36vc,5A/250V;For more information please contact us.

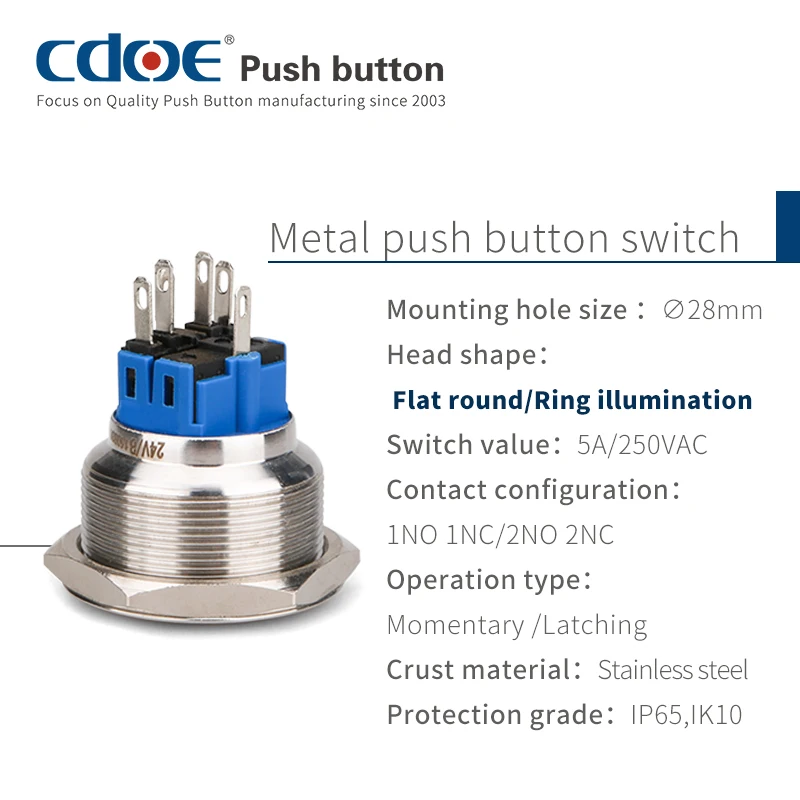

Parameter


Metal Push Button Switch With Led

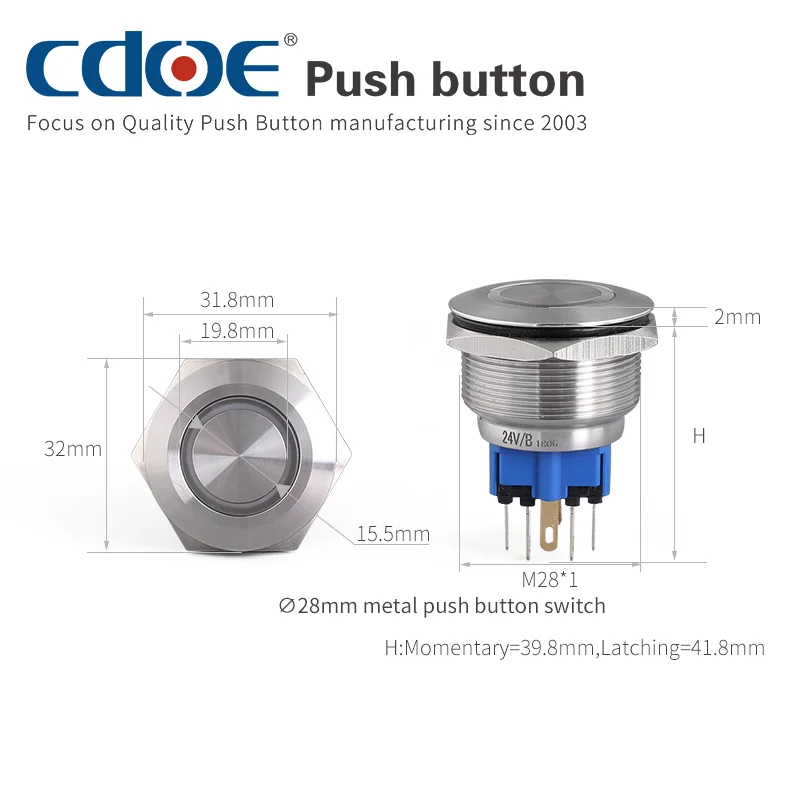

Mounting hole size :
28mm
Switch value:
5A/250V AC
Operation type:
Momentary, Latching
Contact configuration:
1NO1NC,2NO2NC
Head shape：
Flat
Crust material:
Stainless Steel
Terminal type:
Pin terminal
Electrical life :
≥50,000 times
Mechanical life:
≥1，000,000 times
Operation temperature:
-40℃~+80℃
Contact Resistance:
≤50mΩ
Insulation Resistance:
≥1000mΩ
Operation stroke:
0.5mm, 3mm
Protection grade :
IP65
Contact material:
Silver alloy
Illumination type:
Ring illumination
Led color:
 R G B O W Y (One led)
Led voltage:
2V(3V),5V(6V),12V,24V,36V,110V,220V
Led life:
50,000 hours
Available equipment:
Charging pile,medical equipment,coffee machine,yacht,pump control panel,doorbell,trumpet,computer,motorcycle,car,tractor,audio


Products Description






Company Information




Product packaging


Product packing method.
We pack 10 pieces diameter 30 mm metal push button into 1 foam box to protect them.We supply 10 pieces rubber rings.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.
