Electrical remote controlled and autopilot unmanned surface surveyiny platform

Product Description

Model	USV-I1750
Material	PE
Hull size	1750 mm * 725mm * 260mm
Cabin size	500mm * 700mm * 170mm
Boat weight	~25kgs
Full load weight	~40kgs
Communication Motor	IEE802.llb standard,2.4G/900M point to point or 4G
Motor drive module	2* brushless DC outdrives 1*lithium battery
Communication distance	4G:limitless Radio:>2km RC:>1km
Battery endurance	>4h(add more batteries are available)
Speed	0-3m/s
Optional	autopilot system,video monitoring system,RTK,ADCP,singlebeam echo sounder.

Product Display

_20180505103502

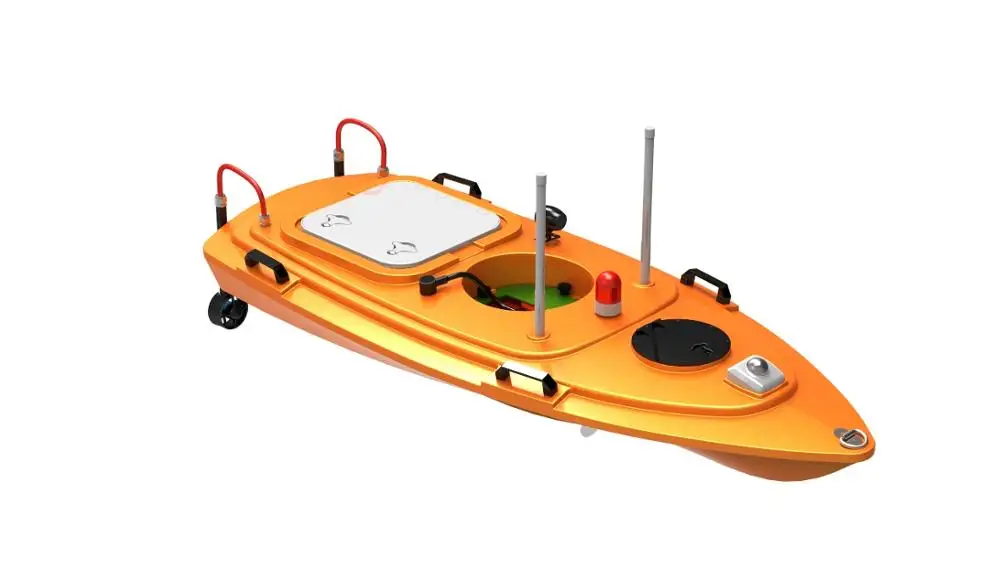

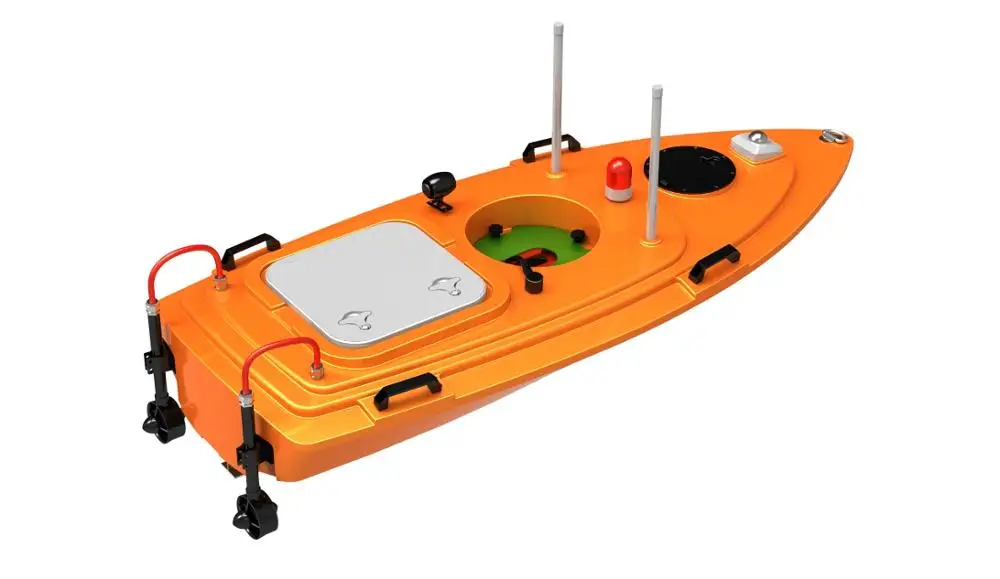

USV-I1750 remotely-operated electric boat designed to make safe unmanned measurements of currents, bathymetry and discharge with ADCPs and a variety of other instruments.

The hull is constructed by high-impact UV- resistant PE, the boat's powerful outdrives and efficient v-bottom design products smooth, predicatable, even in choppy waters, the large watertight electronics compartment is spacious and easily accessible.

USV-I1750 remote control range up to 1000m,and the endurance up to 4hours, fully meet the needs of hydrological operations. Two person can easily handle the boat and it can be transported in a pickup and SUV or cars.

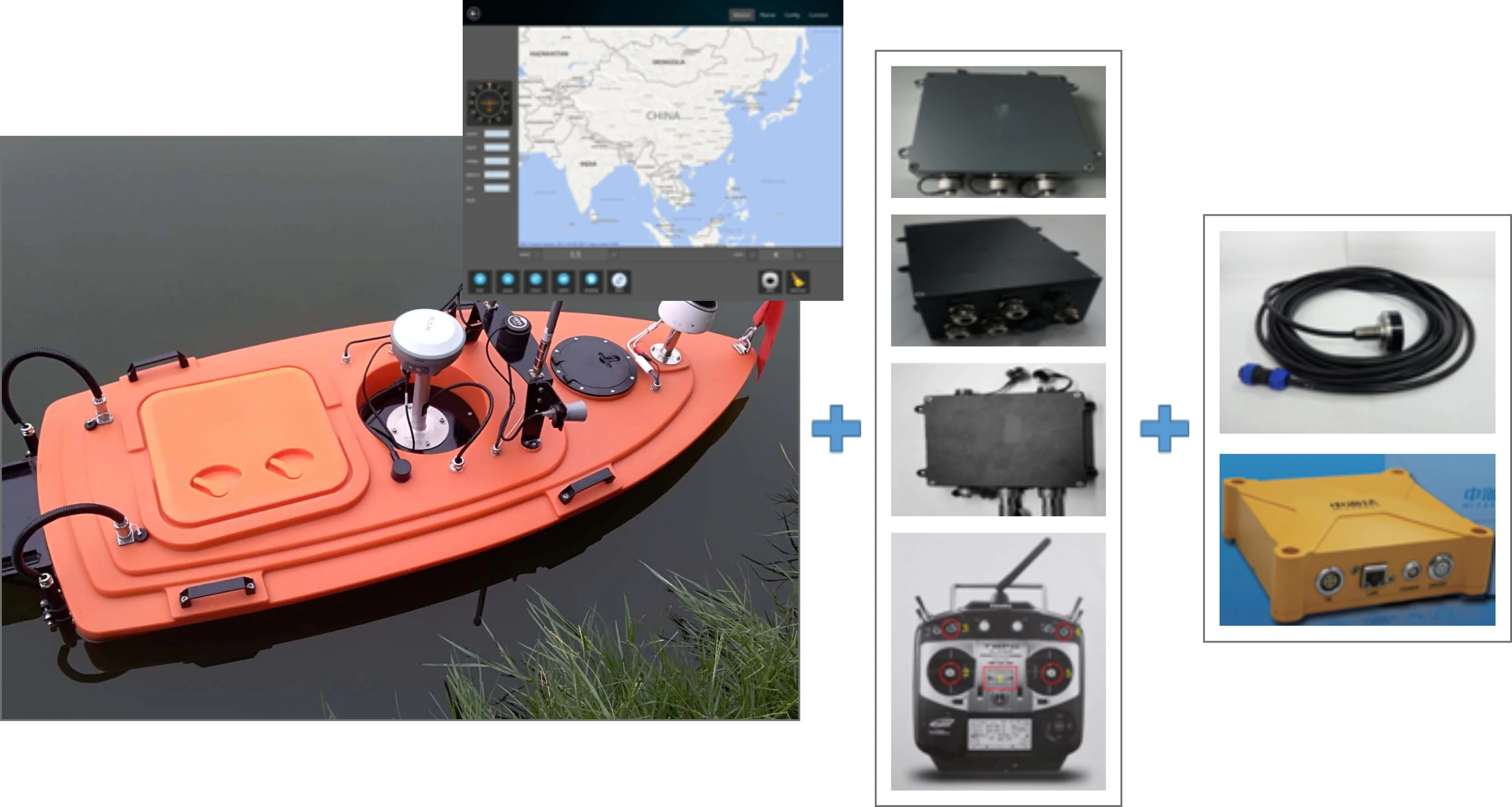

USV-I1750 standard configuration includes the followings:
