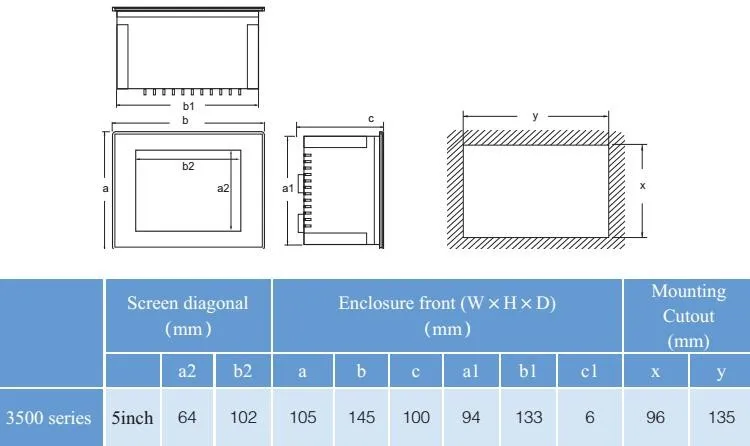

Dimensions Drawing

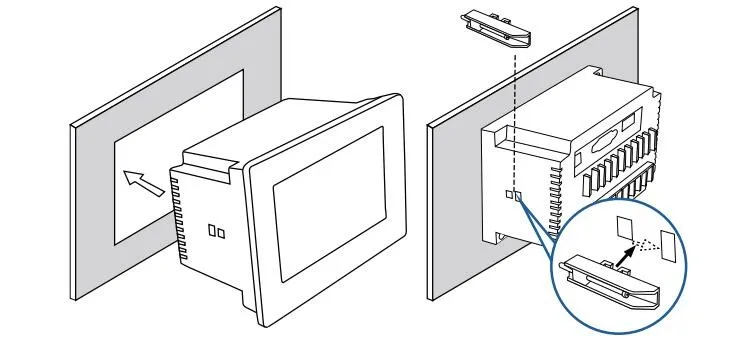

Hook Installation Diagram for Yudian AI-3502M Temperature Humidity Data Logger

echnical Specifications for Yudian AI-3502M Temperature Humidity Data Logger

1. Display
Color: TFT true color
Resolution (W*H): 800*480 pixels
Backlight: Long- lifespan LED Operation method: Touch Screen

2. Memory
Usable memory for application data: 150 MB
Recording interval: interval with unit one second (1, 2, 3 or 4 etc)

3. Communication
Interface type: RS232, RS485, Ethernet interface (10 / 100M adaptive Ethernet nterface)
Baud rate: 1200-19200 bps

4. General Parameters

Power supply: 100~240VAC,-15%~ +10%, 50-60Hz
Power consumption: ≤ 5W
Operating ambience: Temperature: -10℃ ~ + 60℃; Humidity: ≤ 90%RH

Storage temperature: -20℃~ +80℃
Net weight: 0.55kg

Cooling: Natural
