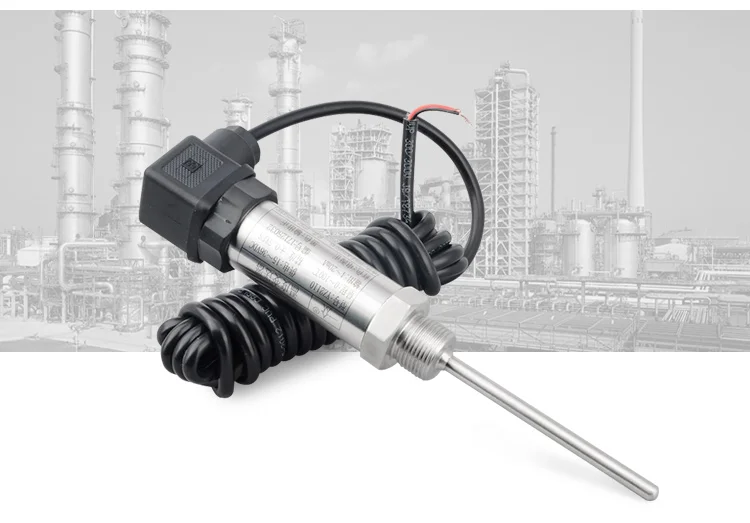

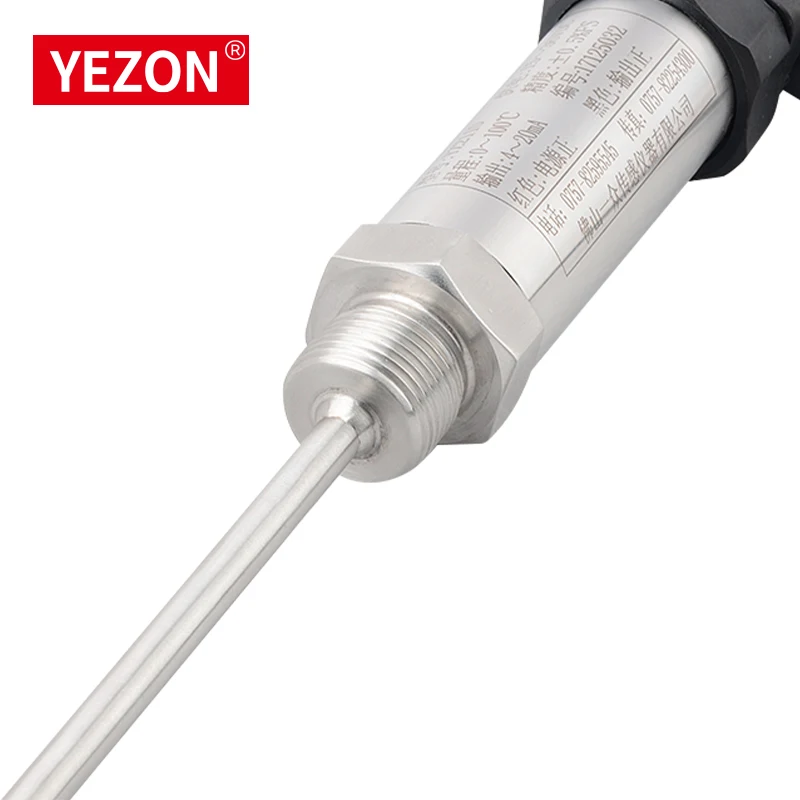

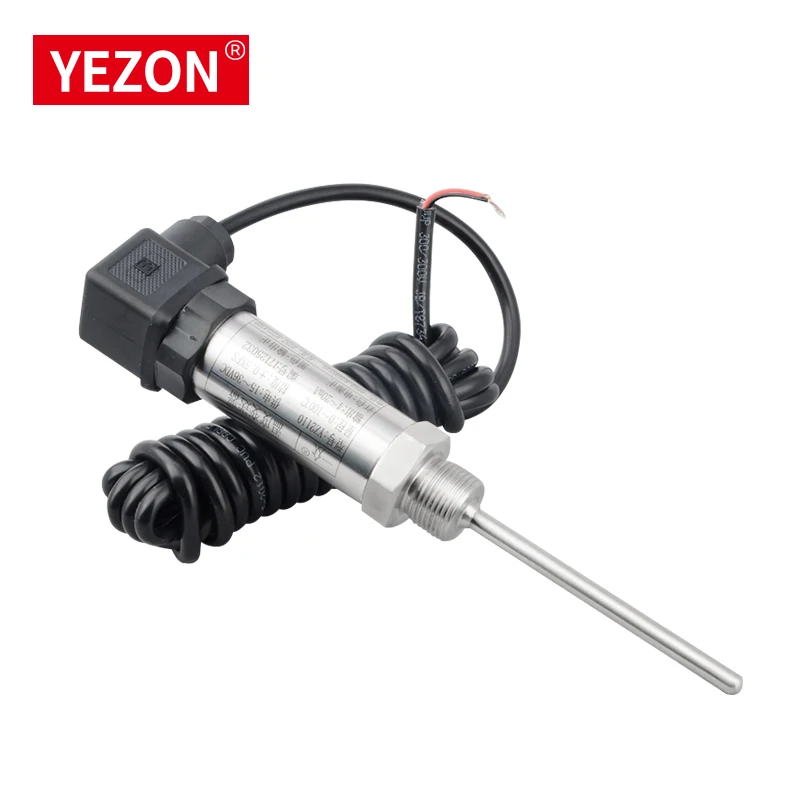

PT100 4 20ma 50~ 200C water oil gas G1/4 high temperature transmitter
- Category: >>>
- Supplier: Foshan Yezon Sensor Instrument Co. Ltd.
Share on (60780999008):
Product Overview
Description
Measured medium | gas, liquid and vapor | ||||
Temperature core | PT100 | ||||
Measurement range | -200~+500℃ PT100 A ±(0.15+0.002tb) B ±(0.15+0.002tb) | ||||
Output | 4-20ma (Two-wire system), 0-5vdc, 0-10vdc, 0.5-4.5 VDC (three-wire system) | ||||
Accuracy | ±0.25%,±0.5%(Typical) | ||||
Power supply | 9~24VDC,15~30VDC | ||||
Overload capacity | 150%FS | ||||
Insulation resistance | > 1000 M /100VDC | ||||
Ambient temperature | -20~85 ℃ | ||||
Storage temperature | -40~90 ℃ | ||||
Relative humidity | 0~95% RH | ||||
Seal grade | Ip65 | ||||
Stability | Less than or equal to 0.15%FS/ year | ||||

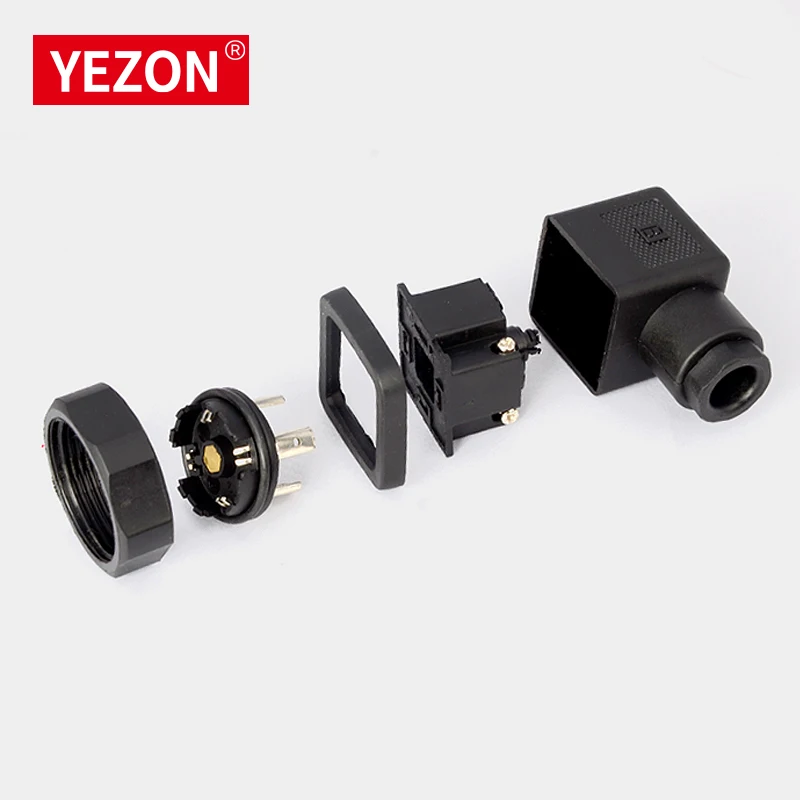

Electrical connection | Hessman connector fastening nut air connector four-wire shielding wire, etc | ||||
Installation mode | screw installation (M20 * 1.5, M14 * 1.5, G1/2, G1/4) | ||||

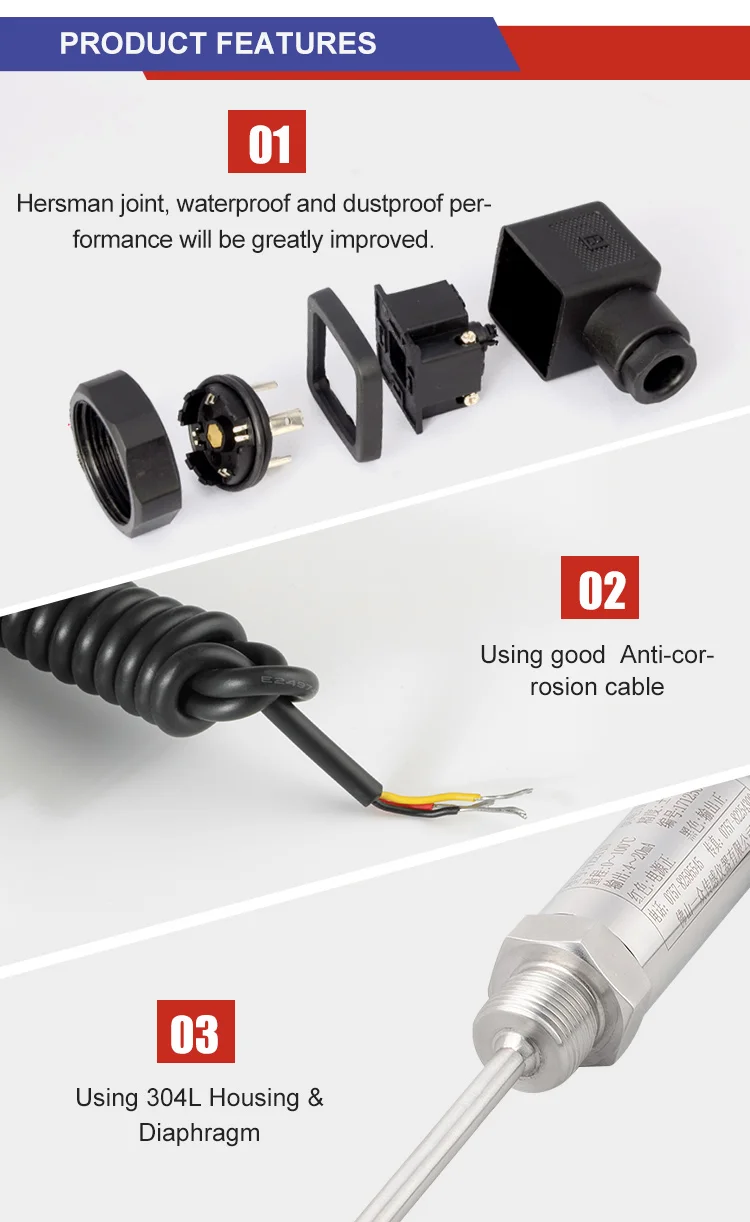

Product Features
A. advanced SMT technology has zero point, full scale compensation and temperature compensation.
B. high precision and high stability amplifier IC;
C. stainless steel shell structure, impact resistance, fatigue resistance, high reliability.
D. output signal is diversified (current type, voltage type).
E. structure is compact and easy to install.
B. high precision and high stability amplifier IC;
C. stainless steel shell structure, impact resistance, fatigue resistance, high reliability.
D. output signal is diversified (current type, voltage type).
E. structure is compact and easy to install.

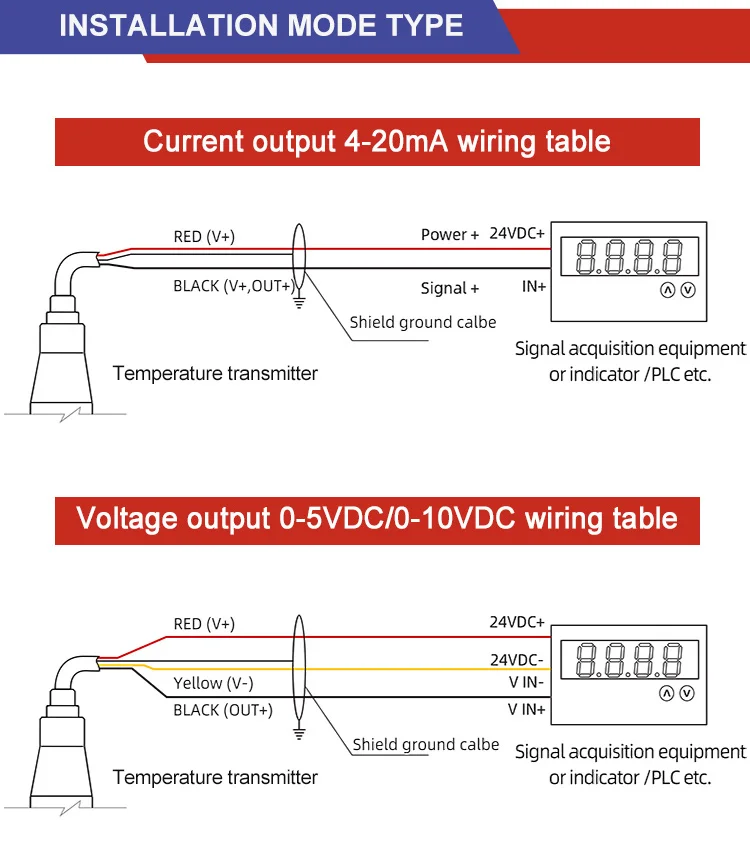

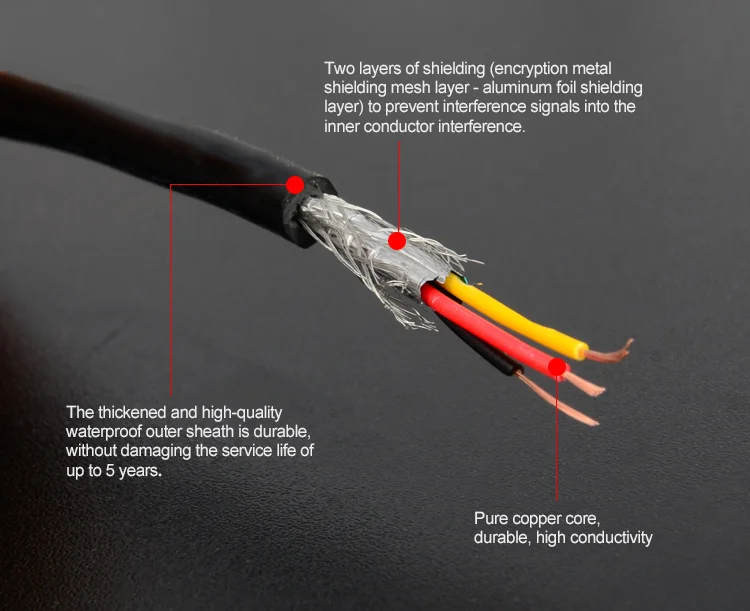

Terminal | Colour | Voltage output | Current output | RS485 output |
1 | Red | Power + | Power + | Power + |
2 | Black | Signal + | Signal + | Signal A+ |
3 | Yellow | Public - | Power - | |
4 | Green | Signal B- |
