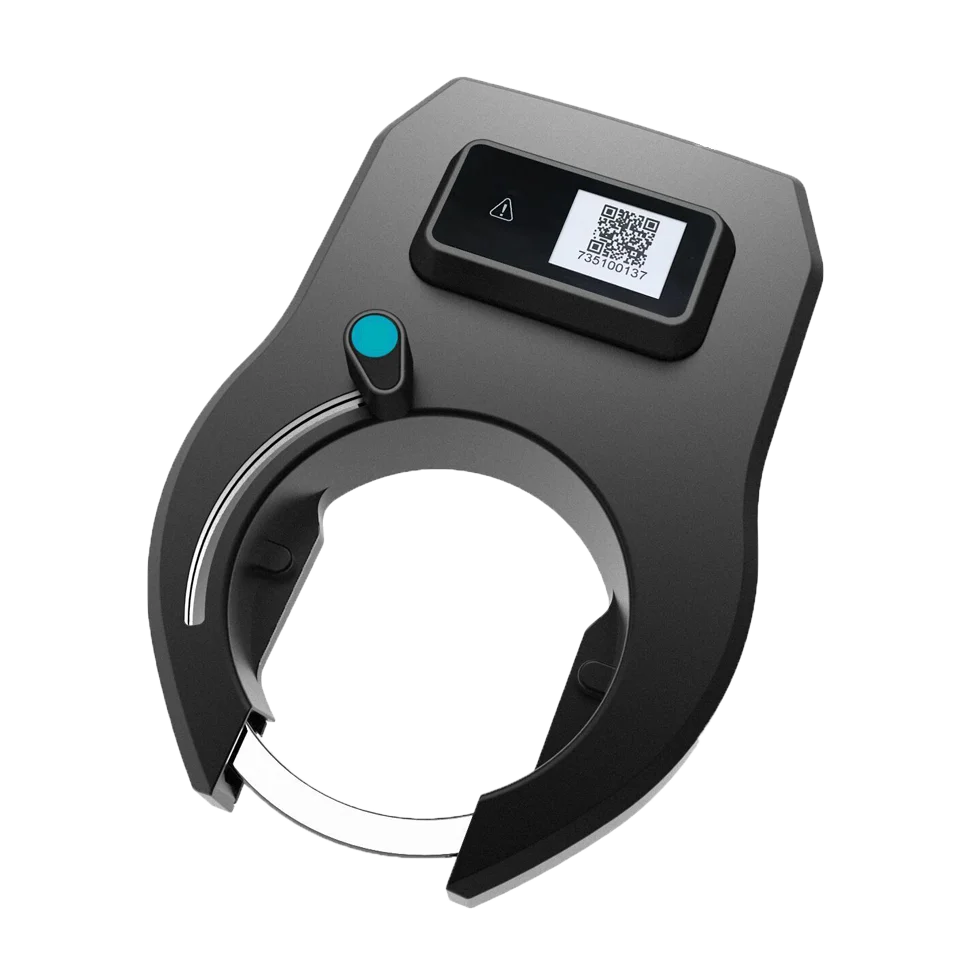

JIMI GPRS Bike Lock for Sharing Bicycle GPS smart lock wifi with solar panel
- Category: >>>
- Supplier: Shenzhen Jimi IOT Co. Ltd.
Share on (60781005313):
Product Overview
Description
JIMI GPRS Bike Lock for Sharing Bicycle GPS smart lock wifi with solar panel
Top Features of BL10 GPS Bike Lock:
- Cutting-edge and distinctive urban design
The lock is designed with style in mind. With smooth surfaces and soft edges, it feels great in your hand and looks better on your bike. It’s a rare combination of brains and beauty.
- Secure and reliable
It is able to withstand inclement weather conditions. The internal components are sealed and weatherproofed inside a plastic compartment. The electronics and battery can also operate under an extended temperature range.
- GPS / LBS Positioning System
Receive GPS satellite signal and Wi-Fi/LBS signal synchronously. Faster searching and locating speed realizes more accurate bike locating.
- Geo-fence
Create a virtual barrier that is created by using the GPS to define geographical boundaries.
- Stable and Durable Hardware
Advanced manufacturing technique and severe temperature tests ensure its durability. The locks look factory-fresh even after 600+ hours salt spray tests and 100,000 times unlocking tests.
- Long battery life
With 10000mAh Li battery and intelligent power management, it can work constantly for nearly 45 days and perform 10,0000 locks/unlock operations.
- OTA Remote Update
AMS end system management platform makes it easy to update the GPS Bike lock remotely.
- Efficient, stable and safe unlocking
With high sensitivity chips and OTA dark chamber, the smart GPS Bike lock meets the requirements of products TRP/TIS tests. Its signal transmission exceeds industry standards, making unlocking faster and more efficient.
- Popular and Stable bike lock for overseas key players
In 2017, Jimi already cooperated with the key players for bike sharing field in China, Germany, Switzerland, Belgium, France, USA, Brazil, India, Indonesia, etc..
- Our output capability of bike lock: 30000pieces per month.
BL10 spec
| GSM Specification | |
| CPU | CPU MTK2503, dominant frequency 260MHz |
| Communication mode | GSM |
| GSM Frequency | 850/900/1800/1900MHz |
| GPRS | Class 12, TCP/IP |
| Memory | 64Mb |
| Phrase error | RMSPE<5, PPE <20 |
| Receive sensitivity | Class II RBER2% (-102dBm) |
| GPS Specification | |
| Chip | MTK high sensitivity GPS chips |
| Frequency | GPS L1, 1575.42MHz |
| Channel | 66 |
| Location accuracy | 5-10 meters |
| Tracking sensitivity | -165dBm |
| Acquisition sensitivity | -148dBm |
| Main Specification | |
| WIFI location accuracy | 3-50 meters |
| iBeacon location accuracy | 1-10meters |
| G-sensor | BMA 250E |
| Antenna | Built-in quad band GSM antenna |
| Battery | 10000mAh (built-in 3.7v/2500mAhx4 battes 18650) |
| Charging | Solar energy(6v/5w) |
| Average working current | About 60mA |
| Average standby current | About 4mA |
| Working condition | Temperature: -20°C-60°C, Humidity 5%-95% |
| Waterproof | IPX6 |
| Packing Specification | |
| Gross weight | 3.5kg |
| Packing dimension | 21x14.5x6cm |
BL10 GPS Bike Lock for Bike Sharing/Rental
Internet of Things has changed the way we live, now, it is changing the way we move. Concox Smart BL10 GPS Bike Lock is a next-generation, cost-effective and secure bike-sharing solution developed by experienced innovators.
Seamlessly combined with HW and SW, the ALL-IN-ONE bike sharing solution effectuates information interaction among operators, users and bicycles, bringing superior riding experience and visualized operation.
Why bike-sharing?
Firstly, concerns about global climate change, energy security, and unstable fuel prices have caused many decision-makers and policy experts worldwide to closely examine the need for more sustainable transportation strategies. Secondly, people are searching a much more convenient way to get around on short trips.
It’s no surprise that bike sharing programs, which solve the “last mile” problem, reduce traffic congestion and fuel consumption, have exploded in popularity in recent years. Global capital investment in bike sharing market is soaring dramatically. In China, by the end of Jan 2017, the bike sharing had raised over 700 million dollars.
For operators, they are able to remotely monitor shared bikes by the cloud platform, realizing visualization operation and improving bike management efficiency. Geo-fences and iBeacon area can be set to locate the bikes. Various data reports covering broken bikes, coverage and distribution, deposit and refund, maintenance personnel management can be generated.
For users, find or reserve a bicycle from web browser or mobile APP are available. Bicycles can be unlocked by scanning the QR code, SMS, GPRS. When riding finished, user can view and share your mapped rides and statistics, including miles traveled, calories burned, cost, etc.
Company Information
JIMI Electronics Co.,Ltd, located in NanShan District, Shenzhen, China. As a leading and advanced wireless communication solution provider in China, we mainly manufacture Smart Rearview Mirror DVR, Smart GPS Navigation and GPS Tracker.
Our advantages:
1. Focus on wireless communication with more than 14years experiences.
2. Powerful R&D team with over 200 engineers.
3. 3 factories for manufacturing chips, integrating and assembling.
4. Complete Solution hardware,software and mobile APP.
5. OEM,ODM acceptable.
We, the Jimi family, not only seek to build a brand, but establish a philosophy of life along the process as well. We sincerely hope that by setting up the standard of top quality with tangible price, we can help restore the true value of a commercial product, and by doing so create a better life for everyone.
Our Factory
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models.
4.We will bear maintenance cost during warranty.
OEM Service
We supply the OEM Service for every purchaser whose order quantity is over 500 pieces.
Packaging & Shipping
1. Sample and mini order will be delivered within 2-3 working days after the receipt of payment and all details are confirmed.
2. For order over 500pcs or customized order, lead time will be with 4-6 weeks.
3. Please contact me timely to make sure the current inventory.
Contact us
Pls Contact:
Abby Zeng
Email/Skype: abby.zeng(a)jimilab.com
Mob/whatsapp/Wechat: +86 13510475200
