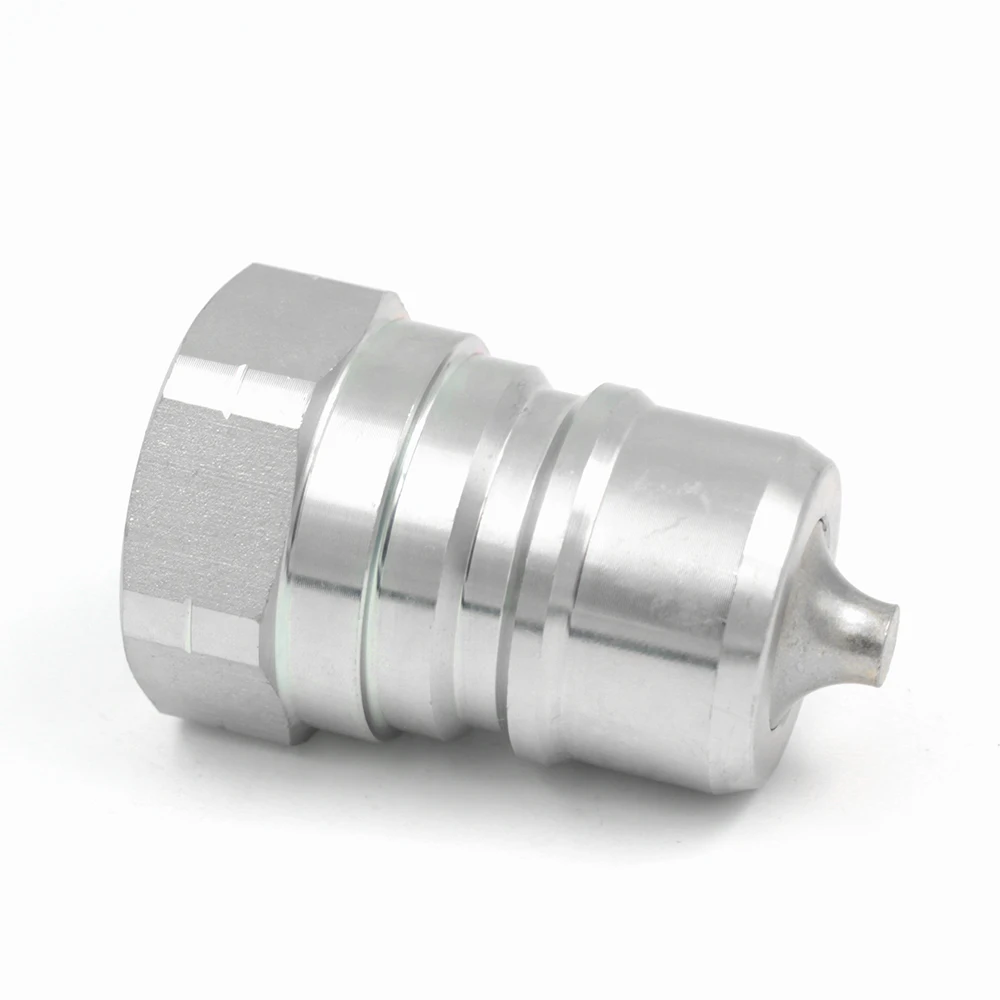

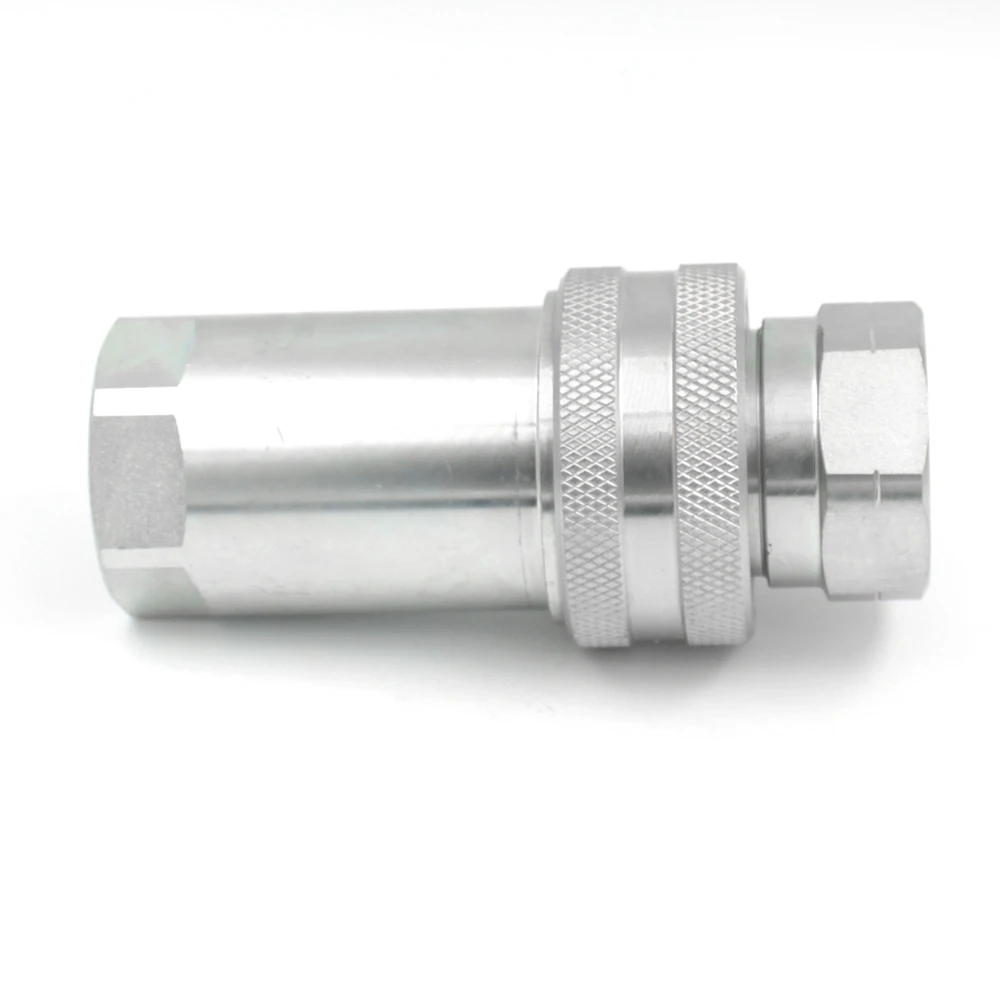

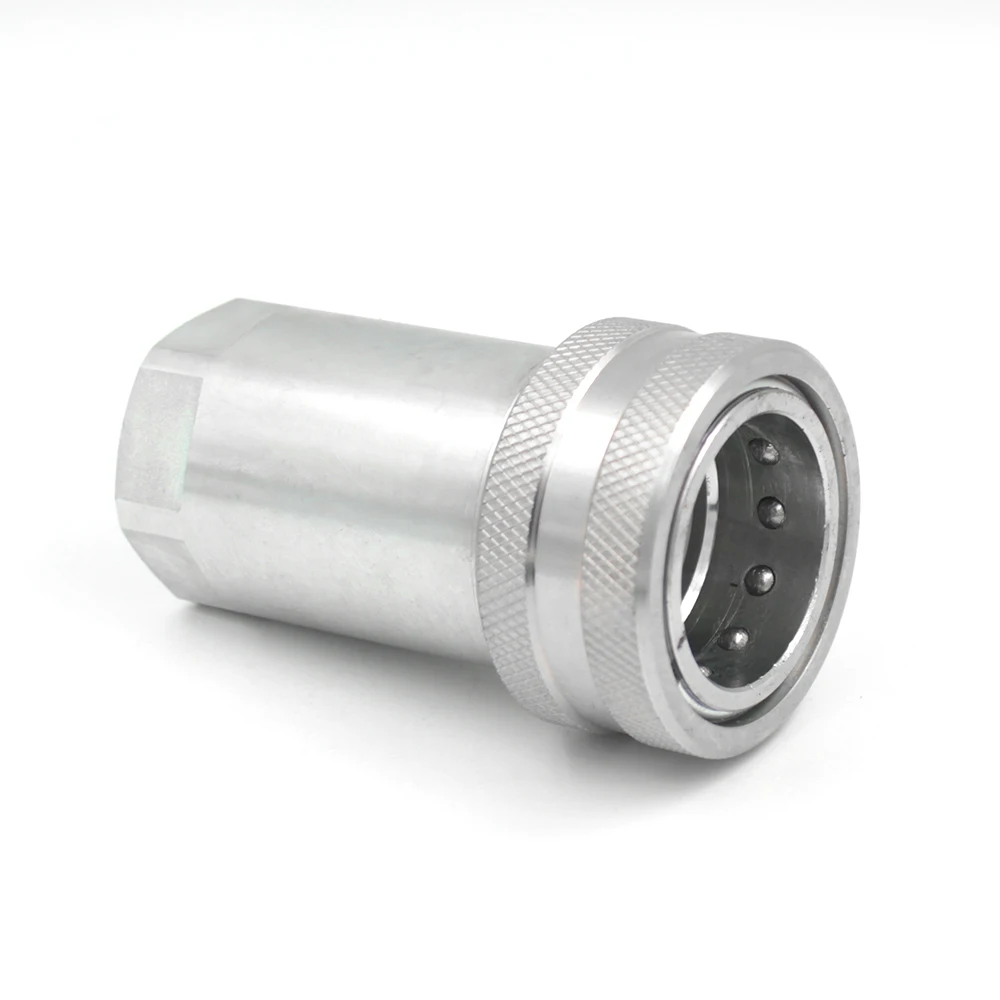

1 inch BSP NPT female thread carbon steel hydraulic hose quick connect coupling for general purpose applications
- Category: >>>
- Supplier: Ningbo Gute Hydraulic Co. Ltd.
Share on (60781021877):
Product Overview
Description
1" BSP NPT ISO7241series A carbon steel hydraulic hose quick connect coupling for general purpose applications
ISO7241-1A Products
Product Description
2.Marking your logo(word) according customer's authorization.
3.No MOQ for the first cooperation.
4.Any question feel free to ask. 24 hours service online.
5.About logistics cost: Please contact me for more options, Like by sea.
Overview:
GUTE's GT-A1 series ISO A couplings are the ideal choice where a tough, durable product of superior quality is required.
They are perfectly suited to agricultural and industrial applications. It's an economical application and widely used series.
Feature:
1. Poppet valves are available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the expedite flowing.
3. Critical parts are hardened for durability.
4. Secured ball-locking mechanism holds the two matchable parts together.
5.Prevention of hose torsion due to movement possibity in coupled position.
6. Socket and plug are precision machined from solid bar stock.
7.Surface treatment Cr III
8. GT-A1 hydraulic hose quick connect comply with the standard of ISO 7241 A. Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series, HANSEN HA 15000 Series, Tomco A5600 Series, Stucchi BIR Series and Dixon K Series quick coupling
Standard Construction and Option:
- Carbon steel with trivalent plating (zinc nickel plating available)
- Fitted with Nitrile seals (Viton seals availabe)
- Carbon steel body (Stainless steel 304/316 availabe)
- Thread option: NPT/BSPP/BSPT availabe

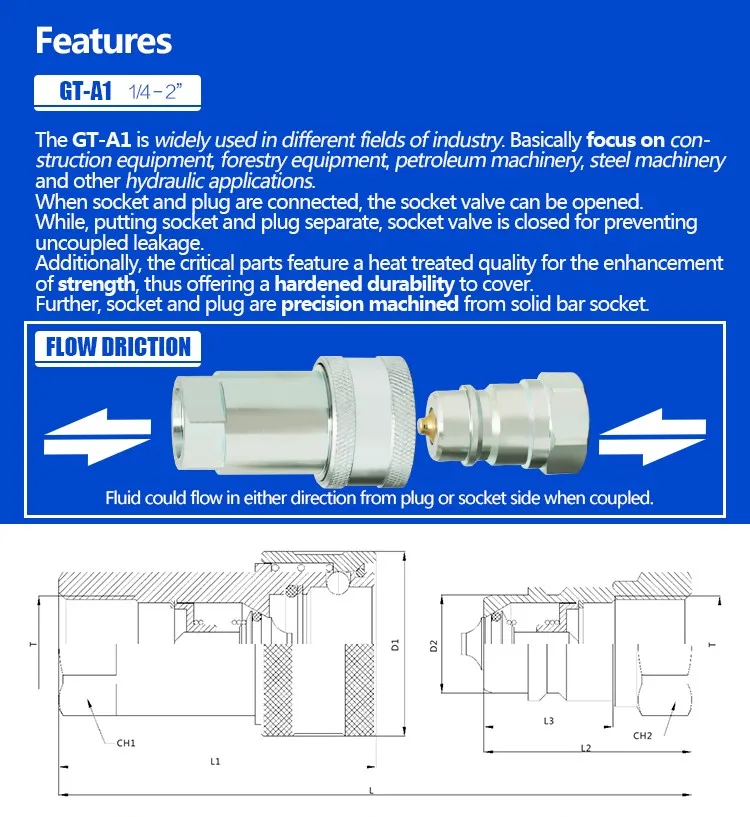

Code:08 ISO Size:DN25 L=120mm L1=94mm L2=59.5mm L3=36mm D1=56mm D2=34.3mm CH1=41mm CH2=41mm
Specifications:
| Body Size | ISO Size | Rated Pressure | Rated Flow | Temperature Range(NBR) | Temperature Range(FKM) |
| 1" | DN25 | 3000 PSI | 190 L/min | -20℃~100℃ | -20℃~180℃ |
Applications:
Plant maintenance equipment, skid-steer loaders, snow plows, mining, dump trucks, gooseneck trailers, chemical transfer lines, and many more.
Company Information
Hydraulic Quick Coupling Manufacturer Since 1992.
Gute was found in 1992 by Mr. Baiyin Zou. The company is located in Ningbo City. we had one of the largest export port-the Ningbo Port . We just now start to export directly by ourselves in 2013. Company occupies 10 acres,workshop area is 20,000 square meters. Equipped with special equipment more than 100 units / sets of CNC machine from Japan. Gute has good management experience and many well-skilled workers. With the philosophy of Quality first and Customer supremacy,our products are selling well both at domestic and oversea. GUTE have got the ISO9001:2008 certification in 2014.
GUTE is one of the leading manufacturer for quick release coupling in China. GUTE's components can be find in fields of Construction machinery, Automobile manufacturing, Industrial pipe,Marine,Energy, Defence and Automation. We produce products according to international standards.In addition,customization and OEM are also available here.
Our goal is to become a strategic and long-term partner supplier of hydraulic products to each of our customers.
Certifications
FAQ
| Q1:Why we choose you ? |
a. We are real factory, we can control delivery by ourself. b. We are real factory, our price is more Competitive. c. We have a professional sales team, all enquiry can be reply within 12 hours. you can contact us in any time without time difference. d. Our sales team members has been in import and export at lease 3 years. |
| Q2:What's your process to place order ? |
| Confirm Design → lead time → artwork →Sign PI →customer sign pI and pay Deposit |
| Q3:What's your payment terms ? |
| T/T. 30% Deposit and 70% balance before shipment. |
| Q4:What's your service to us ? |
a. Before place order, We could help you to check the shipping cost, Also we can arrange shipping as we have coorperated cargo company. b. Durning Production, we would update your production anytime if you need. Normally we would send you email with production photos every 3days. c. Doc.for custom clearance would sent asap. |
| Q5: What’s your product life cycle? |
About 500, 000 times connection and disconnection. |
