Good Quality Rubber Roll Vulcanizing Press Rubber Hot Press Vulcanizer
- Category: >>>
- Supplier: Qingdao Huicai Machine Manufacture Co. Ltd.
Share on (60781133363):
Product Overview
Description
Product Description

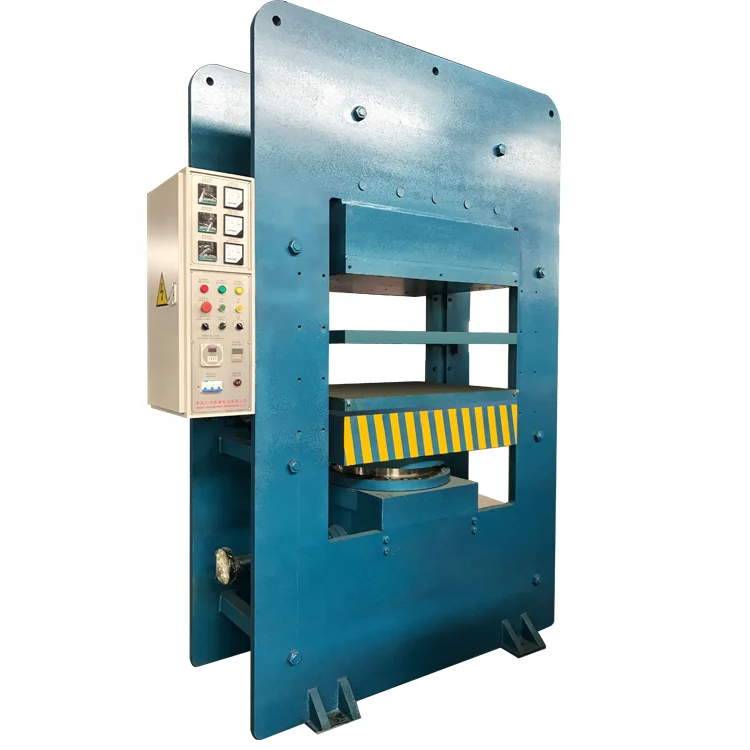

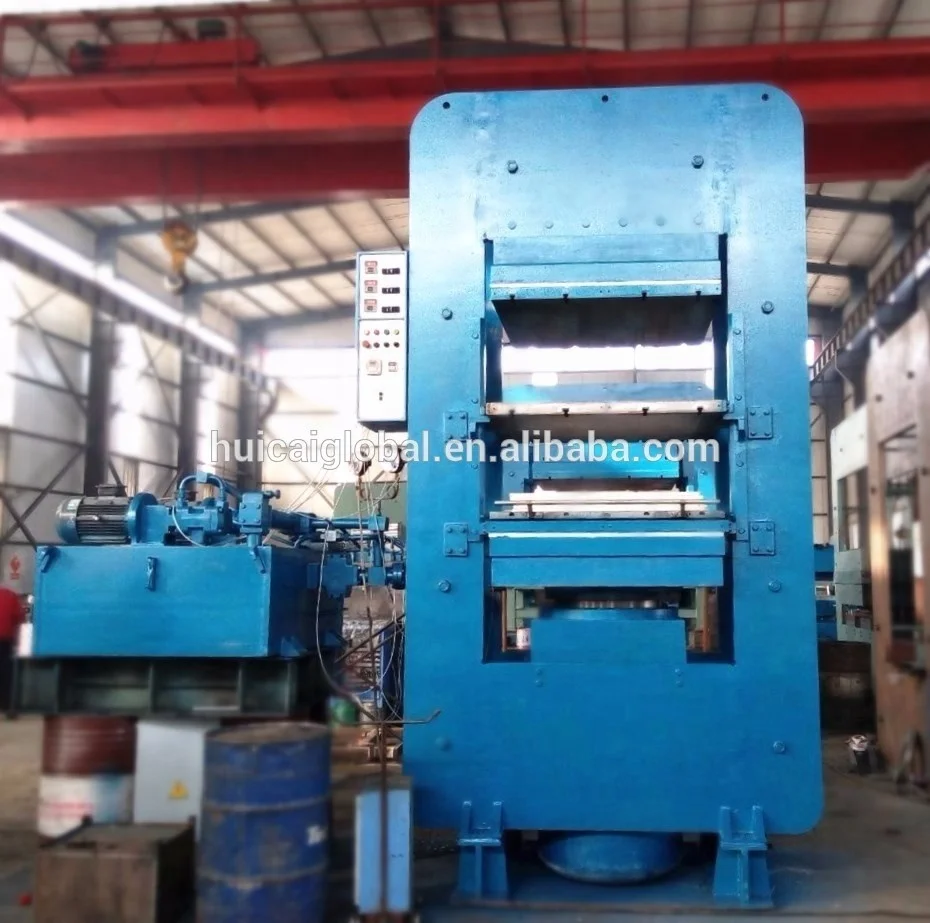

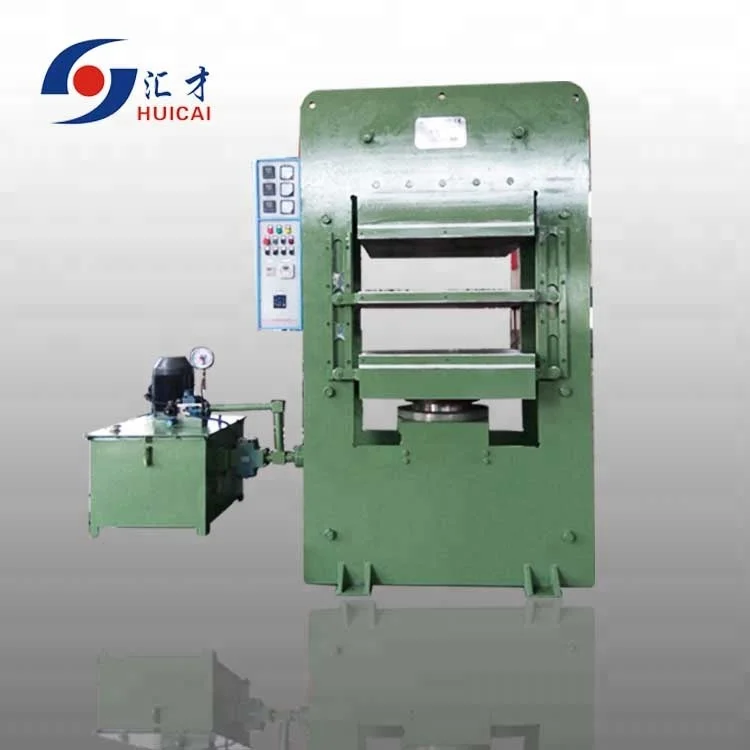

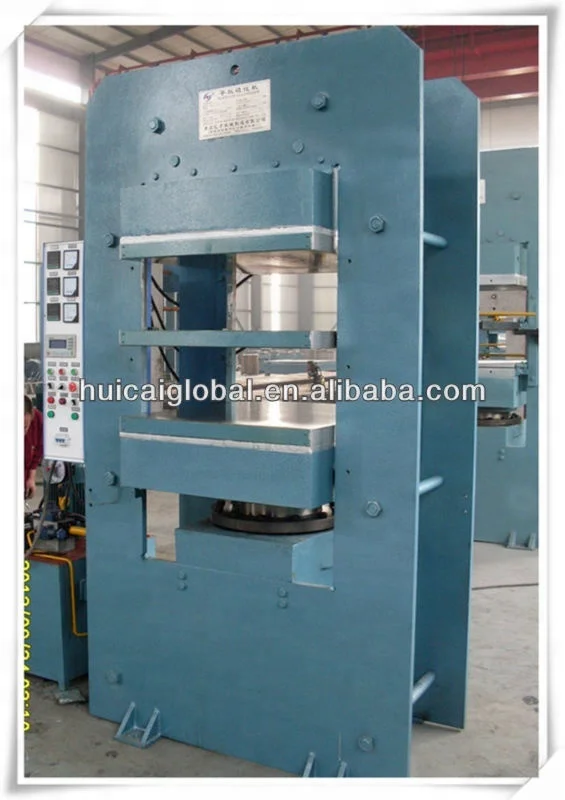

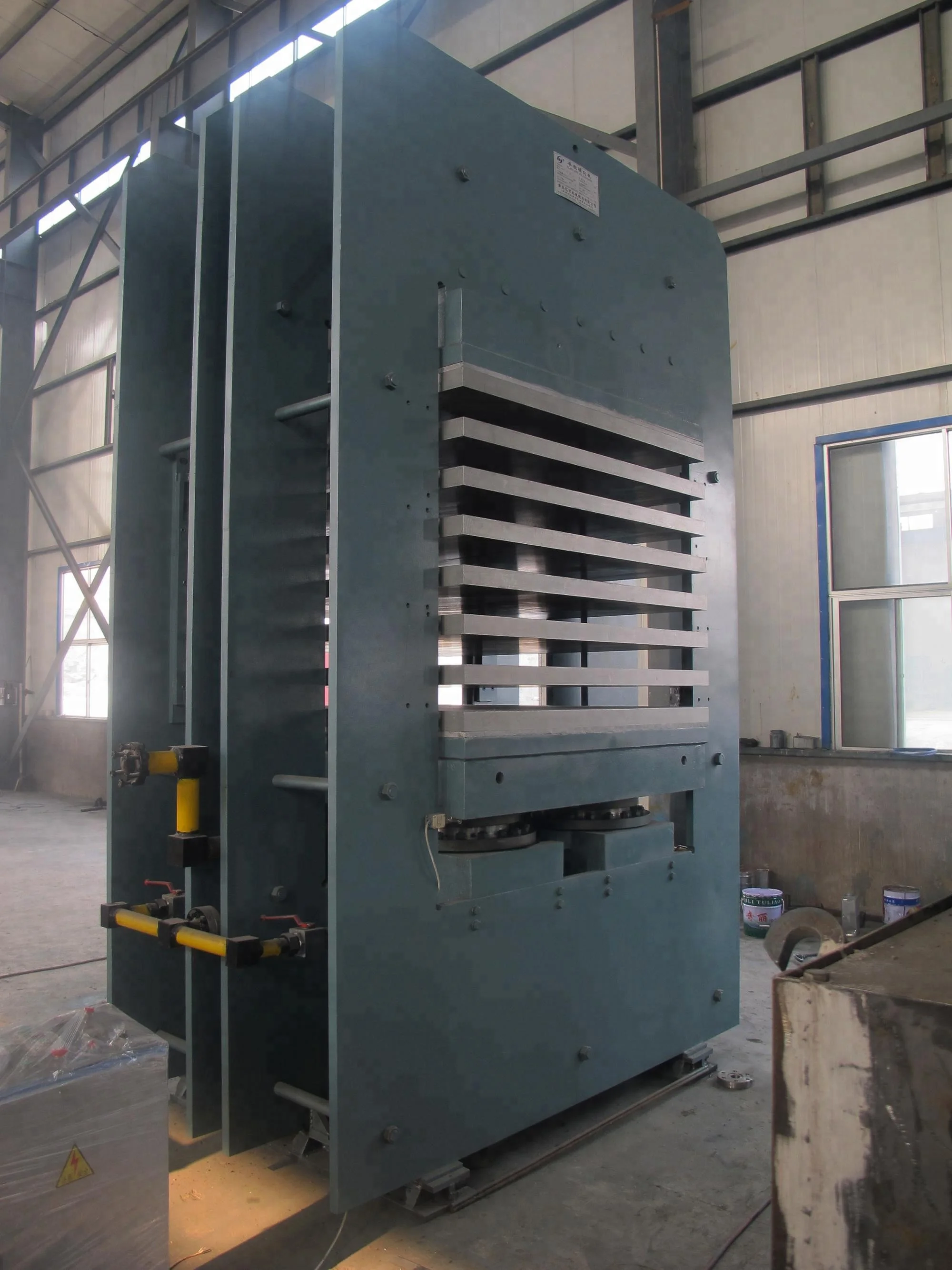

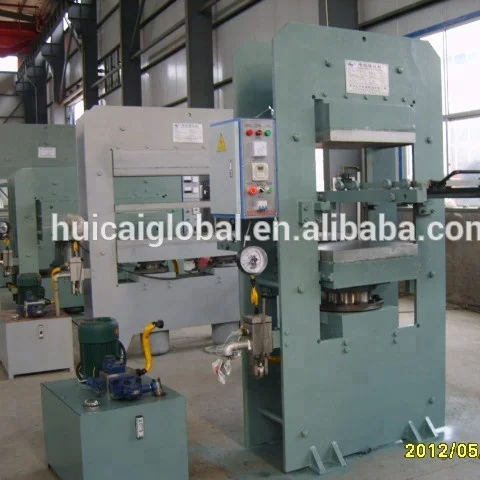

Pictures of Rubber Vulcanizing Press Machine:
Technical Data:
All kinds of non standard rubber machinery are avaliable.we can design and manufacture the machine especially as each customer requirements in order to meet customer need.So Please send me your detailed requirements.
| Type | XLB-D(Y)350*350*2/0.25 | XLB-D(Y)400*400*2/0.5 | XLB-D(Y)500*500*2/0.6(0.8) |
| Nominal molding power(MN) | 0.25 | 0.5 | 0.6,0.8 |
| Working layer number | 2 | 2 | 2 |
| Piston stroke(mm) | 250 | 250 | 250 |
| Plate Press(Mpa) | 2.04 | 3.13 | 3.2 |
| Main motor power(KW) | 1.5 | 2.2(1.5) | 2.2(1.5) |
| Plate clearance(mm) | 125-200 | 125-200 | 125-200 |
| Calefaction manner | Electric oil steam | Electric oil steam | Electric oil steam |
| Configuration | Column Frame | Column Frame | Column Frame |
| Electric pipe heating power(KW) | 1.8 | 2.7 | 3.0 |
Use:
This machine is used to produce various rubber products, such as solid tire, shoe sole, rubber tile, rubber sheet, rubber hollowmat,rubber floor mat,rubber cow mat,rubber horse mat, rubber gasket, rubber wheels,rubber belt, etc.
Features:
1. High speed open/close molds, high production efficiency
2. Automatic in/out mold and ejector device, low labor strength
3.Optional normal valve or proportional valve, advanced oil way matching, reduce energy consumption
4. The electric system adopt PLC programming control, which is easy to be operated
