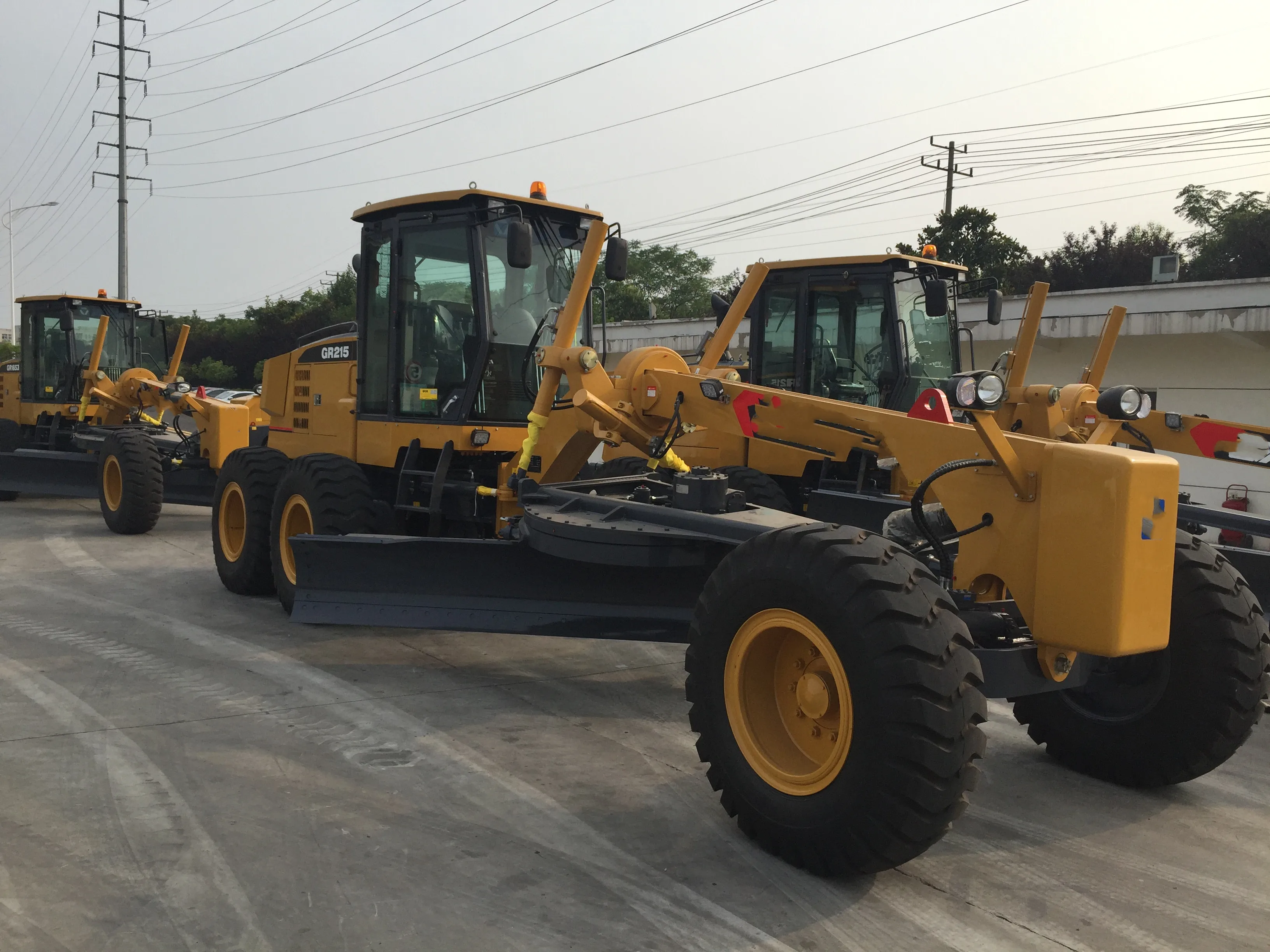

2023 Hot Sale 215hp motor grader GR215 with best price
- Category: >>>
- Supplier: Xuzhou Asiaway Heavy Machinery Co. Ltd.
Share on (60781179833):
Product Overview
Description
Product Description
SPECIFICATIONS FOR MOTOR GRADER GR215 | ||||||
Engine | Engine Brand | Cummins engine | ||||
Engine model | 6CTA8.3 | |||||
Engine rated power | KW | 153 | ||||
Main performance parameters | Traction force | KN | 85 | |||
Min. Turing radius | m | 7.3 | ||||
Moldboard width*height | mm | 4270*610mm | ||||
Hydraulic system | Tire inflation pressure | KPa | 260 | |||
Working hydraulic pressure | mpa | 16 | ||||
Transmission pressure | mpa | 1.3-1.8 | ||||
Main Features
GR SERIES motor grader covers eight eries, power range from 100hp-550hp,reliable quality, stable performance and the market share ranking first in the industry for many years. The motor grader can be widely used in highways, airport,farmland moving, loose soil and snow removal operations of large area of ground.

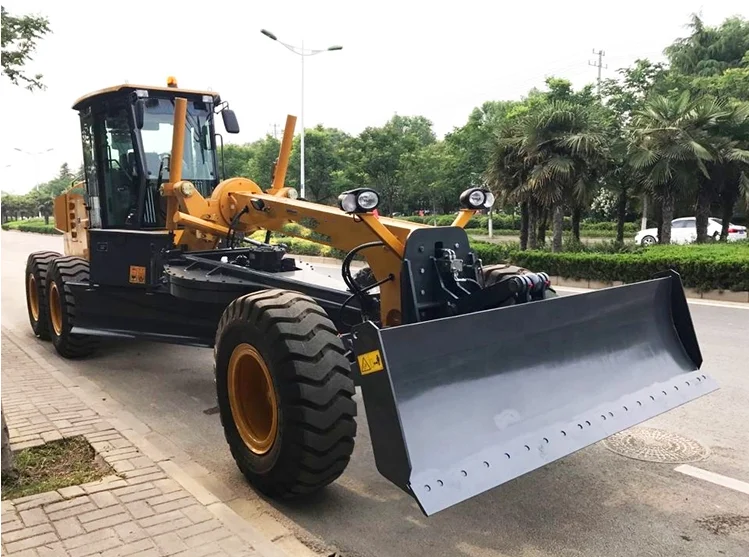

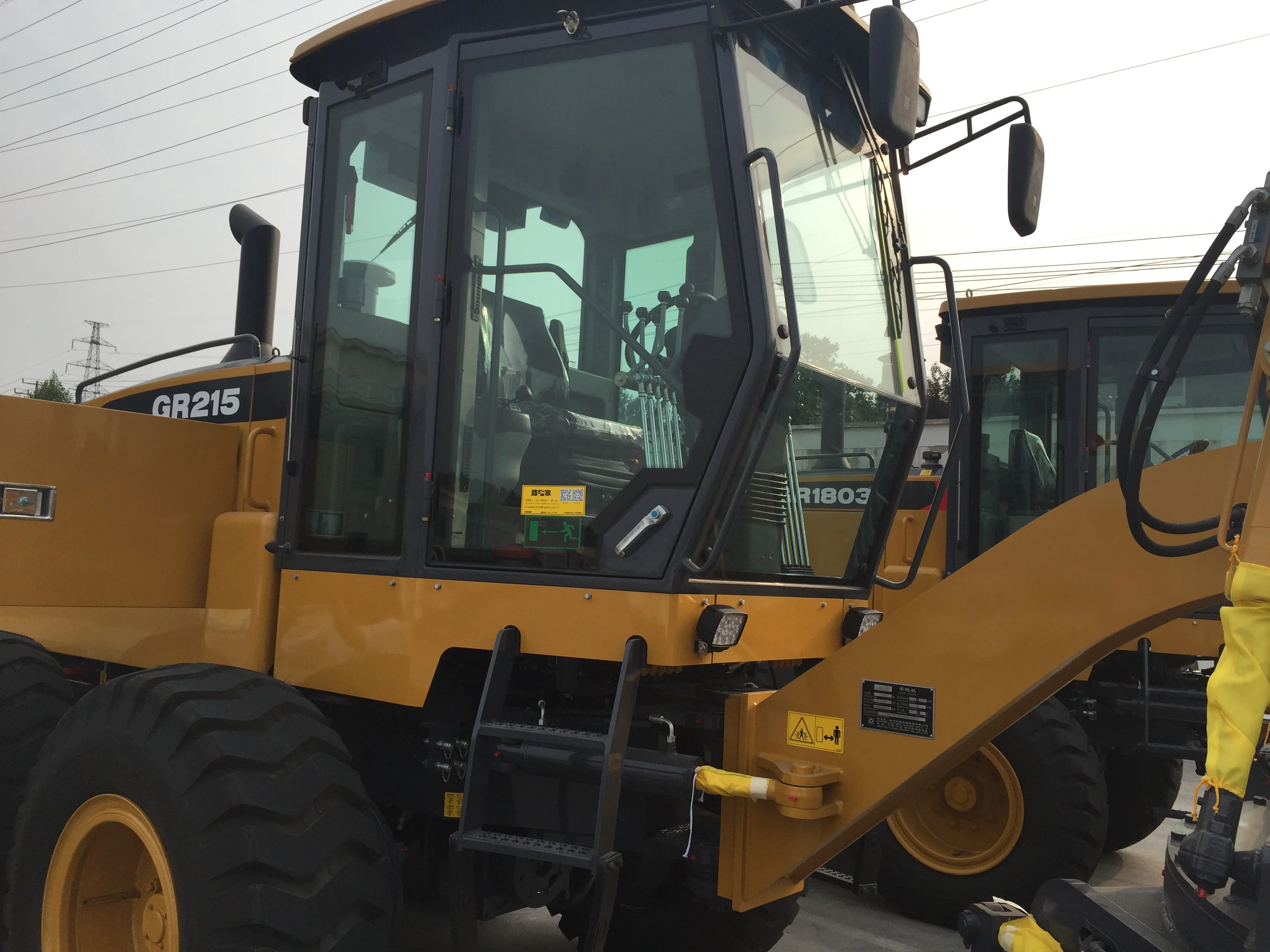

Detailed Images
Machine Parts

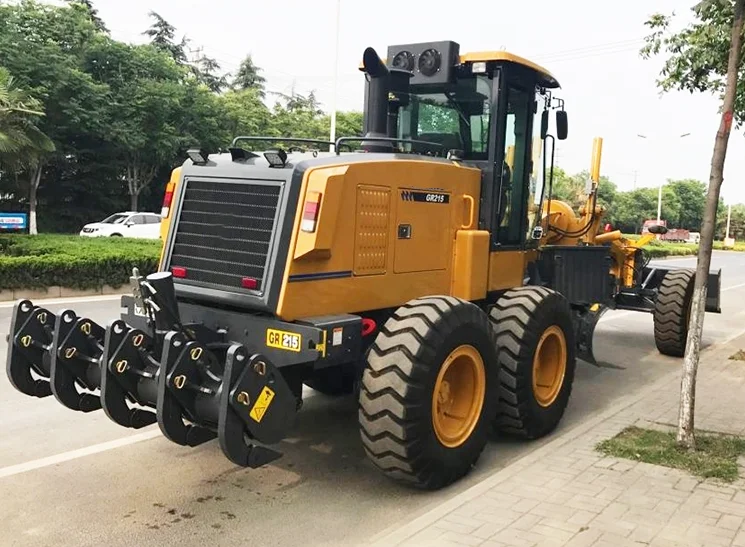

Name: Rear ripper
The rear ripper is optional for grader
Main Features
Name: counter weight
Machine Parts
Name: Middle blade
Main Features
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

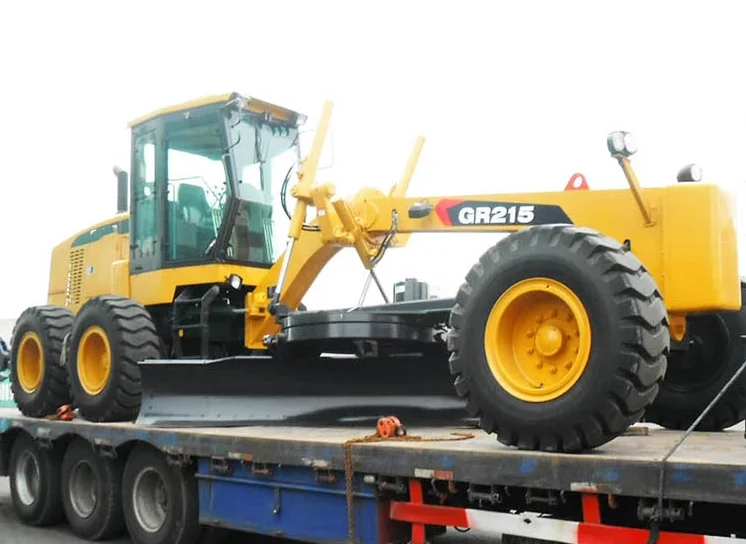

Packing & Delivery
Packaging | ||
Size | 8015(L) * 2380 (W) * 3050 (H)mm | |
Weight | 11200kgs | |
Packaging Details | Each unit can be put into one 40HQ container. | |
