Footwear Testing Equipment Whole Shoes Flexing Tester
- Category: >>>
- Supplier: Quanzhou GESTER Instruments Co. Ltd.
Share on (60781232913):
Product Overview
Description
Product Description
Product Overviews
| APPLICATION |
It is to test finished shoes, like sports shoes, casual shoes, work shoes etc. And determine its flexing resistance or indicating the cracks of shoe or shoe sole through reciprocating flexing movements under the specified angle and frequency.
| PRINCIPLE |
Press the foreshoes, and lift the heel for reciprocating flexing.
| FEATURE |
1. Equipped with acrylic protective cover, which make sure safe operation and low noise.
2. Heel fixture using linear slide for smooth movement with little resistance.
3. Freely set running times and machine automatically stop after test finished.
| KEY SPECIFICATION |
Model | GT-KA01-2A | GT-KA01-2B |
Test sample | Test 4 samples simultaneously | Test 2 samples simultaneously |
Bending angle | 0~ 90° (adjustable) | |
Test speed | 0°~50°, adjustable speed range: 60~230cpm 50°~90°, adjustable speed range: 60~140cpm | |
Counter | LCD display, 0-99,999,99 (8 digits) | |
Power | AC 220V 50/60HZ 3A | |
Dimension(W×D×H) | 95 x 76 x70cm | 58 x 74 x 72 cm |
Weights | 223kg | About 150kg |
Standards | SATRA TM92 | |
| ACCESSORIES |
Standards accessories
| 1set | Heel clamp |
1set | Plastic pad | |
1set | Spanner | |
1pc | Power line |
| DETAIL |

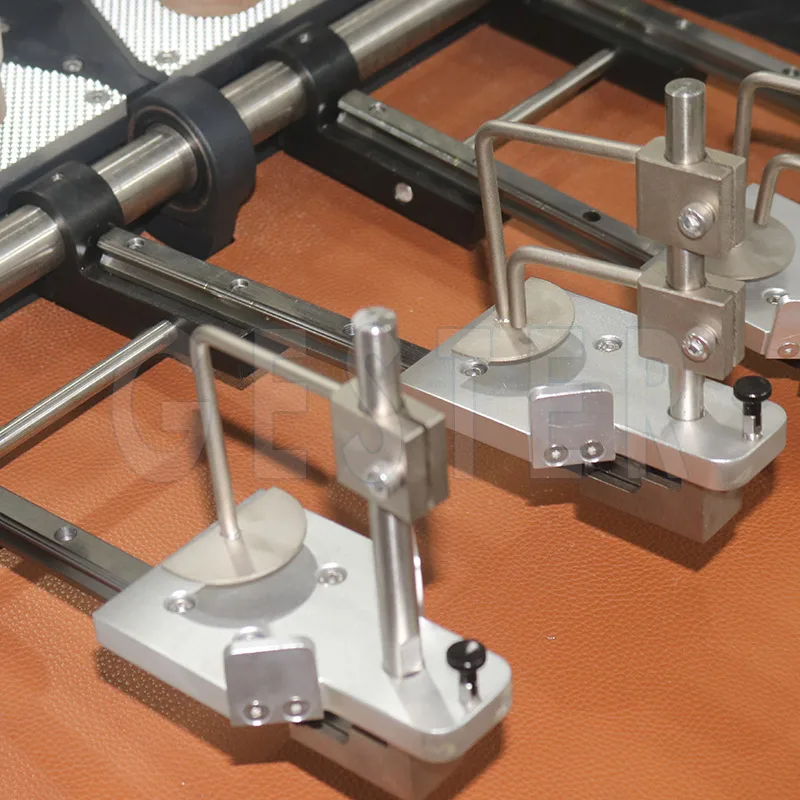

Heel Fixture | Adjusting Bolt | ||
| It is to clamp the shoes heel, and release the fix pin when testing to make clamp move freely. |
| It is used to adjust the location of forefoot fixture
|

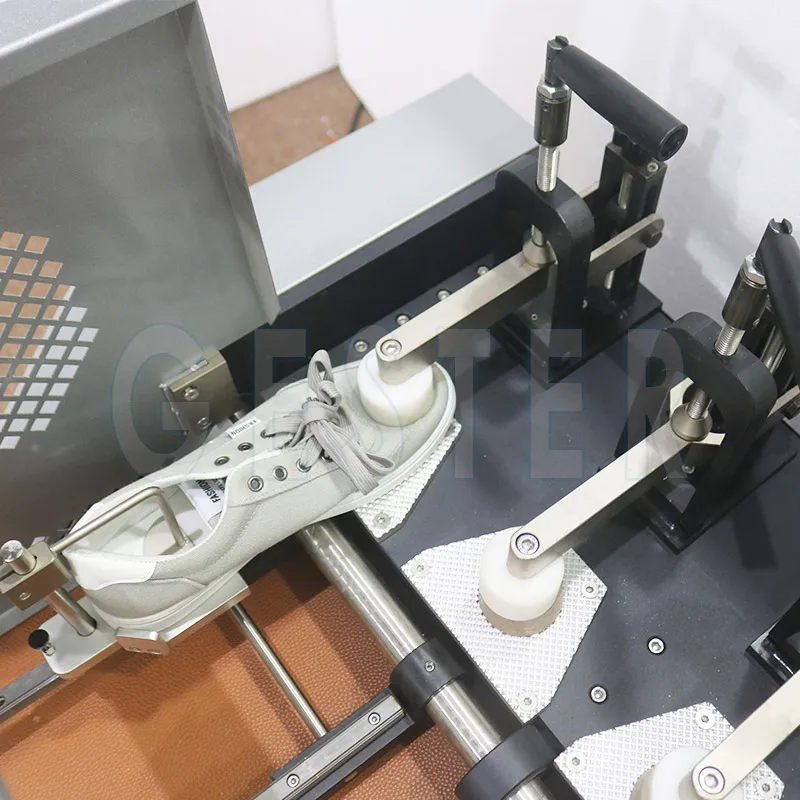

Forefoot Fixture |
| ||
| l Slip block: to avoid slide or loose l Round pressure head: plastic steel material, to fix forefoot l Round pad: Bakelite material, to place inside forefoot and collaborated with round pressure head.
| ||
Vent | Speed Regulator | ||
| It is for machine internal ventilation |
| It is to adjust test speed. |
Front View | Side View | ||

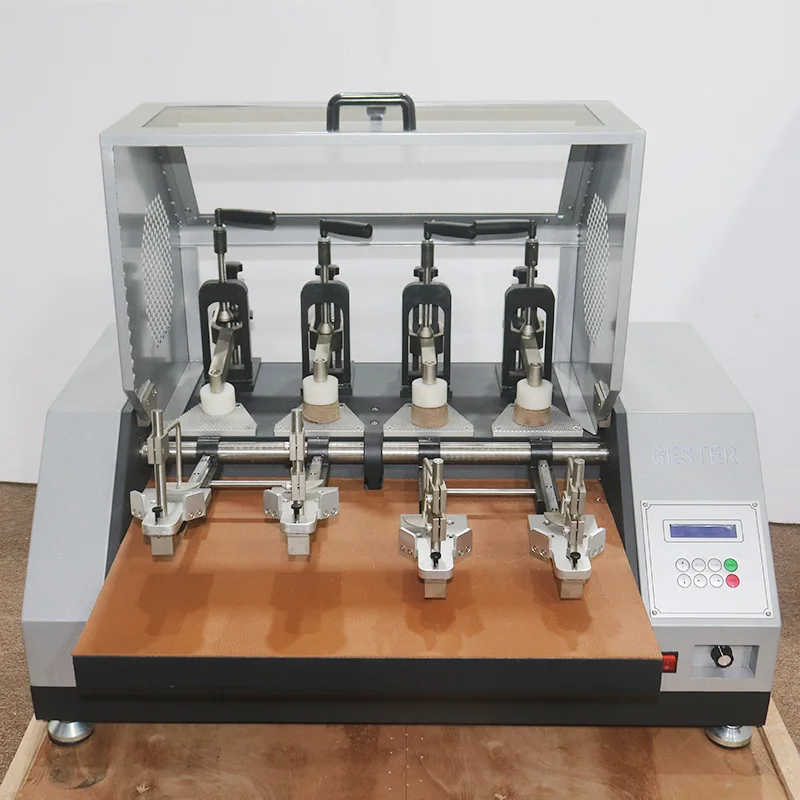

| Front view of whole machine |

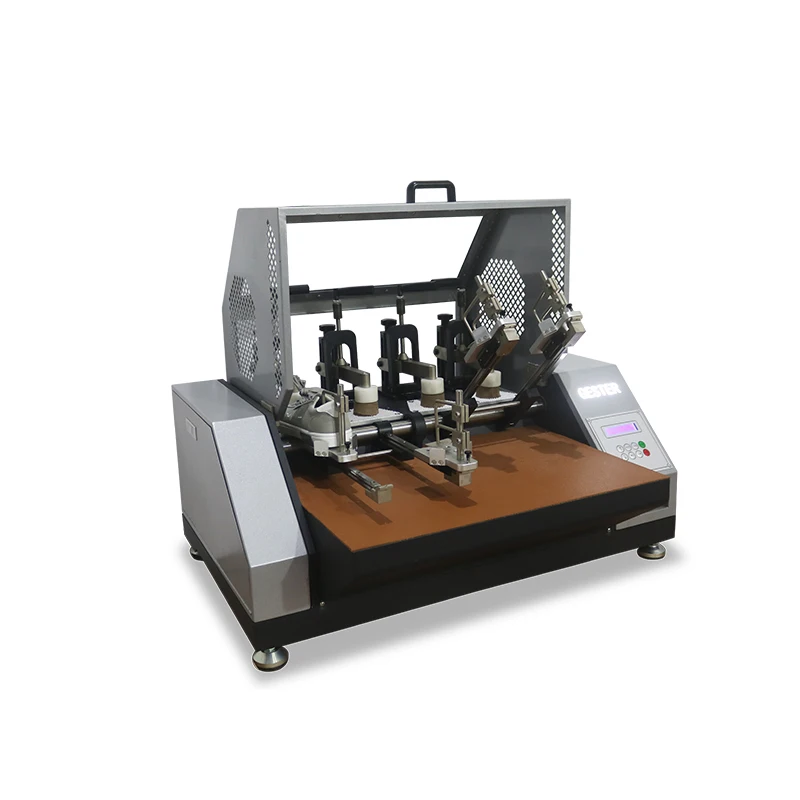

| Side view of whole machine |
