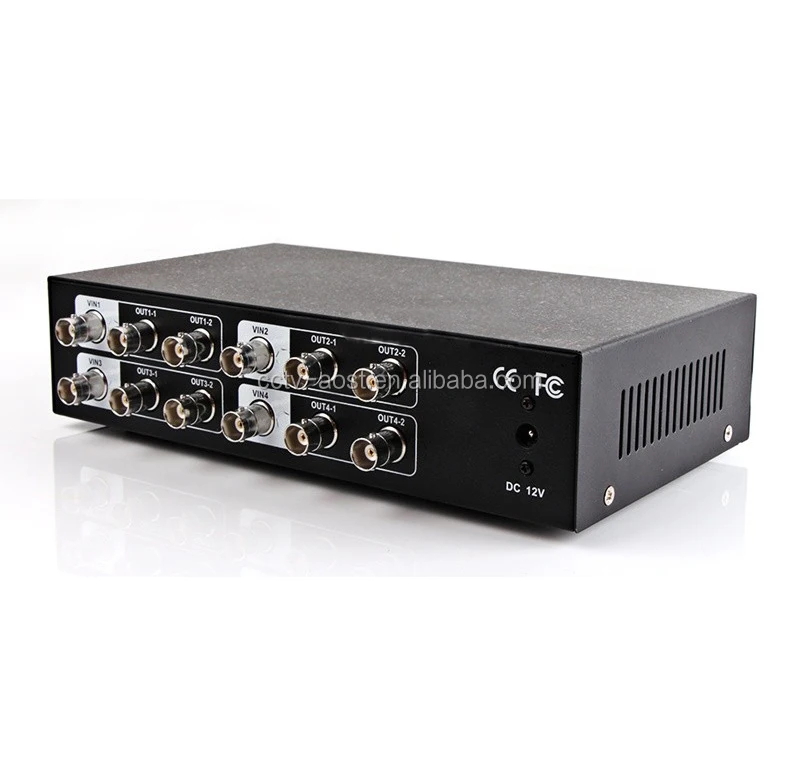

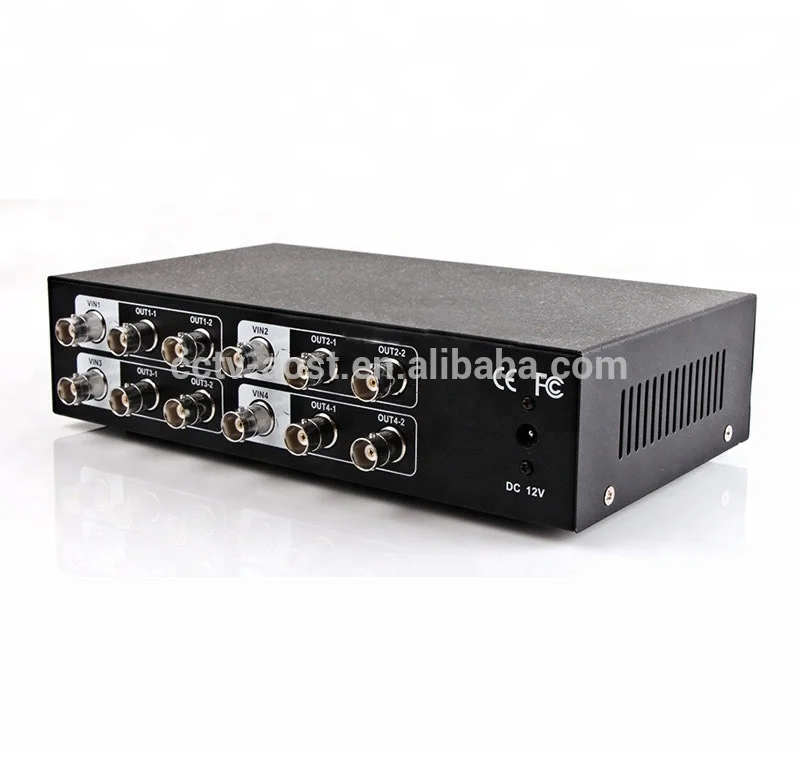

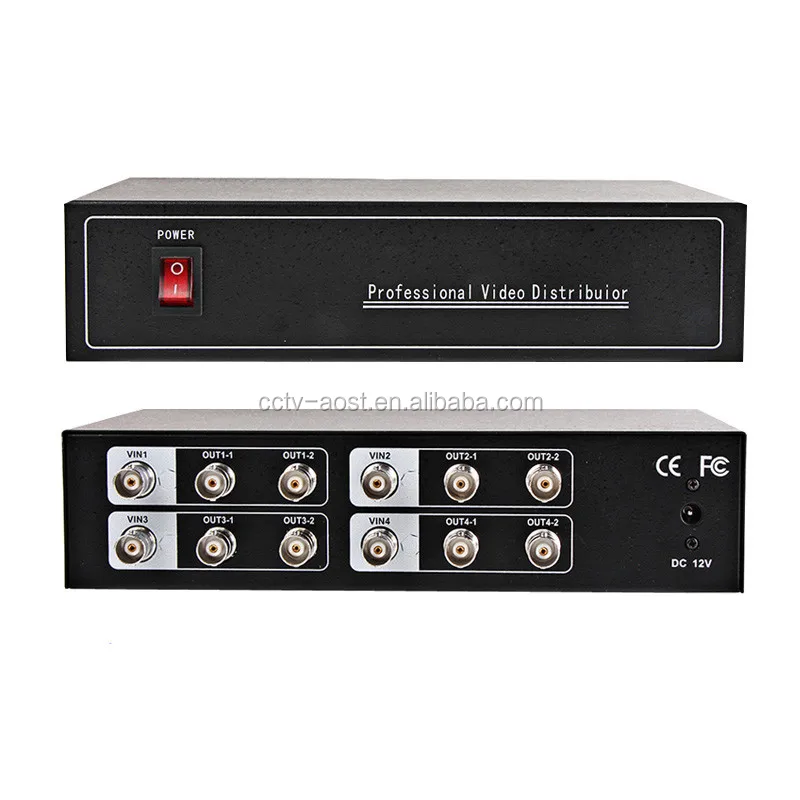

4in 8out HD видеодистрибьютор AHD/CVI/TVI камера BNC выход, Поддержка DC12v
- Category: Other Surveillance Products >>>
- Supplier: Aost Electronic Tech Co. Limited
Share on (60781234471):
Product Overview
Description
Product Description
Technical Parameters:
Support for 1280 x 720 and 1920 x 1080 resolution two, 25, 30, 50, 60 and four frame rate, 1280H/25f.
1280H/30f. 1280H/50f, 1280H/60f, 1920H/25f, 1920H/30f six kinds of HD format,.
Video images of the proportion of 16:9 standards.
Analog video transmission technology.
A progressive scan frame, transmission mode.
Using the coaxial cable as the transmission medium.
Supports audio coaxial transmission, transmission direction from the camera side to the receiving device side.
The highest audio signal can be supported by the sampling rate of 44.1kHz.
(1280H/25f is the highest 32KHz sampling rate.)
Support Coaxial two-way data communication, through the receiver to send control signals such as collecting end head rotation, zoom control.
Support the baud rate of 2400/4800/9600.(foward transmission support 2400/4800/9600,2400/4800.)
Automatic correction of the signal distortion of different transmission channels.
Product parameters:
Name | HD Video Splitter | Input Length | Unlimited |
Goods number | 4-8 | Output Length | 300-600M |
Temperature | -15 to + 55 | Power Supply | DC 12V |
Humidity | 5 to 90% | Material quality | Anti Corrosion Steel Black |
Resolution | 1280x720, 1920x1080 | Size(mm) | 210x120x50 |
Input Port | 4 road | Weight | 0.65kg |
Output Port | 8 road | Warranty | 24 months |
Company Information
Certifications
Trade Shows
Packaging & delivery
Packing
Export Cartons or Customized
Delivery
Delivery time: 7-15 working days after payment confirmed.
Shipment: By Express, By Sea, by Air, Collected by customers
