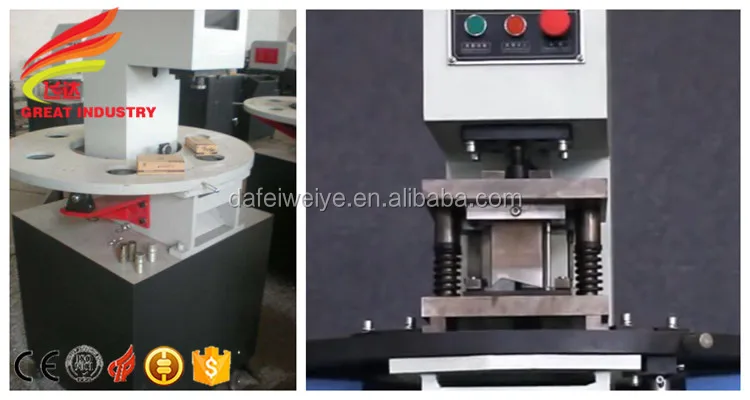

4 6 molds pneumatic vinyl windows making machine for punch aluminum window and door
- Category: >>>
- Supplier: Beijing Dafei Weiye Industrial & Trading Co. Ltd.
Share on (60781242914):
Product Overview
Description
Six position vinyl windows making machine for Aluminium Window and Door Profiles
Product Application vinyl windows making machine

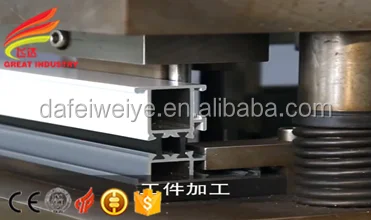

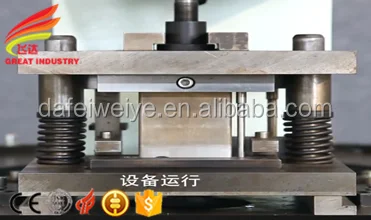

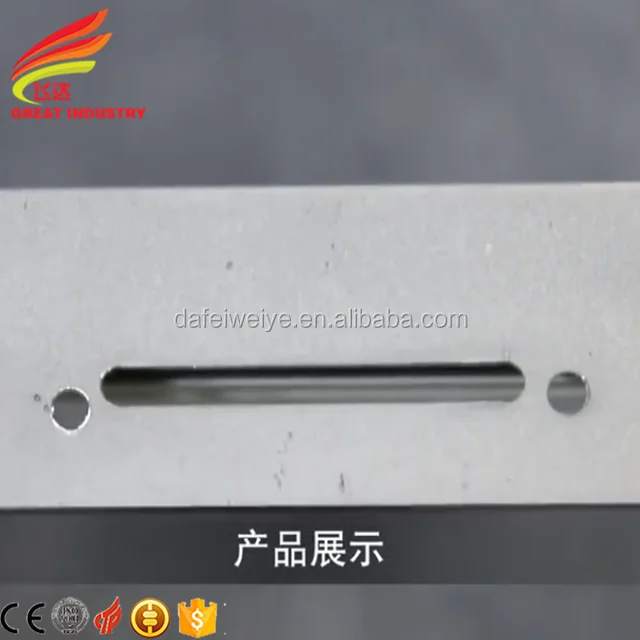

--For punching and blanking aluminum window and door profiles.
--With hydro-pneumatic boosting system, the machine works durably and stably, is in low failure rate , easy for repair; free from electric power and with low noise.

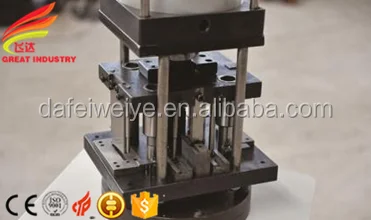

--Toe index (rotatable position) design for worktable makes the machine available for 4~6 sets of moulds, taking less space and
convenient for operating.
Main Specification vinyl windows making machine
1) Max. punching stroke of the punching cylinder -----------------------------30 mm
2) Allowed open height of the die holder ----------------------------------------140~190 mm
3) Working range of the worktable -----------------------------------------------φ420~880mm
4) Height of worktable --------------------------------------------------------------900mm
5) Pneumatic working pressure ---------------------------------------------------0.5~1.0 MPa
6) Delivery pressure ----------------------------------------------------------------5~10T
7) Air consumption -----------------------------------------------------------------0.02m³/stroke
8) Outer dimensions ----------------------------------------------------------------1000x880x1400mm
9) Weight -----------------------------------------------------------------------------300Kg
Drilling Precision vinyl windows making machine
1) Depending upon mould precision.
Certifications
Product Details

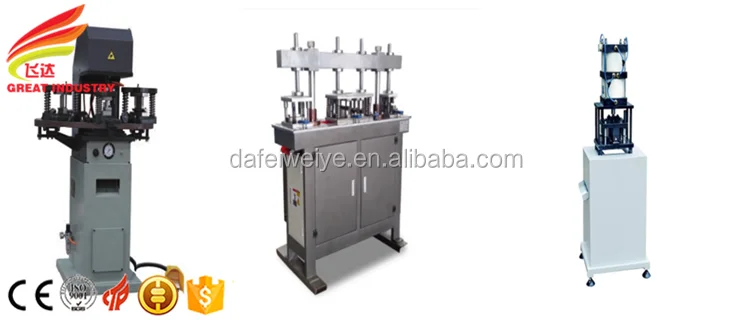

Related Products
Our Services
Company Information
Packaging & Shipping
| Size | 1000(L) × 880 (W) × 1400(H) |
| Weight | 300 KGS |
| Packing details | Aluminum foil vacuumed /vinyl windows making machine |
