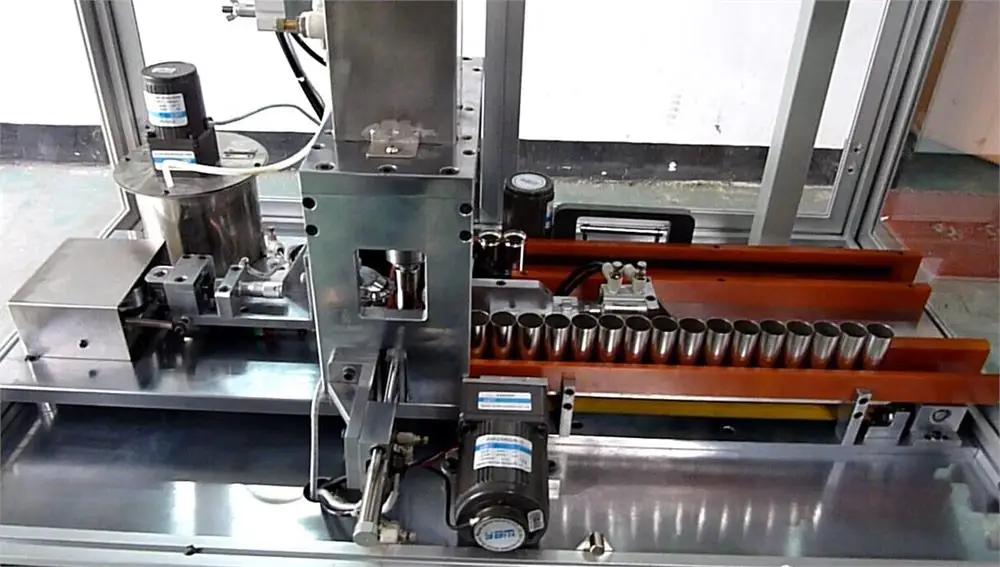

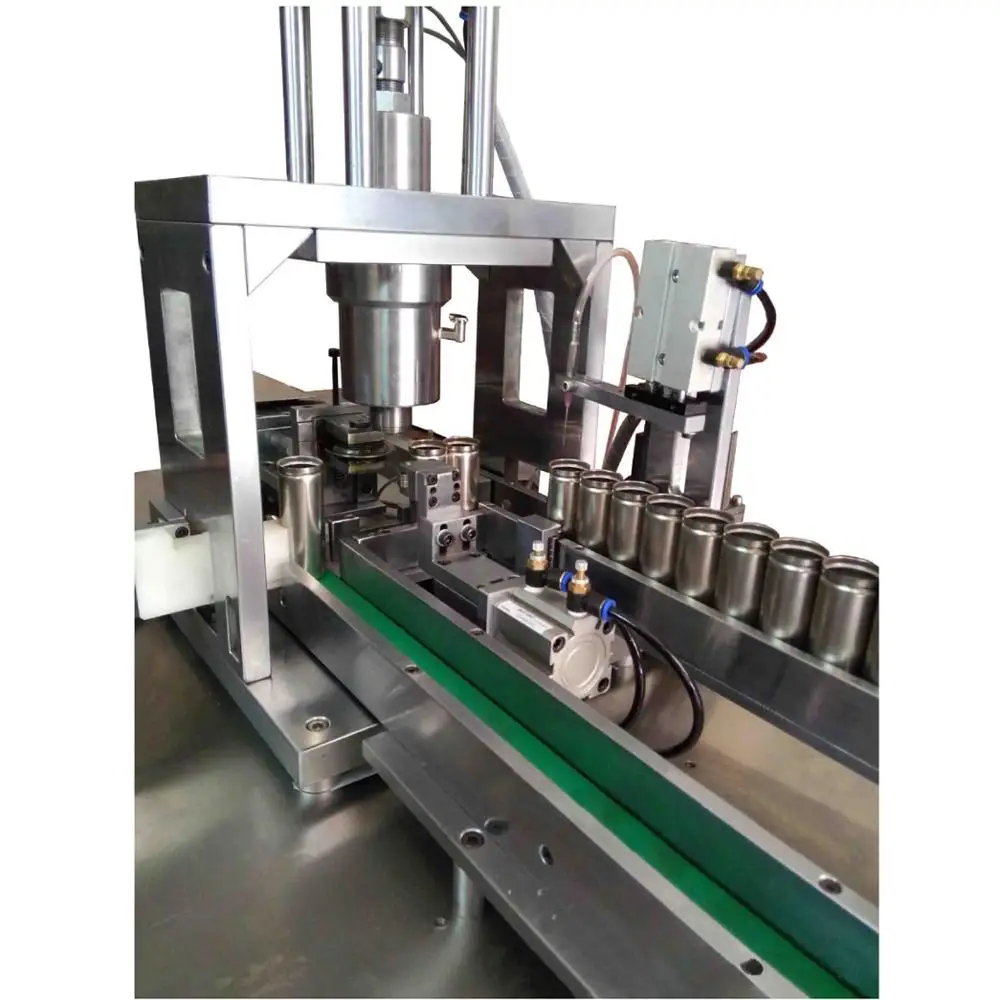

Floor-stand Roll Grooving Groover Machine For 14500,18650,26650,32650 Cylindrical Battery Cases
It is an auto grooving machine for cylindrical battery cases. It provides a continues workflow for case batch loading - neck grooving - case unloading without dedicated labor.
Features
- Efficient batch loading/unloading mechanism with case feeding conveyor
- Horizontally positioned grooving blade ensures the most stable and accurate grooving
- Micrometer assisted grooving depth & height adjustment
- Ability to compensate the axial deformation of a cylindrical casing
- User-friendly human-machine interface with PLC touch screen control

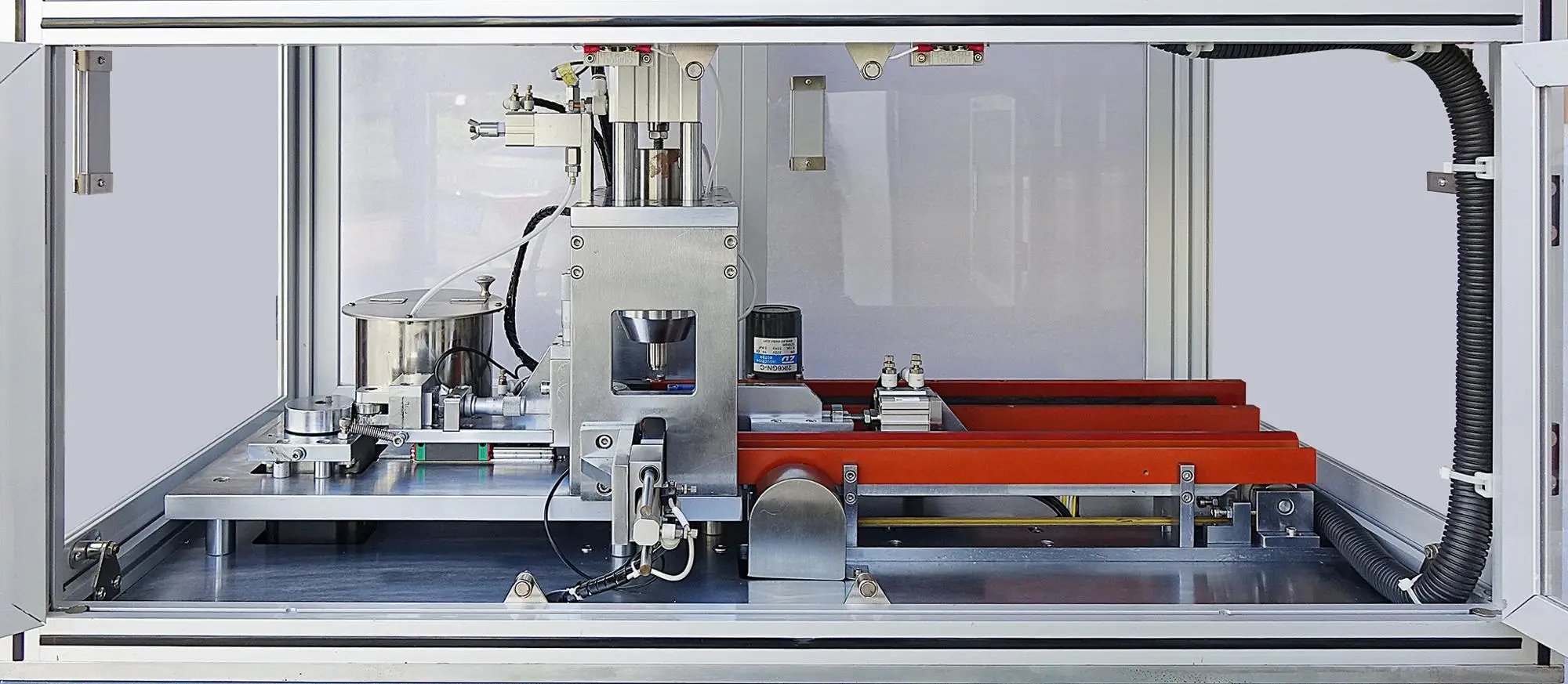

- Floor-Stand enclosure with transparent front & side openable windows allow clear process monitoring and adjustment
Specifications
Working Voltage | 110/220V AC, 50/60Hz |
Max. Power Consumption | 1KW |
Air Pressure | 0.5 MPa~0.8Mpa is required |
Compatibility
| Standard grooving capability for 18650 case |
Control
| User-friendly HMI with PLC touch screen control ensures easy program setup
|
Grooving Dimensions
| Micrometer assisted grooving depth & height adjustment
|
Grooving Accuracy
| +/- 0.1 mm |
Grooving Blade Life Span
| >1 million times
|
Grooving Force
| 6kgf/cm^2
|
Compression Ratio
| Percentage in height: 80%
|
Productivity
|
|
Product Dimensions
| W1080mm*D660mm*H1200mm |
Net Weight
| 1000lbs
|
Warranty
|
|
Our Company & Team
Certifications
Cooperative Partner
Packaging & Shipping
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
