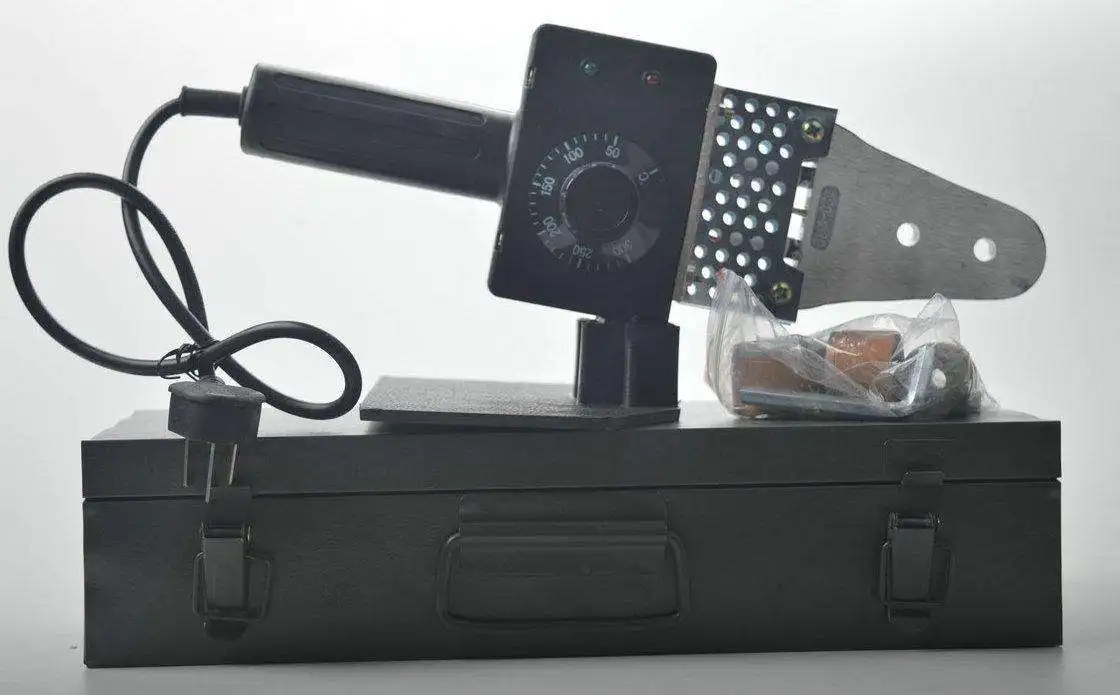

PPR Plastic pipe welding machine 300 degree thermostat

Product Overview

Description

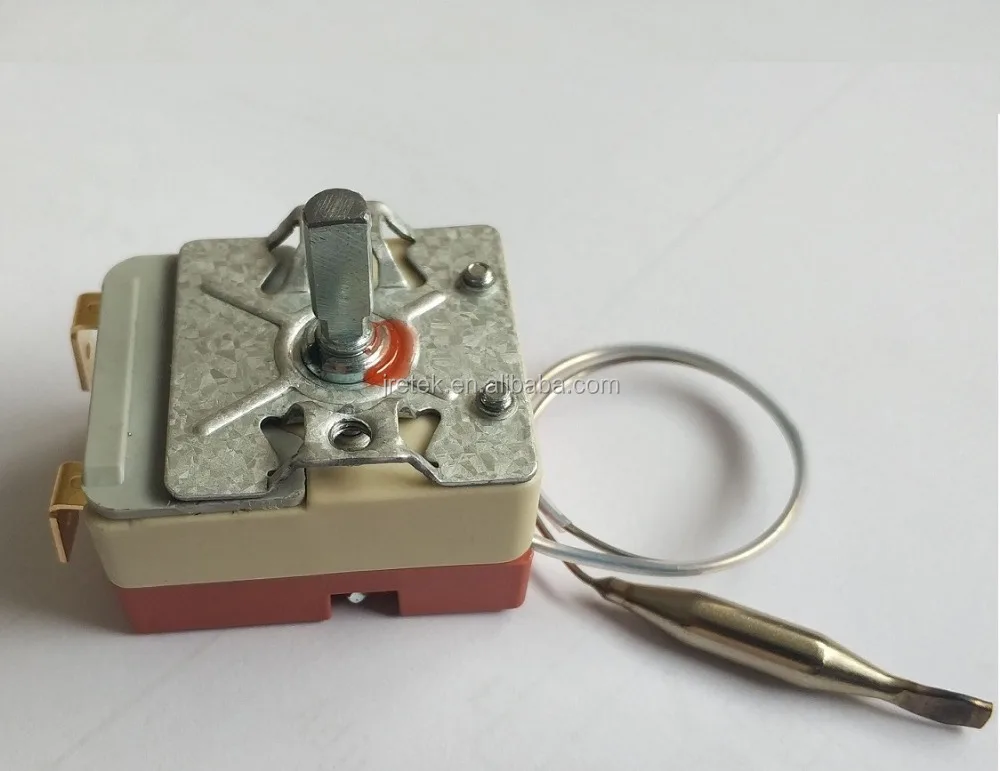

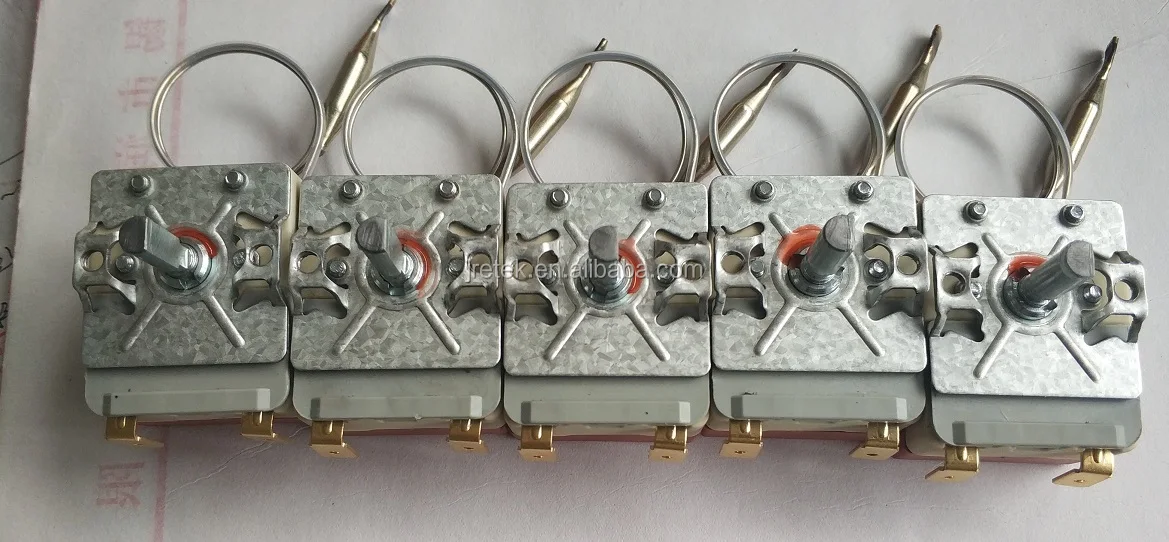

PPR  Plastic pipe welding machine 300 degree  thermostat



1)Designed temperature range: -35°C ~ 350 °C



2)Capillary Length: 300-3000mm



3)On-off temperature difference: 3°C- 10°C



4)Fitting size:28±0.25mm



5)Rated at 16A/250V 50/60Hz



6)Main body temperature: T90 / T150



7)Electric strength: 800v/s between two pin.



8)Insulation resistance≥100MΩ



9)Control type: mechanical temperature controller



10)Contact resistance:≤50MΩ



11)Operating life: ≥ 100,000times



12)Certification: CE and CQC



13)Used for electric water heater, washer, electric oven, fried pan and refrigeration industryetc.



14)Manufactured on customers' request



15)Warmlly welcome to contact us at86-15957748531



MODEL	Temperature Range	Difference	Sensitivity	Capillary length(mm)	Thermometer Bulb Length(mm)
WDF-40H	0-40°C	≤4.5°C	±5°C	400-1800	(110)
WDF-85H	30-85°C	≤4.5°C	±5°C	400-1800	(50)
WDF-93H	30-93°C	≤4.5°C	±5°C	400-1800	(45)
WDF-110H	30-110°C	≤4.5°C	±5°C	400-1800	(40)
WDF-250H	50-250°C	≤8°C	±8°C	500-1500	Φ3×170
WDF-320H	50-320°C	≤10°C	±8°C	500-1500	Φ3×130
