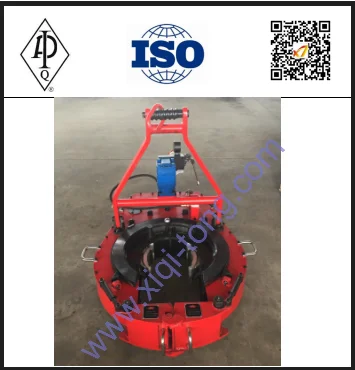

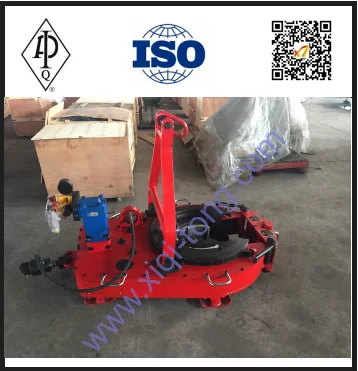

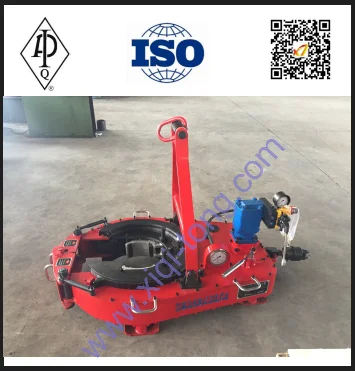

API Wellhead Casing Tongs power tong TQ340 35 Hydraulic Power Tongs oil Equipment

1. Pipe Size Range of Master Tong: φ140-340/ 5 1/2”- 13 3/8”

2. Pipe Size Range of Backup Tong: φ154-365/ 6 1/2”- 14 3/8”

3. High Gear Rated Torque: 4800N.m   3540ft-lbs

4. Low Gear Rated Torque: 35000N.m   25810ft-lbs

5. High Gear Rated Speed: 42r/min

6. Low Gear Rated Speed: 6r/min

7. Rated Operation Pressure: 16Mpa 2320psi

8. Max.Flow: 120L/min 32gpm

9. Dimension L*W*H

10. Master: 1490*1055*1040 58.7"841.5*40.9”

11. Master with Backup: 1490*1055*1844  58.7"*41.5"*72.5"

12. Weight: Master: 670KG 1480lbs

13. Master with Backup: 1020KG  2244lbs
