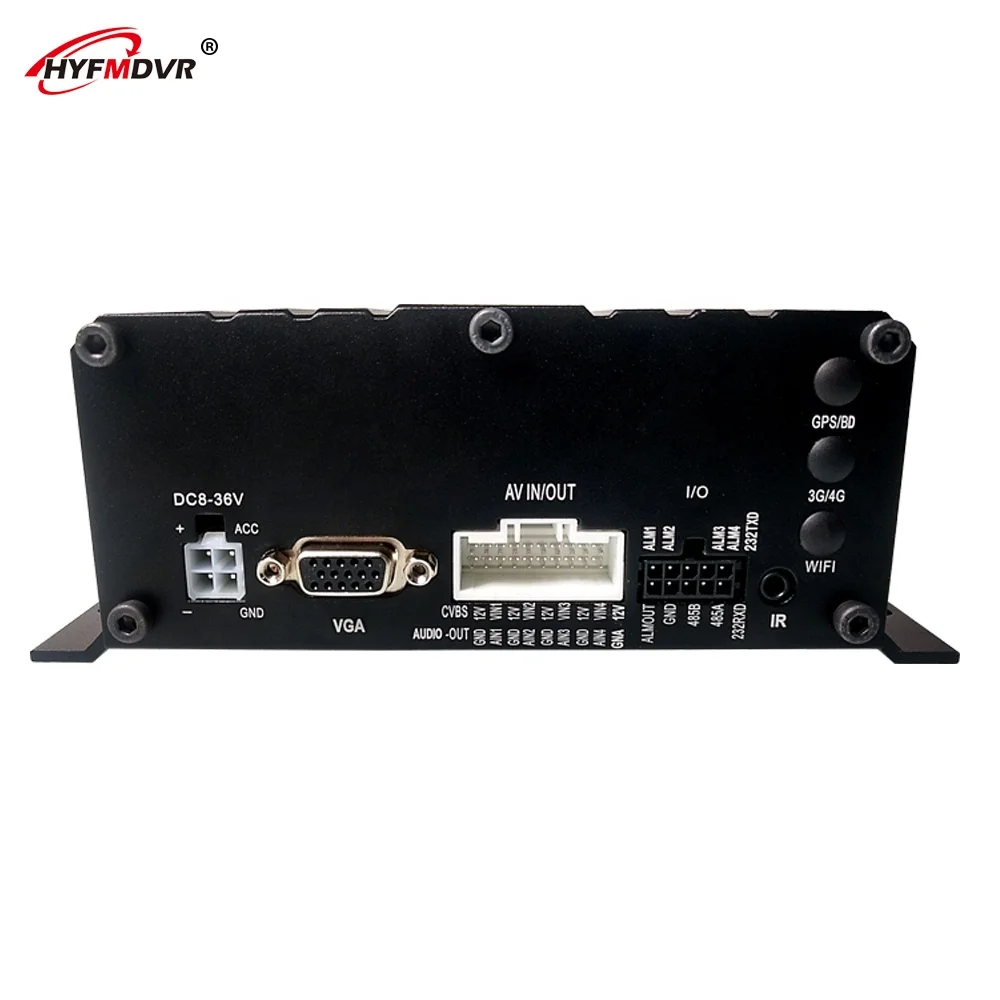

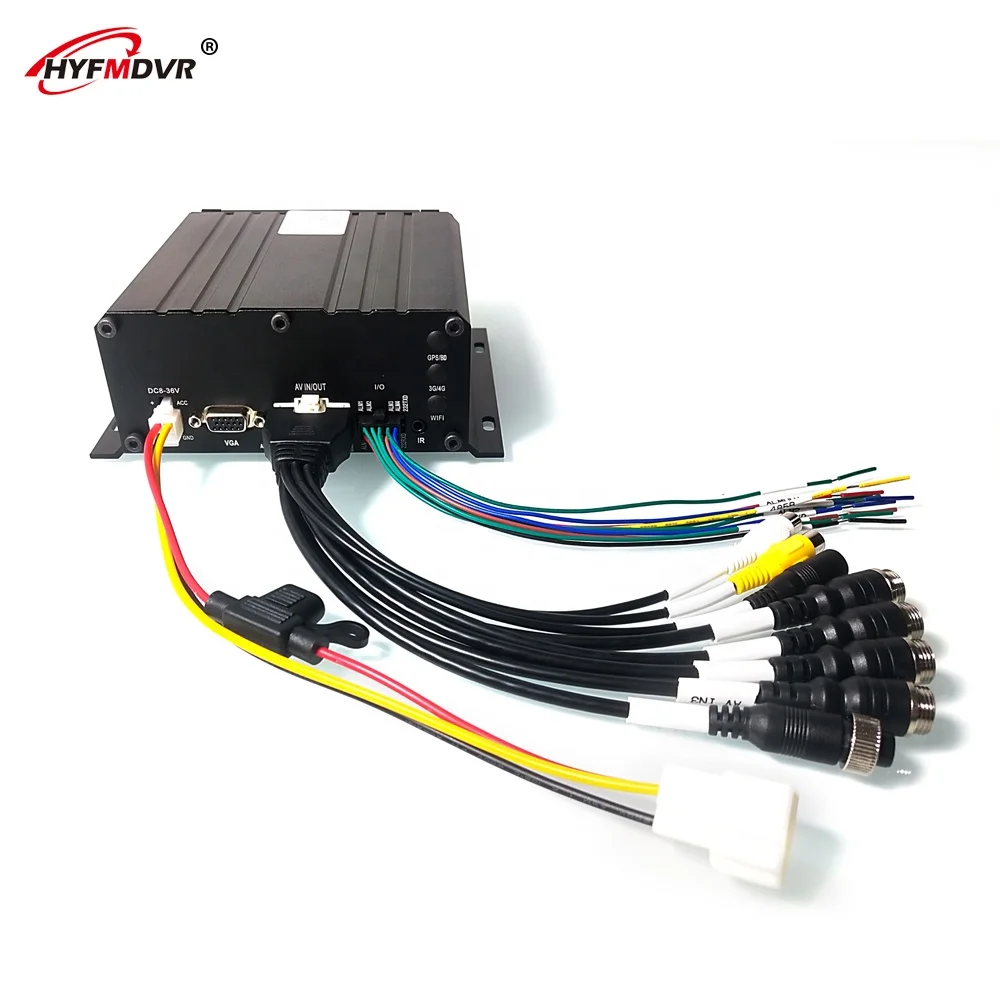

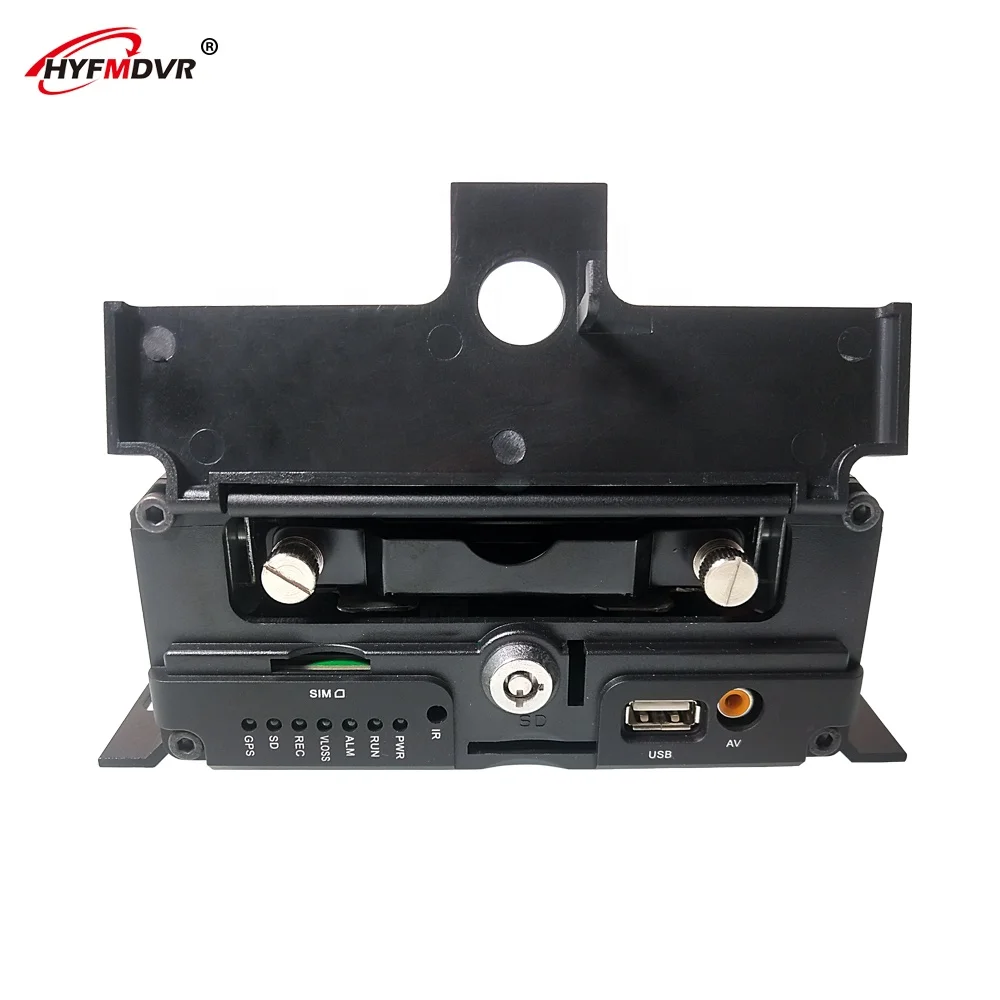

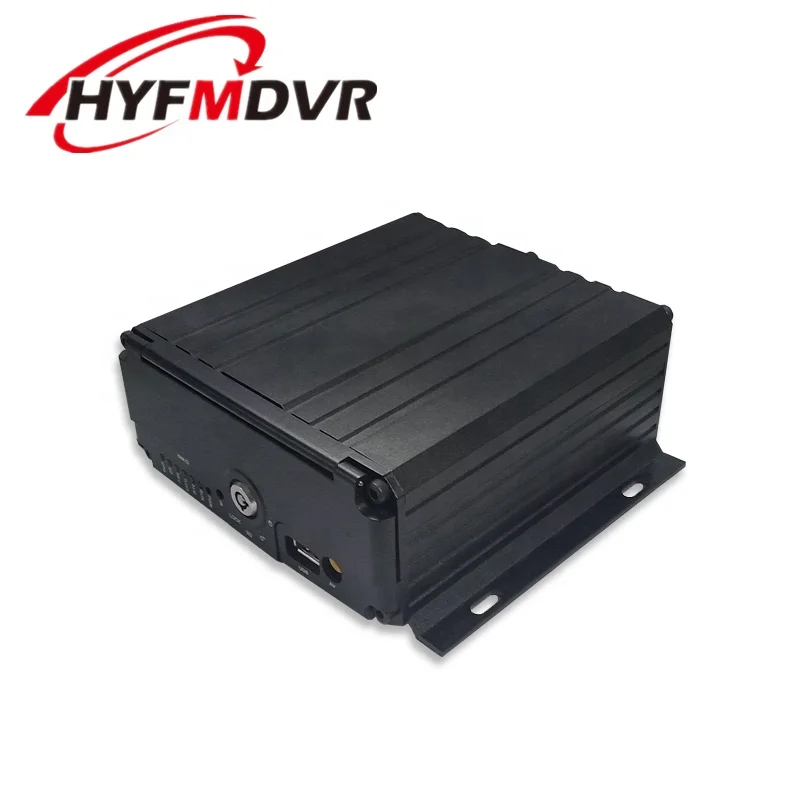

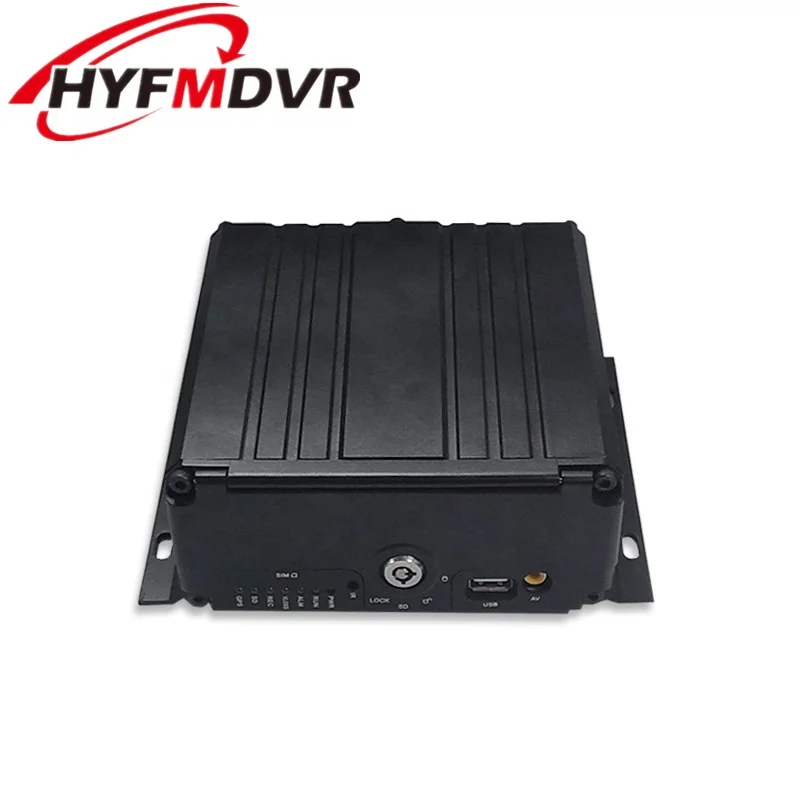

HYFMDVR Factory Direct 4 Channels 1080P AHD SDI Car DVR Car MDVR Car Monitoring Host Mobile DVR
- Category: >>>
- Supplier: Shenzhen HYF Industrial Co. Ltd.
Share on (60781292649):
Product Overview
Description
Product Description
Specification
Operating System | Linux | ||
Language | English, Chinese or Customized language. | ||
Video Compression | H.264 | ||
OSD | Support time, date, vehicle ID, image, etc. | ||
GUI | OSD Interface | Can external connect to LCD and set the system specifications by remote | |
Video and Recording | Video Input | 4CH 1080P/720P AHD/Analog/Compound video input, aviation connector, 1.0Vp-p, 75Ω | |
Video Output | 1CH Compound video output with optional VGA output, 1.0Vp-p, 75Ω. Support 1CH full screen and 4CH division. | ||
Preview | Single/4CH Pictures Preview, support full screen of event trigger or back view of car reversing | ||
Recording Resolution | Support 1080P/720P/D1/HD1/CIF, support at maximum 4 Channels 1080P | ||
Recording Quality | Optional Recording for Grade 0-7. 0 is the highest and 7 is the lowest. | ||
Video Rate | PAL:100 fps，CCIR625line,50 scenes NTSC:120 fps，CCIR525line,60 scenes CIF:256Kbps - 1.5Mbps，8 grades image quality for optional HD1:600Kbps - 2.5Mbps，8 grades image quality for optional D1:800Kbps - 3Mbps,8 grades image quality for optional 720P：800Kbps - 4Mbps,8 grades image quality for optional 1080P:2Mbps - 6Mbps,8 grades image quality for optional | ||
Recording Mode | Default automatic video recording, support ignition video recording, schedule video recording, alarm video recording, etc | ||
Audio | Audio Input | 4CH Aviation connector inputs | |
Audio Output | 1CH Aviation connector output, Output level:1V - 2V | ||
Compression format | G.726, Speed for 8KB/s | ||
Alarm Input | 4CH level alarm inputs | ||
Alarm Output | 1CH level signal output | ||
Communication Interface | Optional for 1CH RS232 or 1CH RS485 | ||
Wireless Transmission | - | ||
Location /G-sensor | - | ||
Video Storage | Storage | Support a 2T 2.5 -inch HDD and 1 256G SD card storage | |
Upgrade Method | Support SD card local upgrade, remote upgrade automatically | ||
File Format | H.264 general video format | ||
File System | FAT32 exclusive file system | ||
Video Playback | Video Search | Search recorded video files by recording time and recording method | |
Playback | Support at max 4 channel synchronous playback, suspend, forward, backward | ||
Support 2/4/8/16 times speed forward or backward | |||
Security Management | User Password or administrator password management, support screen locked | ||
Expansion functions | TTS Voice broadcast | Support TTS voice broadcast | |
Series port expansion | Support external equipment connecting for advertising screen, PTZ control, fuel sensor, etc | ||
Power and Consumption | Power Management | Self-adaptive wide voltage input, with protect functions for overload, under voltage, short circuit, reversing connection, etc Support time setting startup/shutdown, delayed power off function | |
Power and Consumption | Input Voltage | DC:+8V - +36V | |
Output Voltage | +12V@1.5A，+5V@1.5A | ||
Power-off Protection | UPS technology to protect all recorded information automatically and make sure the files undamaged in case of sudden power off. | ||
Consumption | Normal working < 14W, standby < 0.5W | ||
Working environment | Temperature | -20℃ - +70℃ | |
Humidity | 20% - 80% | ||
SD Card Type Series | Dimension | 150*137*60MM | |
Weight | 1.4KG | ||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Recommend Products

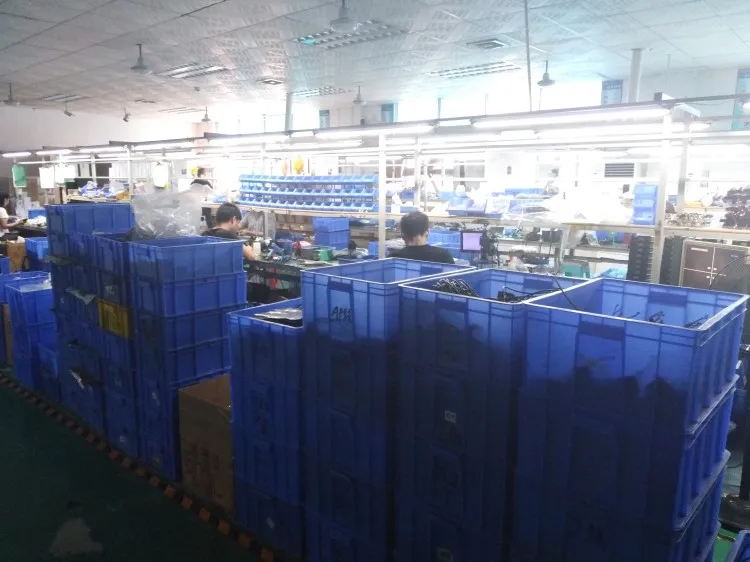

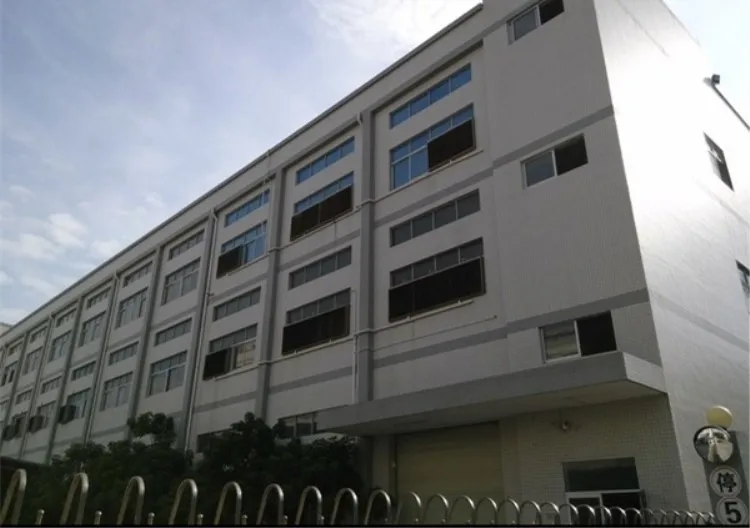

Company Profile
