Product Overview

Description



Product Description


1.Pipe Jacking Machine.
2.Trenchless jacking.
3.Ok for curve jacking.
4.Fast and easy control.
5.National owned,38 years for manufacturing, 11years for oversea experience.


   250mm~5000mm Pipe Jacking Machine/Tunnel Boring Machine all available.


Techincal parameters:












































































































































ModelDGR1200-QNP
DimensionsInner Diameter (mm)1,200
Outer Diameter (mm)1,500
Total Length (mm)4,500
Cutting PartMotor Power (kW)30*3
Cutterhead Torque (kN·m)210
Cutterhead Rotating Speed (r/min)0-5
Timing WayVFD
Oil Cylinder of RectifyingQuantity4
Thrust Force (kN)784
Stroke (mm)60
Rectifying Angle (°)±2
Hydraulic SystemMotor Power (kW)1.5
Working Pressure (MPa)25
Slurry In & Out SystemCharge Pump(kW)45
Discharge Pump(kW)45
Timing WayVFD
Main Jacking SystemJacking Speed (mm/min)0~100
Rated Pressure (MPa)31.5
Rated Jacking Force (kN·m)1470 *4
Main Pump Power (kW)22
Timing WayVFD
Inter jacking SystemJacking Speed (mm/min)0-100
Rated Pressure (MPa)31.5
Rated Jacking Force (kN·m)343*12
Pump Power (kW)15
The Quantity of Cylinder12
Stroke(mm)300
Shaft SizeJacking Shaft( I/D) (mm)6,500
Receiving Shaft( I/D) (mm)4,500

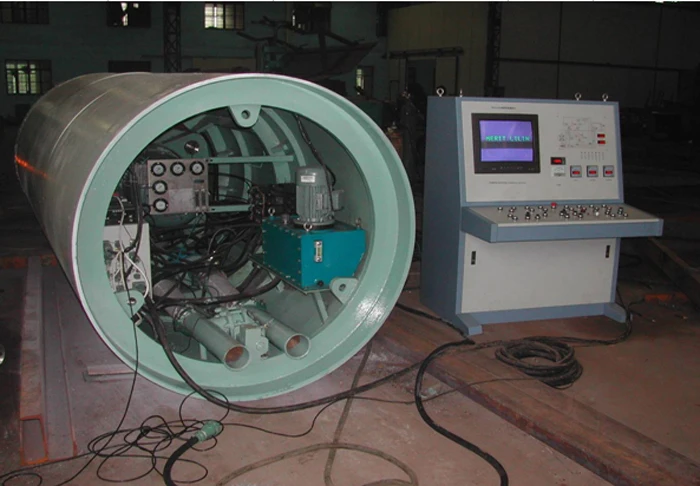

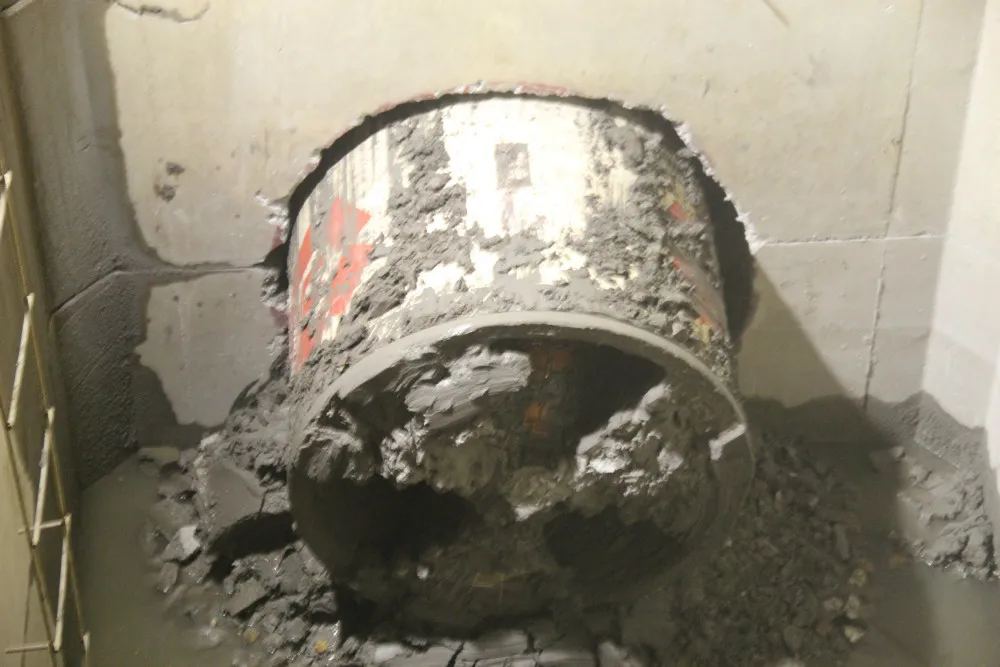

Detail pictures;

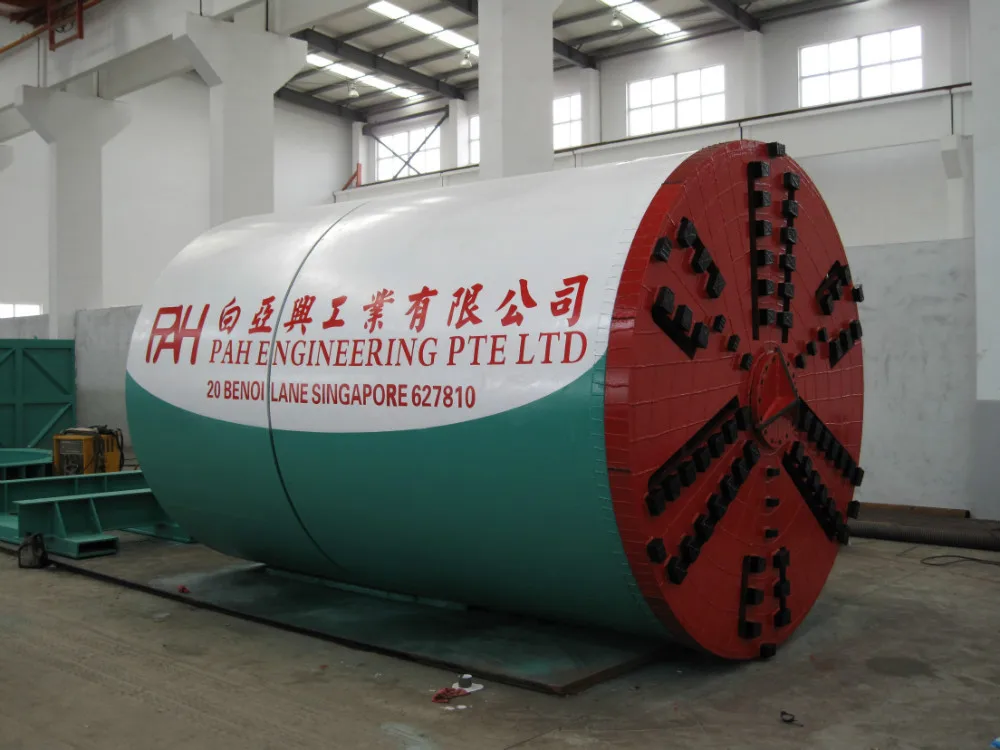

HTB1UI01JXXXXXcqaXXXq6xXFXXXc


pipe jacking machine 1200mm thailand 01New ID1200mm Roc(01-20-12-07-09)


The thrust system:


1. Hydraulic pump station


    Pressure rating: 31.5Mpa


    Speed regulation way of main pump: VVVF.


2. Hydrocylinder


    Type: Double-stage with steady trust


    Thrust: 1960kN


    Stroke: 1750mm x 2.


Pipe jacking monitoring system


Monitoring system


1. Monitoring system with laser positioning.


2. Functions: equipment control, real-time data acquisition and display, fault alarm, trend analysis, historical data printing etc..


 main jacking pump





Our Services


 1. On site service support.


2. 12 month warranty.


3. Life time service support, spare parts are available.


4. Quick feedback for after service. 7x24h.


5. Design machine according to the needs of clients.


 Packaging & Shipping





Other models for your kindly refer:


1) ID1000mm pipe jacking machine, tunnel boring machine.


2) ID2200mm pipe jacking machine, tunnel boring machine.


3) ID3500mm pipe jacking machine, tunnel boring machine.





Packaging & Shipping

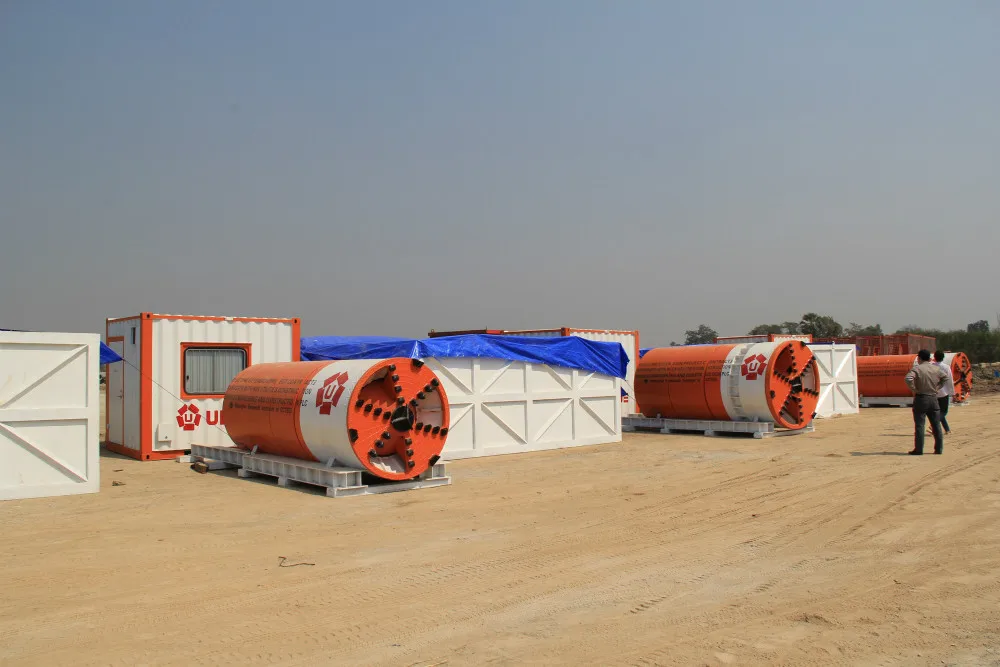

 Packing and delivery as below pictures:


 container shipment 1





Company Information


1. More than 38 years experience on manufacturing Pipe Jacking Machine(TBM), 11 years for overseas market.


2. Remote-controlled Slurry Balance Pipe-Jacking Machine.


3. Multi-disciplinary technologies in one, such as the machinery units, hydraulic system, electric controller   (including PLC), Laser system, measuring device, etc.


4. High efficiency, low construction cost, will not to affect the ground traffics, contribute to environmental protection.lower the total cost.


5. More than 20 units applied in Singapore.


6. Concrete jacking pipe, segmental concrete pipe both ok.


7. Design according to the needs of clients.





FAQ


 Information needed for quotation accordingly:


1 Project total length, distance for one section, how many sections will be built?


2 Pipe type: concrete or steel etc, single length of the pipe? outer and inner diameter ?


3 Projects information: for water supply, sewage project?


4 Underground water level.


5 Soil type? sol report is needed.
