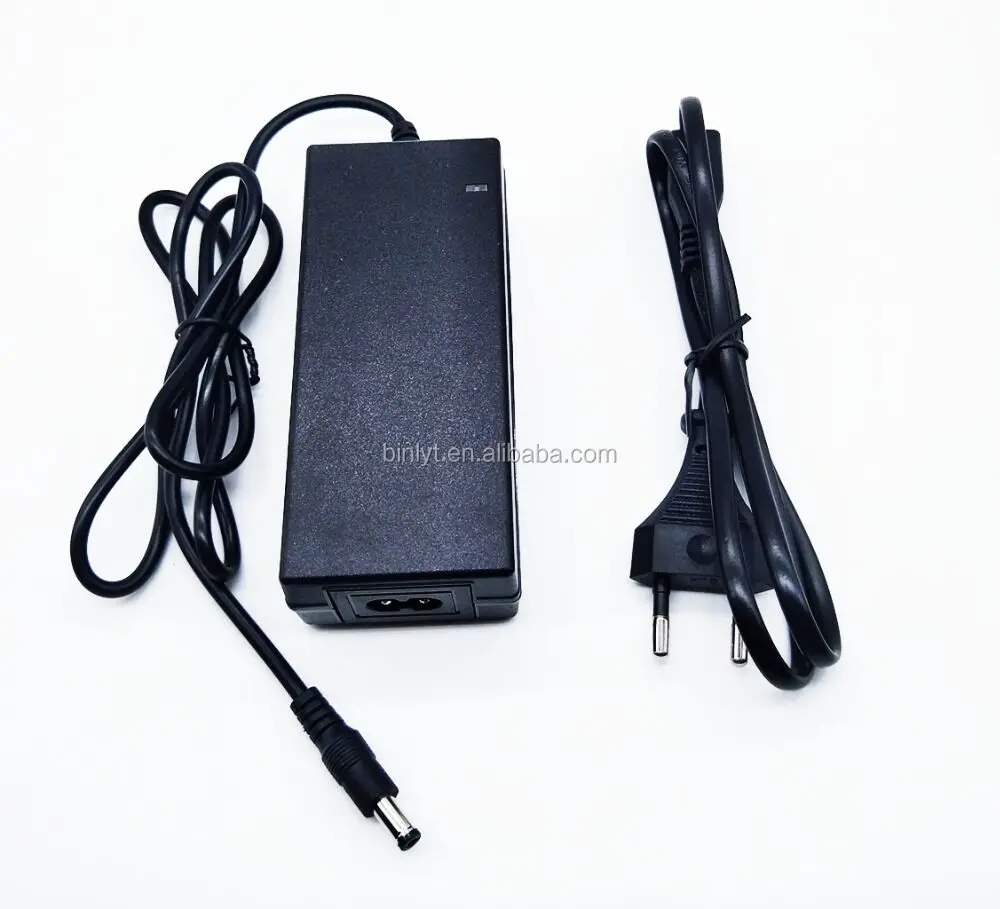

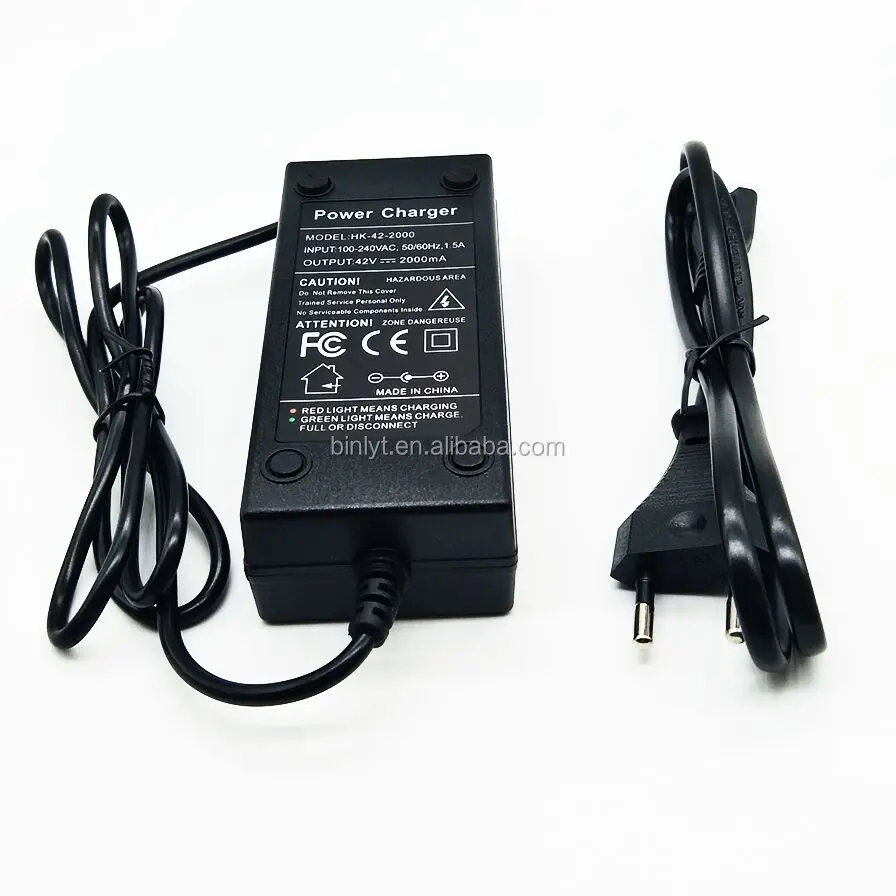

36V 2A battery charger Output 42V 2A Charger Input 100 240 VAC Lithium Li ion Li poly Charger For 10Series 36V Electric Bike
- Category: >>>
- Supplier: Binlyt Technology (Shenzhen) Co. Ltd.
Share on (60781350445):
Product Overview
Description

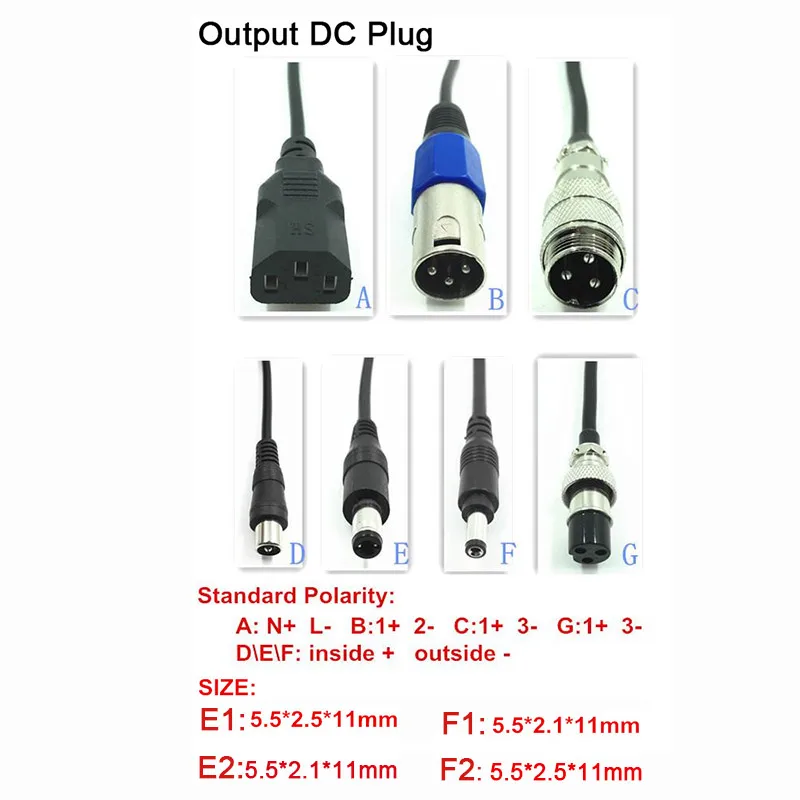

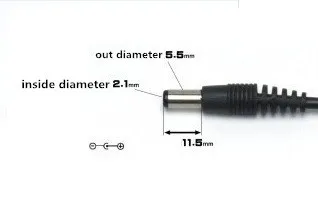

About DC size : we will send you 5.5*2.1mm if without your notification.(5.5x2.5/3.5x1.35mm.. also available )
Select the charger parameter table
| Model | Input voltage | Output voltage | Output current | Output power | Lithium battery power |
| 24V | AC100-240V | 29.4V | 2A | 40-60W | 24V8AH-12AH-7S |
| 36V | AC100-240V | 42V | 2A | 60-90W | 36V8AH-14AH-10S |
| 48V | AC100-240V | 54.6V | 2A | 80-110W | 48V8AH-15AH-13S |
Product Description
| lithium battery charger 36v2A | |||||
| 1. Nominal voltage : 42V | |||||
| 2. Nominal current: 2A | |||||
| For 10 series lithium /Li-poly batterey | |||||
| Application:electric bicycle,E-bike,electrical equipment,ect. | |||||
| We also have several series for your reference: | |||||
| 12.6V14.6V16.8V29.4V33.6V37.8V 42V 54.6V etc. | |||||
| We can customize different voltage and current as customer's requirement | |||||
Technical data
Max. Output power:60W
Input voltage: 100-240V AC
Max. output voltage: 42V
Max. output current: 2A
Line frequency: 50-60Hz
Efficiency(at 100% load): >=85%
Ripple: <=1%*Vo
Temperature range: 0-45'C
Relative humidity: <65%
Protection
Over voltage protection
Over current protection
General specification
3-step charging control (pre-charge-CC-CV)
Option: a) NTC inside
b) 100% cut off when battery fully charged
Dual color LED indicator: (Charging:Red; Fully charged or no load:Green)
Light weight and compact
High efficiency and low power consumption
Environmental specification
Operating temperature: 0C ~ 45C
Storage temperature:-20C ~ 70C
Humidity < 65%
