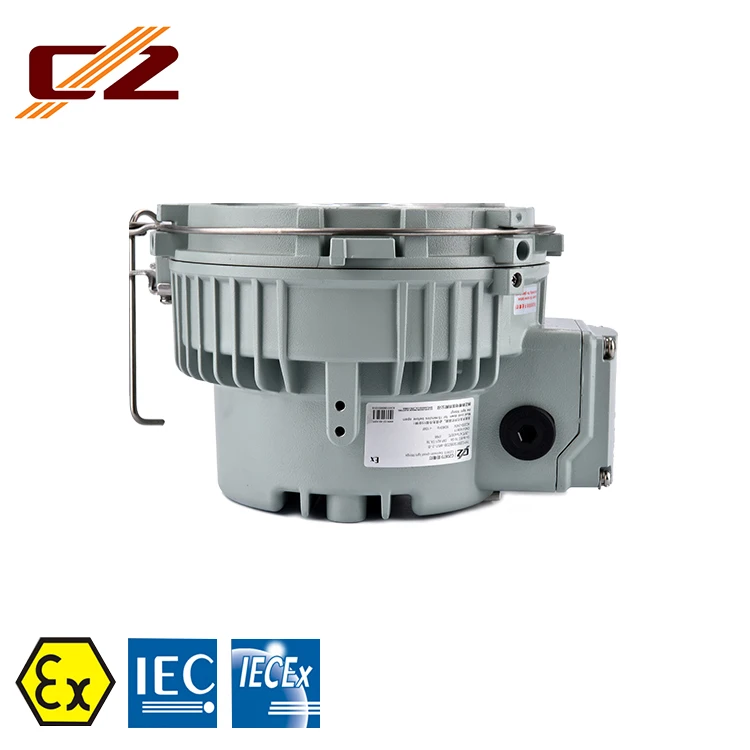

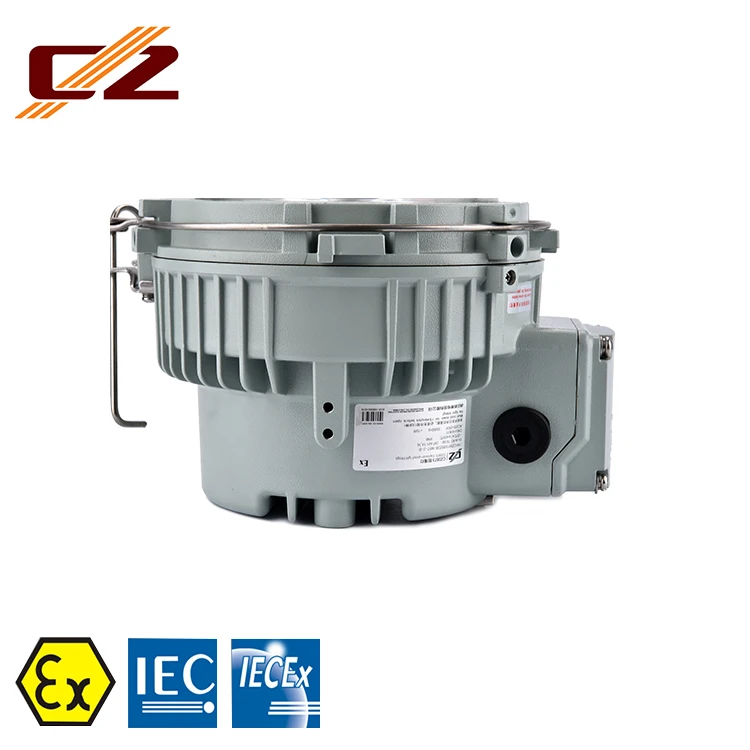

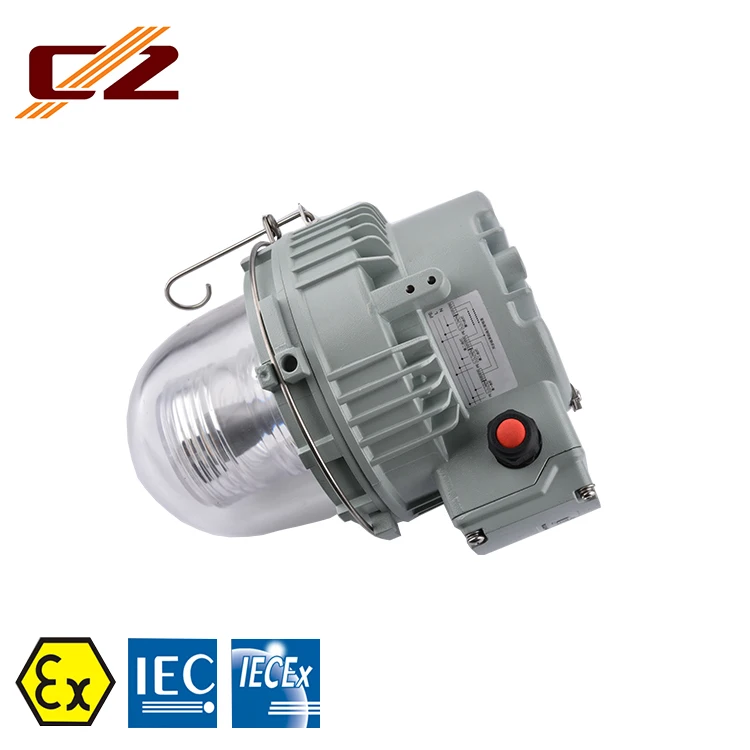

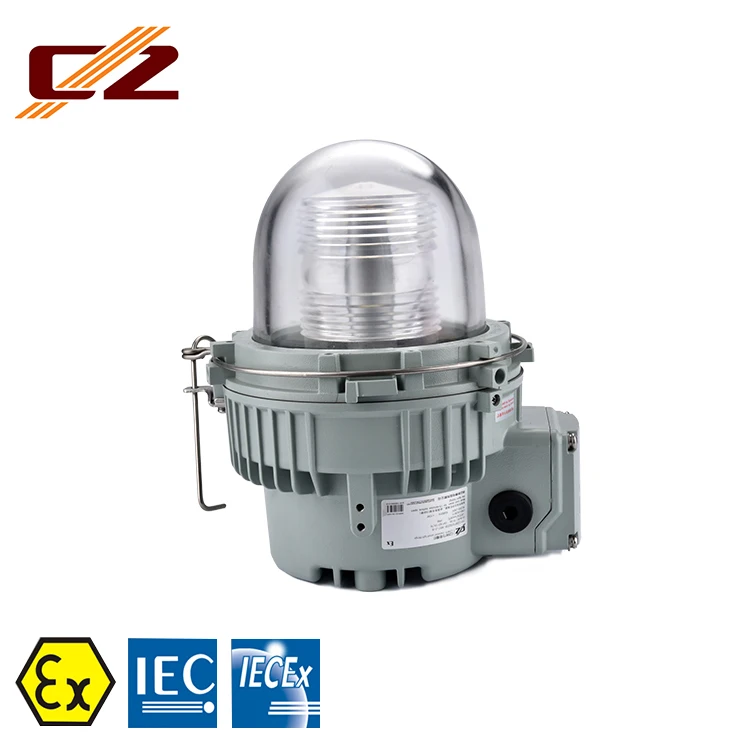

best selling ATEX AND IECEX Floodlight type 160W LED warning fitting

Product Overview

Description





Certification	Ex mark
IECEx	Ex de II C T6 Gb  Ex tb IIIC T80 °C Db
ATEX	II 2GD, Ex de II C T6 Gb  Ex tb IIIC T 80°C Db



Intended use	zone1 and zone2  zone21 and zone22
Ambient temperature	-40°C≤Ta≤+55°C
Degree of protection	IP66
Cable entry	(Standard configuration)Moulded plastic 1 x M25x 1.5, Outside diameter: Φ8- 17mm Moulded plastic 1 x M25x 1.5
Terminal	L1, N cage type terminal 2-2.5mm2, PE terminal: 2 x 10mm2



Descriptions:

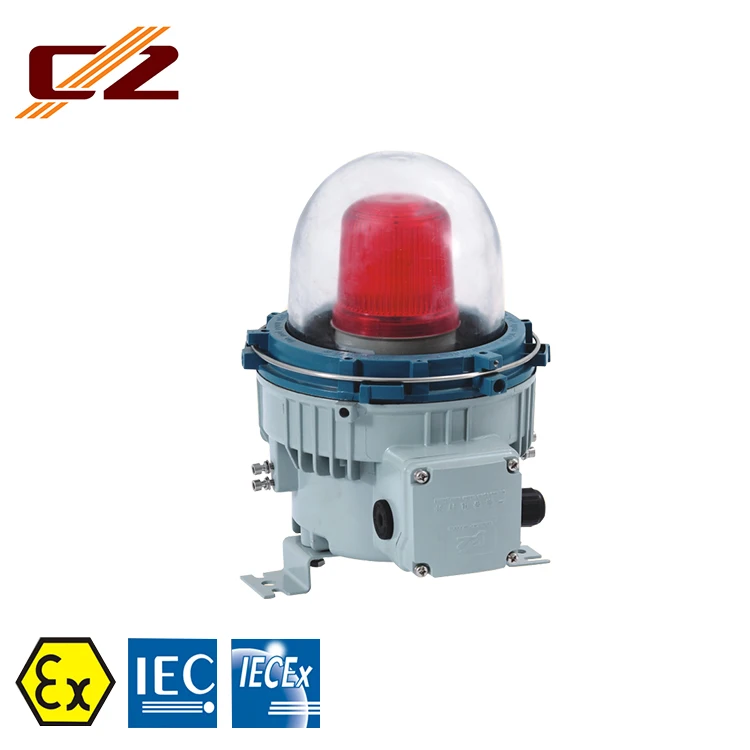

The enclosures of explosion-proof light fittings are manufactured of die-cast aluminum alloy, with the surfacessprayed epoxy resin powder, therefore they have good anti-corrosion performance. The transparent shield is made by the toughened glass of borosilicate, and the exposed fasteners are the stainless steel. Explosion-proof light ftting'sterminal box side entry is suitable for rubber-coated and the armored cable wiring.The internationally certified PHOENIX cage type terminals are selected as the internal terminals, which are convenient for wiring. LED warninglight is supplied inside. Unique heat insulation design united with the exterior high density' radiator in the explosion-proof light ftting to cause the radiation effect will be better. For light and signal transmission in such fields as mechanical, fire protection, aviation.

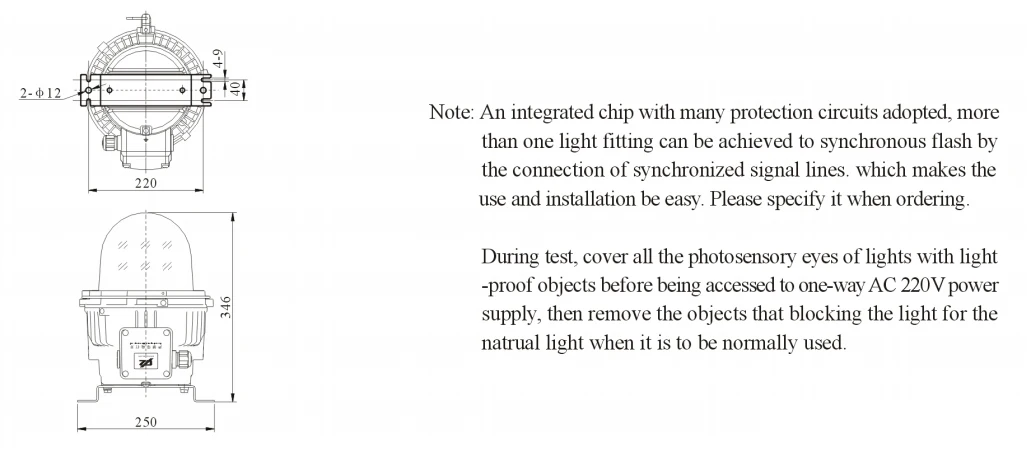

The mounting ways of the explosion-proof light fitigs are seater type and pendant type.
  The highest class of flameproof is up to IIC.

  The degree of protection is up to IP66.

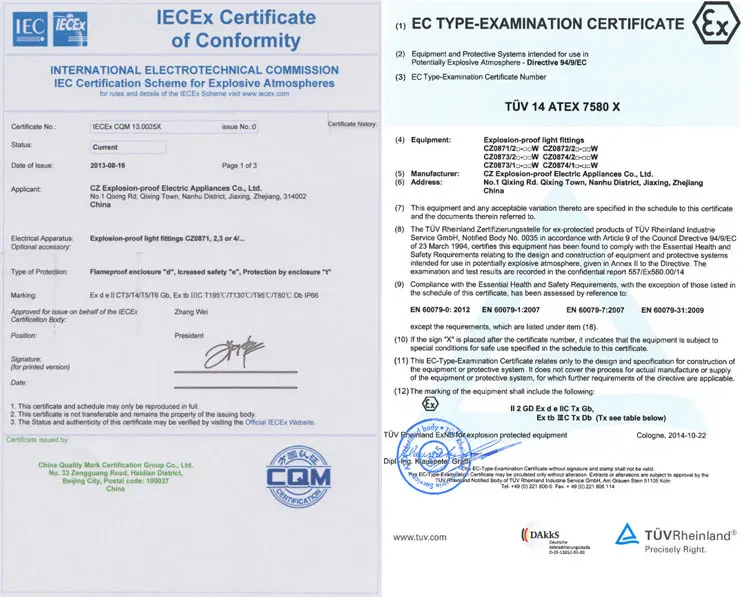

  IECEx, ATEX International certification.

Order specifications:

Code of cable gland:
