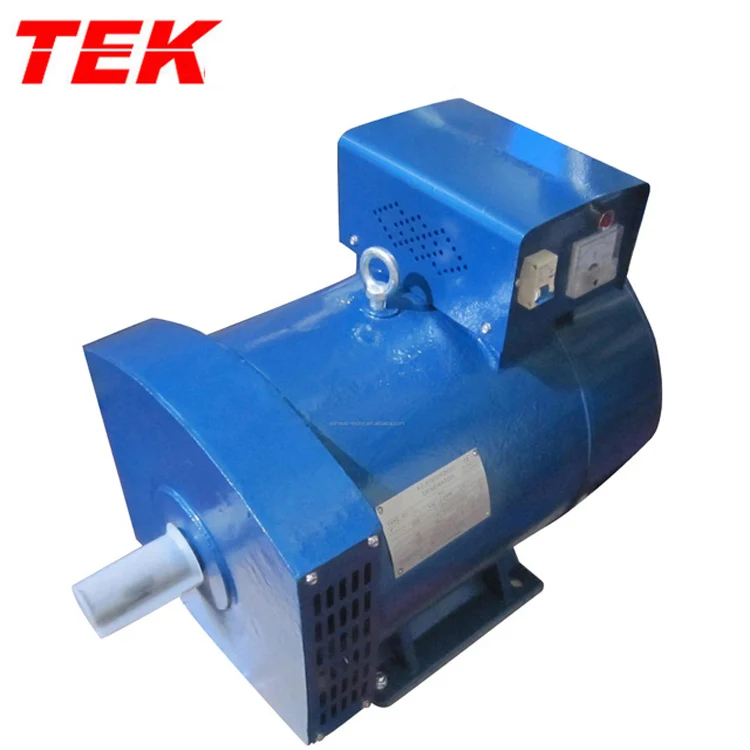

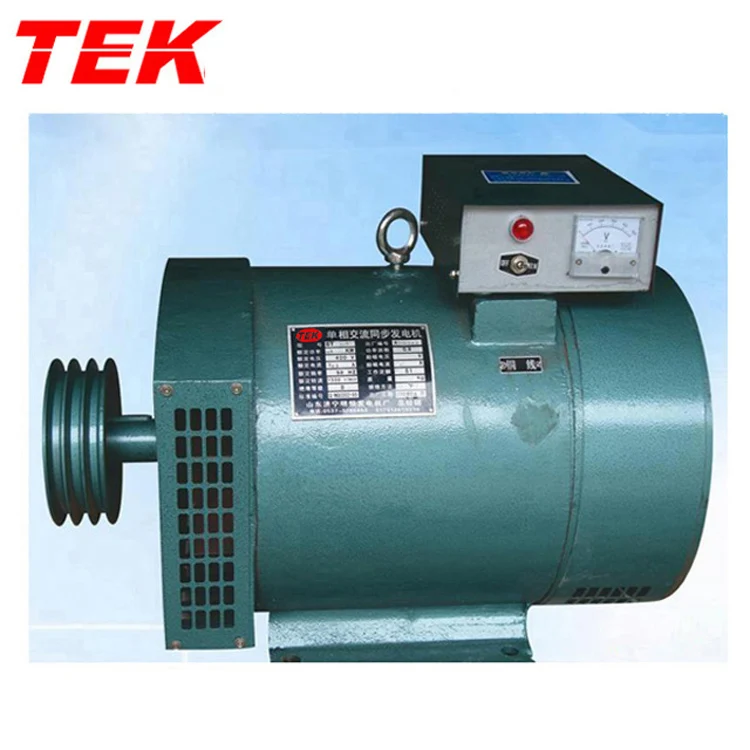

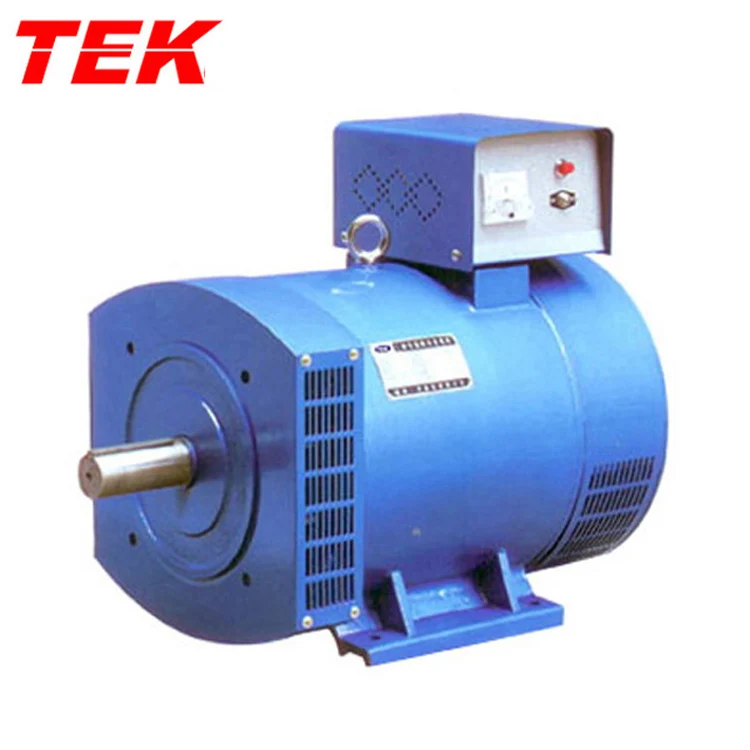

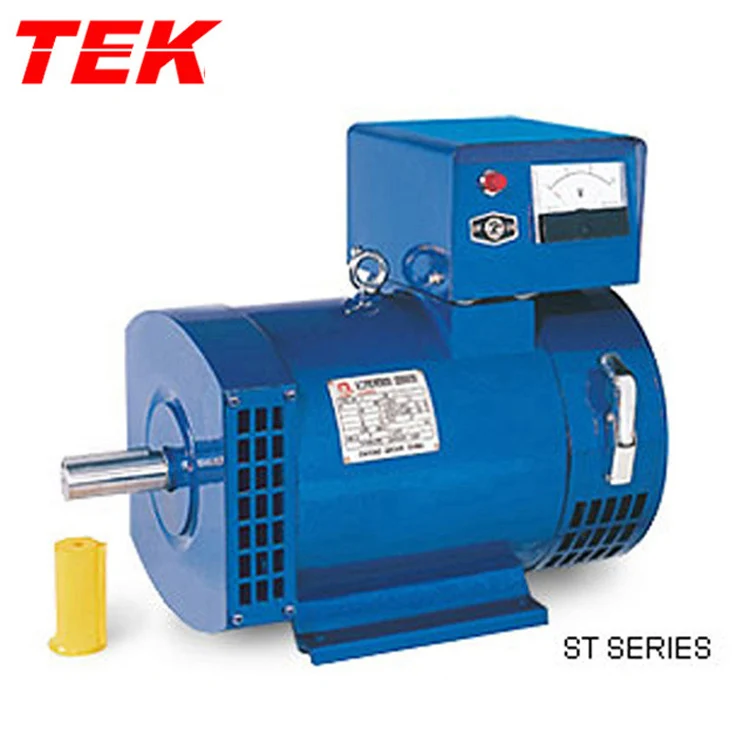

ST 5 ST5 5 5 кВт 4 полюсный 1 фазный медный провод, возбуждающий синхронный генератор переменного тока OEM

Product Overview

Description

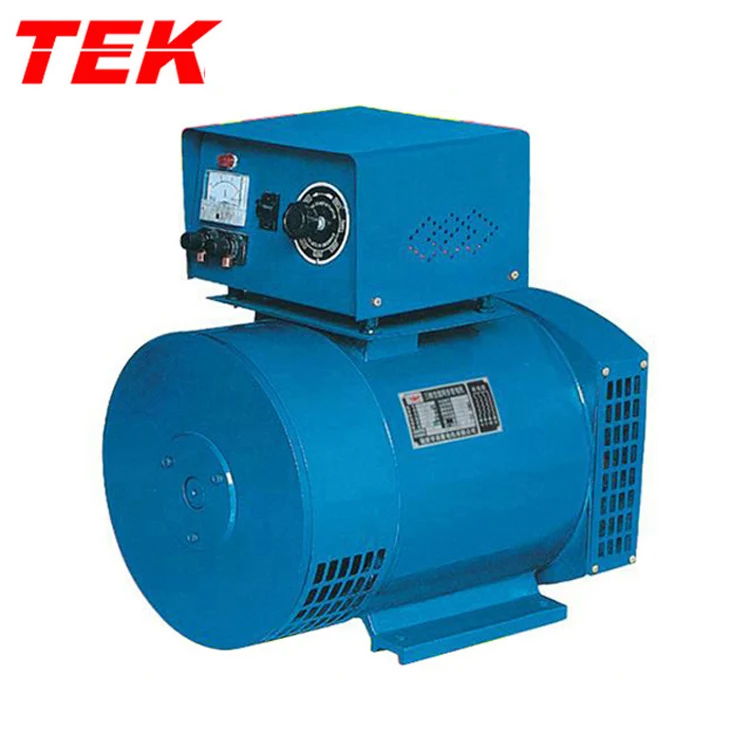

ST-5 ST5 5kw 4-pole 1-Phase Copper Wire Winding Exciting A.C.Synchronous Alternator Generator OEM



The characteristic of generators see as the followings:
1. The generators are designed as per standard JB/T3320.2-2000. And in conformity to IEC34-1.
2. Insulation  is class B or F, drip-proof type is IP21,
3. Tight in construction for casting frame; If our customers ask for steel constuction,we can meet .
4. The generators are three-phases with output four terminals, connectiong for the star connection, 400V rated L-L voltage,  230V rated L-N voltage, 50Hz, 0.8P.F..If our customers ask for 60Hz or diferenent voltage, we can meet .
5. Generally the generators are two-bearing comstuction, also can produce for single-bearing constuction; They can be coupled with engine s by leather belt, and can ratote in two different direction.
6. The steady voltage regulation of generators are good in 3% speed variation, load from no-load to full-load and power factor from 0.8 to 1.0.
7. The voltage regulation of generators are excellent, and the capability for directly-starting motor also is fine.
The requirements for environment:
1. Altitude: not exceed 1000m.
2. Cooling air temperature: 258~313K (-15oC~40oC).
3. Relative air humidity: not exceed 90%.

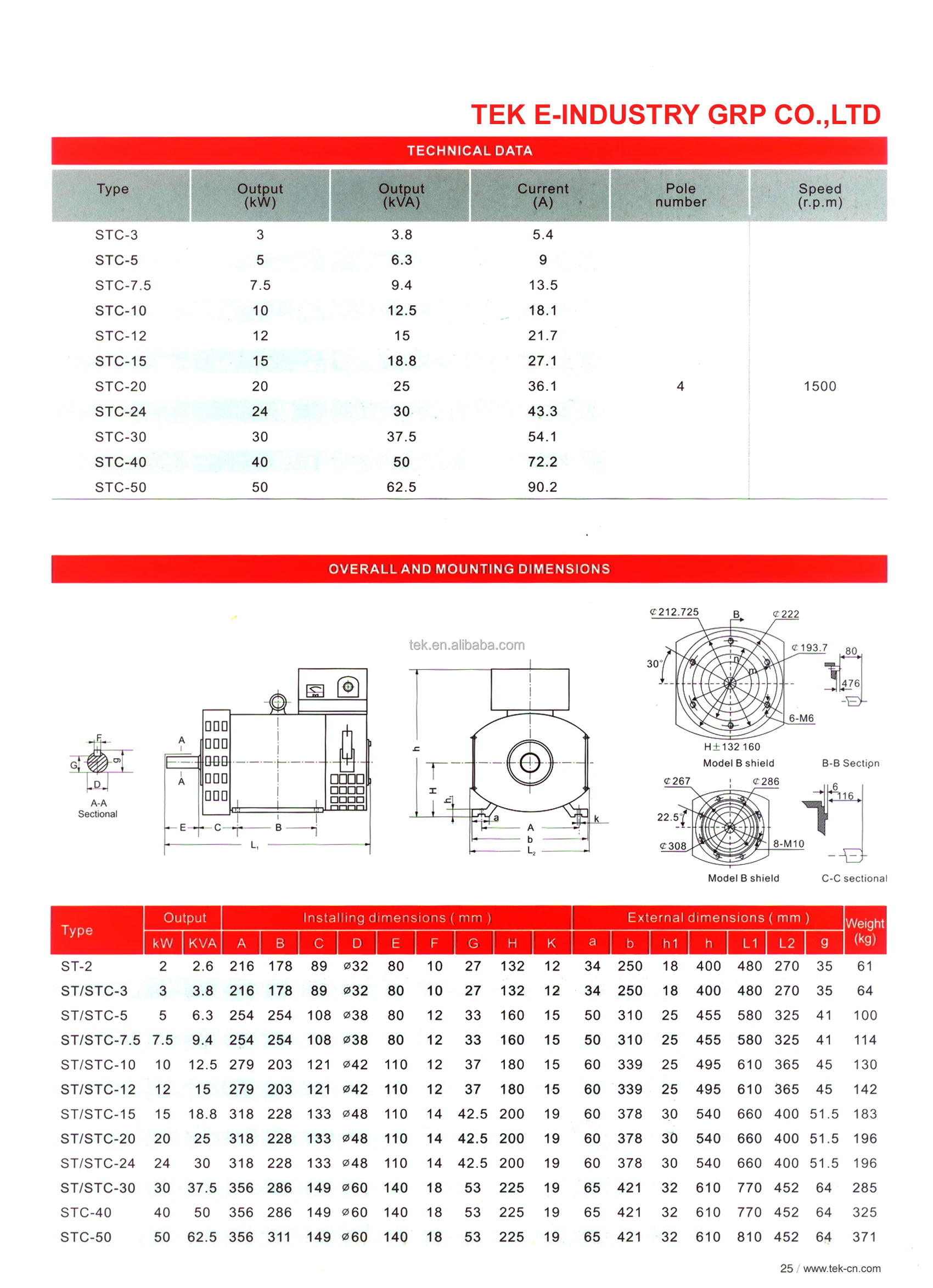

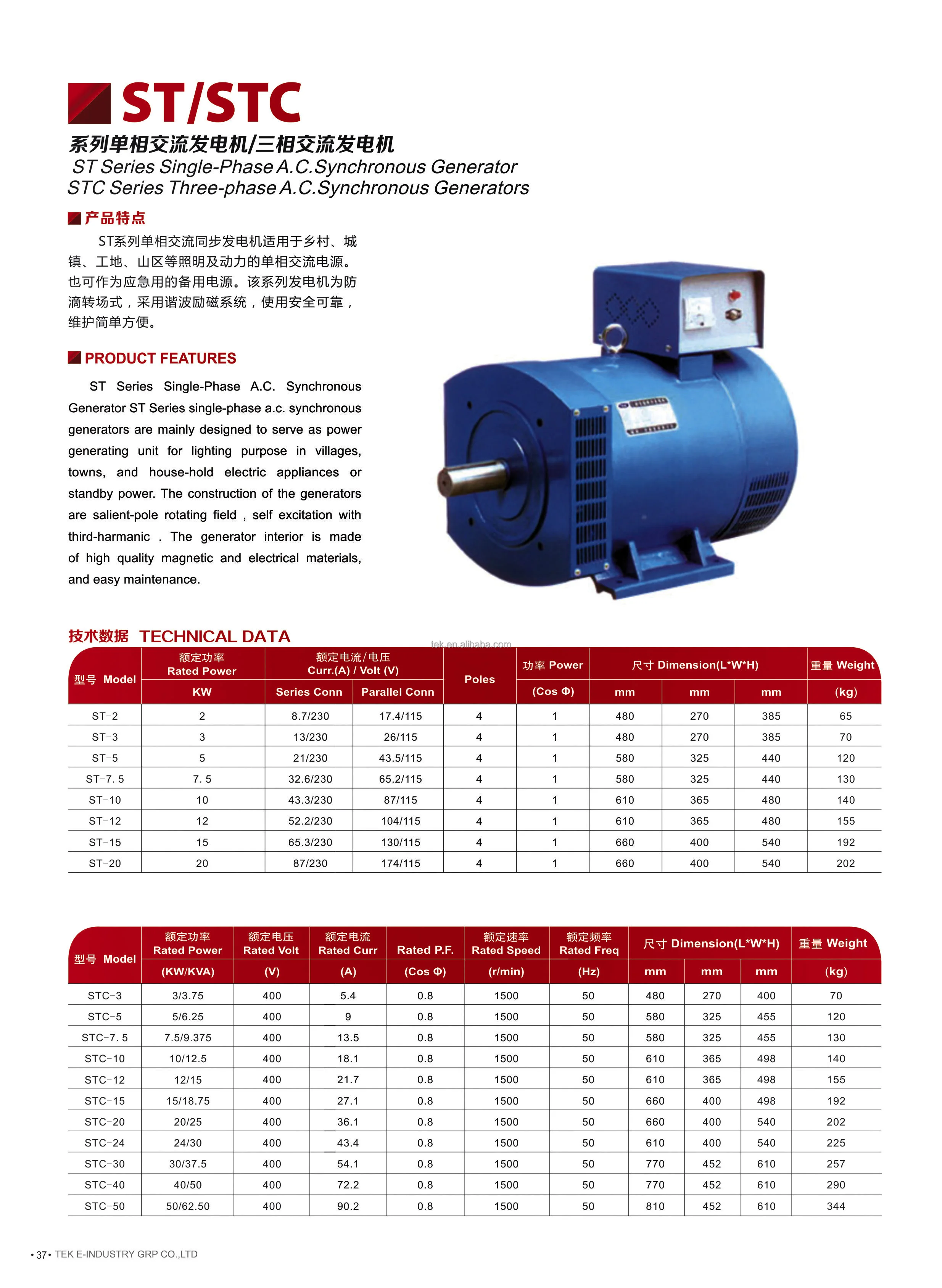

Model	Output	Current(A)		Voltage(V)		Poles	Factor	Speed(r.p.m.)		Dimension(L*W*H)			Weight
	KW	Series Conn.	Parallel Conn.	Series Conn.	Parallel Conn.		(CosΦ)	50Hz	60Hz	mm	mm	mm	(kg)
ST-2	2	8.7	17.4	230	115	4	1	1500	1800	480	270	400	61
ST-3	3	13	26	230	115	4	1	1500	1800	480	270	400	64
ST-5	5	21.8	43.5	230	115	4	1	1500	1800	580	325	455	100
ST-7.5	7.5	32.6	65.2	230	115	4	1	1500	1800	580	325	455	114
ST-10	10	43.3	87	230	115	4	1	1500	1800	610	365	495	130
ST-12	12	52.2	104.4	230	115	4	1	1500	1800	610	365	495	142
ST-15	15	65.3	130.4	230	115	4	1	1500	1800	660	400	540	183
ST-20	20	87	174	230	115	4	1	1500	1800	660	400	540	196
ST-24	24	104	208	230	115	4	1	1500	1800	660	400	540	196
ST-30	30	130	260	230	115	4	1	1500	1800	770	452	610	285
ST-40	40	156	340	230	115	4	1	1500	1800	770	452	610	325
ST-50	50	198	456	230	115	4	1	1500	1800	810	452	610	371
