Industry abrasive blue gold coating tungsten carbide burr

Product Overview

Description

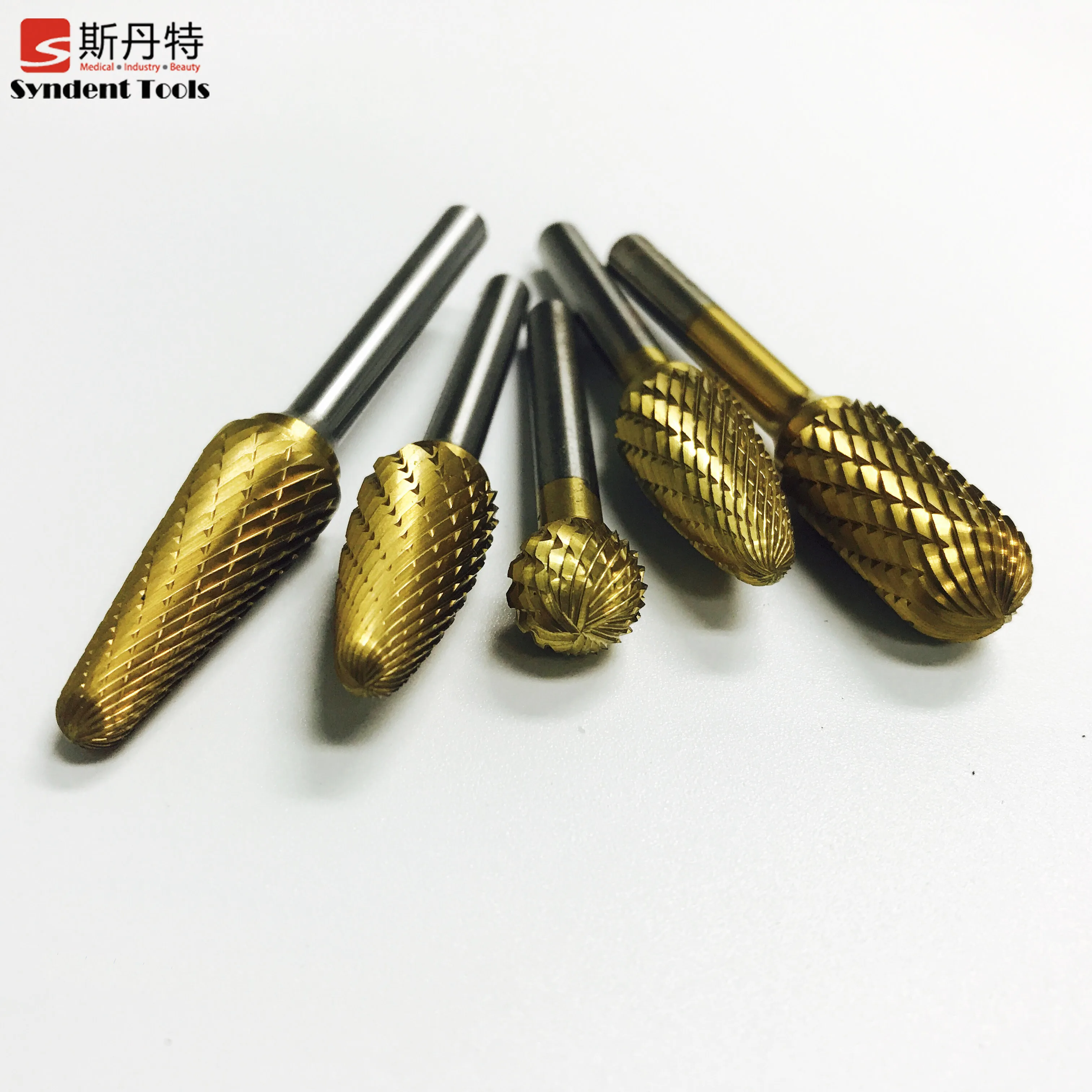

Industry abrasive blue gold coating tungsten carbide burr

1. Metric size tungsten carbide burs are available upon customer’s request.


2. SYNDENT tungsten carbide burrs produced with high quality types of carbide and modern CNC grinding machines.


3. Our rotary burrs are brazed by the advanced welding equipment automatically. Silver brazing materials are imported from USA.


4. Carbide burrs manufactured to your drawings to meet your demands of particular stock removal.


5. We can make chemical and geometry analysis for your carbide burs material and make grinding test in our professional laboratory center.

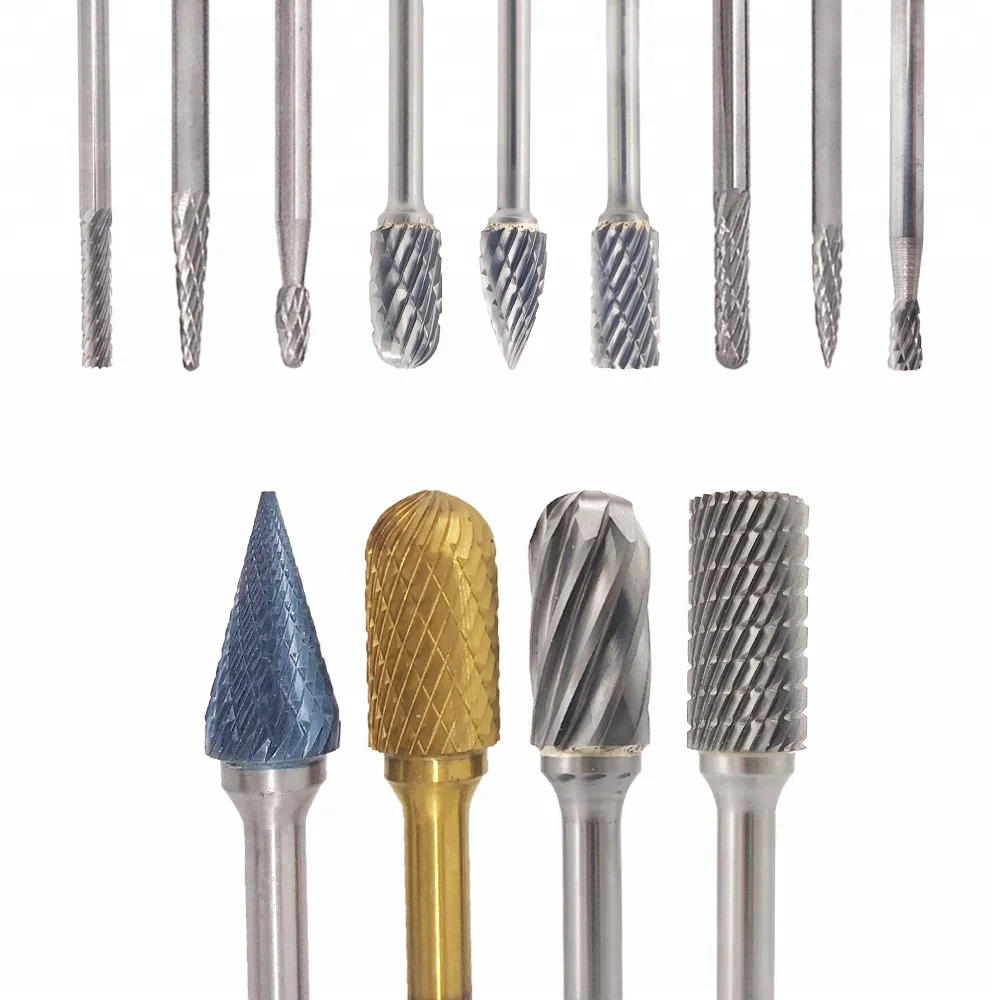

6. SYNDENT tungsten cutter can be coated with TiN, TiCN, TiALN and LTE.


7. OEM of many famous huge companies in the world for our carbide cutter.

Details







CARBIDE BURR SELECTION AND USE:

The first step in selecting the proper burr is to pick the best shape and cut style.

• Selection of shape and diameter should be based on the work piece, and the operation to be performed.

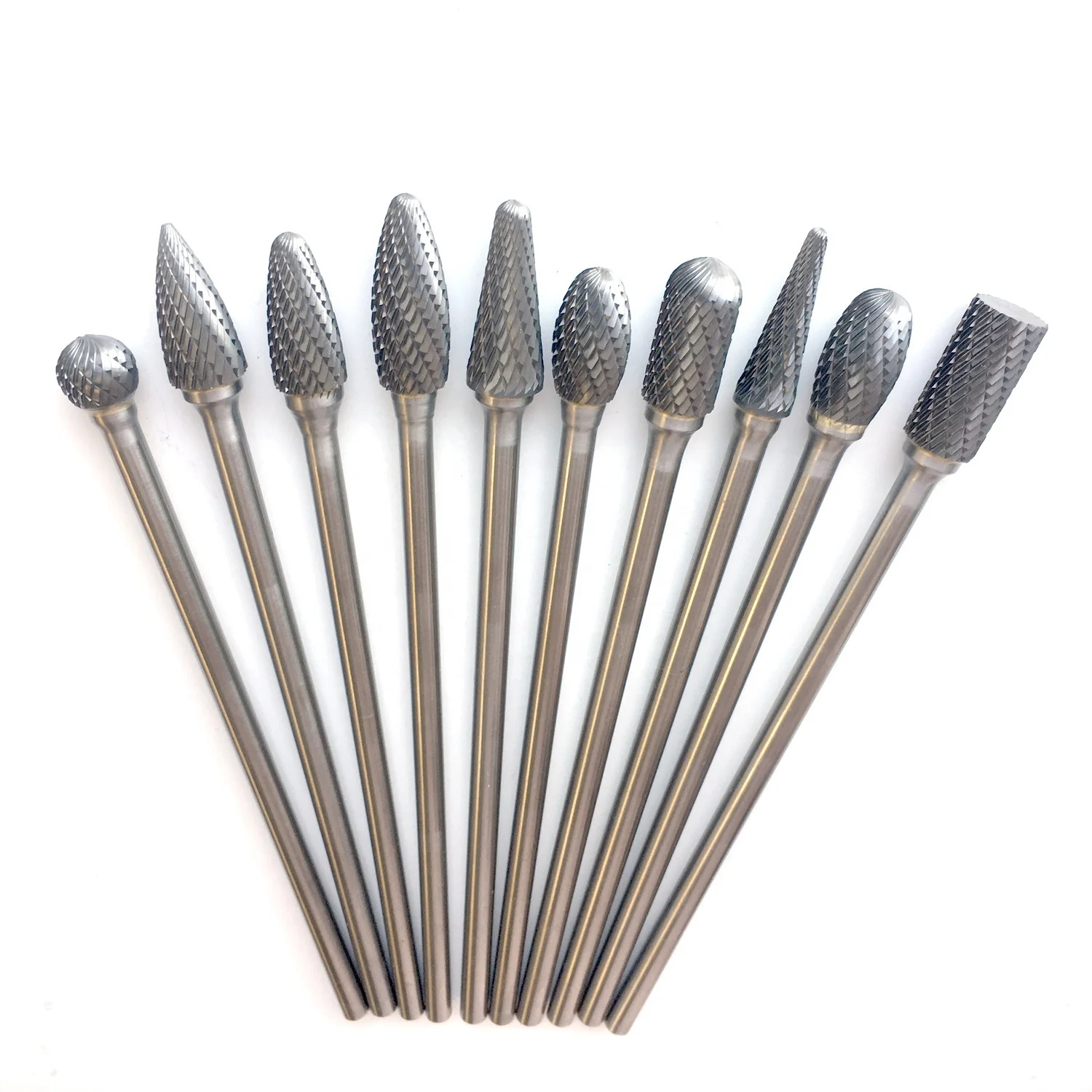

• Burs have 13 basic shapes:

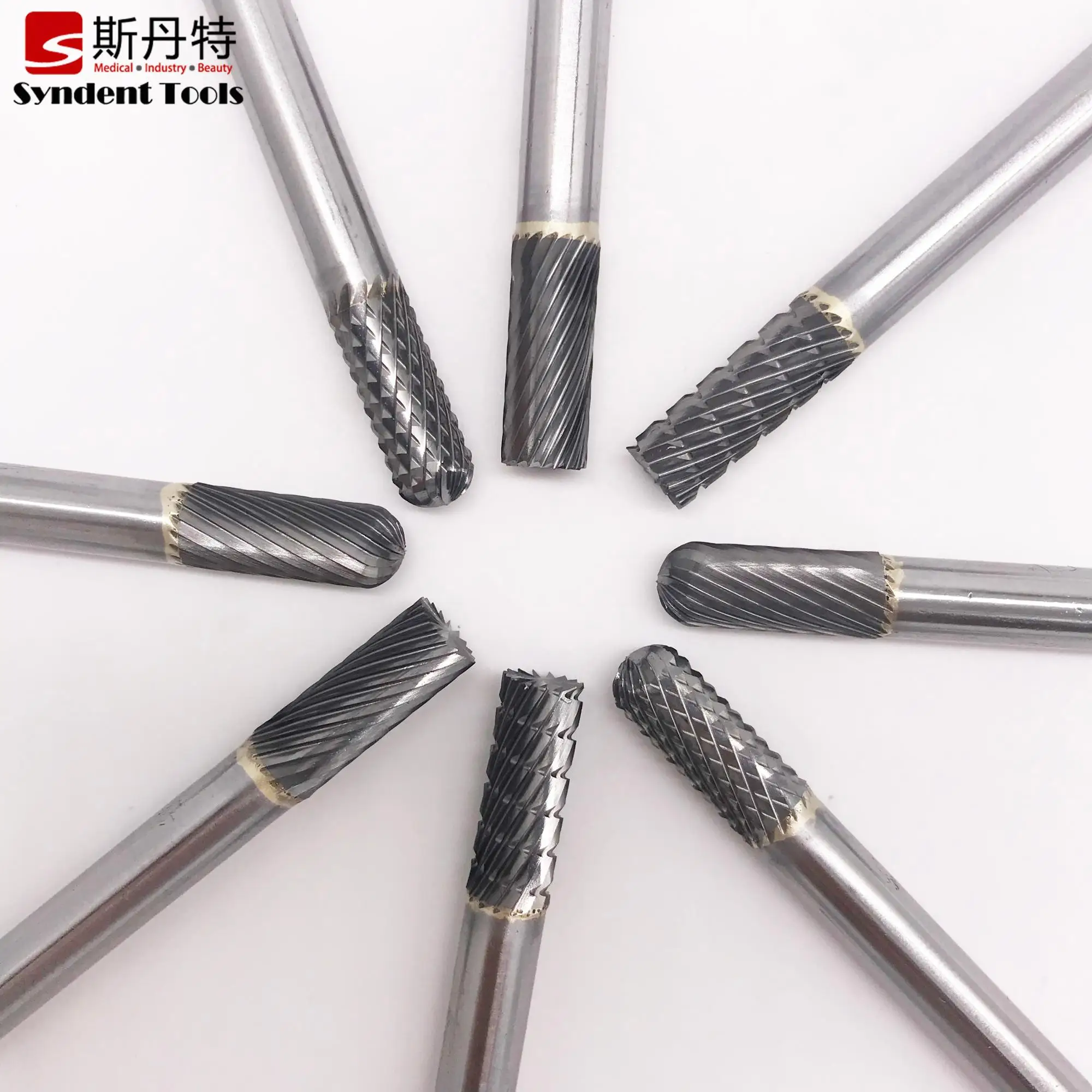

Burs come in 7 kinds of flute style as following.

6 - Double Cut: Very efficient stock removal. Creates a small chip. Good finish. Excellent operator control.
3 - Single Cut: General purpose fluting. Produces long chips.
1 - Nonferrous: For nonferrous materials. Aggressive stock removal.
3SP - SP Chip Breaker: Provides breakdown in chips. Better control.
4 - Diamond Cut: For heat treated and tough alloy steels where control is important. Creates a powder-like chip. Excellent finish.
2 - Coarse Cut: Provides large flute area for softer ferrous materials. Fast stock removal.
5 -Fine Cut: For general use on hard materials requiring a fine finish.



Selection of cut would be based on the material, and finish required.



The second step in selecting the right tungsten carbide grade.

We have metric size and fractional size for industrial carbide burrs. Meanwhile, we have 3 kinds of different carbide grades named K30, K25, K20 for carbide burrs.

Grade	Cobalt	HRA	HRC	Density  (ISO 3369)	Transverse rupture strength (ISO 3327)
K30	8%	89.3-89.5	74.3-74.6	14.8	2000
K25	7%	89.5-90.5	74.6-77	14.9	2650
K20	6%	90.1-91.5	76.2-78.4	14.7- 15	1800



The third step in selecting the right rotary speed for SYNDENT carbide burr.

These are general speed recommendations that may need to be adjusted for special application
