Product Overview
Description

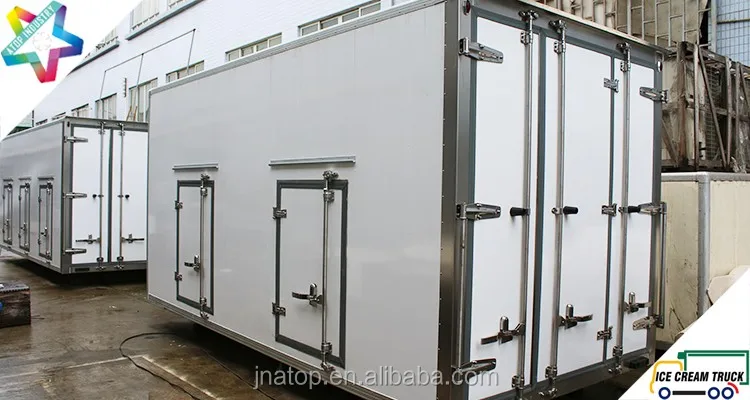

Ice Cream Truck Body
Ice Cream Truck Body Key Features | ColdKing 4.5m ice cream truck body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements). | ||||
Ice Cream Truck Body Outer Size | 4.5m(L)x2.15m(W)x2.25m(H) | Ice Cream Truck Body Inner Size | 4.29m(L)x1.94m(W)x2.04m(H) | ||
Roof/Floor Panel | 105mm Thickness | Side Wall Panel | 105mm Thickness | ||
Front Wall Panel | 105mm Thickness | Rear Door Panel | 105mm Thickness | ||
Panel Structure | All Closed Sandwich | Panel Insulation | FRP + PU Foam + FRP | ||

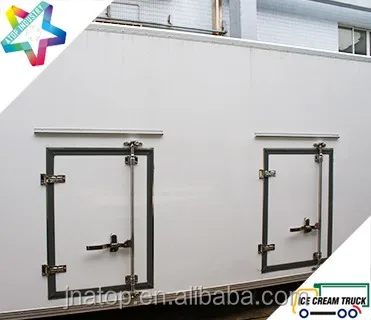

Side Door Quantity | 2 Sets | Side Door Location | 2 Sets On Left Side Wall | ||
Side Door Type | Single Opening | Side Door Size | 800mm(W) x 1,100mm(H) | ||

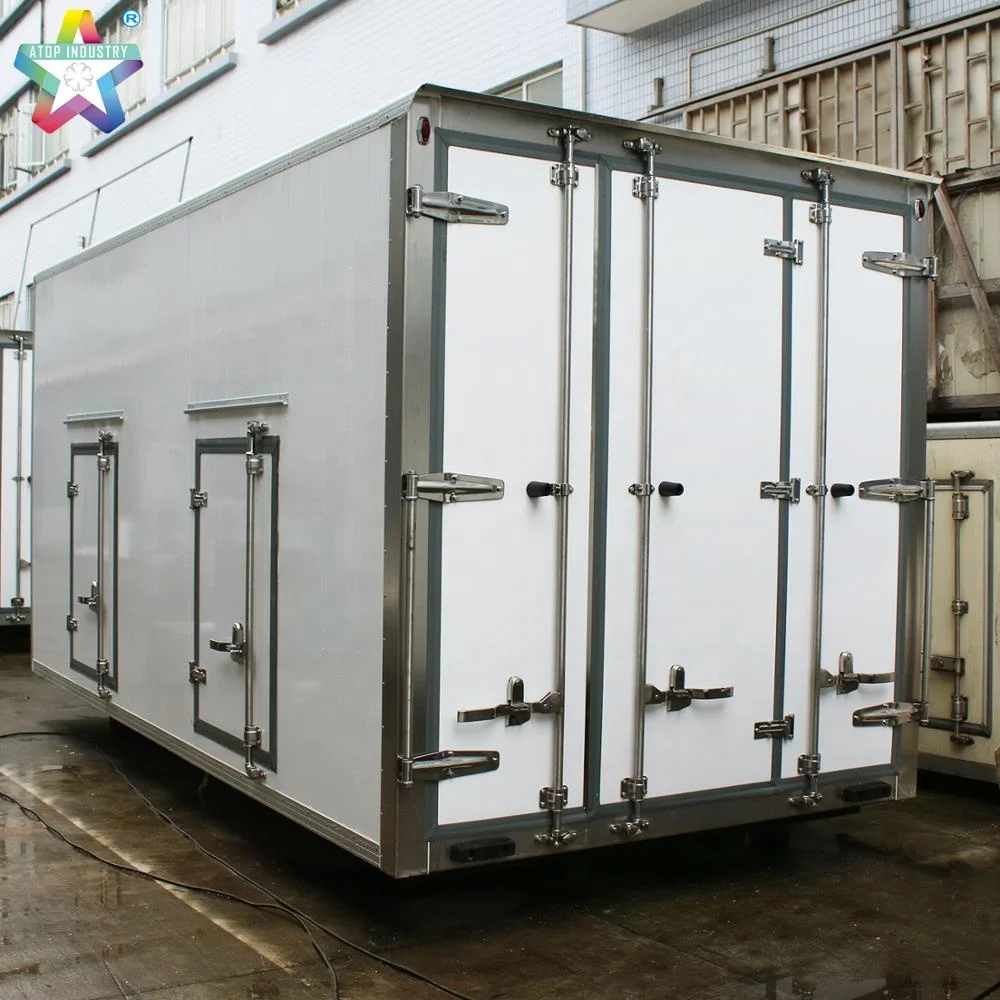

Rear Door Type | Full Size Triple Opening Rear Door, Middle Hand Rear Door Opening Firstly | ||||

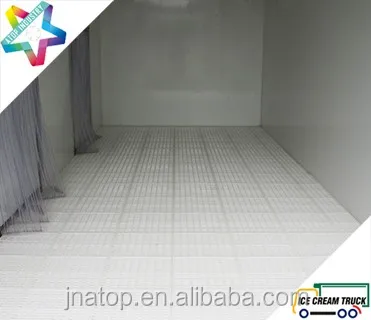

Truck Body Flooring | Reinforced Floor Covered With Removable PVC Grating ice cream truck for sales | ||||
Ceiling Light | 4 (Four) Sets of 12/24V Multi-Voltage LED Lights | Marker Light | 2 Sets Of White LED On Front; 2 Sets Of Red LED On Rear | ||
Ceiling Light Switch | 1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch | Insulating Curtain | European Standard -40C PVC Strip Curtain System For Side Doors & Rear Doors | ||
Refrigeration Unit Service Ladder | None ice cream truck body ice cream truck body | Refrigeration Unit Service Platform | None ice cream truck body ice cream truck body | ||

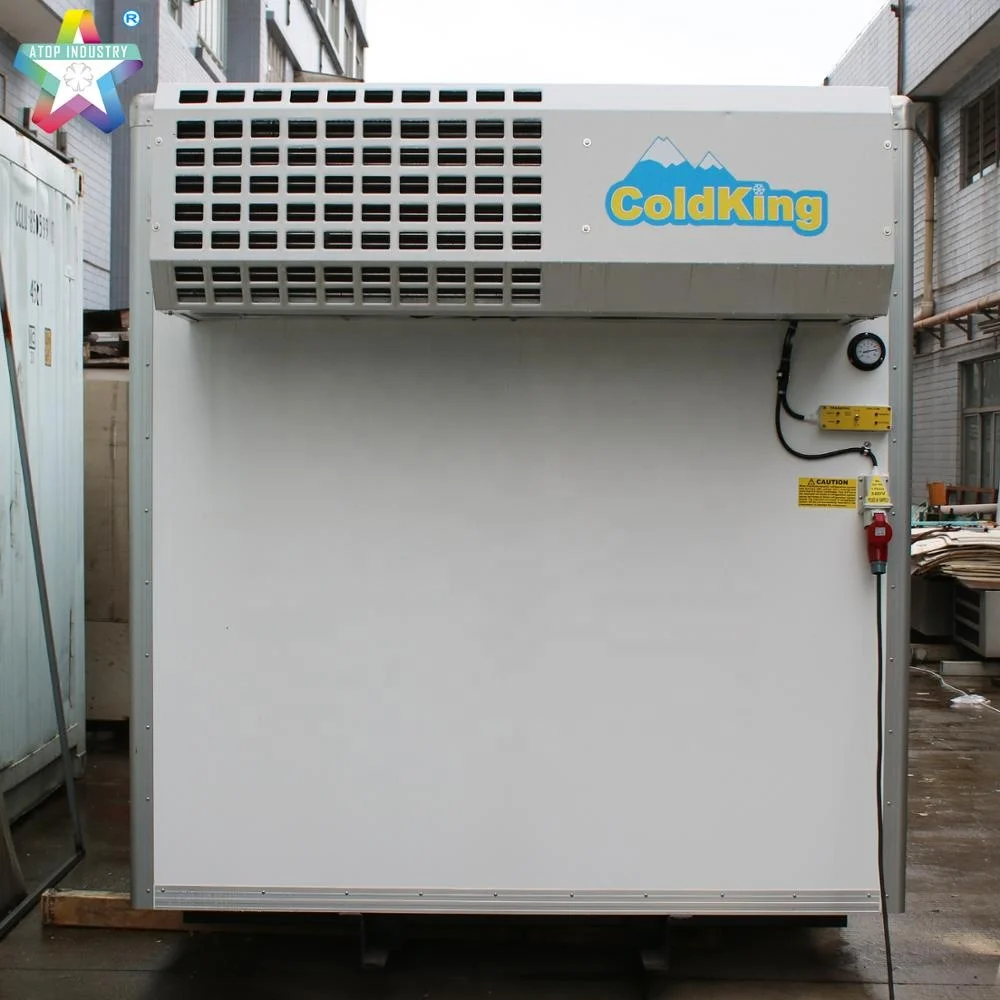

Refrigeration Units

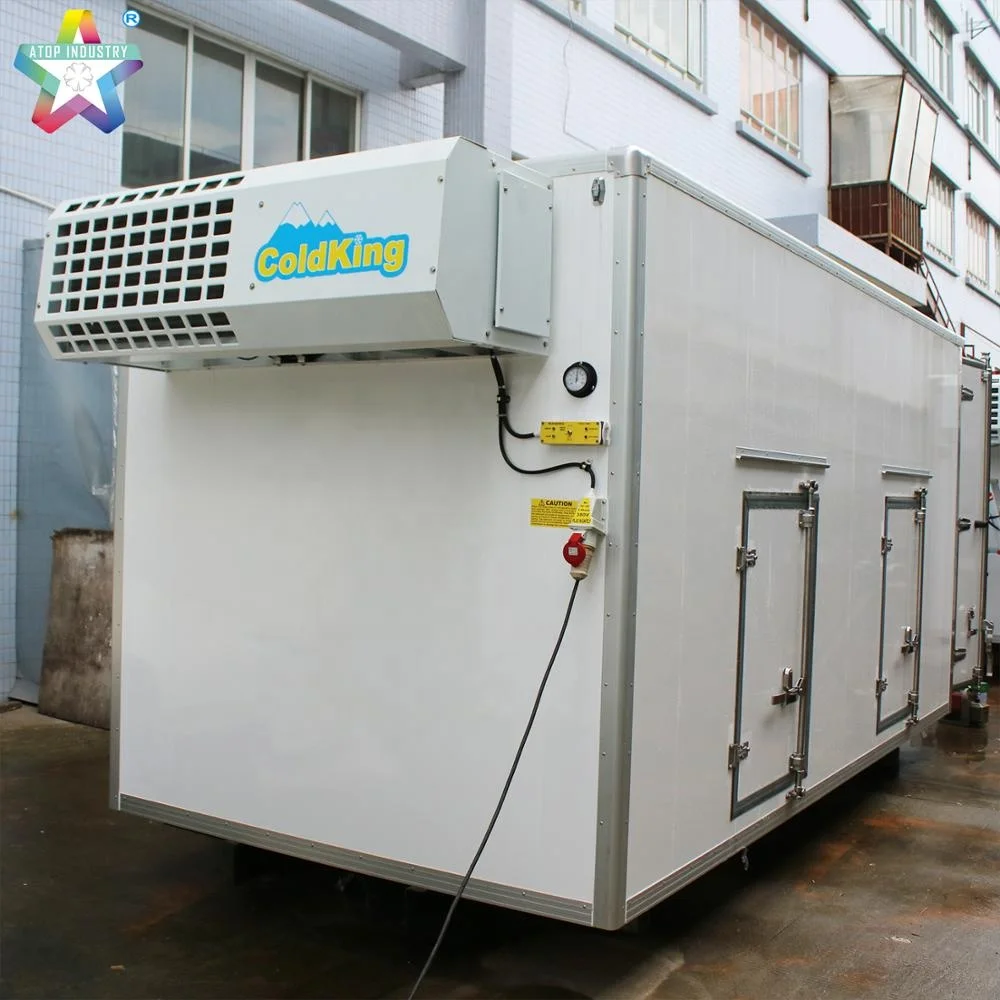

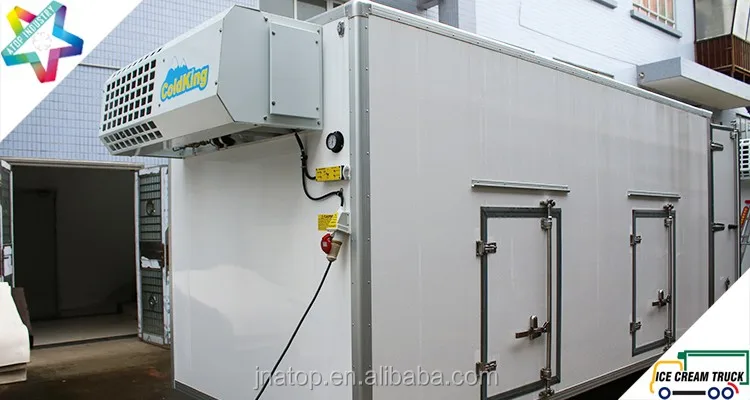

ColdKing Kooltube eutectic unit
is a holdover or latent heat storage system. It is one of the simplest refrigeration systems. Simply, it can be compared to a block of ice in a glass of water or to the freezer pack, which you freeze in your fridge at home and put into a cooler box to keep your drinks cold.The eutectic beams perform the same function as the block of ice or freezer pack while the condenser replaces your domestic fridge. The system is plugged into an electrical supply until the tubes are properly frozen, unplugged and then the vehicle used for its delivery round.
Refrigeration Unit Model | KT370-14N | Refrigeration Unit Brand | ColdKing | ||
Refrigeration Unit Type | AC Power Driven Eutectic Solution, Condenser Split ice cream truck body | ||||
Refrigeration Capacity | 2,390W(@ -40C) | 3,455W(@ -35C) | 6,380W (@ -25C) | ||
Total Refigeration Heat Exchange Rate | 12,000Kcal/h ice cream truck body ice cream truck body | ||||
Refrigerant | HFC R404a | Defrost | Manual Warm Water | ||
Condenser Mounted Method | Over-Cab Mounted | Kooltube Beams Assembly | 3.7m(L) x 14 Pcs | ||
Compressor Brand & Power | Bitzer/Bock 4.0Hp | Expansion Valve | Danfoss | ||
Condenser Fan | EBM | Thermometer | REFCO | ||
Power Supply Voltage/Phase/Frequency | 380V/3Ph/50Hz; 220V/3Ph/60Hz ice cream truck body | ||||

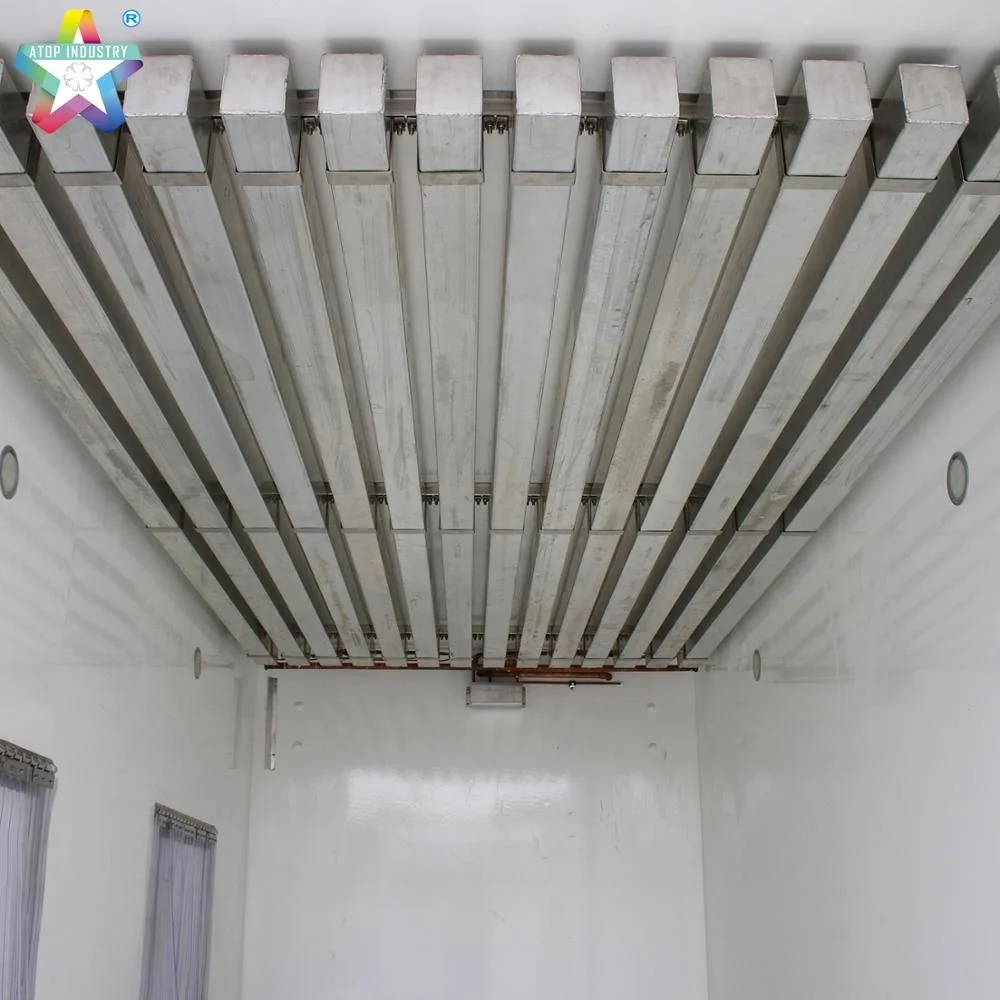

3700mm(L) x 14 pieces Kooltube Beams ice cream truck body

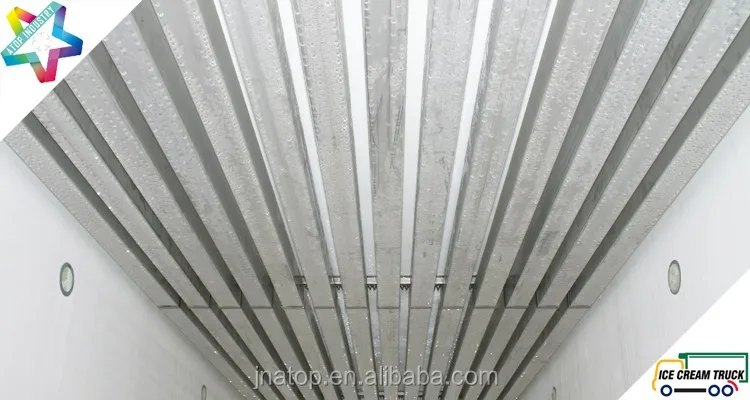

The Kooltube beam is extruded aluminum containing a non-toxic eutectic solution. A wide range of solutions is available for various temperature applications. ice cream truck body ice cream truck body ice cream truck body ice cream truck body

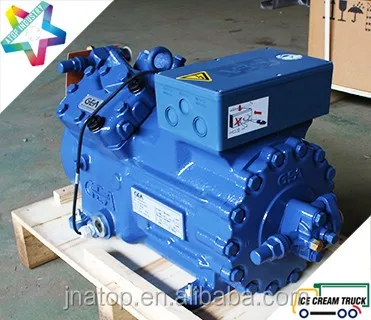

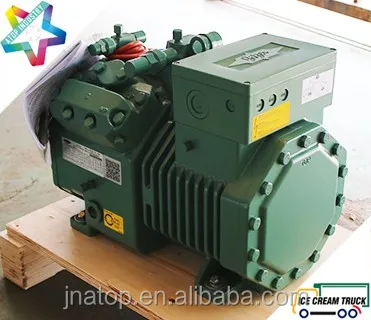

World Famous Quality Durable & Stable Compressor
Germany brand BITZER/BOCK compact semi-Hermetic reciprocating compressors boast an efficient suction gas–cooled motor, high-quality valve plates, wear-resistant drive gears and adjustable capacity control. This gives the BITZER/BOCK compressor, which can also be used at very low condensing temperatures, a beneficial seasonal energy efficiency beyond comparison. ice cream truck body ice cream truck body ice cream truck body ice cream truck body
Danfoss Parts

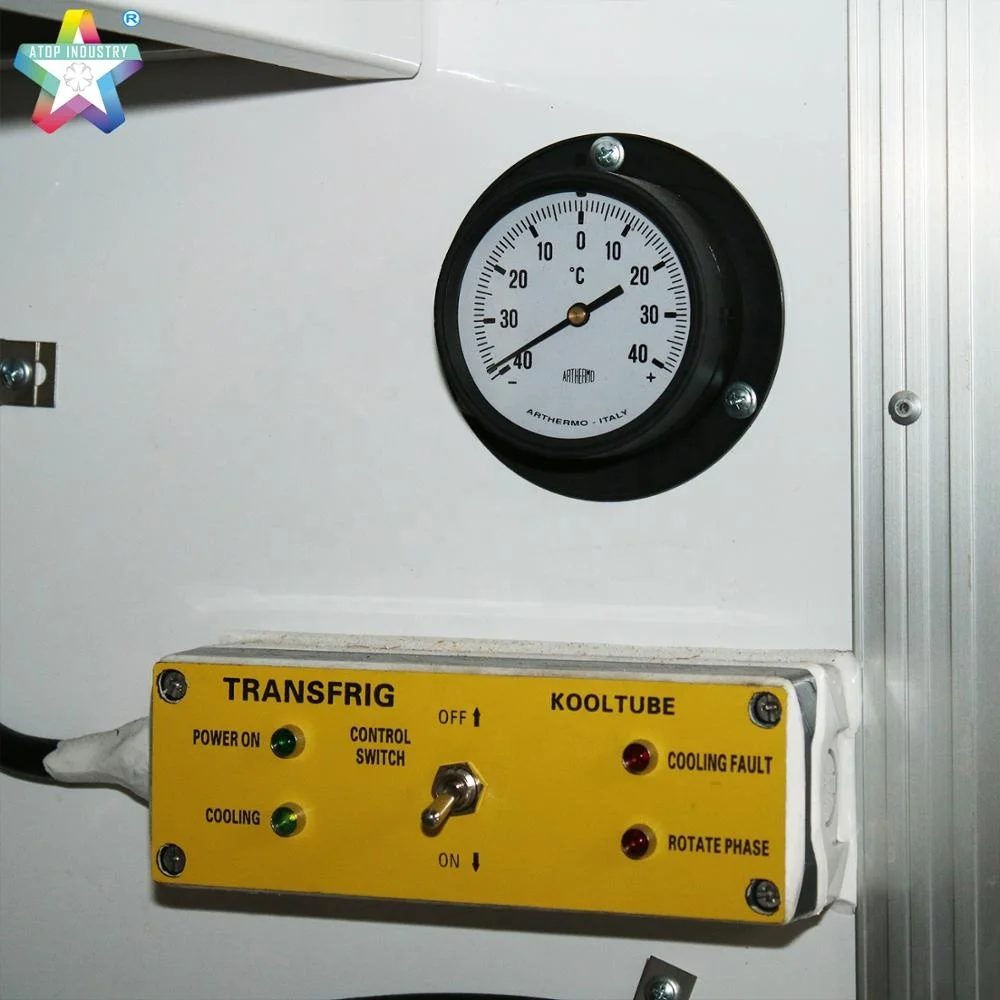

Schneider Electric Control
Germany Brand Quality EBM Fans

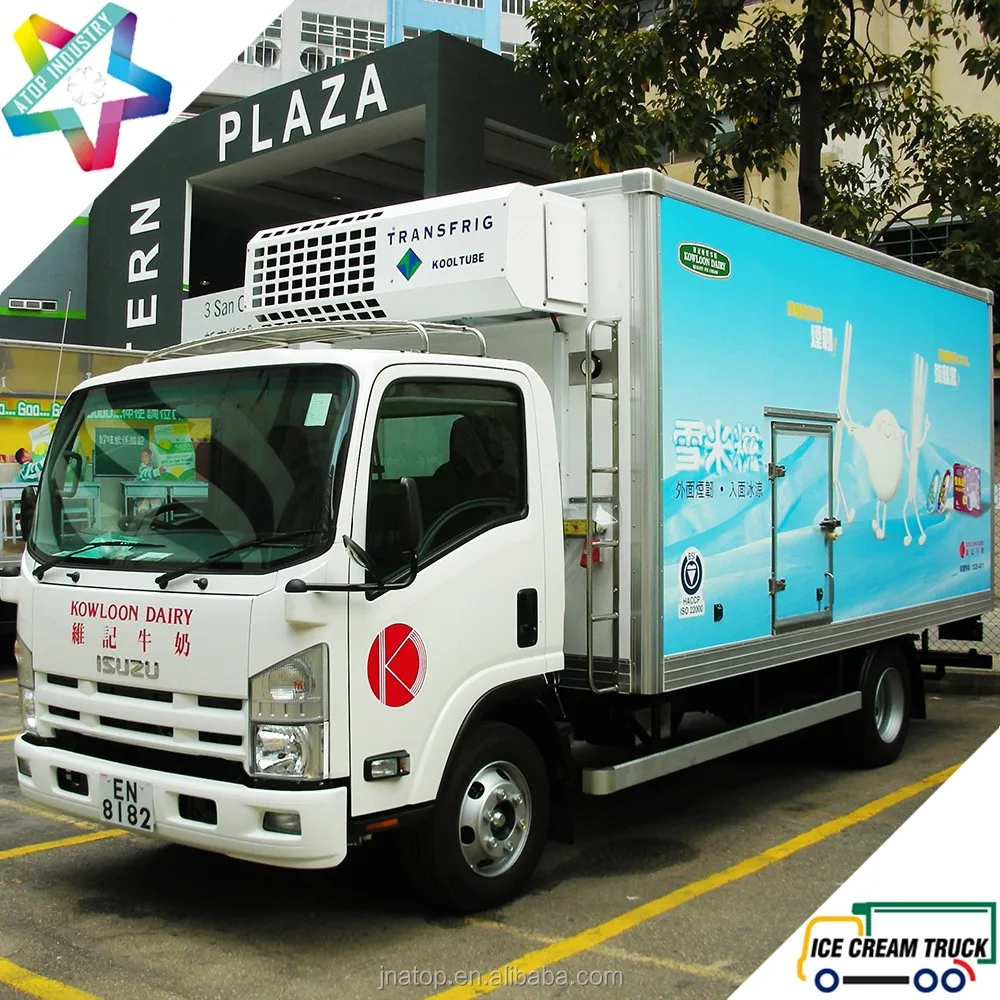

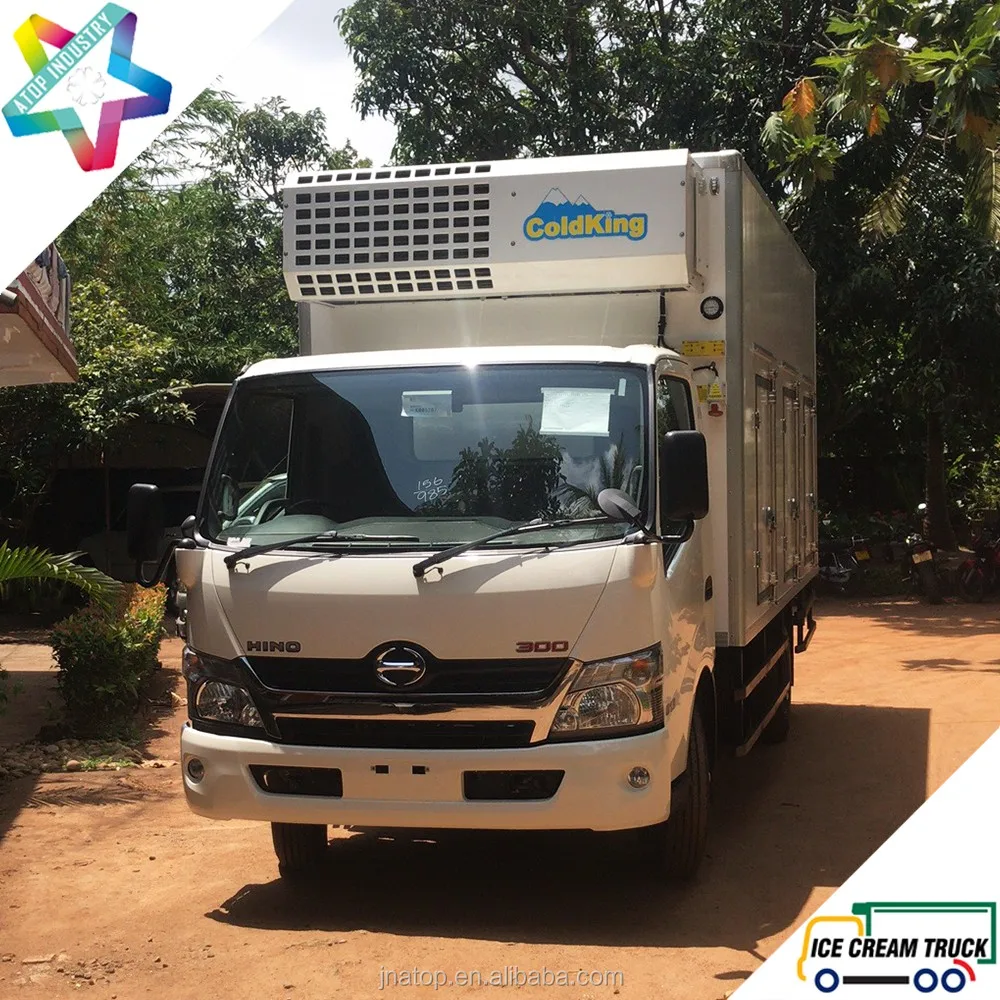

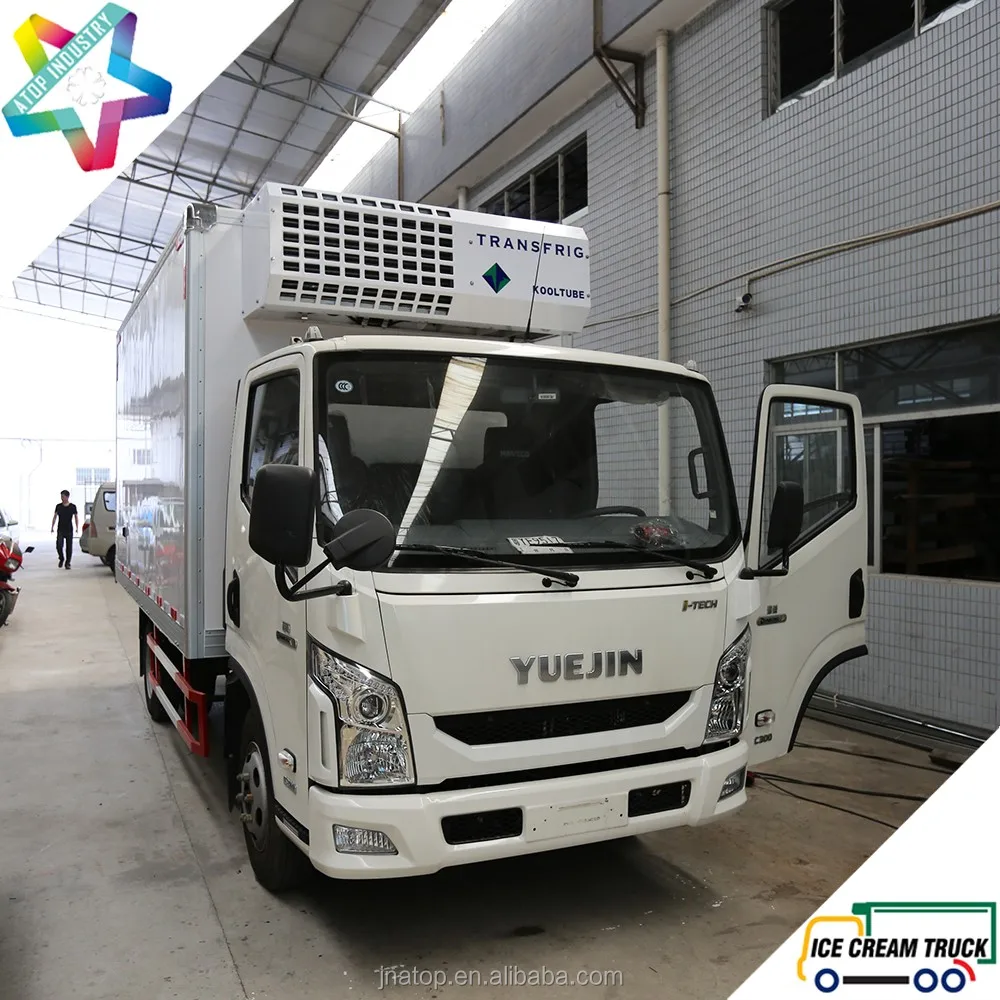

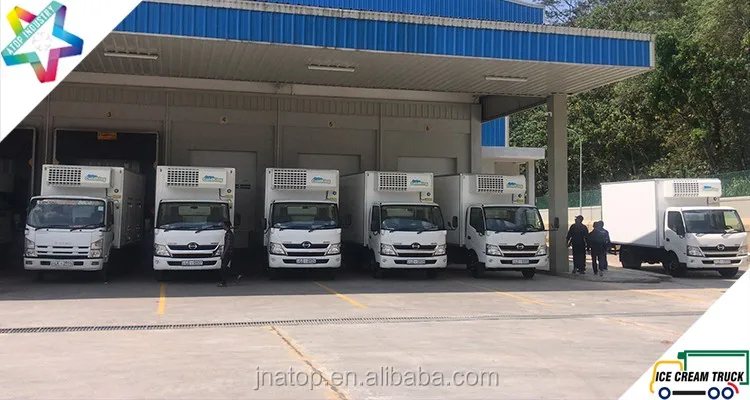

Applications
