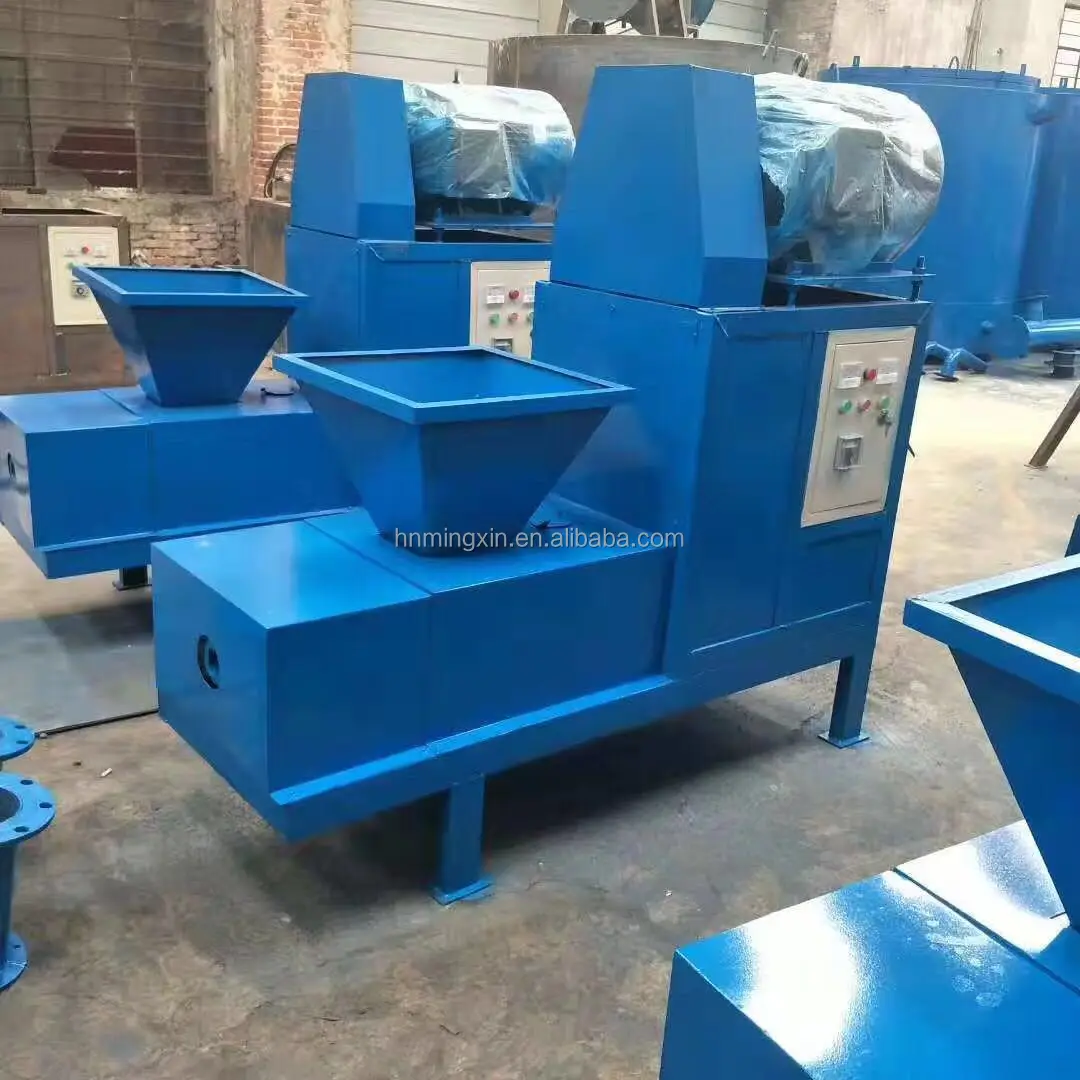

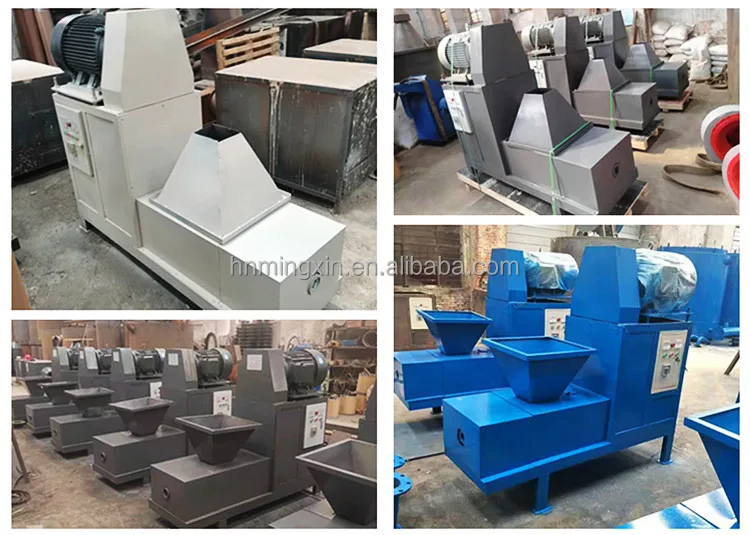

Small biomass cube straw hay briquette machine
- Category: >>>
- Supplier: Henan Mingxin Machinery Co. Ltd.
Share on (60781513613):
Product Overview
Description
Product Description
Introduction
1. The machine has the characteristics of reasonable design, reliable manufacturing quality, simple structure, convenient operation, small volume, less area, less work and electricity saving.
2. The designed automatic control electric heating device can adjust the dry humidity of the material randomly, ensure the stability of the material forming and improve the working
4. It is suitable for the pressing and forming of various biomass raw materials, with less energy consumption and high production efficiency.
efficiency.
3. The main parts of this product are specially treated with wear-resistant material, so it can be continuously pressed and durable.
6. The old type of oil - based lubrication is oil immersion lubrication, as long as it is not short of oil, it can be used for many years.
5. Three bearing the heart of the old machine is four, an increase of the machine stability and durability.
7. Increase the pitch to increase the feed volume, thus greatly increase the output.
8. The structure of the molding cylinder is improved, the friction force between the machine and the raw material is reduced, and the density of the mandrel is increased.

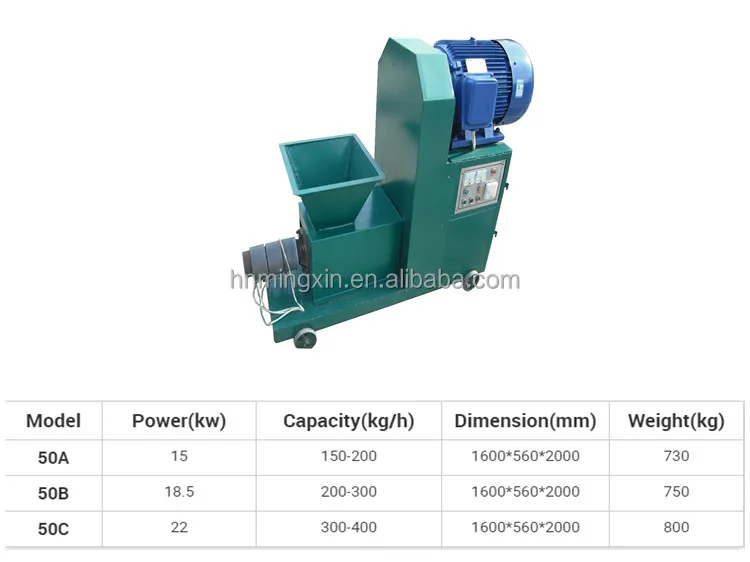

Specification
Model | Power (kw) | Capacity (kg/h) | Dimension (mm) | Weight (kg) |
50 A | 15 | 150-200 | 1600*560*2000 | 730 |
50 B | 18.5 | 200-300 | 1600*560*2000 | 750 |
50 C | 22 | 300-400 | 1600*560*2000 | 800 |

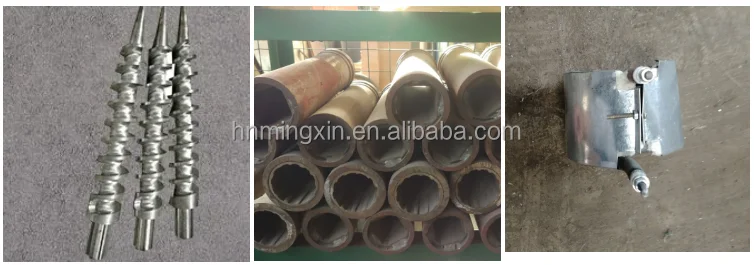

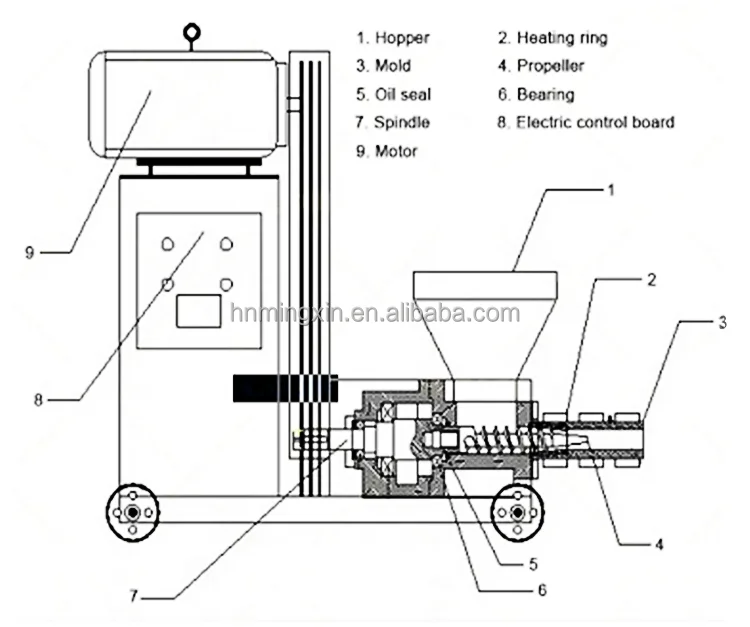

Screw Propeller: The Screw advanced design,high speed of producing rod ,high density,high resistance to wear.
Die Mold: It Can determine the shape of the wooden rod, we mainly have four-sided cylindrical and six-sided cylindrical.
Heating Ring: The heating ring is mainly for shaping the raw materials. The most important thing is to promote the softening and combination of lignin to improve the compactness and hardness of the rod; the softening of the lignin in the sawdust to a suitable viscosity results in a tighter interior of the rod. To strengthen the quality of the mechanism salary bar.
Application

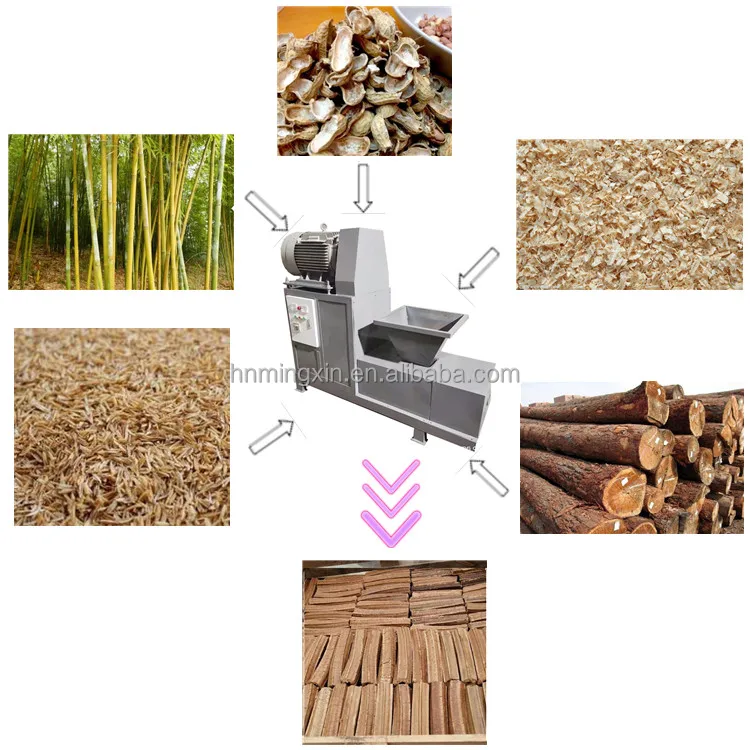

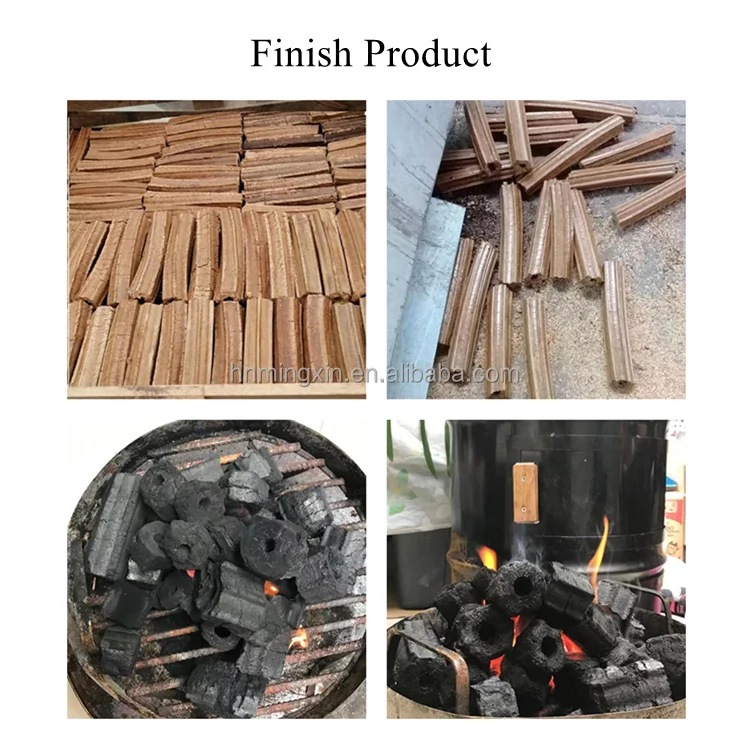

Charcoal briquette making machine is using sawdust, straw (corn straw, soybean straw, sorghum straw, cotton stalk, rape straw, peanut, sunflower stalk), rice husk, grasses, shrubs, bamboo head, butts, such as bag as seas raw material, high temperature and high pressure area is formed after wood crusher in the spiral propulsion device and the heating ring under the action of loose material into the hollow rod. The product has high density, small size, good flammability, and can replace firewood and coal. The general products outside diameter 50-60 mm, diameter 15-20 mm, hollow four or six angle form. It can also be made into spherical, granular and honeycomb coal.

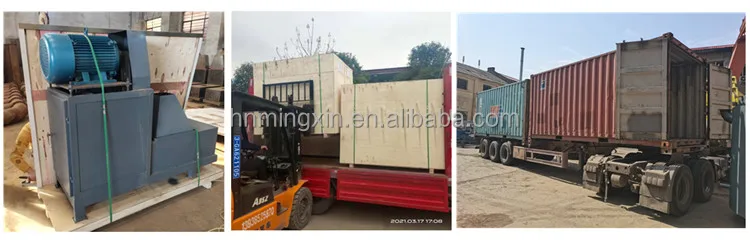

Packing & Delivery
Inner package: Plastic packing
Outer package: Wooden case
Delivery: 15 working days after placing the order.
Outer package: Wooden case
Delivery: 15 working days after placing the order.
Customer Visit
Company Profile
Henan Mingxin Machinery Co., Ltd is a company that integrates science, industry and trade. The company mainly sells mechanical equipment and accessories, pipeline equipment, refractory materials, abrasive materials, water purification equipment, wire and cable. Our company follows the human-oriented, honest, pioneering entrepreneurial spirit with scientific and technological innovation. We have always regarded the technology as the motive force, the market as the orientation to make the products first-class.
Our company insists on the professional development based on the principle of innovation and honesty. We win the market with our advanced skills, high-quality products and considerate services.The products in our company have been exported to the South Africa, Pakistan, Vietnam and other counties with the advanced technology, reliable quality and reasonable price. We have also got the good reputations from customers at home and abroad.
FAQ
Q: How about the quality of your products?
A:We put the quality in the first place based on the honesty. Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before the delivery. You can also use Trade Assurance by Alibaba for product quality protection, punctual shipment protection and payment protection.
Q: How about the price?
A: We pursue small profits but quick turnover, and we can give you lower price than other trading companies. Besides, customers from Alibaba can get a discount. If the product is really suitable and can benefit you, the price is negotiable.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to solve your problems promptly and thoroughly.
