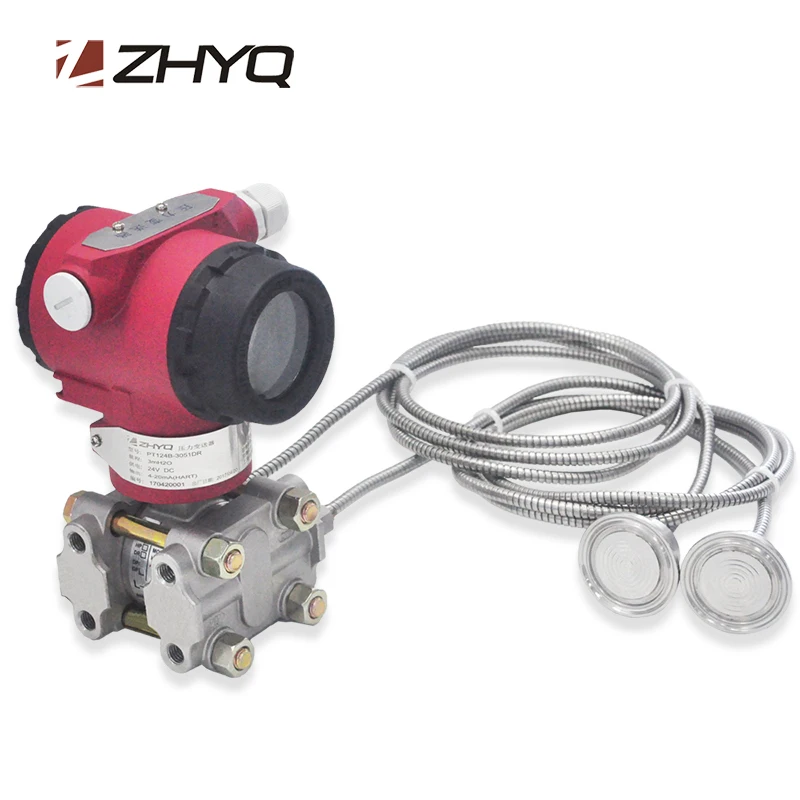

ATEX CE сертифицированный 3051 4-20mA цифровой преобразователь дифференциального уровня давления

Measurement parameter

Differential pressure, liquid level

Measurement range (Non migration)

0-1KPa-2MPa

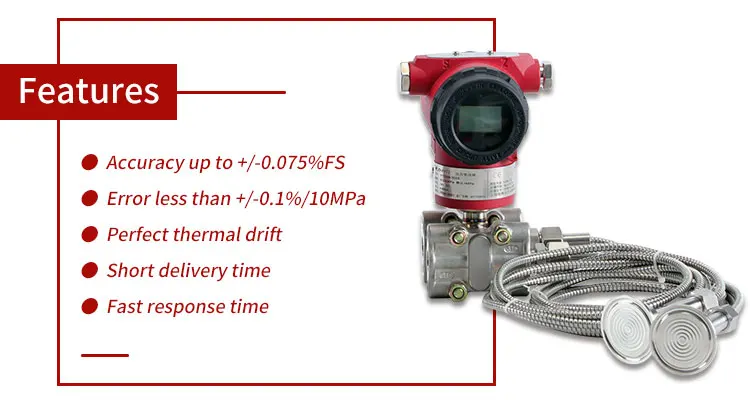

Accuracy

+/-0.1%

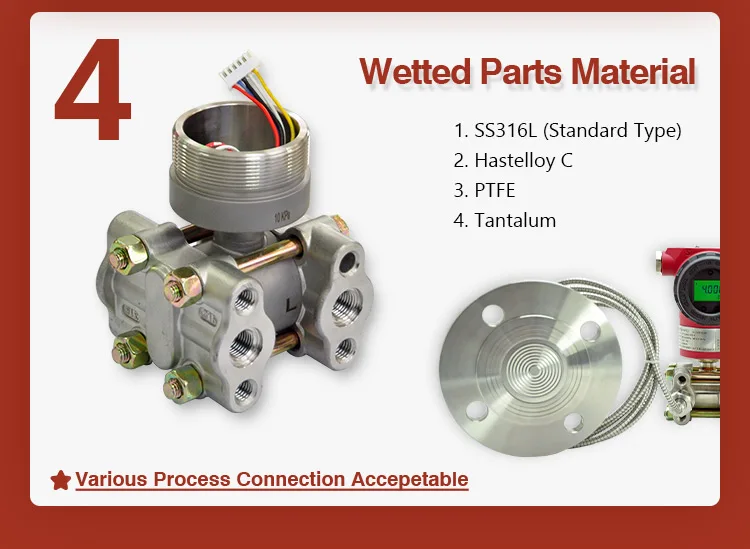

Wetted parts material

SS316L, Hastelloy C, tantalum

Output

2-wire 4-20mA, HART communication optional, linear output or square root output available

Ambient temperature limited

Lowest: depending on the filled liquid
Highest: 85℃

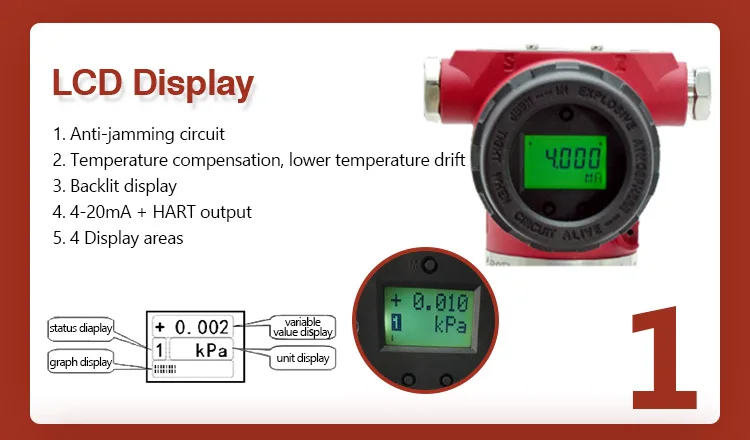

-20~65℃ (with LCD display, fluorine rubber O-ring)

Process medium temperature limited

-30~400℃

Protection grade

IP67

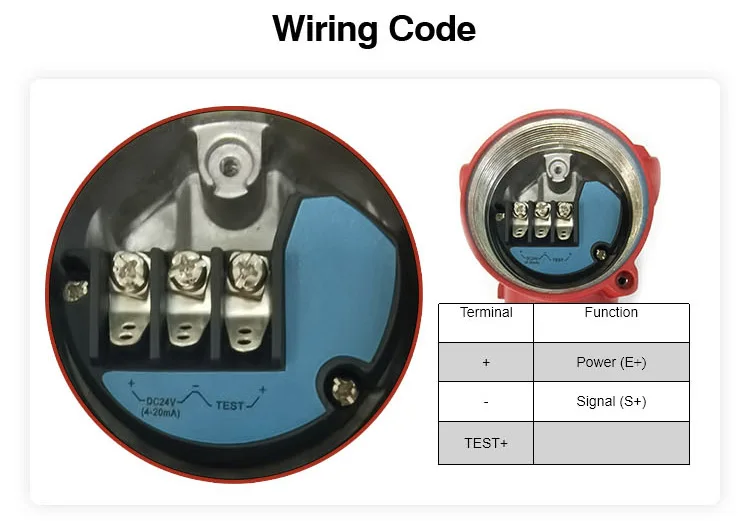

Electrical connector

M20*1.5 cable sealing buckle, terminal suitable for 0.5-2.5mm2 cable

Process connector

7/16 female at the low pressure, compatible with ANSI or DIN at high pressure. Directly install.

Mounting position effect

The body and fixed on any position. The optimum state of the flange axle should be vertical, the position deviation may cause
correctable zero shift. The electronic case can rotate 360 degree; the set screw can fix it at any position.

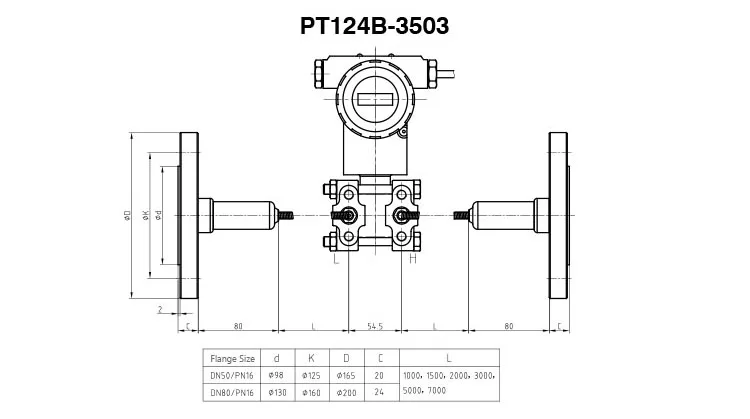

For the double flange type remote transmitter, should keep the capillary parts and flange at the same ambient condition. The
minimum bend radius is 75mm, forbid twining or twisting together.
