Two direction Fishing Bite Alarm JZH RF1118 High Sensitivity Wireless Alarm Set 6 1

Product Overview

Description

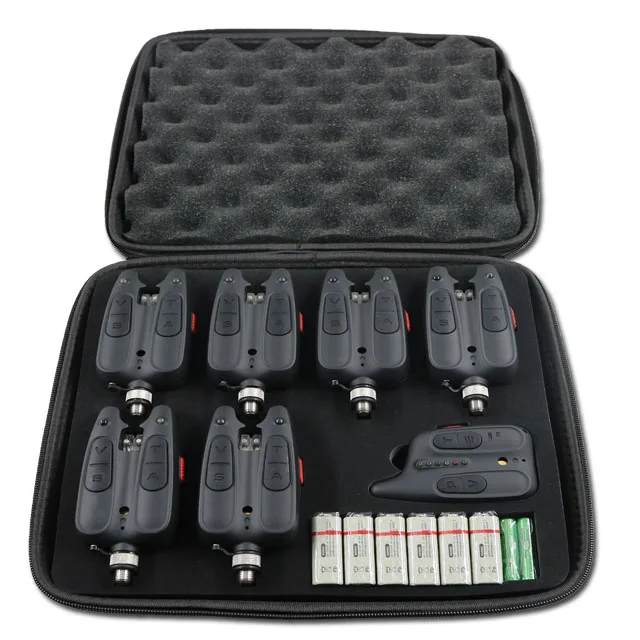

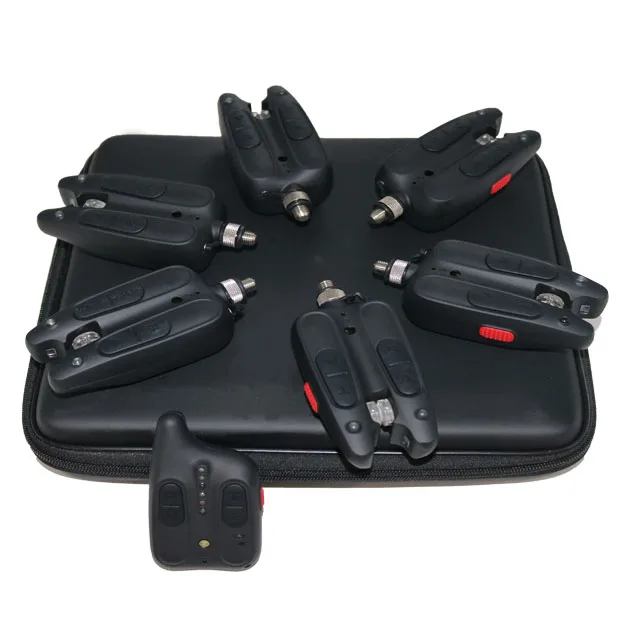

Two-direction  JZH-RF1118  High Sensitivity   Wireless  Alarm Set 6+1





Fishing bite alarm detail:

A:

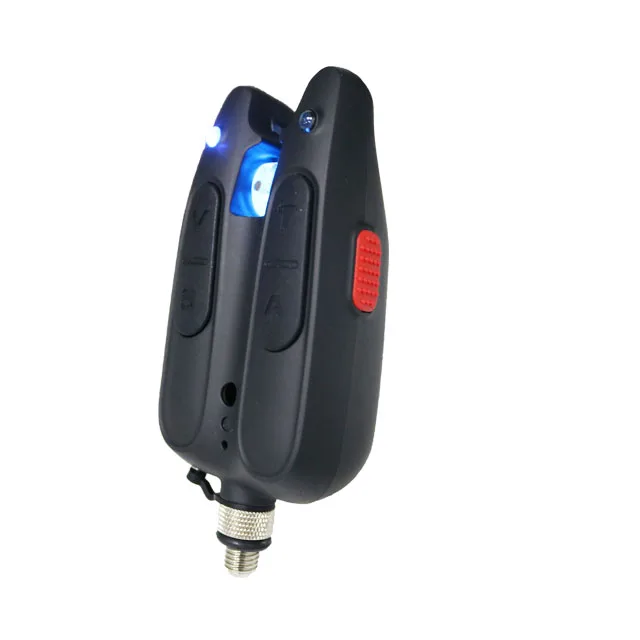

Bite alarm units

l 8 tones settings

l 8 volume settings

l 5 sensitivity settings

l 15 sec latching LED

l 6 colors clear LED choices

l Running LED (all are green)

l Push button LED dimmer

l Black satin smooth finish

l Anti-Theft

l Colorful light rollers

l 150-200 meters

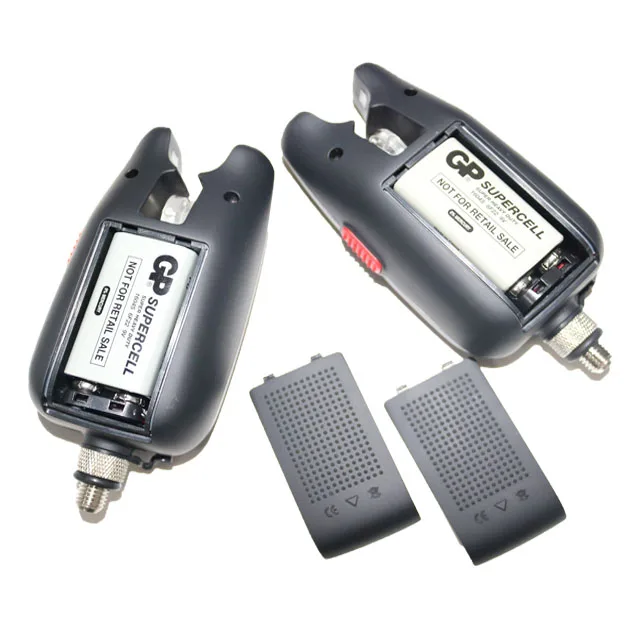

l Operates with the 9V batteries

l 2.5mm jack socket

l Memory function in bite alarm

l Height adjustable/removable storm ears

       l  Low battery function

l Can change roller wheel light color



B:

Power on/off switch

 Press the ON/OFF button on the right of the transmitter to turn on

 or turn off the transmitter.

 Volume adjustment

 Press the volume control “V”to step through the 8 volume settings ,

 ranging from low to high and silent mode .

 Tone adjustment

 Press the tone adjustment button “T” to step through the 8 settings .

 Night light brightness adjustment

 Press the ON/OFF button on the transmitter to adjust the brightness of

 The night light(also called roller wheel light)

 Sensitivity adjustment

 Press the sensitivity adjustment button “S” to step the 5 sensitivity settings ,

 ranging from Minimum to Maximum

 mode.1 beep equals maximum sensitivity to 5 beeps minimum sensitivity .

 Run indication / Low battery indication

 When magnet roller wheel is activated . Both LED’s will be illuminated . The latching LED will illuminate for 20 seconds

 and the run LED illumination stops when the roller wheel finishes rotating ./ Run LED on bite alarm

 will flash /blink once every 5 seconds when battery low .

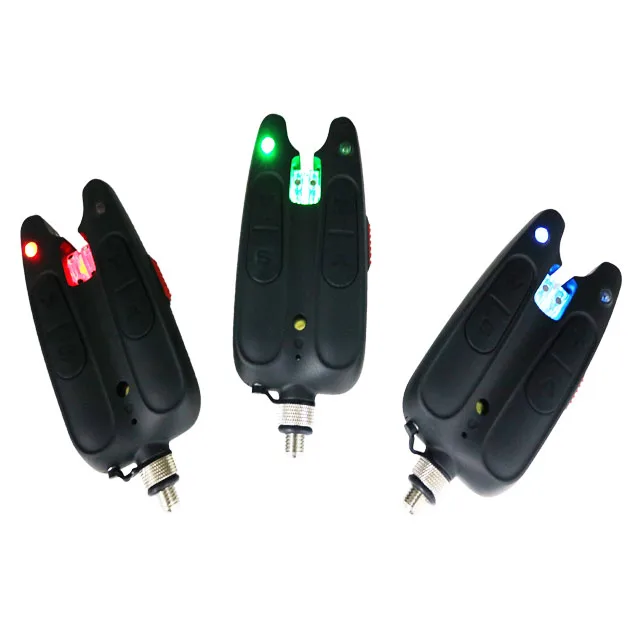

 Change the roller wheel color

 Press the V and T buttons at the same time to change the color of the roller wheel. There are six colors for your choice.

 Those are red, yellow, blue, green, white and purple.

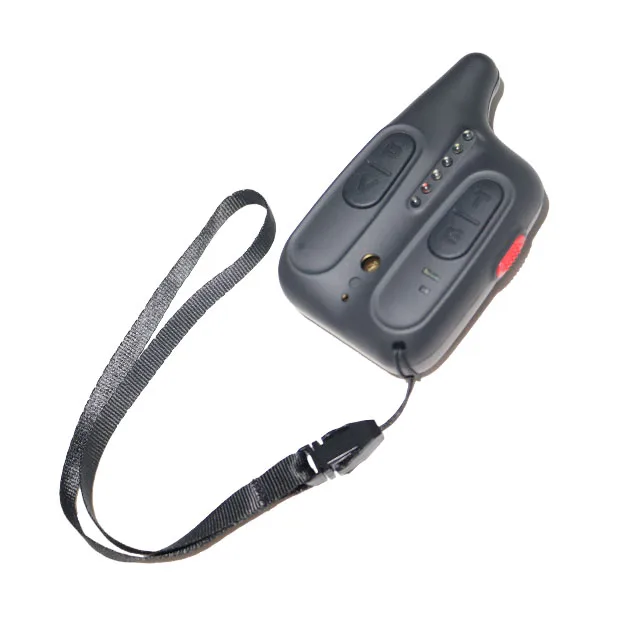

Receiver units

A:

l 8 volume settings

l 5 colors clear LED choices

l Vibration mode/Silent mode

l 6 LED dimmer

l 200 meters

l Memory function in receiver

l Learn and erase code

l Low battery warning

l Operate with 1.5 V * 3 batteries

l Can match with 6 alarms



B:

Power on/off switch

Press the ON/OFF button on the right of the receiver for several seconds

to turn on or turn off the transmitter.

Volume adjustment

Press the volume control “V”to step through the 8 volume settings ,

ranging from low to high and silent mode .

Vibration adjustment

Press the vibration button “O”to choose vibration mode on or off.

Low battery indication

The first latch LED on remote receiver will flash/blink once every 5 seconds when battery is low .

The receiver control the bite alarm : Press “ vibration “ button 3s, heard the sound 2 times, and see the green LED light, that means the two-directional function is turned on.

Then press “ P “ key to select which bite alarm to control, after you choose the LED light on receiver, can press “ V ” to change transmitter volume, short press “ vibration “ to change tone. Short press power button on the right to change sensitivity. Press “ T ” key until hear sound 2 times, and red LED indicate light, that means anti- theft function is turned on , short press “ T “ key will be turned off.

Press the “ vibration” button 3s, turn off the two-directional function.



feature:
1. Night light function
2. Learning code, clear code function
3. Remote control reminder function
4. Dimming function
5. Eight sensitivity volume tone adjustment function
6. Waterproof and Illuminated
7. PVB double-sided circuit board.

8.The receiver can also control the transmitter







Technical Specification



Transmitter	Receiver
Power Voltage : 9 V	Power voltage : 1.5 V *3
Standby Current : 20 uA	Standby Current : 0.5 mA
Working current : 30 mA	Working current : 22 mA
Shut down current : 0 mA	Shut Down Current : 12 uA
Working Power : 9 dB	Receiving Sensitivity : -100 db
Frequency : 433 MHz	Frequency : 433 MHz
Coverage range : 200 m	Coverage Range : 200 m
Working Temperature :-10 ~70 ℃	Working Temperature :-10 ~70 ℃













 More Pictures:

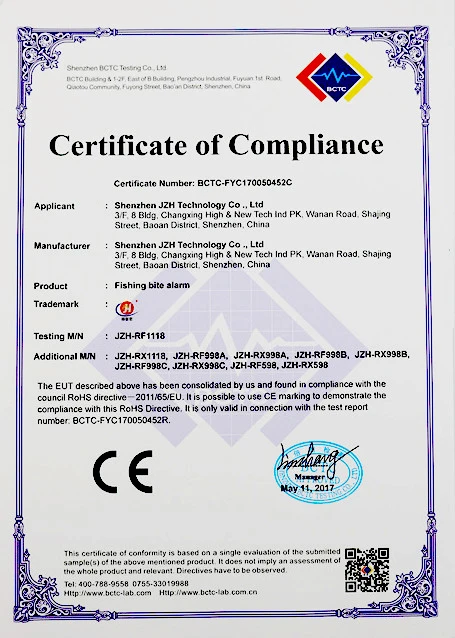

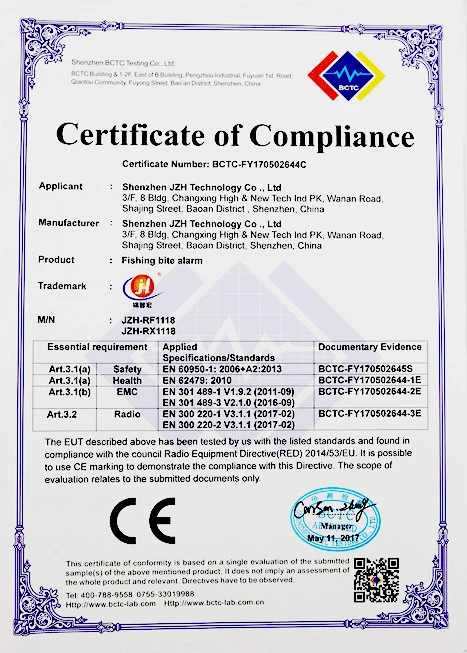

certificate
