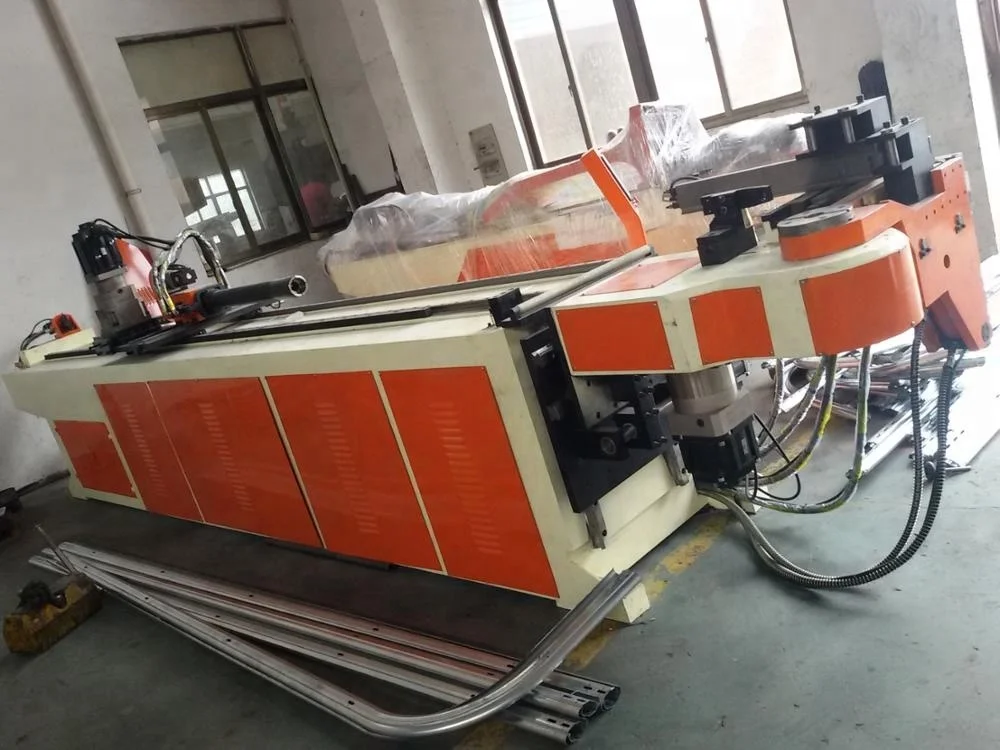

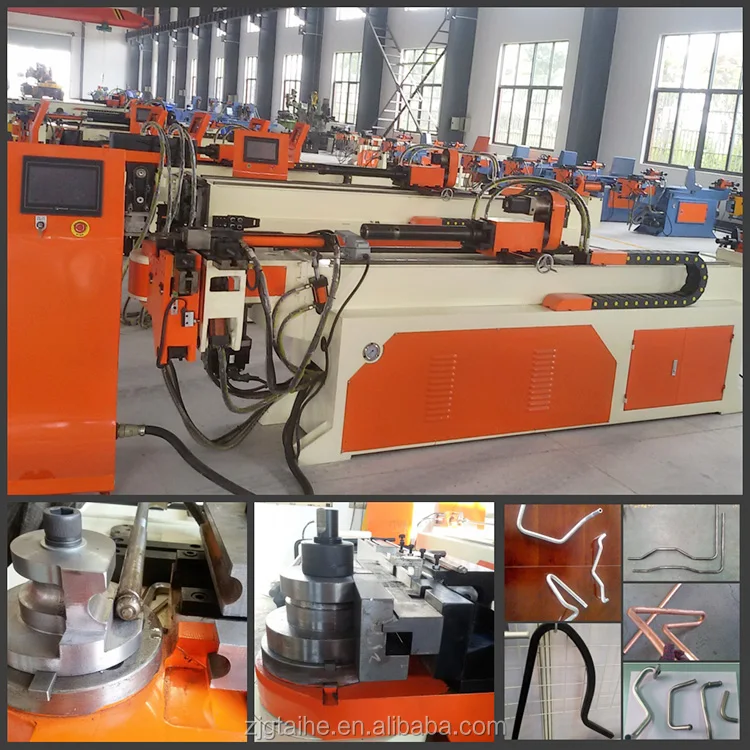

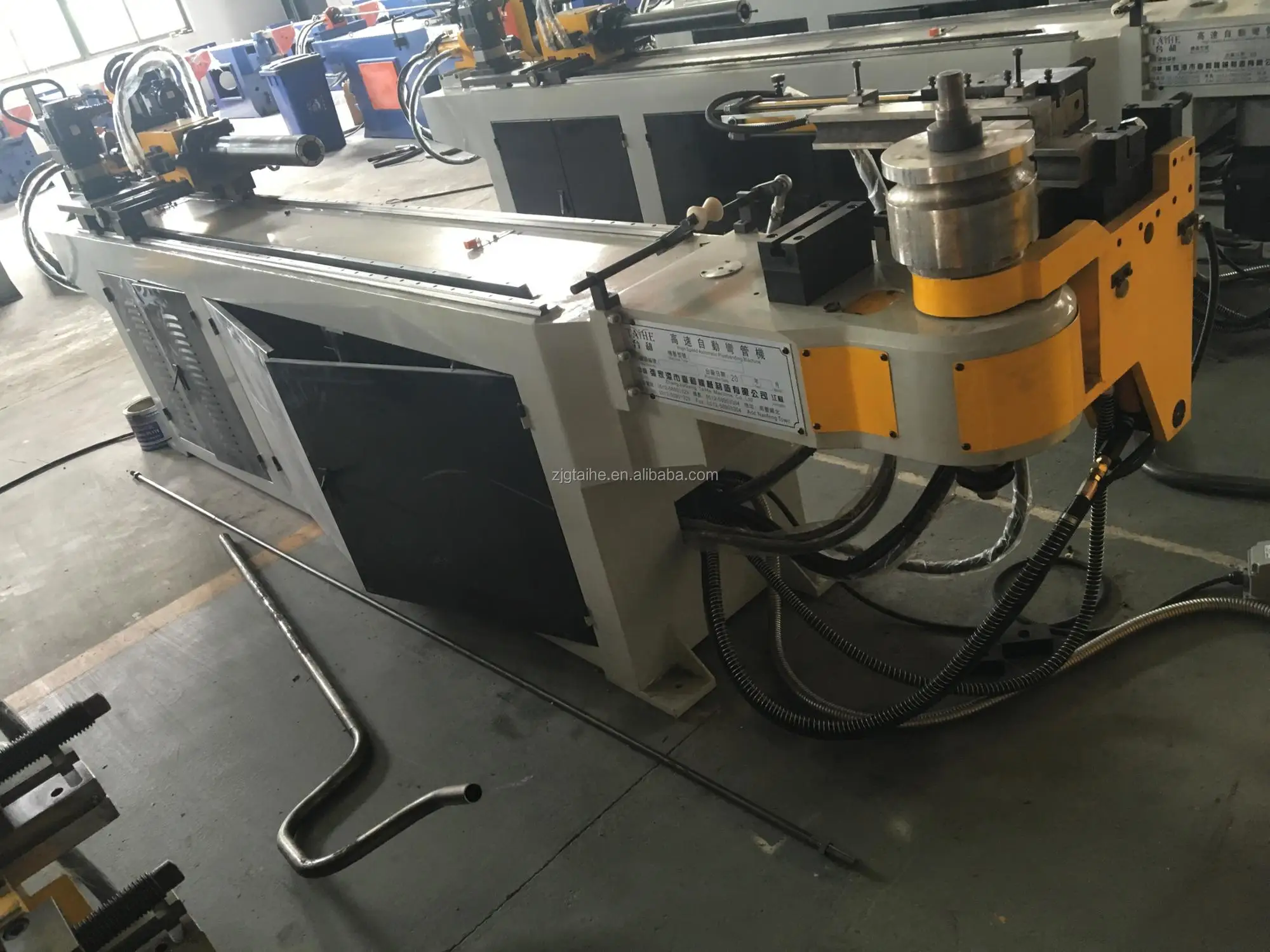

easy operation numerical control bicycle handlebars pipe bending machine for autobike handle

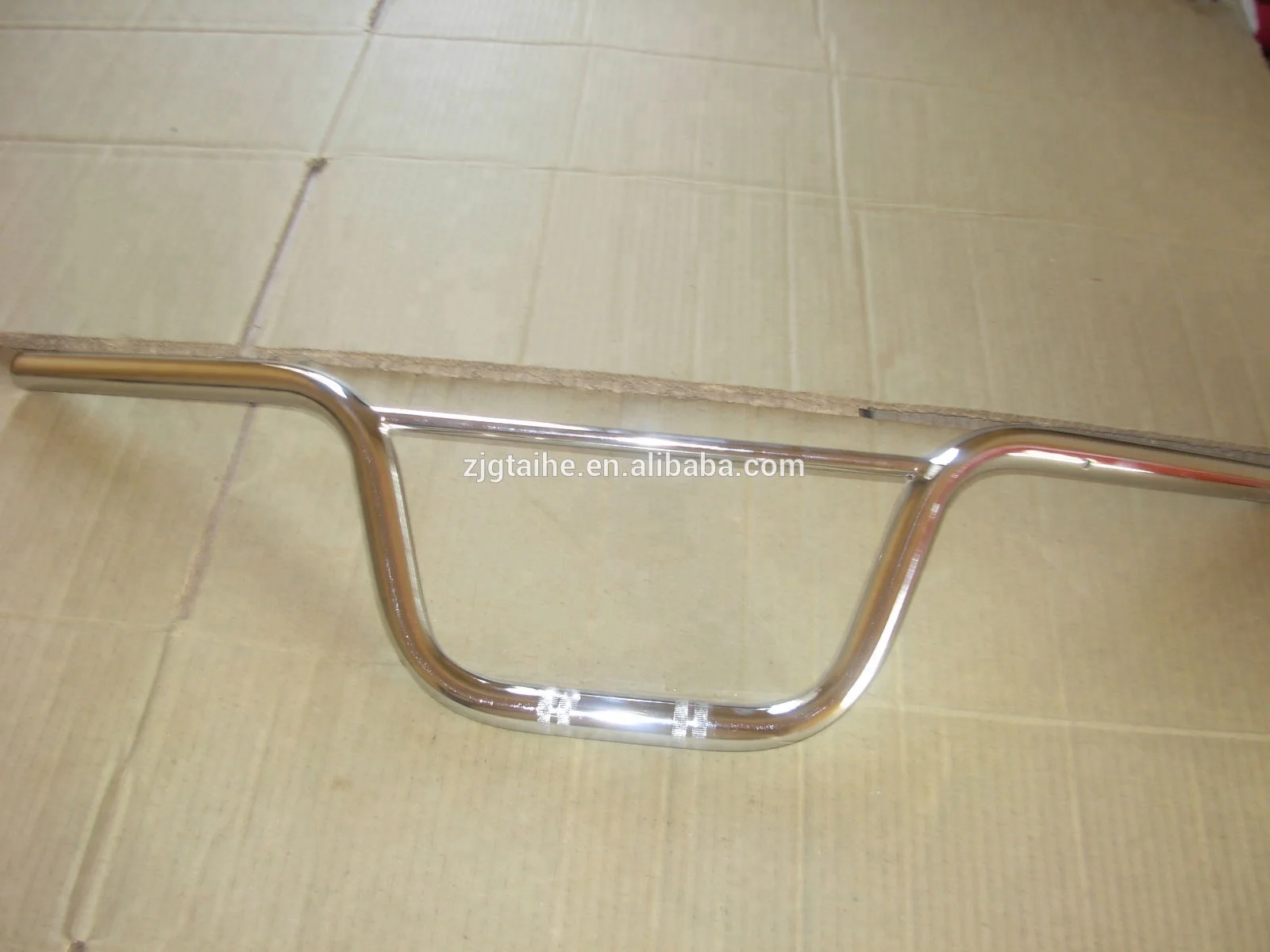

bicycle handlebars bending machine

bicycle handlebars pipe bending machine

pipe bending machine for bicycle handlebars

Full automatic bicycle handle pipe bender is full automatic type machine for bending three dimensional complicated workpiece., which can input YBC or XYZ into controlling system, and machine make the tube bend accordingly.

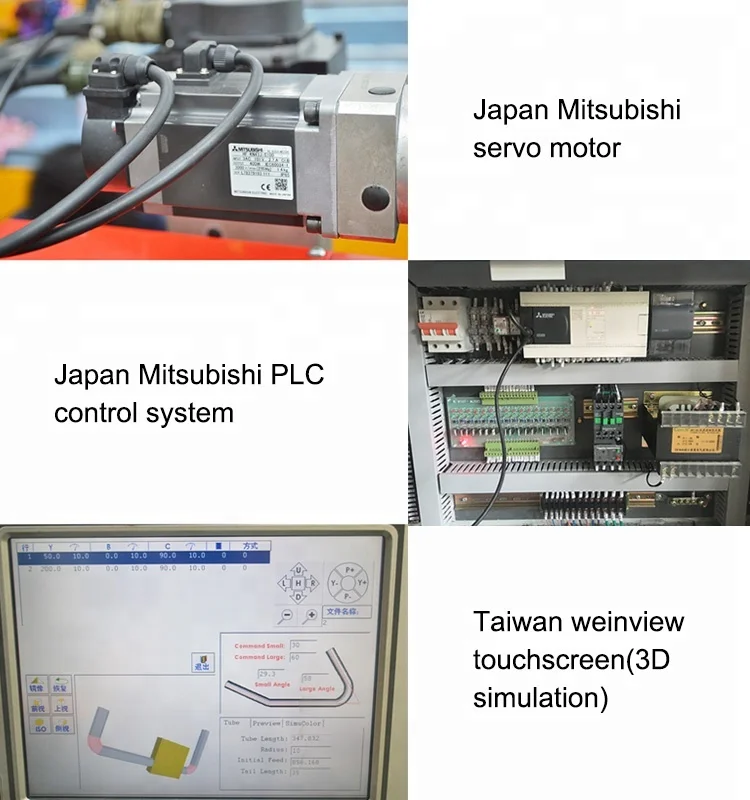

1 Bending-Auto driven by servomotor, Rotaion-Auto by servomotor, Feeding-Auto by servomotor

2 Pneumatic movement of machine------clamp, pressure clamp, clutch, mandrel  (High speed)

3 Automatic lubrication system of machine head and mandrel

4 XYZ transferred to YBC which is convenient for user

5 Different tooling design customized for user

6 Anticipated Mandrel Extraction good for tube of very small thickness

7 Reclamp function suitable for tube length without limitation

8 Optional function ------punching hole, cutting, multiple radius, roll bending, etc

9 Standard tooling including clamp die, wiper die, mandrel, pressure die, bend die

10 Seperate oil tank with oil filter--easy for cleanning

11 Option control system----Industrial computer with function of 3D simulation, 3D view, inch input,        drawing input, remote control

1.Warranty period: We guarantee machine quality for one year, during this year, if spare parts of the machine were damaged, we can send the component to the customer by DHL, TNT freely.

2.Our factory can send our engineer to the customer’s factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.

3.Our factory provide the service for the customer forever, if the customer need operation help, can contact us by Skype, Email and Telephone at any time, we provide 24 hours on-line service.
