Gecen New 3.5" Digital HD Powerful Function Satellite Meter Finder With AHD Camera Optional

Share on (60781592655):


Price:RUB 758.18 - RUB 6,065.44

Quantity:


Product Overview

Description

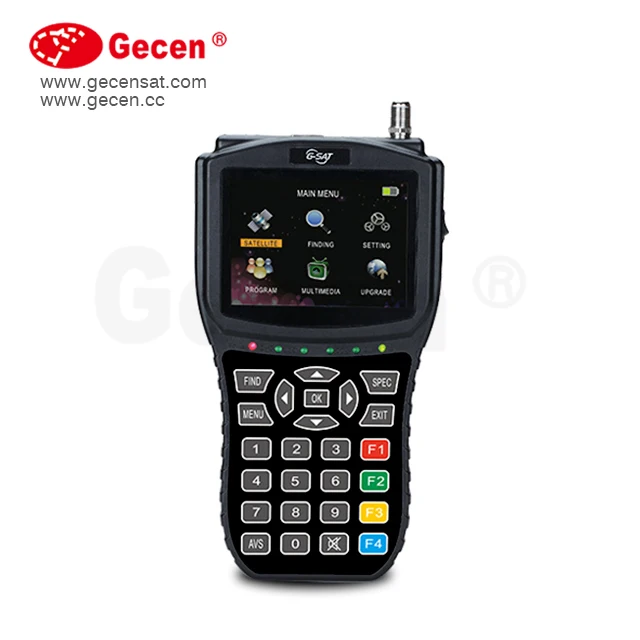

Gecen New 3.5" Digital HD Powerful Function Satellite Meter Finder With AHD Camera Optional
System Resources
Physical Specification
Main Processor
600M Hz based CPU
LCD Display
3.5 inch
Flash Memory
64M Bits
Size[W*H*D]
180 x100x 40(mm)
DDR 3 SDRAM
1024M Bits
Net Weight
0.5Kg
Operating Temperature
0℃ ~ + 45℃
Storage Temperature
-10℃ ~ + 70℃
Tuner/Front-end
Power supply
Tuner Type
DVB-S/DVB-S2
Input Voltage Adapter
Free Voltage (100~240V AC 50/60Hz)
InpuConnector
F-type
Power Consumption
10W MAX
Frequenc Range
950MHz~2150MHz
Power charger output
14V DC 2A
Signal Level
-65~-25dBm
Battery
12.6V DC 2000mA
Impedance
75Ω
LNB Power & Polarization
Vertical:+13V
Horizontal:+18V
Current:Max.500mA
Overload Protection
Battery charging time
6H
DiSEqC Control
Versio1.0/1.1/1.2/1.3,USALS Available
Battery standard discharging time
3-4H
22KHz Tone
Frequency:22±1KHz
Audio output
Built-in Loudspeaker
Demodulation
QPSK,8PSK,16APSK,32APSK
USB
1*USB 2.0 slot Compatible for Host
Symbol Rate
1~60Msps
Transport Stream
MPEG-2/4,H.264



  • Features:


* 3.5''TFT LCD Screen
* Support DVB-S/S2
* Support CCTV camera testing
* AHD(5MP Optional)
* Support Spectrum Analyzer
* Multi-lingual OSD and friendly UI
