Woodworking machine for chair table legs processing,wood copy shaper MX7216A

Product Overview

Description

Automatic Wood Copy Shaper Machine

MX-7216A

Equipped with protection canopy









MX-7216  wood copy shaper machine application:

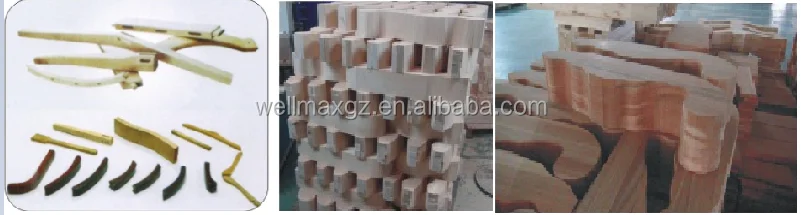

MX-7216 Auto wood copy shaper machine mainly used for processing long ,thin and other shapes workpicese copy milling such as chair legs,table legs,bed accessories etc,its widely used for wooden furnitures industry.



SCAN TO VIEW MACHINE WORKING VIDEOS ON YOUTUBE

https://youtu.be/EwYL7eEDHd4



MX-7216  Series Automatic wood copy shaper machine main features:

Safety:Equipped work protect canopy to prevent unnecessary working injuries.
High efficent:Operator only need to responsible do simply loading,all procedures are automatic,auto feed in ,auto feed out.This will improve the production capacity and reduce labor cost.
Eco-Friendly:Equipped with strong dust collect system to protect workshop environment during production.

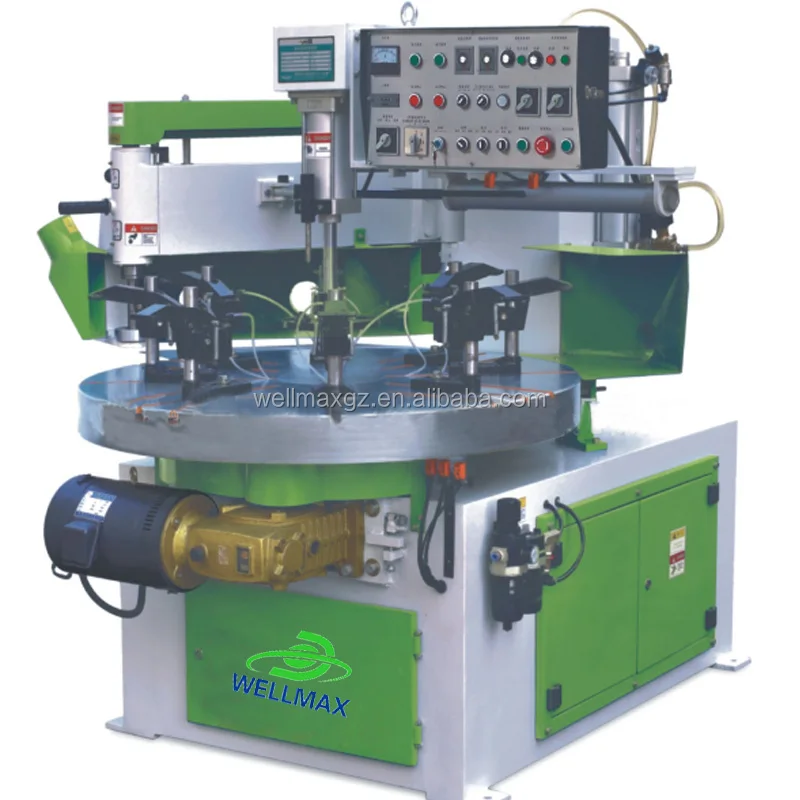

MX-7216 wood copy shaper machine Technical Parameters:

Modle	MX-7216
Range of cutting diameter	250-1600mm
Max retangular cutting	2:1
Max cutting thickness	130
Working table size	Dia 1170mm
Cutter spindle diameter	30mm
Guiding roller diameter	100mm
Cutter spindle speed	9000 rpm
Working table speed	1.5-6 r/min
Main spindle motor power	5.5kW
Working table driving motor power	2.2kW
Working air pressure	0.6-0.8Mpa
Dust outlet diameter	100mm * 4 pcs
Dimensions	2630*2080*1800mm
Weight	1650KG

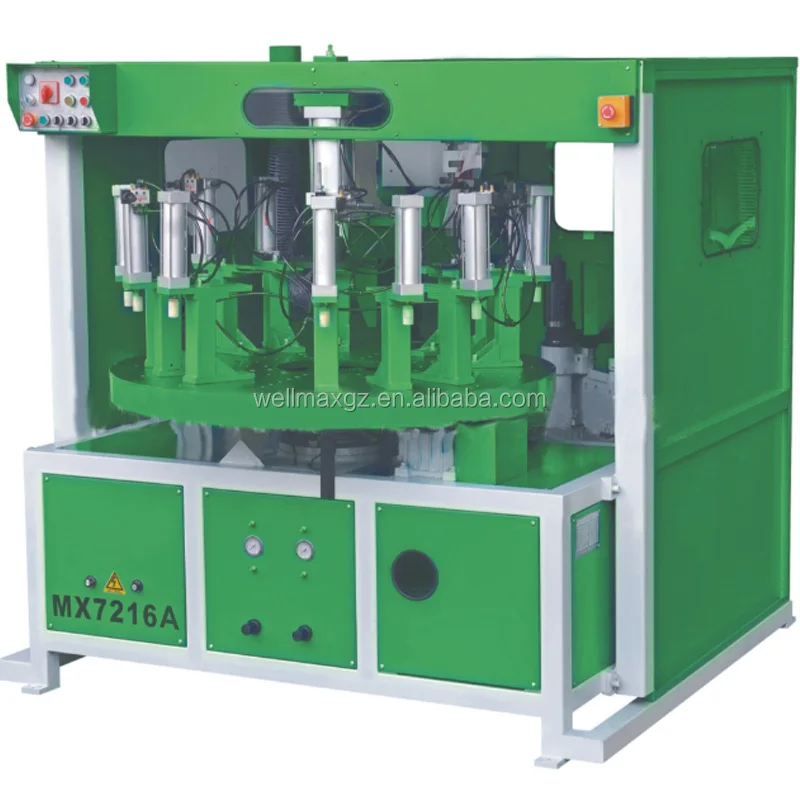

MX-7216A Automatic wood copy shaper

MX-7216A wood copy shaper machine Technical Parameters:

Modle	MX-7216A
Range of cutting diameter	1170-1600mm
Max retangular cutting	2:1
Max cutting thickness	140
Working table size	Dia 1170mm
Cutter spindle diameter	35mm
Guiding roller diameter	100mm
Cutter spindle speed	9000 rpm
Working table speed	1.5-6 r/min
Main spindle motor power	4Kw * 2pcs/5.5kW* 2pcs
Working table driving motor power	1.5kW
Working air pressure	0.6-0.8Mpa
Dust outlet diameter	100mm * 2 pcs
Dimensions	1900*1500*600mm
Weight	1800KG

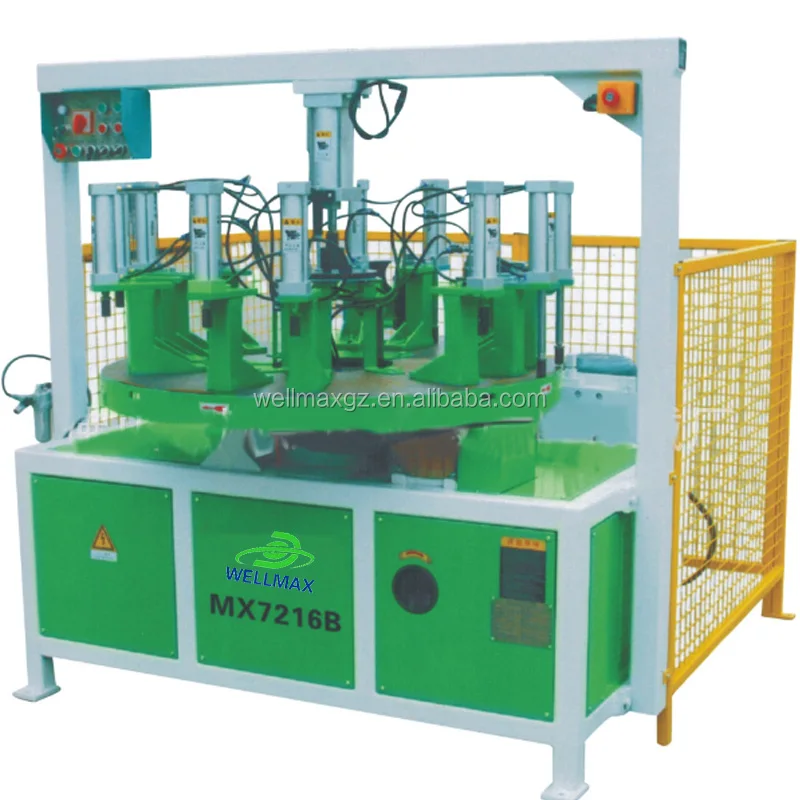

MX-7216B wood copy shaper machine Technical Parameters:

Modle	MX-7216B
Range of cutting diameter	1170-1600mm
Max retangular cutting	2:1
Max cutting thickness	140
Working table size	Dia 1170mm
Cutter spindle diameter	35mm
Guiding roller diameter	100mm
Cutter spindle speed	9000 rpm
Working table speed	1.5-6 r/min
Main spindle motor power	4Kw * 2pcs/5.5kW* 2pcs
Working table driving motor power	1.5kW
Working air pressure	0.6-0.8Mpa
Dust outlet diameter	100mm * 2 pcs
Dimensions	1900*1500*600mm
Weight	1800KG

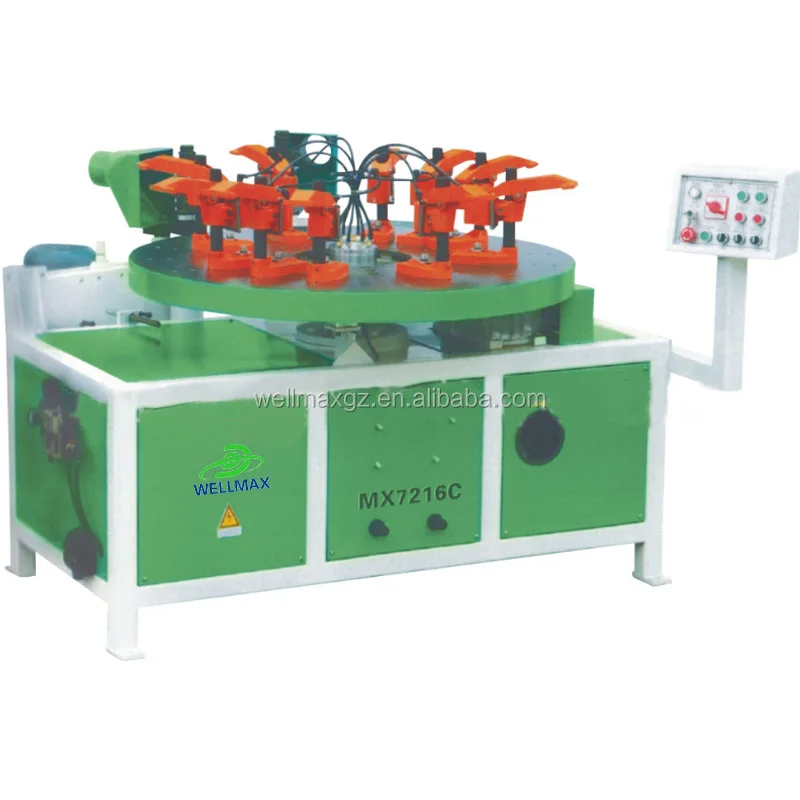

MX-7216C wood copy shaper machine Technical Parameters:

Modle	MX-7216C
Range of cutting diameter	1170-1600mm
Max retangular cutting	2:1
Max cutting thickness	140mm
Working table size	Dia 1170mm
Cutter spindle diameter	35mm
Guiding roller diameter	100mm
Cutter spindle speed	9000 rpm
Working table speed	1.5-6 r/min
Main spindle motor power	4Kw * 2pcs/5.5kW* 2pcs
Working table driving motor power	1.5kW
Working air pressure	0.6-0.8Mpa
Dust outlet diameter	100mm * 2 pcs
Dimensions	1900*1500*600mm
Weight	1170KG

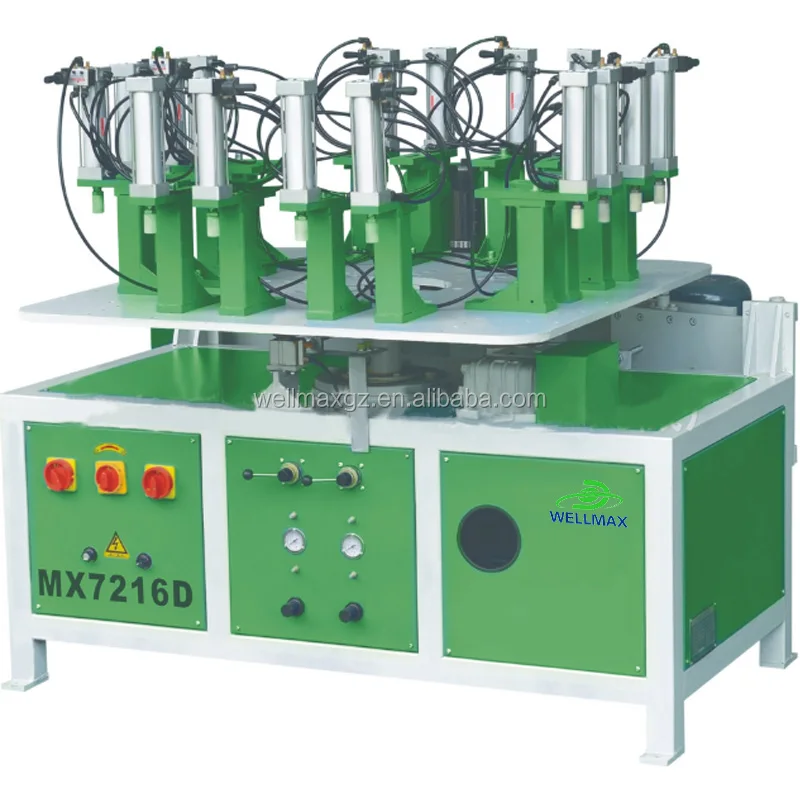

MX-7216D wood copy shaper machine Technical Parameters:



Modle	MX-7216D
Range of cutting diameter	100-1500
Max cutting thickness	140mm
Working table size	1200*1200mm
Cutter spindle diameter	35mm
Guiding roller diameter	90/100mm
Cutter spindle speed	9000 rpm
Working table speed	1.5-6 r/min
Main spindle motor power	4Kw * 2pcs/5.5kW* 2pcs
Working table driving motor power	1.5kW
Working air pressure	0.6-0.8Mpa
Dust outlet diameter	100mm * 2 pcs
Dimensions	1900*1500*600mm
Weight	1170KG





Auto wood copy shaper Packing & Shipping:

WELLMAX service for clients:



FAQ

1. Can I visit your company?
Warmly welcome to visit our factory, please contact us to make an appointment before coming.


2. How many days the machine can be delivered?
If machine in stock we can deliver it within 3 days,if no stock available the standard delivery time is 15 days.

3. What is your price term and payment term?
Price term: EXW,FOB,CIF ect.
Payment term: T/T, ect.

4. Whats the shipping cost?
This is decided by your import port and machine quantity,different size,different quantity,different port the shipping cost will be different.

5. Whats your company warranty policy?
The machine have standard one year warranty,during warranty period if machine meet quality issue we will send spare parts to replace or sending engineer to fix it.

6.How to install and operate the machine?
We will provide installation and operating manual book,you can follow the manual book to install and operate,also we can provide video for you to follow with.
