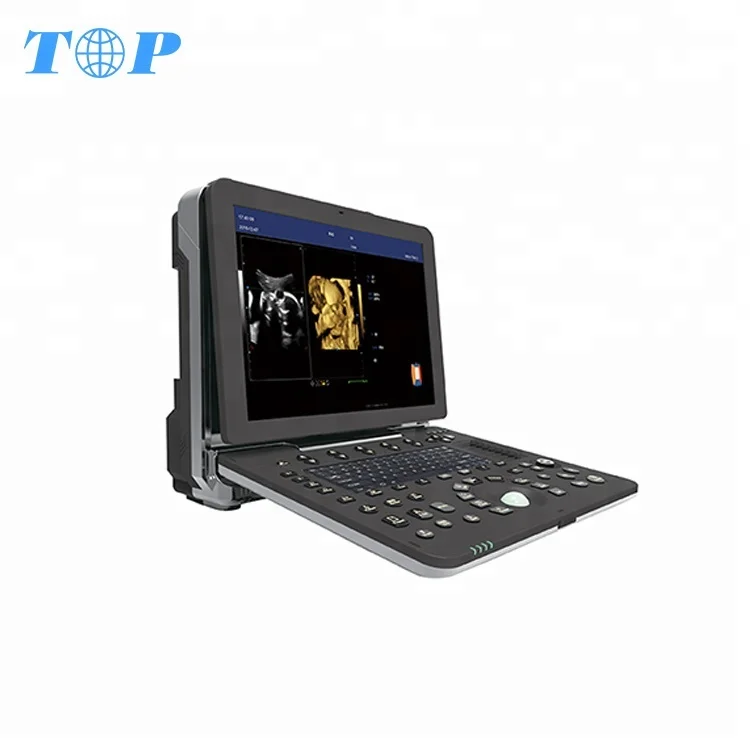

Portable Ultrasound Veterinary Cow, Ultrasonic Device Veterinary, Ultrasound Machine Vet Doppler

Clinical application

Human body& Veterinary: abdominal, urology, OB&GYN,  paediatrics / neonatal, superficial / small organ, musculoskeletal, cardiology etc.

Configuration:

1)Full-Digital 2D gray scale imaging
2)Full-Digital Tissue Harmonic Imaging (THI)
3)Color Doppler blood flow imaging
4)Directional color energy Doppler imaging
5)Pulse Wave Doppler imaging (PW)
6)Continuous Wave Doppler imaging (CW)
7)Space compound imaging
8)Trapezoidal imaging
9)2D, color, Doppler mode automatic optimization adjustment technology
10)Real-time triple synchronizing
11)Adaptive speckle suppression technology

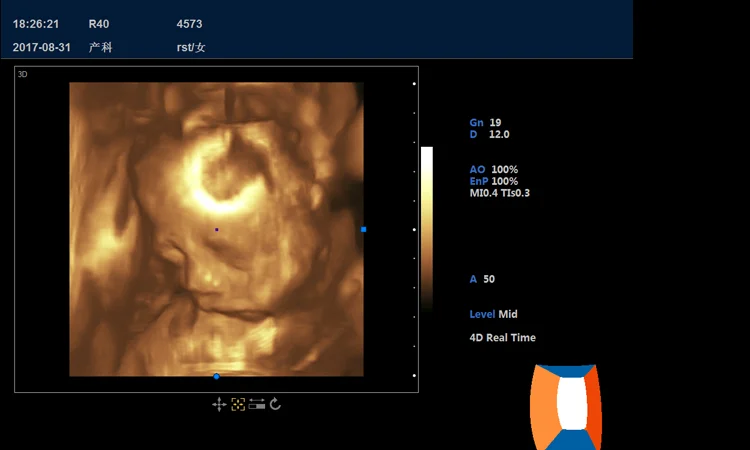

12)Real-time 3D imaging

13)Intelligent picture - in - picture imaging mode (PIP)

14)Monitor: 15 inch high resolution medical LCD monitor, adjustable angle

15)Probe connectors: ≥2  active

 Multiple probe configuration:

1 Convex probe frequency: 2.0-5.0MHZ(multi-frequency, Harmonic frequency≥5 ), probe scanning angle 20°~85°, visible and adjustable.

2 Linear probe frequency: 6.0-12.0MHZ(multi-frequency, harmonic frequency ≥4 ), probe scanning with trapezoidal imaging technology and 2D beam deflection technology

3 Trans-vaginal probe frequency: 5.0-9.0MHZ(multi-frequency, harmonic frequency ≥2 ), probe scanning angle 20°~160°, visible and adjustable.

4 Real time 3D (4D) volume probe frequency: 2.0-6.0MHz, 4 segments multi-frequency.

5 Phased array probe frequency: 2.5-4.0MHz, 3 segments multi-frequency.

Doppler mode:

1 With Pulse Wave Doppler (PW) and Continuous Wave Doppler (CW)

2  PW  blood flow measurement speed: min speed: ≤0.2 cm/s, max speed: ≥1500cm/s

3  CW blood flow measuremnet speed: min speed: ≤0.6cm /s , max speed: ≥7000cm/s

4 Sampling volume size: 1mm-20mm, visible and adjustable

5 Sampling angle correction: -80—80 °

6 Spectral Gain: adjustable

7 PW  Doppler frequency: ≥3  kinds, CW Doppler frequency: ≥15 kinds, visible and adjustable

8 Real-time automatic Doppler envelope mapping and automatic measurement and analysis

9 Baseline: Zero shift adjustable

Built-in graphic management system

1 Diagnostic report editable, embed the ultrasound diagnostic image in the report, and print directly

2 Hard disk  static and dynamic image storage 560G capacity

3 Image storage format: ≥4 kinds

4 Input / output interface: HDMI port, video input/output port, S-VGA, print port, DICOM 3.0,USB port

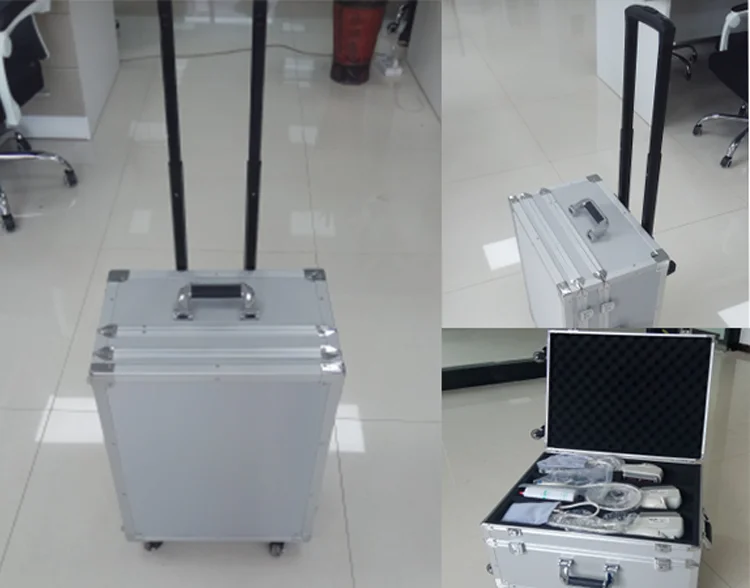

Package:
