WZ30 25 mini backhoe loader price

Share on (60781723800):


Price:$5,000.00 - $15,000.00

Quantity:


Product Overview

Description


Product Description

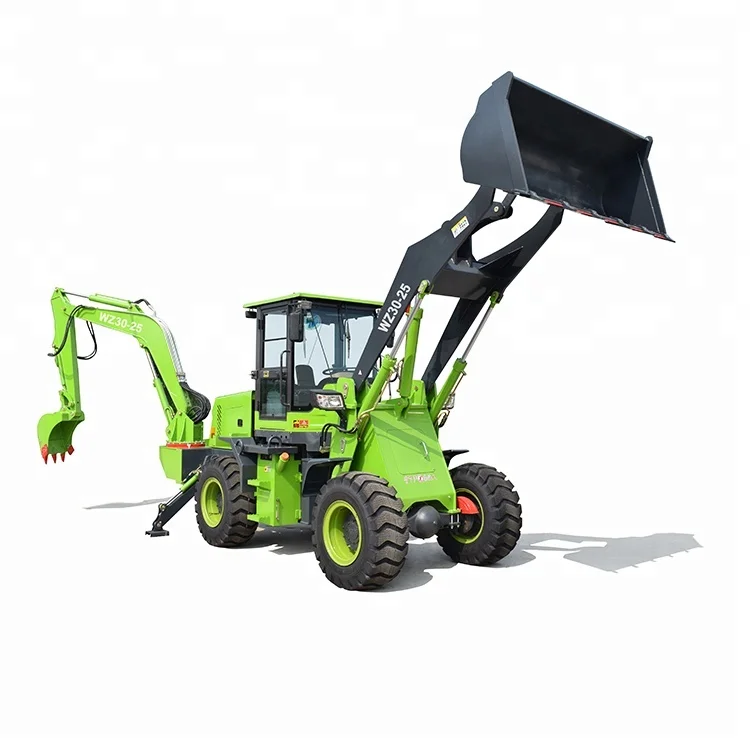

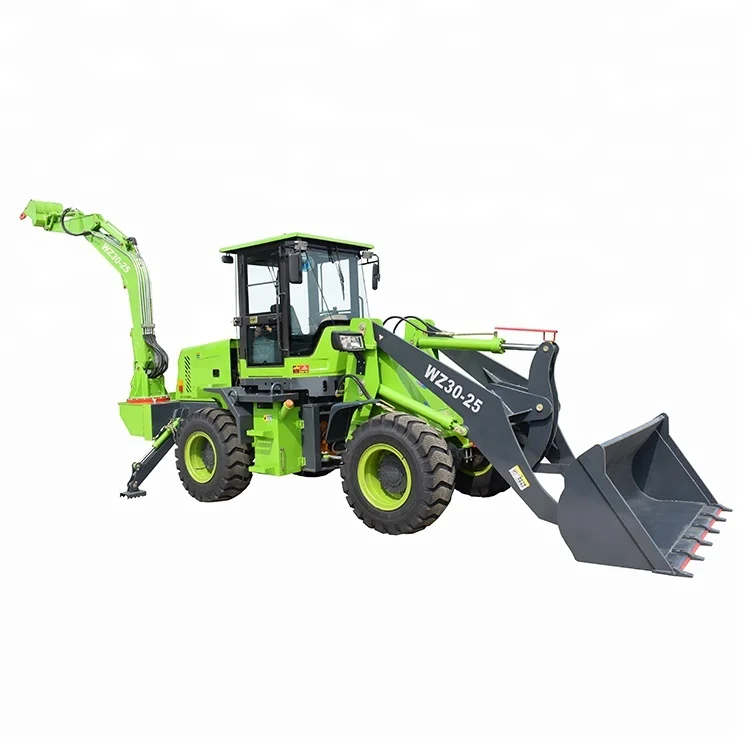

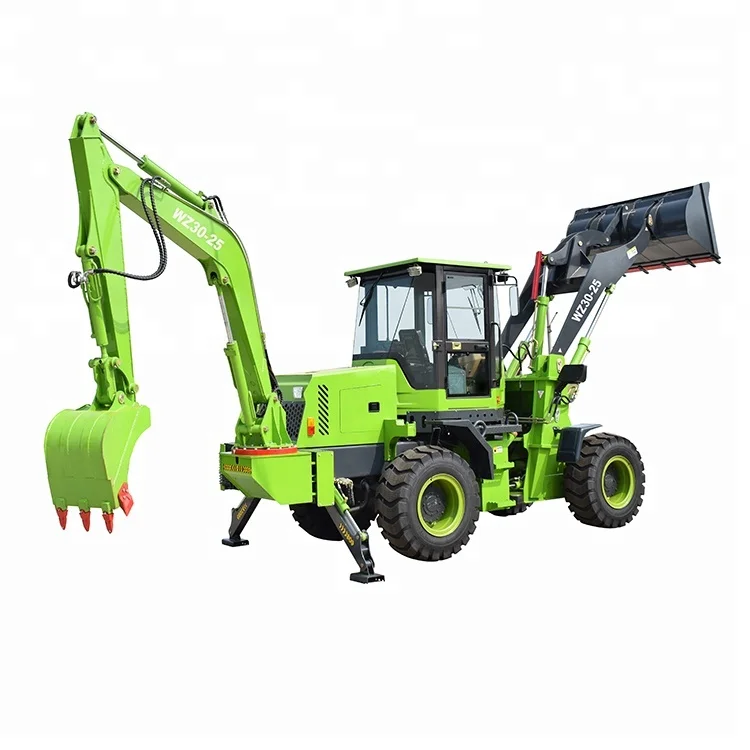

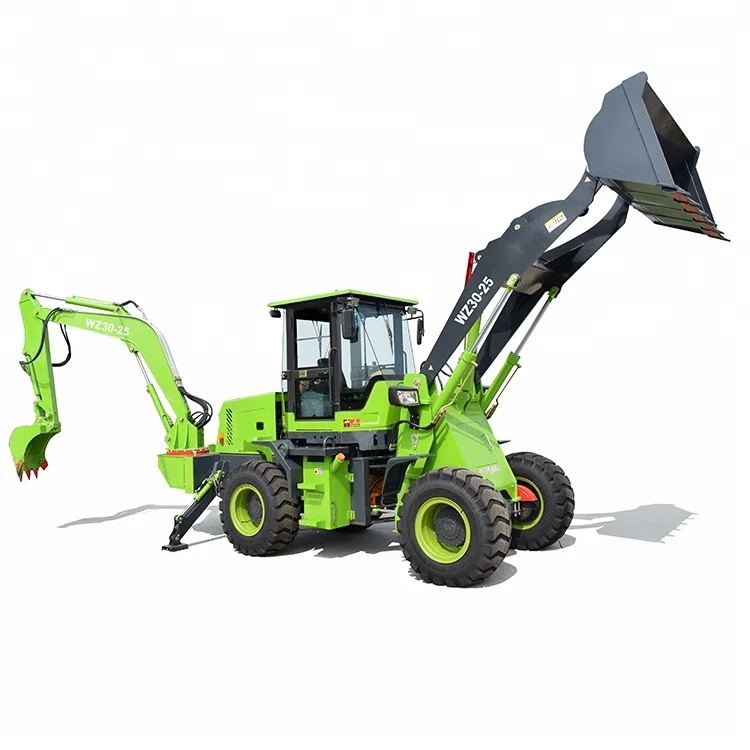

                                             Product  Application for WZ30-25 Backhoe Loader

A backhoe loader, also called a loader backhoe, is a heavy equipment vehicle that consists of a wheel loader like unit fitted with a  loading bucket on the front and a backhoe on the back. . It is a kind of multifuntional machine which combine wheel loader and excavator togther.  Due to its (relatively)  small size and versatility, backhoe loaders are very common in urban engineering and small construction projects (such as building a small house, fixing urban roads, etc.)


Backhoe loaders are very common and can be used for a wide variety of tasks: construction, small demolitions, light transportation of building materials, powering building equipment, digging holes/excavation, landscaping, breaking asphalt, and paving roads. In many occasions, the backhoe bucket can also be replaced with powered attachments such as a breaker, grapple, auger, or a stump grinder.

\t
SPECIFICATIONS For WZ30-25  Backhoe Loader
\t





Excavator Part
\t
Bucket Volume
\t
0.3 m3
\t
Bucket Width
\t
550 mm
\t
Max. Digging Depth
\t
3000 mm
\t
Max. Digging Height
\t
5280 mm
\t
Max. Dumping Height
\t
4000 mm
\t
Max. Digging Radius
\t
4800 mm
\t
Max. Boom Slewing Degree
\t
270°
\t



Loader Part
\t
Rated Load
\t
2500 kg
\t
Bucket Volume
\t
1.2 m3
\t
Bucket Width
\t
2  m
\t
Dumping Height
\t
3500 mm
\t
Dumping Reach
\t
1060 mm
\t



Engine
\t
Engine Brand
\t
Yunnei ( Cummins Optional)
\t
Engine Model
\t
YN38GBZ
\t
Engine Power/ Speed
\t
76 kW/ 2400 rpm
\t
Borex Stroke
\t
102 x 105 mm
\t
Type
\t
4-Cylinder,In-line,Turbo-charged,
Water-cooled
\t


Transmission and
Hydraulic System
\t
Gear shift
\t
2 F+2 R (with High & Low Speed)
\t
Torque Converter
\t
YJ280
\t
Flow Rate of  Drive Pump
\t
16 mL/r
\t
Flow Rate of Work Pump
\t
63 mL/r
\t



Overall Performance
\t
Tyre Size
\t
16/70-20
\t
Wheelbase
\t
2550 mm
\t
Tread
\t
1750 mm
\t
Operating Weight
\t
6300 kg
\t
Overall Size
\t
6500 x 1900 x 2800 mm
Detailed Images


China TOP BRAND-YUNNEI, 4102,76 kW, Turbo-charged Diesel Engine  is Standard Power.  Cummins, 4BT3.9-C100, Diesel Engine  is optional

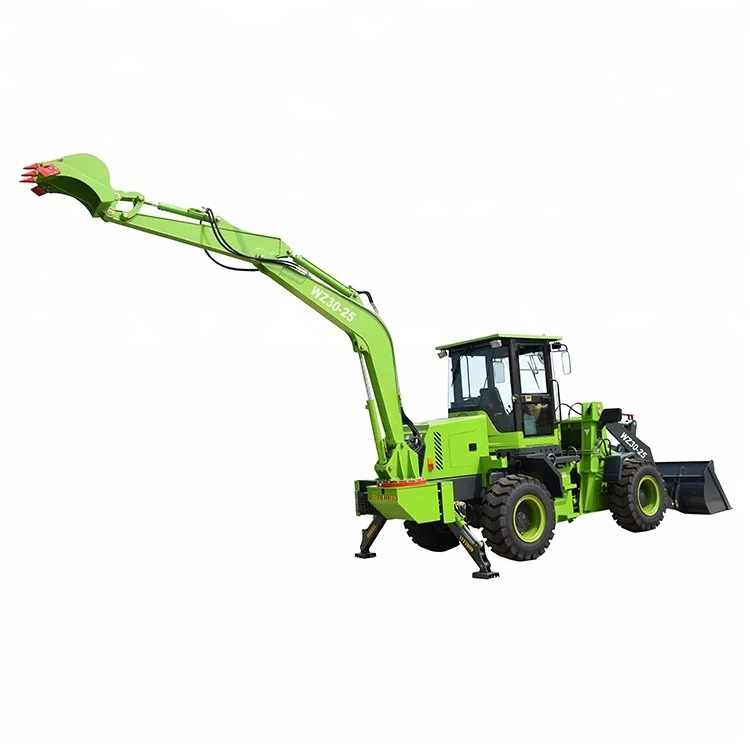

Long Excavator Boom with Max. Digging Height of 5280 mm and Max.Digging Depth of 3000 mm


 Authentic  4 Ton Excavator   Digging Bucket with
width of 550 mm


The large Slewing Device could make the excavator boom slew at 270° Maximally. Thanks to Side Shift Function, the Slewing Device could also slide from one side to another easily, which facilitates the operation of driver.

The outrigger is equipped with Safety Lock.

In case of breakdown of hydraulic mechanism, the leg could aslo support the machine well.


Spacious Driver's cab  with two Sets of Joystick Control System inside.  There are also two sets of steering wheel  inside it. The seat could revolve at 180°. The worker could drive the machine both at loader and excavator direction easily

Packing & Delivery
\t
Packaging
\t
Size
\t
11 x 1.9x 2.8 m
\t
Weight
\t
6.3 T
\t



Packaging Details
\t
The Driver's cab and Excavator Part  need to be dismantled and  put on the floor of container.
1 Set Per 40 HQ
Certifications

     SGS Certificate                         ISO Certificate                     Highly Recommended                                                                                                             Enterprise of  Self Loading                                                                                                        Concrete Mixer

                                                                                      for One Belt and One Road Initiative

F A Q

Q1.: Are you trading Company or Factory?

A:  We are factory. We have been engaged in the production of concrete mixer

 with pump for more than 27 years.


Q 2: How about the quality of your products?
A: We are factory with more than 27 years of construction machinery manufacturing experience. All of our machines are manufactured strictly according to the national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.


Q3: How about the price?
A: We are factory, not dealer, so we can give you a lower price than those trade companies can.

Q 4: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.

Q5 : Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.


Q6.: How long is your delivery time
A: Generally it is around 7 days if the goods in stock. If there is no goods in stock,

it will be about 20 days, subject to the quantity you ordered.


Q7.:  What is your acceptable payment terms.

  A: By T/T. 30% deposit in advance, balance to be paid before delivery.

   or By irrocable LC at Sight.
