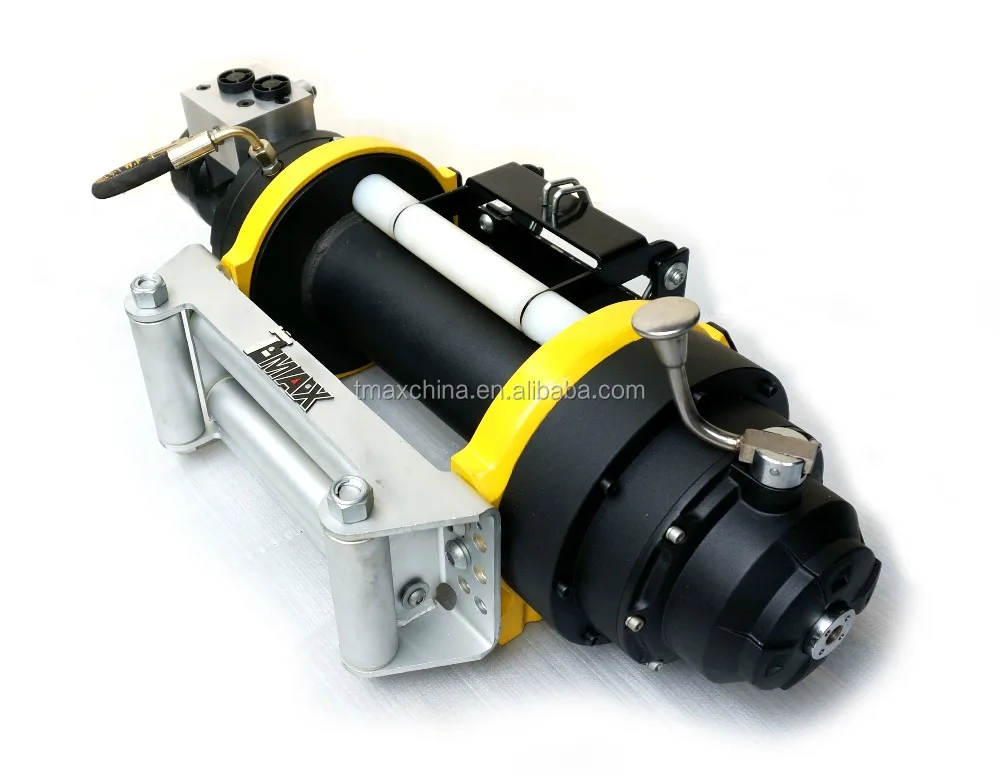

T MAX 9000lbs hydraulic winch 4 ton to10 ton hydraulic winch

Share on (60781762438):


Price:$700.00 - $730.00

Quantity:


Product Overview

Description



Product Description




Rated Line Pull
13500LBS (6129KGS)
16500LBS (7491KGS)
22500LBS (10215KGS)
Hydraulic Motor
125cc/R (13500LBS)
160cc/R (16500LBS)
200cc/R (22500LBS)
Rated Pressure
14MPa
Drum Barrel Diameter
100mm
Maximum Input Flow
60L/min
Drum Flange Diameter
201mm
Gear Ratio
23:1
Distance Between Flanges
267mm
Standard Compiiance
CE; SAEJ706
Finish
Black & Yellow
Hydraulic Fluid Port
2-G1/2(oil in);
2-G1/4(oil out)
Weight
143lbs(65kgs)-13500LBS
150lbs(68kgs)-16500LBS
156lbs(71kgs)-22500LBS
Overall Dimension
(LXWXH)29.72X13.9X9.88 (755mmX353mmX251mm)-13500LBS
30X13.9X9.88 (762mmX353mmX251mm)-16500LBS
30.35X13.9X9.88 (771mmX353mmX251mm)-16500LBS
Mounting Bolt Pattern
304.8mmX165.1mm; 304.8mmX114.3mm

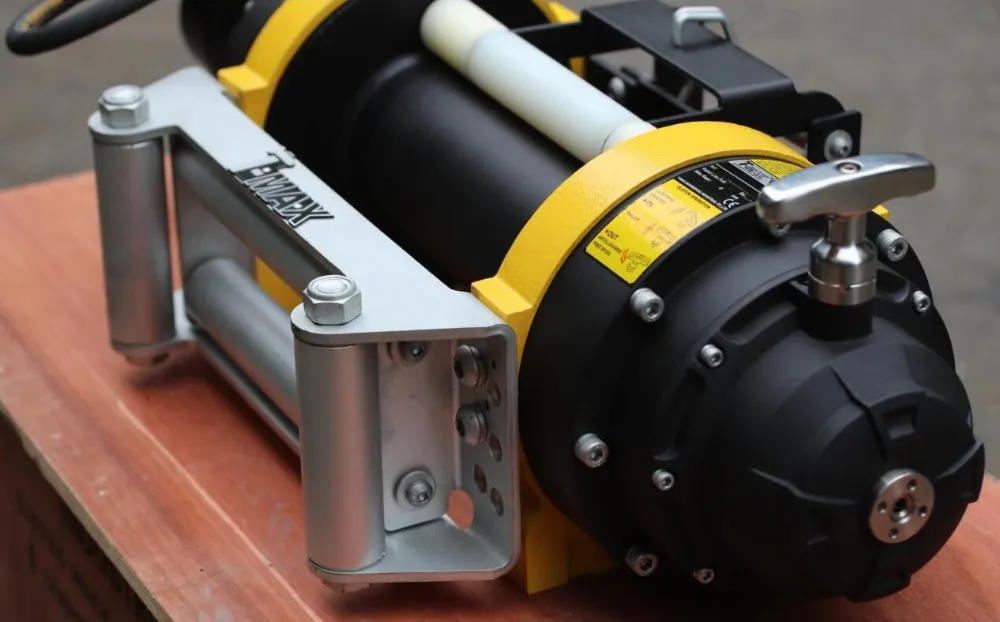

Hydraulic Winch CHWPRO13500 16500 22500

CHWPRO SERIES Features:
1.\t2-stage Planetary Gear
2.\tHydraulic Brake
3.\tBalance Valve
4.\tFree Spool

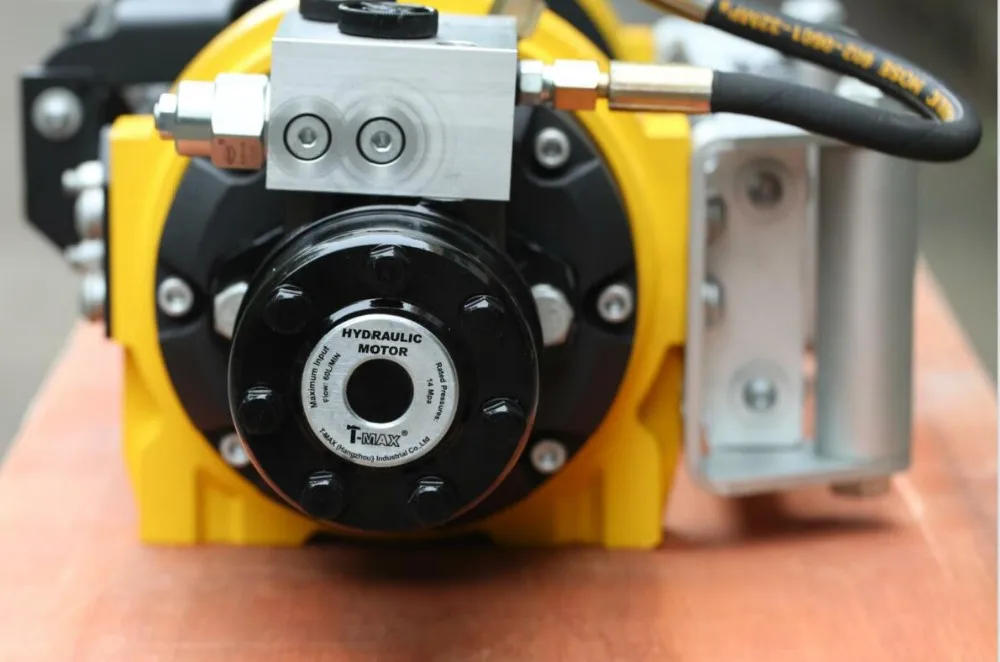

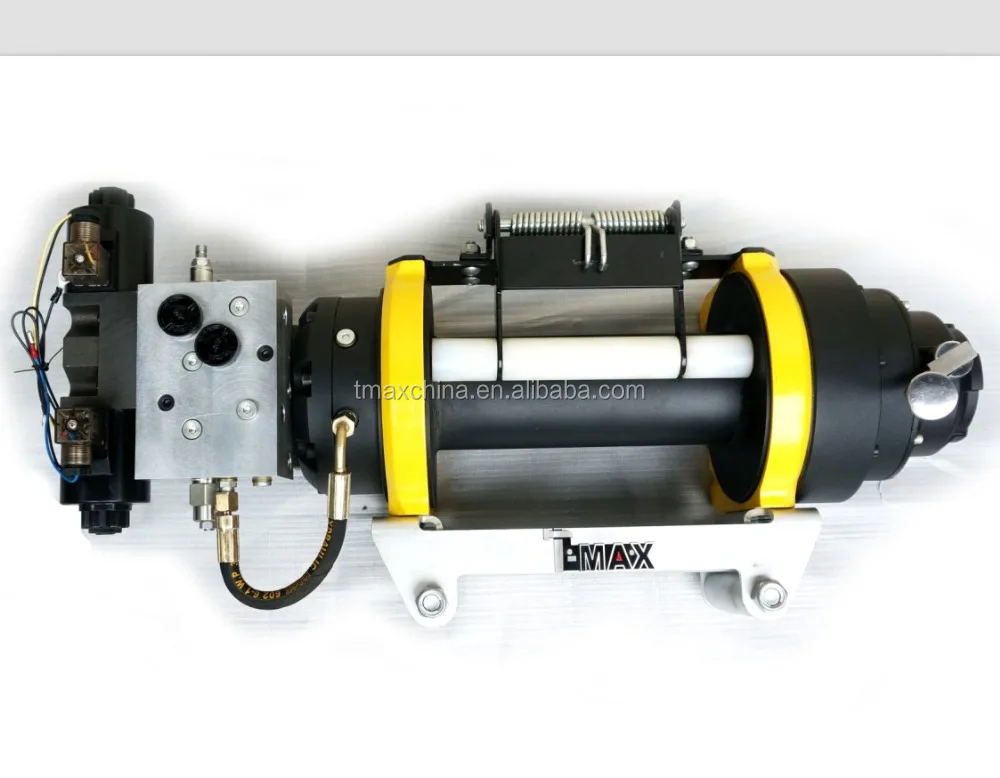

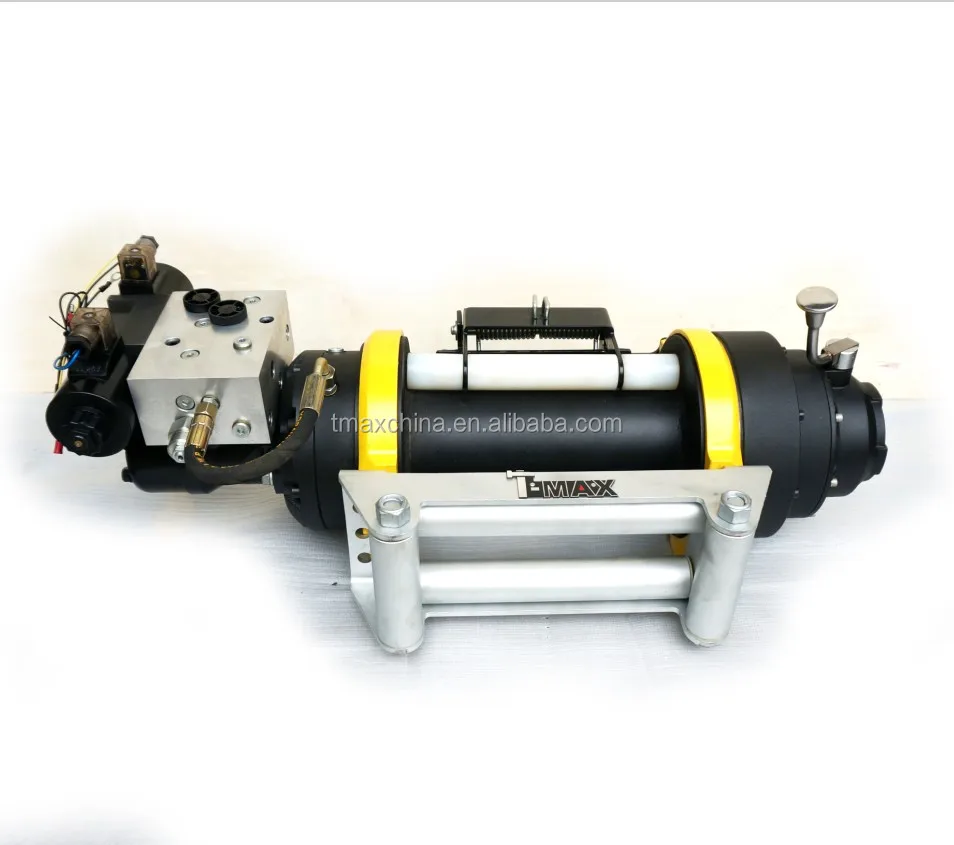

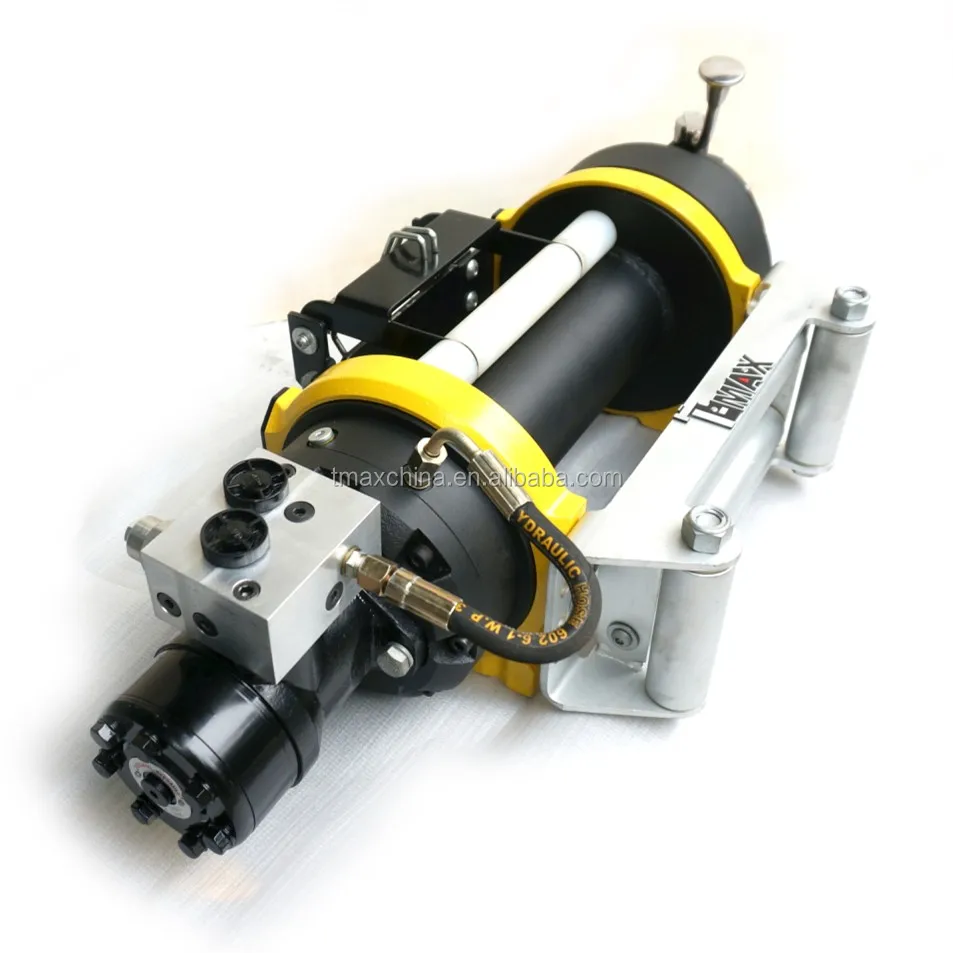

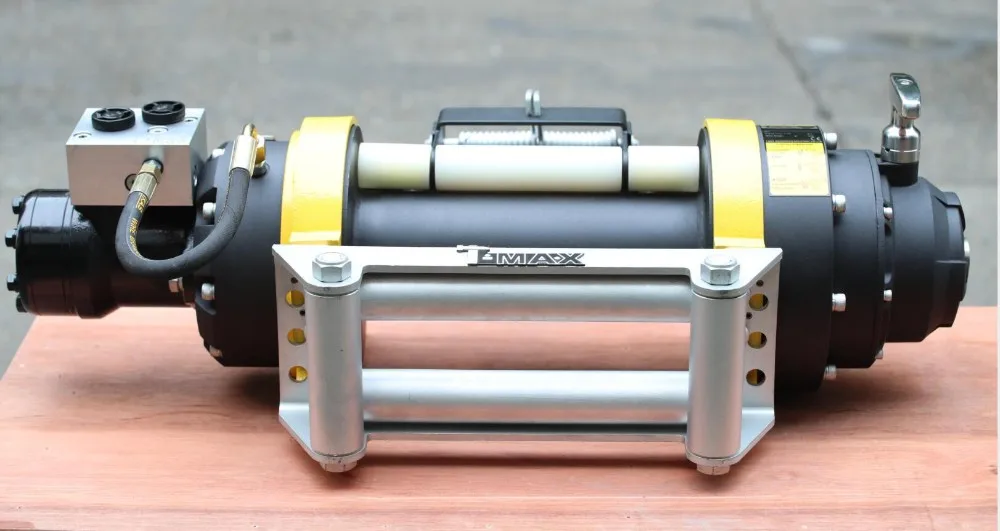

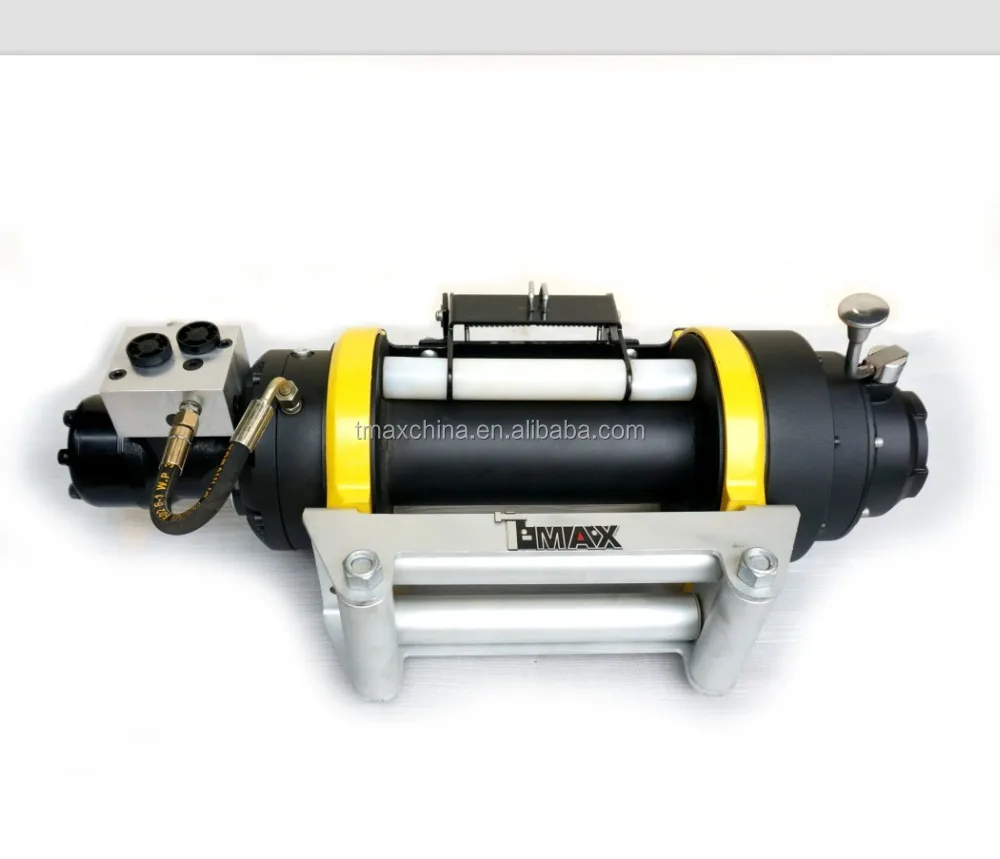

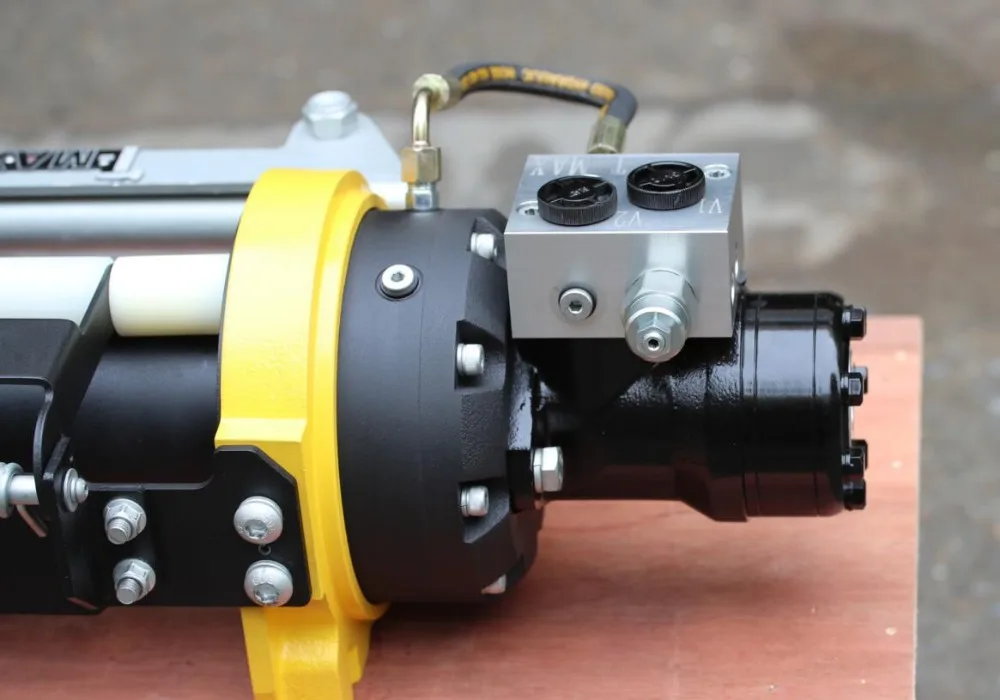

Detailed Images






Other Products




Our Company




T-MAX(HangZhou)Technology Co., Ltd was established in 2000 year. As leading winch manufacture in China, it has more than 23000 square meters facility, more than 200 staff. T-MAX was authorized by government of high-tech enterprise in Zhejiang province.

T-MAX’s core values is “Customer First, Innovation, Excellence and Efficiency”. Since its inception, T-MAX has been invested a lot of research funding, and developed electric and hydraulic winches of 4x4 Off-Road Series, Commercial Series and ATV & Utility Series, which all are branded by “T-MAX”. So far, T-MAX has got 9 items of invention patents, 25 items of other patents. Also T-MAX has passed ISO/TS16949:2002 quality management system certification.

Currently T-MAX has mastered the core technology and process for manufacturing winches. The designing idea has surpassed the other similar manufactures, which is the world’s advance level. T-MAX winches are getting more and more popular as the best cost performance, most pull and high efficiency.



Packing & Delivery


Our most professional packaging
one piece winch in a wooden carton
6 pieces winch in a pallet


Our Service


1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.



FAQ


Q1. What is your terms of packing?
A: Generally, we pack hydraulic winch in wooden carton. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
