Safe guard scanner detector device for xray luggage with high resolution
- Category: Other Security & Protection Products >>>
- Supplier: Dongguan,Juzheng,Electronic,Technology,Co.,Ltd.
Share on:
Product Overview
Description

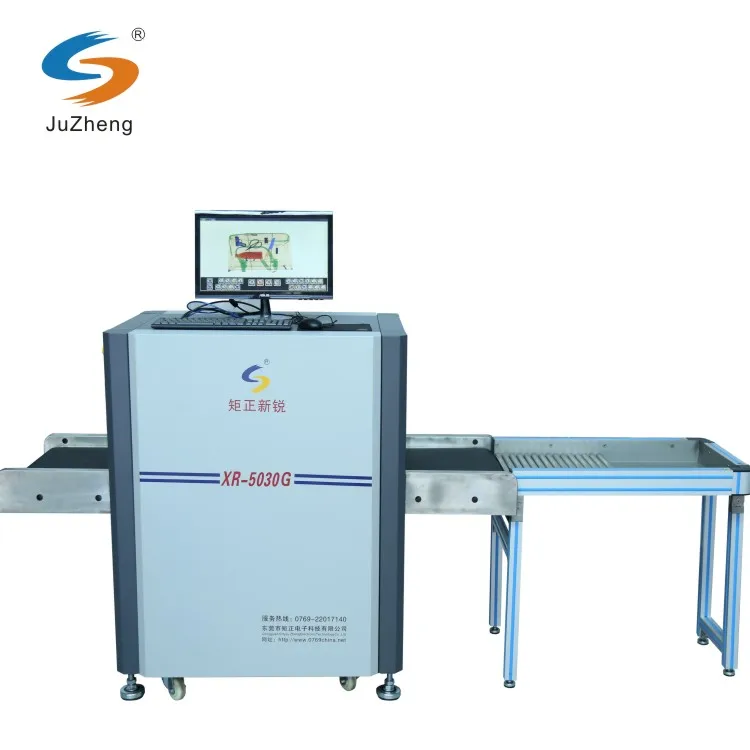

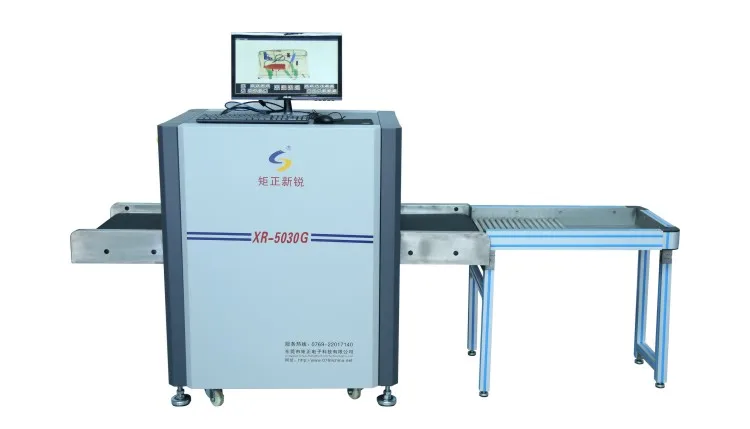

Safe guard scanner detector device for xray luggage with high resolution
Product Description
Feature:
1.specifically for roads, railways, customs, terminal and the design of public places
2.specialized operating platform
3.features high-performance network
4.user free to choose the mode of training
5.Matching crisis can be integrated information analysis system (security black box)
6.matching explosives and drug detection X-ray automatic identification software system (also known as-Auto sight)
7.through the EU CE Certification /Ministry of Public Security through the National Detected / international ISO9001 certification /ISO14001 environmental certification /Chinese Government's Radiation Safety Certification
Image System:
X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
Image Grey Level: 4096
Image Max Resolution: 1024 * 1280 pixel
Image storage: Storage 100000 pictures in real time.
Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation
High-energy/low energy : switch from high energy to low energy
Specifications:
| Tunnel Size | 505(W)×305(H)mm |
| Conveyor Speed | 0.22m/s |
| Conveyor Max Load | 150 kg |
| Single inspection dosage | < 1.22µGy |
| Wire Resolution | 0.101mm metal line |
| Steel Penetration | 38MM armor plate |
| Film Safety | For ISO 1900 |
| Maximum leakage radiation | <0.05µGY/H |
| X-RAY GENERATOR | Vertically Upward |
| Tube Current | 0.4~0.2MA(adjustable) |
| Anode Voltage | 100~160 kV (adjustable) |
| Angle | 60° |
| Generator cooling/working periods | Sealed oil bath with forced air/100% OPERATING ENVIRONMENT |
| Storage Temperature | -20ºC to 60ºC |
| Operating Temperature | 0ºC to 45ºC |
| Relative Humidity | 20 to 95% non-condensing |
| System Power | 220 VAC (±10%) 50±3HZ |
| Power wastage | 1.0 KW (Max) |
| Noise | <55dB(A) |
Related Products
You may also like below related products!
Click below product image and learn more details.↓↓↓
Detailed Images
What Is The Product Features?
Packaging & Shipping
Packaging & Shipping
PACKAGE:
The goods are to be packed in wooden cases
DELIVERY TIME:
3-20 days after confirming the order, detailed delivery date should be decided according to
production season and order quantity.
FAQ
FAQ
1. Are you manufacturer or trader?
We are manufacturer, we have own factory in Dong Guan, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation, believe our team is best team in china.
2. Do you sell the accessories for Products ?
Yes. We have Match the parts for our testing equipment. If our machines damages by fire, water flood, earthquakes, unsteady of power and other natural disasters, we are willing supply match parts with lowest price for you.
3.How about your after-sales policy?
Customer first is our always principle . All of our products normal warranty is 12months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .
4.Do you accept customer Logo and customized ?
we accept kinds of customized and logo of all of our products for customers
5. What’s your main product?
We professional in Metal detector. X ray machine and other related electronic products and machines.
