High Lift Hydraulic Hand Pallet Truck

Share on (60781854829):


Price:

Quantity:


Product Overview

Description





Product Description

Product Description

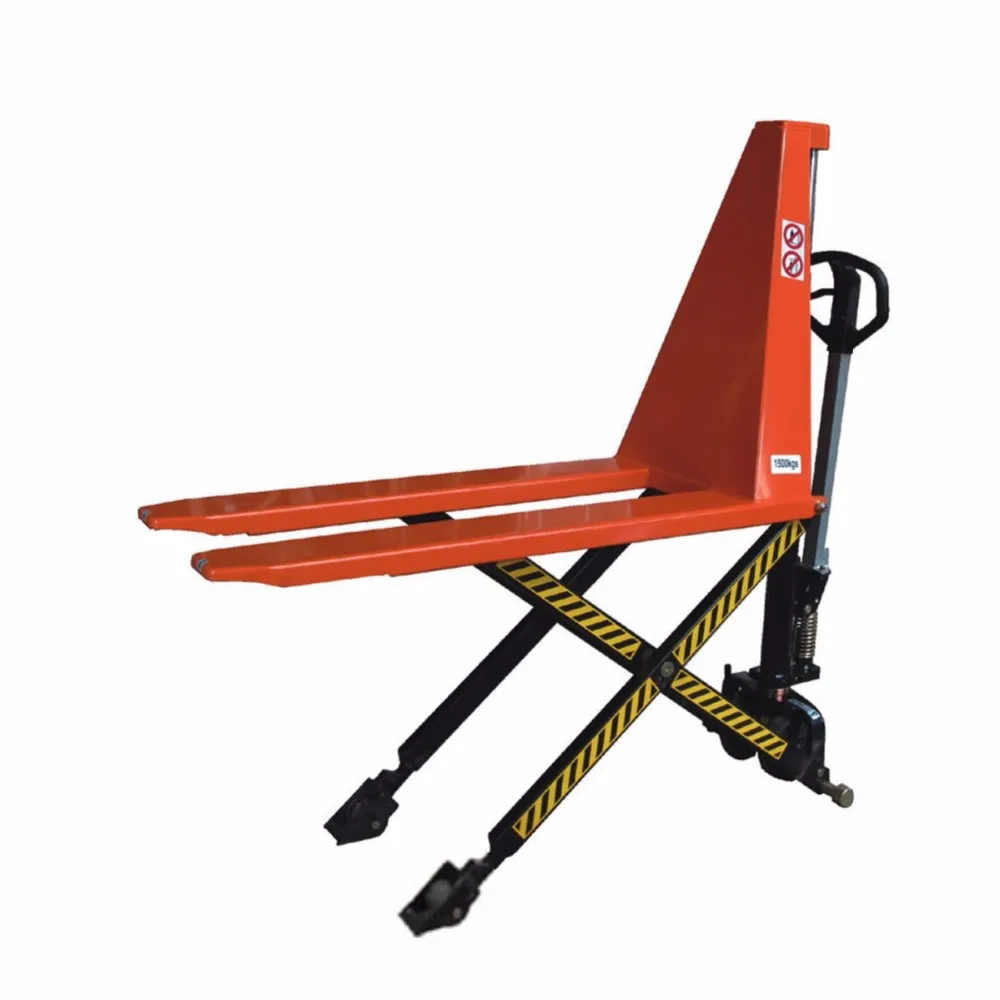

High Lift Scissor Truck HB series




  World class quality and performance.
  Single stage cylinder.
     No decrease of capacity.
     No risk of leakage.
     No dangerous dropping of second stage cylinder.
  Ergonomic design handle.
    Simple and comfortable operation.
  Improved safety.
    Automatic activation of self-adjusting stabilizers when lifting loads higher than
   400mm for maximum stability and optimum braking.
  HB1056M/1068M-Manual.
    Quick-lift function doubles the lifting speed when lifting loads less than 250kg.
  HB1056E/EN, HB1068E/EN-EIectric.
  Easy handling
    The compact structure with the battery and power unit positioned between body
    and lifting cylinder resulting in a low centre of gravity and excellent maneuverability.
  Flexibility
    Can work manually when the battery has been charged.
  Charger
     10A/12V separate, or 6A/12V Built-in.
  Reliable
    HPI power unit made in France.
  Conforms to EN1757-4 and EN1175.








Detailed Images

Detailed Images














Packing & Delivery

Packing & Delivery

























































































































































Model









HB1056M




HB1068M




HB1056E




HB1068E




HB1056EN




HB1068EN




Type




Manual




Electric




Electric (built in charger)




Capacity




(kg)




1000




1000




1000




1000




1000




1000

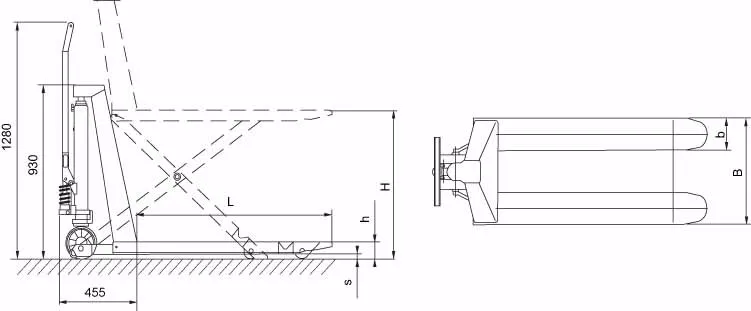

Max. Fork Height




H (mm)




800




800




800




800




800




800




Min. Fork Height




h (mm)




85 ± 2




85 ± 2




85 ± 2




85 ± 2




85 ± 2




85 ± 2




Fork Width




B (mm)




560




680




560




680




560




680




Fork Length




L (mm)




1190




1190




1190




1190




1190




1190




Ground Clearance




s (mm)




20




20




20




20




20




20




Front Load Roller




(mm)




Ø75x75




Ø75x75




Ø75x75




Ø75x75




Ø75x75




Ø75x75




Steering Wheel




(mm)




Ø180x50




Ø180x50




Ø180x50




Ø180x50




Ø180x50




Ø180x50




Pump Strokes to Max. Height

without / with Rated Load









28/62




28/62




-




-




-




-




Lifting Time, without / with Rated Load




(sec)




-




-




11/19




11/19




11/19




11/19




Battery




(Ah/V)




-




-




70/12




70/12




70/12




70/12




Battery Charger









-




-




Separate 10A/12V




Built-in 6A/12V




Net Weight (without Battery)




(kg)




128




133




158




163




159




164
