GL-8810 Heavy Duty Single-needle Post Bed Shoe Sewing Machine Shoes Making
US $350.00-$480.00
Bag Closer Stitcher Sealing Machine
- Category: Sewing Machine >>>
- Supplier: Shanghai Jinbao Packaging Machinery Co. Ltd.
Share on (60781860656):
Product Overview
Description

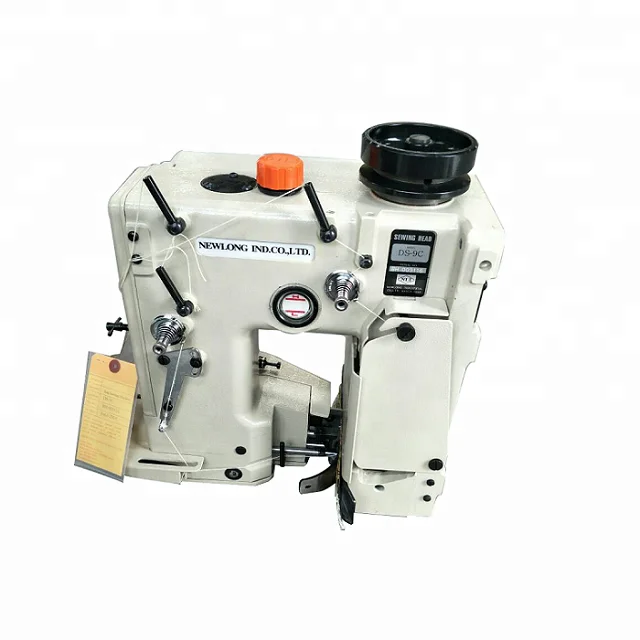

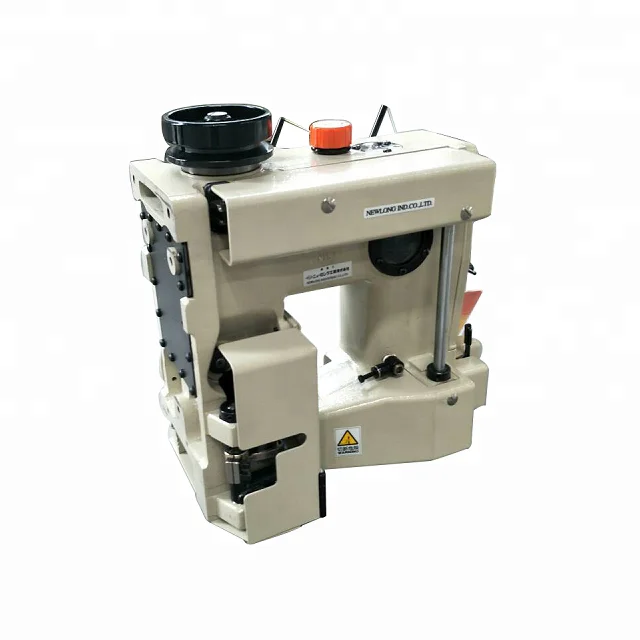

Bag Closer Stitcher Sealing Machine
PRODUCT DESCRIPTION
This precision built sewing head is not only the fastest bag closing machine but also the most versatile of all heads currently available.
Suitable for closing paper, PP woven cloth ,jute and the fact of every type of open mouth sack .
Specifications:
| Max speed | 2700rpm |
| Material thickness | Max 8mm |
| Needle bar stroke | 48mm,clearance between throat plate and needle point 15.5mm |
| Stitch width | DS-9A 7-11.5mm; DS-9C 7-10.5mm ( standard setting 10mm) |
| Stitch type | single needle double thread chain stitch ( single thread for "easy opening"available by special order |
| Closing type | DS-9A for plain closing only; DS-9C for both plain & tape bound closings |
| Crepe-Tape width (DS-9C) | standard 55mm, other width available ( tape binder is not included as a standard supply) |
| Start/Stop | Mirco-switch or photo-switch ( not included ) |
| Cutter type | DS-9A mechanically operated cutter; DS-9C air cylinder operated cutter |
| Air pressure | 4KG/cm³(DS-9C) |
| Air consumption | 3.5Nl/min (DS-9C) |
| Lubrication system | automatic oil bath system ( recommended oil : Shell Tellus oil #32) |
| Oil feeding volume | 1740cc ( approx ) |
| Machine pulley | Dia, 100mm,variable speed pulley available by special order |
| V-belt type | M ( not included ) |
| Needle Type | DR-H30 #26 |
| Thread | synthetic or cotton 20/6 20/9 |
| Motor required | 0.75KW 4P 3pase ( not included ) |
| Net weight | 40kg approx |
| Gross weight | 50KG approx |
| Measurment | 7 cft |

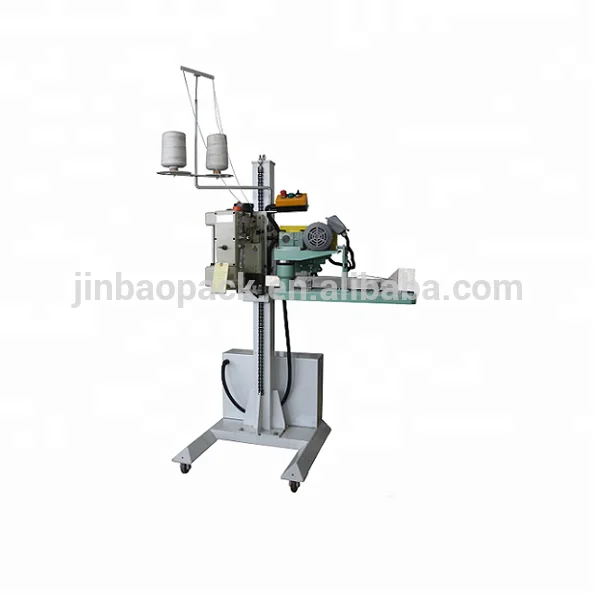

APPLICATION SHOW

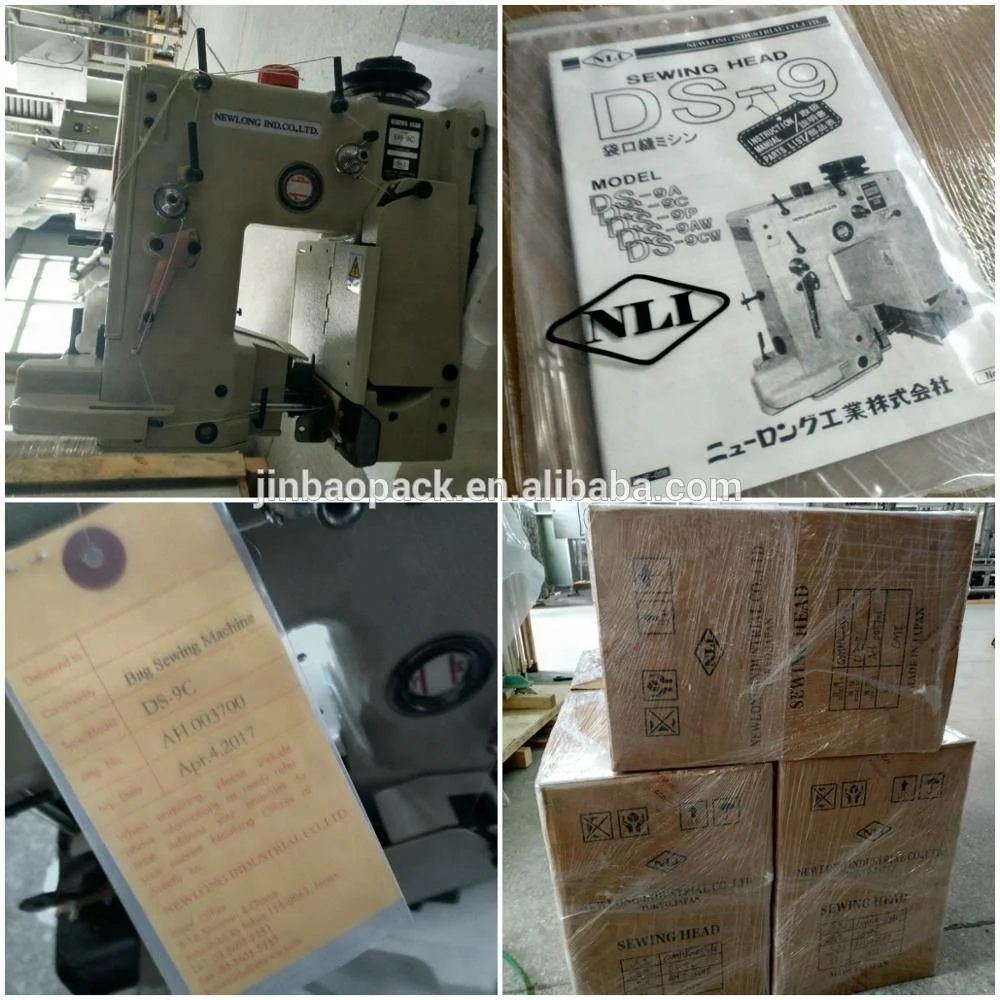

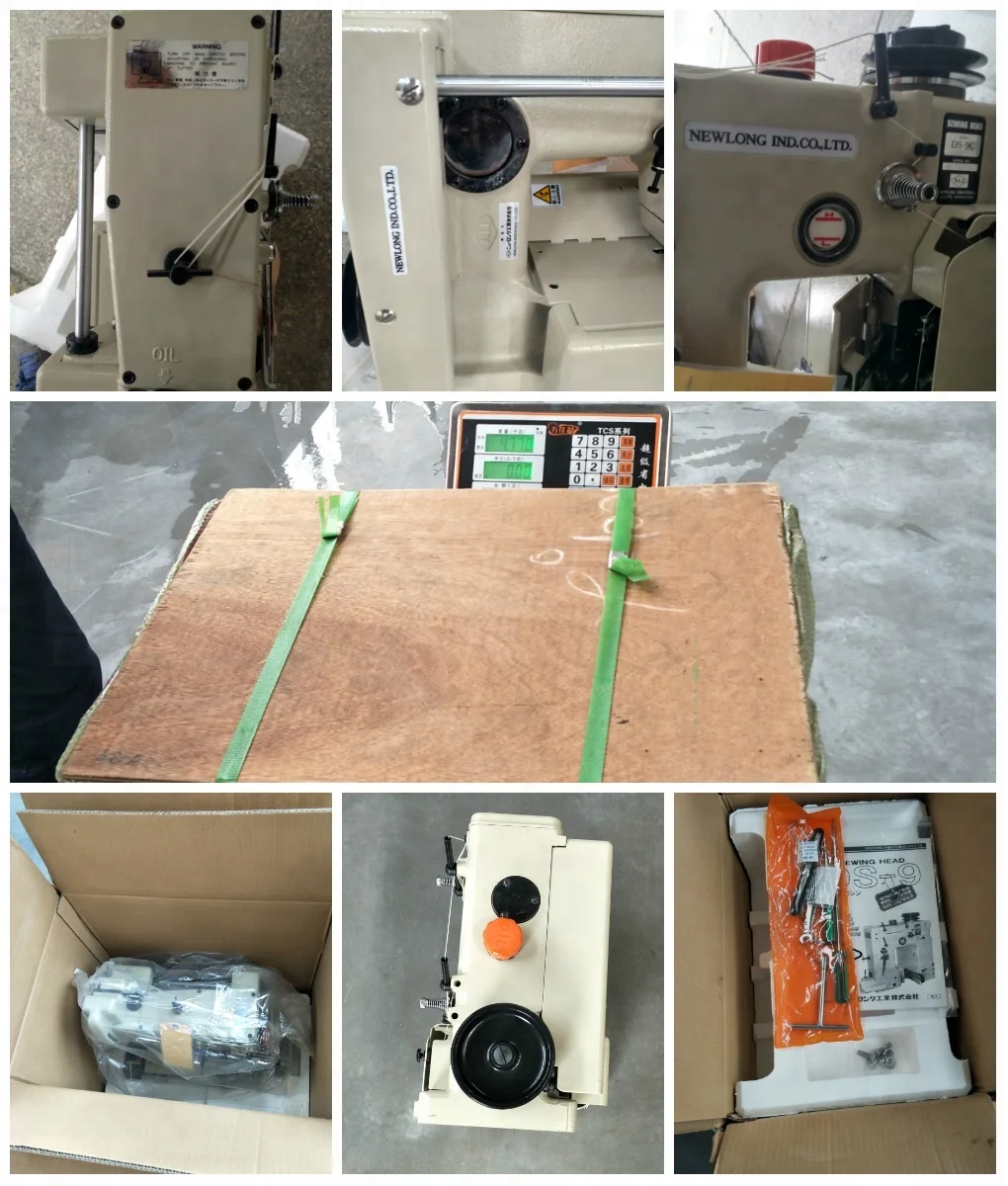

SHOW CASE
APPLICATION SOLUTION
COMPANY INFORMATION
Shanghai Jinbao Packaging Machinery Co., Ltd specializes in the production and sale of packaging machine, packaging and palletizing line, big bag automatic weighing packaging production line, particle packing machine, powder packing machine, automatic mixing packaging production line, according to customer requirements the specific system. The products are widely used in chemical, fertilizer feed, pesticide, washing powder, seeds, grain, food, medicine, spices, tea, building materials and other industries, and exported to the Middle East, Southeast Asia, North America, Northern Europe and other more than 10 countries and regions.
