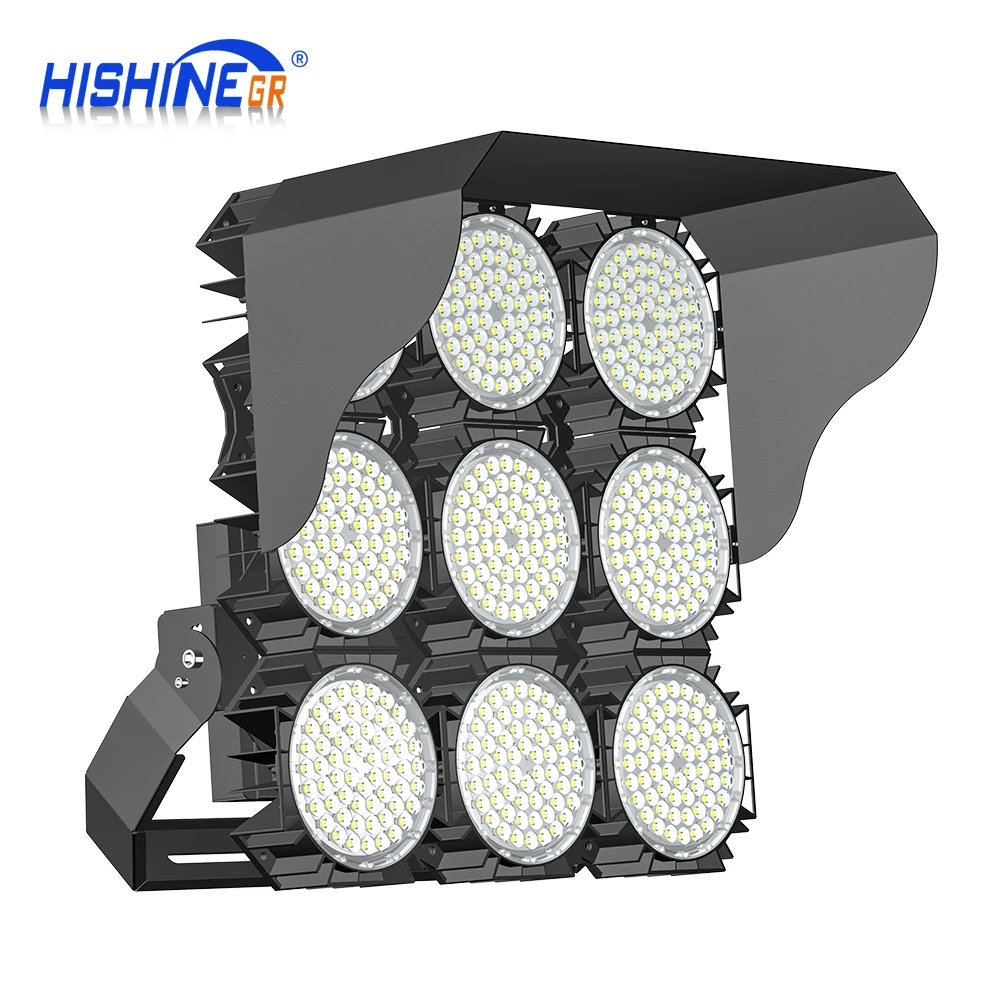

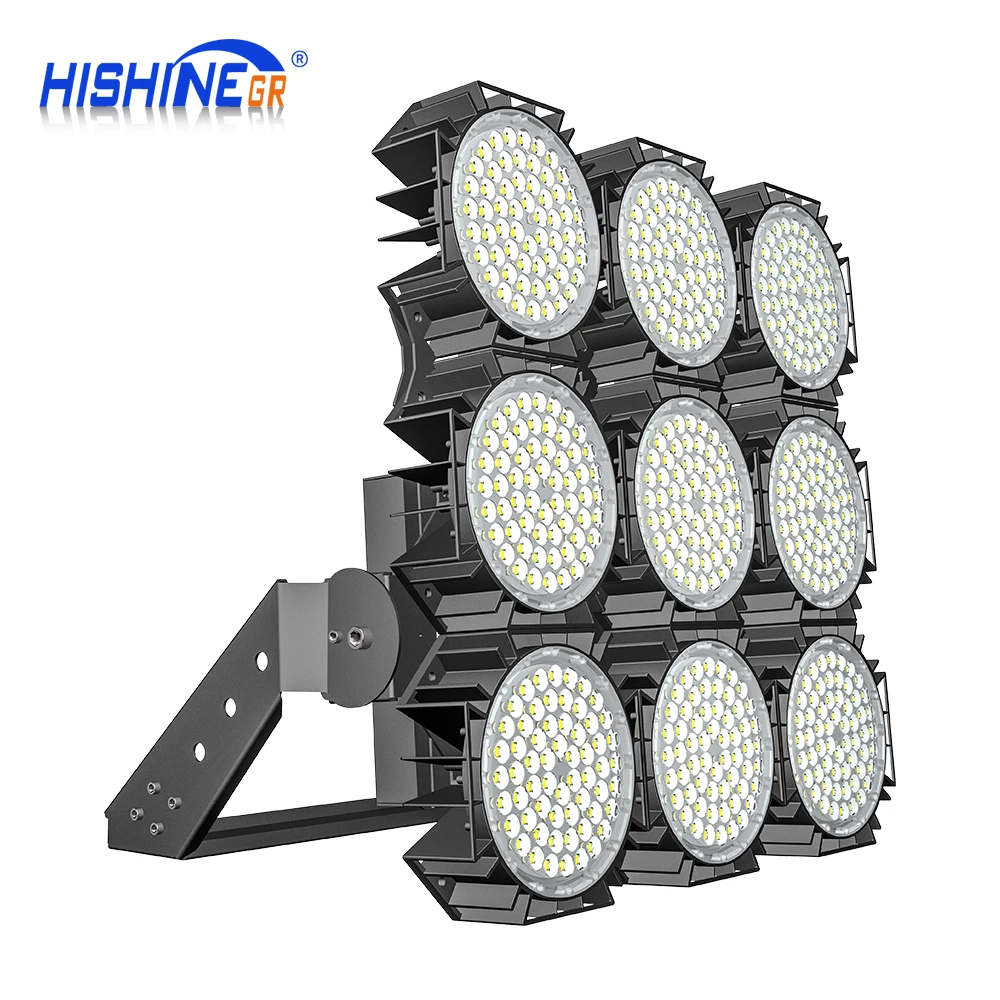

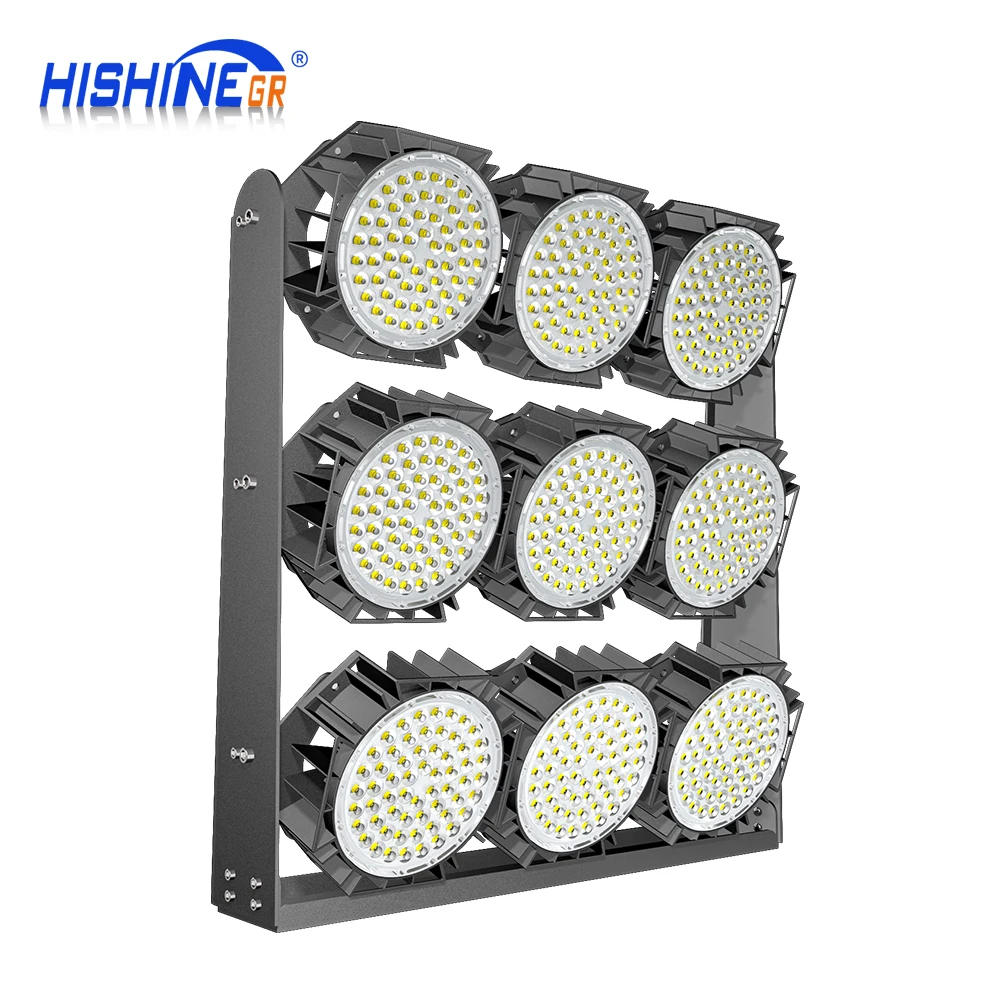

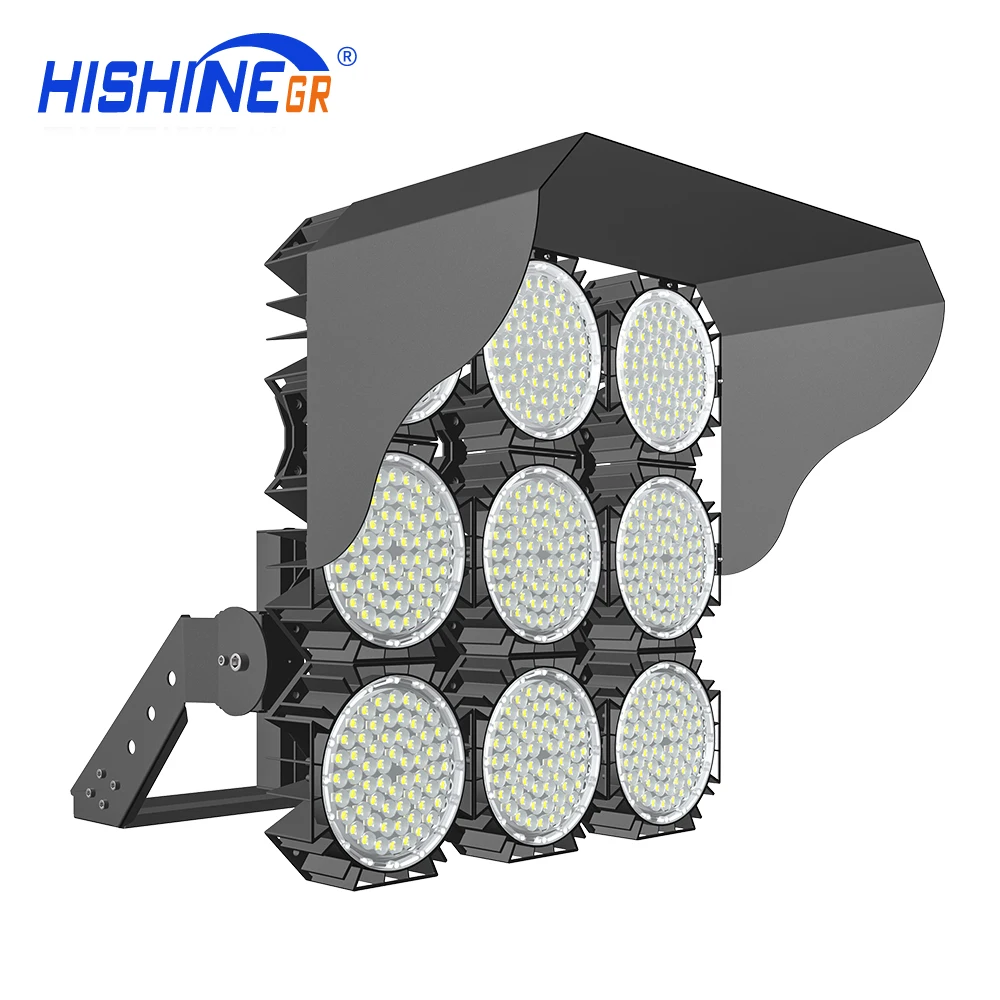

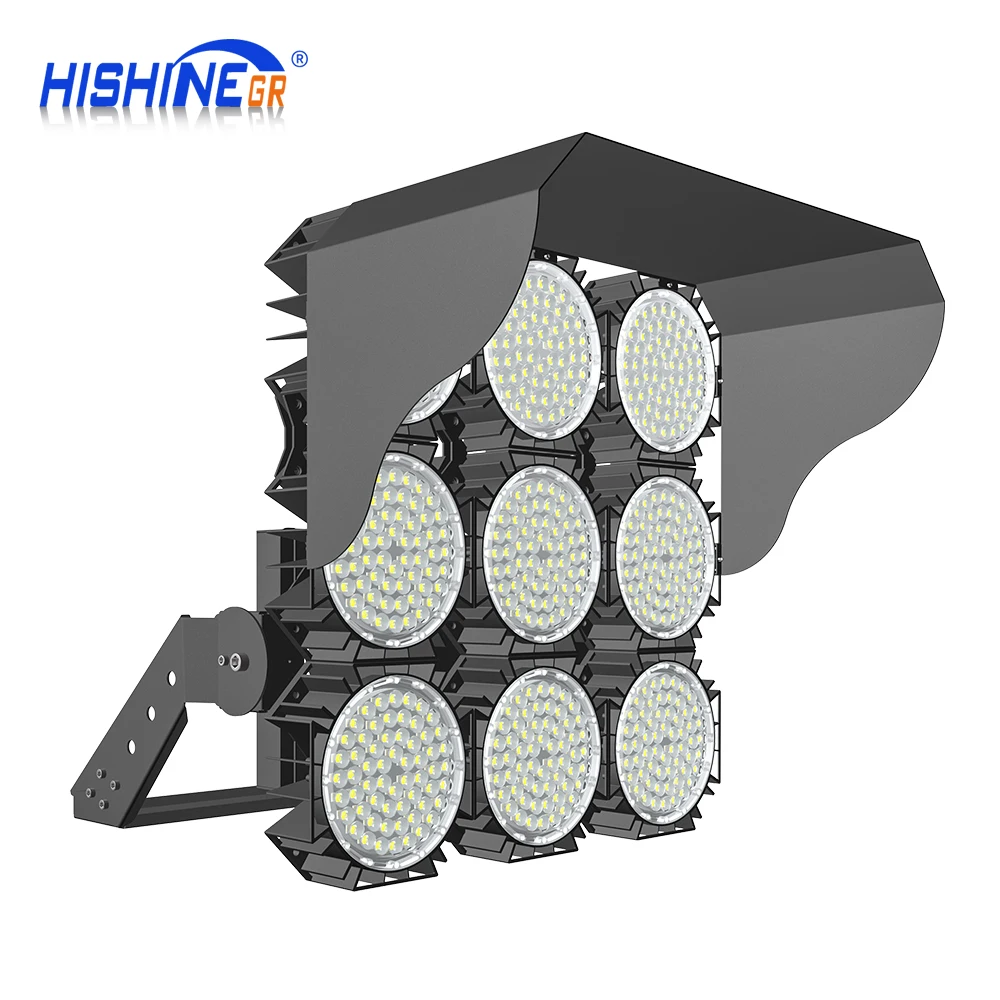

Hishine Wi sun High Mast Light Outdoor Waterproof Football Field Light 1000w Led Projector Lighting IP67 Aluminum Alloy 80 7 Yea

Product Overview

Description

Hishine ip66 1000W led flood light for sport field, football field, baseball field, tennis court,etc

Advantages of led flood light:



1. lumileds 5050 SMD 170LM/W
2. UL and DLC listed. from 240W to 2600W.
3. Unique design, bracket and housing can all be adjustable.
4. Special PC lens with over 90% penetrating ability.
5. Bracket adopted 1070 aluminum, housing adopted Die-cast aluminum ADC12, long life-span
6. Breathing component at backside housing, automatic dissipate vapour in lamp after long time and high temperature lighting
7. Protective cap of breathing component, keep breathing component being not exposed to the dust and rain, protecting components inside
8. Excellent airtight effect, protecting from heavy rain and dust
9.The whole lamp is anti-corrosive to resist ocean salty water
10. Beam angle 20/30/45° optional
IES files, data sheet and price list will be sent on requested. Also we can do dialux simulation for your projects.

Parameter of Hishine led flood light:

Model No	HS-HM320W-A	HS-HM480W-A/HS-HM500W-A	HS-HM720W-A	HS-HM960W-A/HS-HM1000W-A	HS-HM1300W-A
Luminous Efficacy	170LM/W	170LM/W	170LM/W	170LM/W	170LM/W
Lumen Output	54400LM	81600LM	122400LM	163200LM	221000LM
LED Quantity	180	240	360	540	720
Dimension	690*230*75mm	460*460*75mm	690*460*75mm	690*690*75mm	920*690*75mm
CCT	3000k, 4000k, 5000k, 6000k
CRI	80
Power Factor	95
Input Voltage	AC100-277V/347V/480V
IP Rating	IP67
Beam Angle	20°/30°/45°



Structure of 1000W led flood light:



Sizes of 1000W led flood light:





Typhoon 12 resistance, modular design,various beam angles of 1000W led flood light:



Mounting options of 1000W led flood light:



Mass production, shipment of Hishine led flood light led high mast light, led stadium light:

Projects of 1000W led flood light:

Installation of 1000W led flood light:

Hishine 1000W led flood light



 About US:

Hishine Group Limited is a high-tech enterprise established in 2005, we have two branches, one is Huaibei Ruite Tech Co.,Ltd and one is Hishine Optoelectronics Co., Ltd. We focus on high quality led industrial light, such as LED High Bay light, LED Tunnel light, LED Flood Light, LED Garden Light, LED High Mast Light, LED Batten Light, LED Shoebox Light, LED Street Light and other related products.
