Synmot 70kW 90kW oil cooled liquid cooled water cooled cooling servo motor sewing machine servo motor made in china

Product Overview

Description

Synmot  75kW 90kW 575N.m 1500rpm oil/water/liquid cooling  Servo Motor

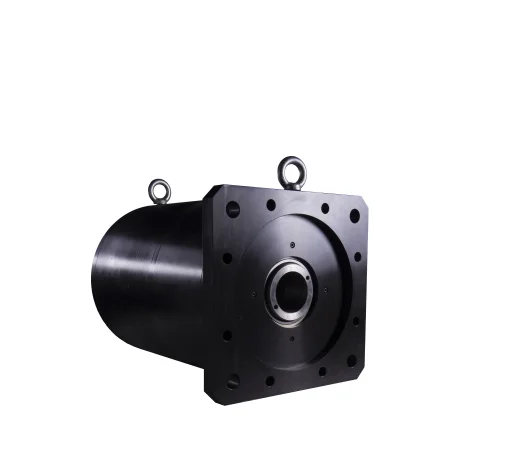

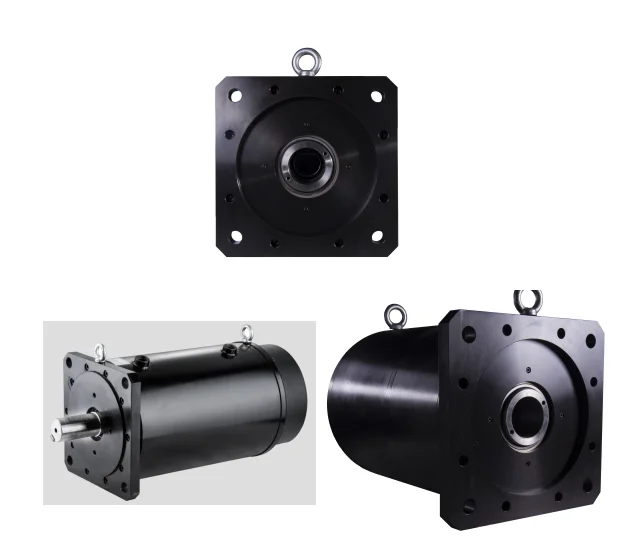

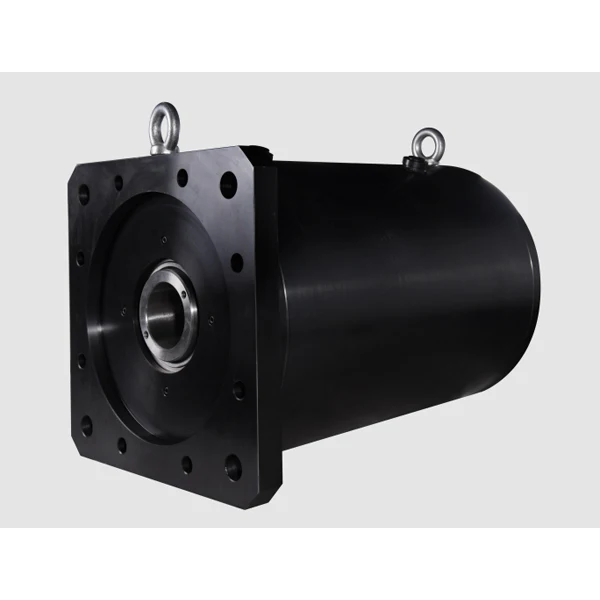

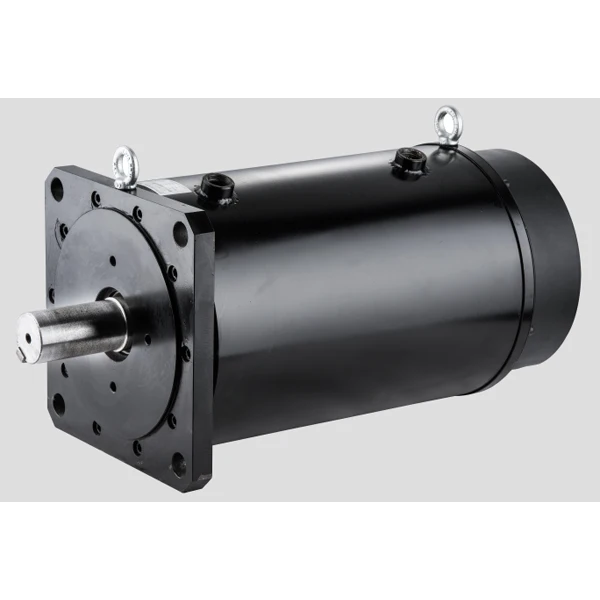

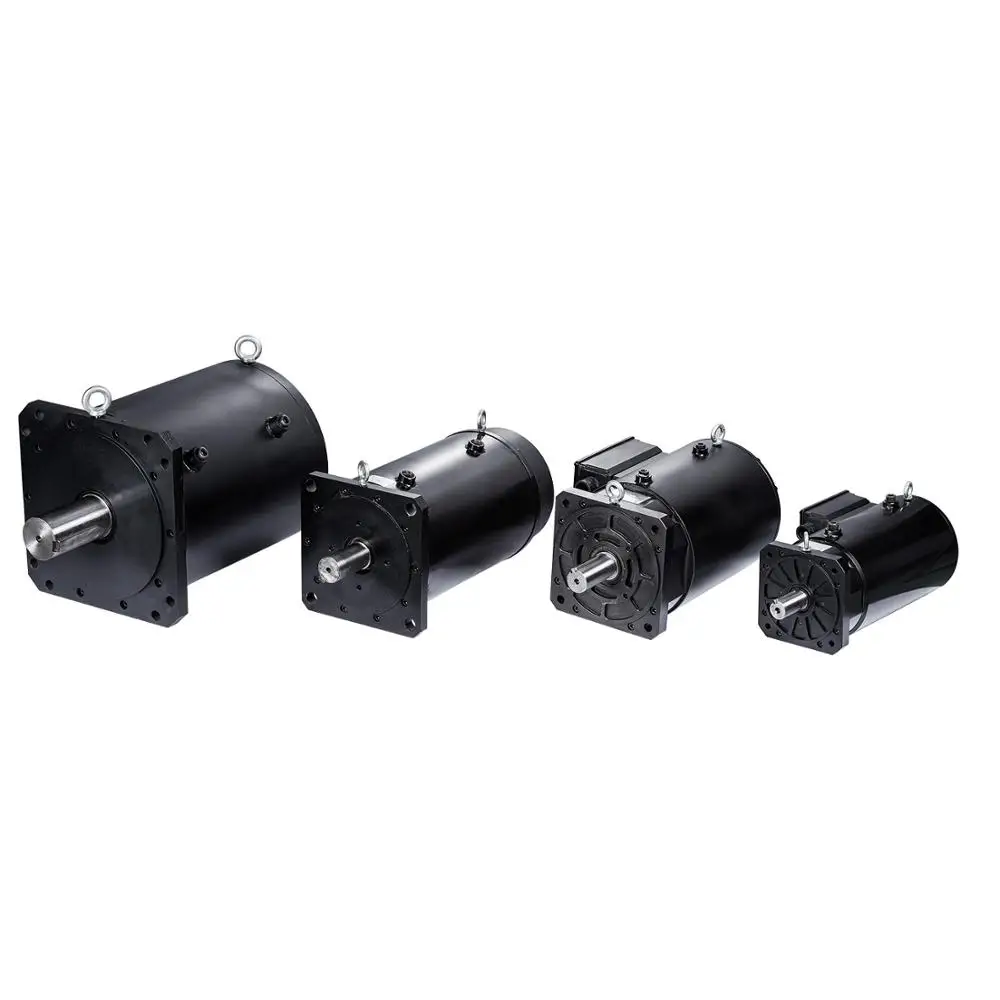

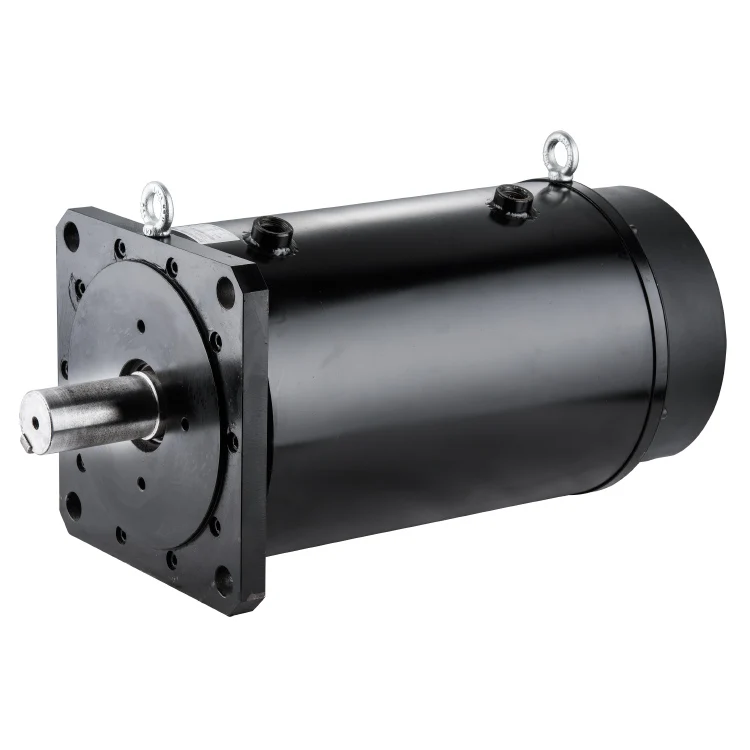

Product picture:



Product Description:

Synmot liquid cooling servo motors are permanent magnet synchronous motors with the stators cooled with liquid ,the main features including :ultra energy-saving ,high response and accuracy ,low noise and low temperature rise.The rotor is made of high-performance rare-earth permanent magnet material which works reliably and tomaintain less with low rotary inertia .It is easy to improve the rapidity of system ,small volume,high speed and high torque using the high-resilution encoder (17-bit .33-bit) to improve the position control accuracy.It control the current according to D-P principal axis transformation which increase the torque control accuracy from 5% to 2% .Synmot servo motor have been widely used in injection molding machienry ,textile machinery,CNC machinery etc.



 Product Parameter:

Model	Rated torque	Rated voltage	Rated speed	Rated power	Rated current	Kt	Ke	Max speed	Max torque	Rotor intertia	Poles	weight	length
	N.m	Vac	rpm	kW	A	N.m/A	V/krpm	rpm	N.m	kg.cm2	Poles	Kg	mm
200H15D15C	96	380	1500	15	35	3	184	2000	288	95	8	37	369
200H17D17C	96	380	1700	17	39	2.7	164	2300	288	95	8	37	369
200H20D20C	96	380	2000	20	46	2.3	139	2500	288	95	8	37	369
200H18D15C	118	380	1500	18	43	3	183	2000	354	115	8	48	399
200H21D17C	118	380	1700	21	48	2.7	165	2300	354	115	8	48	399
200H25D20C	118	380	2000	25	56	2.3	141	2500	354	115	8	48	399
200H22D15C	141	380	1500	22	49	3.2	191	2000	423	141	8	57	439
200H25D17C	141	380	1700	25	56	2.8	168	2300	423	141	8	57	439
200H30D20C	141	380	2000	30	65	2.4	145	2500	423	141	8	57	439
200H27D15C	170	380	1500	27	59	3.2	192	2000	510	167	8	68	479
200H30D17C	170	380	1700	30	65	2.9	174	2300	510	167	8	68	479
200H36D20C	170	380	2000	36	78	2.4	146	2500	510	167	8	68	479
260H33D15C	208	380	1500	33	73	3.1	189	2000	624	385	8	110	384
260H37D17C	208	380	1700	37	83	2.7	165	2300	624	385	8	110	384
260H44D20C	208	380	2000	44	97	2.3	142	2500	624	385	8	110	384
260H41D15C	264	380	1500	41	89	3.2	196	2000	792	493	8	120	434
260H47D17C	264	380	1700	47	100	2.9	175	2300	792	493	8	120	434
260H55D20C	264	380	2000	55	122	2.4	144	2500	792	493	8	120	434
260H50D15C	316	380	1500	50	107	3.2	195	2000	948	578	8	125	464
260H56D17C	316	380	1700	56	123	2.8	171	2300	948	578	8	125	464
260H66D20C	316	380	2000	66	143	2.4	146	2500	948	578	8	125	464
260H60D15C	384	380	1500	60	132	3.2	193	2000	1152	698	8	139	514
260H68D17C	384	380	1700	68	143	3.0	179	2300	1152	698	8	139	514
260H88D20C	384	380	2000	88	171	2.5	149	2500	1152	698	8	139	514
260H75D15C	480	380	1500	75	168	3.1	189	2000	1440	995	8	174	587
260H85D17C	480	380	1700	85	187	2.8	170	2300	1440	995	8	174	587
260H10E20C	480	380	2000	100	211	2.5	151	2500	1440	995	8	174	587
360H75D15C	480	380	1500	75	174	3.1	187	2000	960	1982	8	228	509
360H90D15C	575	380	1500	90	201	3.2	194	2000	1150	2356	8	250	559
360H11E15C	700	380	1500	110	255	3.1	187	2000	1400	2729	8	272	609
360H14E15C	900	380	1500	141	328	3.1	186	2000	1800	3476	8	317	709
450H11E15C	700	380	1500	110	110	3.1	187	2000	1400	4300	8	370	528
450H15E15C	1000	380	1500	157	150	3.2	196	2000	2000	6140	8	440	628
450H22E15C	1400	380	1500	220	220	3.1	187	2000	2800	7980	8	510	728

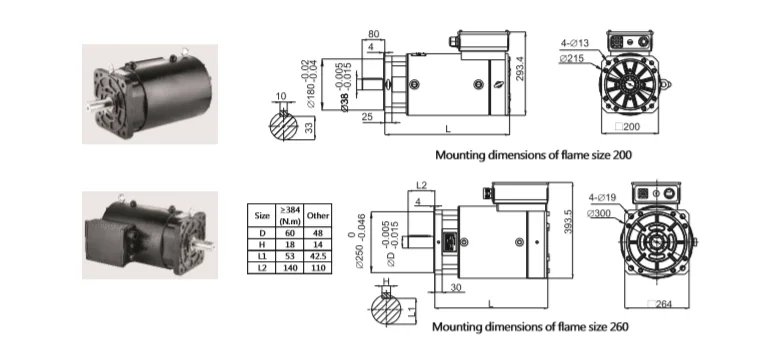

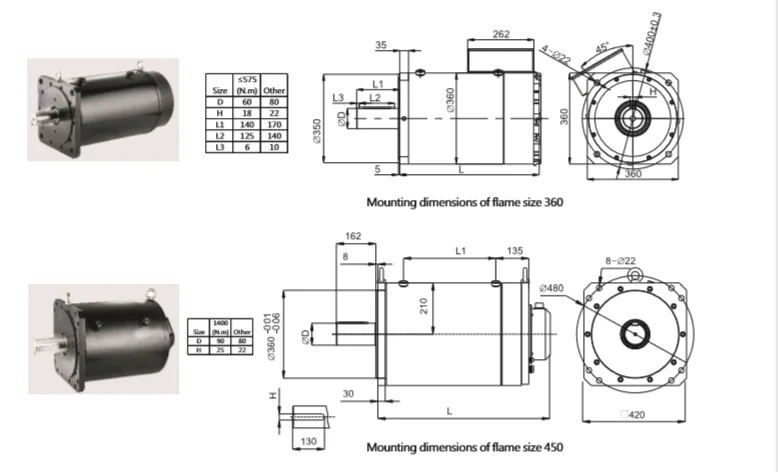

Mounting Dimensions :



Synmot servo motor main advantage:

1.Ultra energy-saving.high response and accuracy,low noise and low temperrature rise.

2.The rotor is made of high-performance rare-earth,permanet magnet material.works reliably and to maintainless.

3.With low rotary inertia so that it is easy to improve the rapidity of system ,small voluime ,high speed and high torque.

4.Global optimization using 2D and 3D inite element analysis with low cogging ,low torque-ripple and low noise and vibration .

5.Power range is from 0.4kW to 100kW with the motor rated speed from 350 RPM to 20000RPM.

6.High acceleration and quick dynamic response ,adopting high precision opical encoder (17 bit ,33bit) to improve the position control accuracy .It control the current according to D-P principal axis transformation which in crease the torque control accuracy from 5% to 2%.

Autoritative Certification:

 Transport information:



FAQ :

1.Q:Can i get sample ?

A:We are hornered to offer you sample for quickly check .

2.Q:Do you have the product in stock ?

A:All standard models we got in stock .Special products are manufactured according to your requirement .

3.Q:When do you delivery ?

A:It usually take 3-7 working days ,but the exactly time vary from different order at the different time .

4.Q:Are the motors with brake ?

A:The standard without brake ,but you can choose to install it or not .So the other size may be different ,like length,weight and so on .

5.Q:How long can it works ?

A:Properly use can work for 3 years .

6.Q:Can the motors works in the water?

A:No.Our motors can not work in the water,but they can prevent the splash water into the inner .

7.Q:How do you gerrantee your motors ?

A:Quality comes first.All the motor must pass the testing and then packaaged to delivery .

8.Q:Warranty period ?

A:18 months after the days then the products leave our factory .

9.Q:Payment period ?

A:In general ,30% by T/T of the amount as deposit ,70% by T/T of the  amount need be paid within one week after the day when you receive the copy of the B/L by email or consultations .
