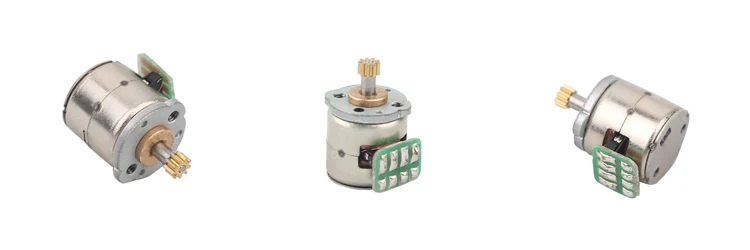

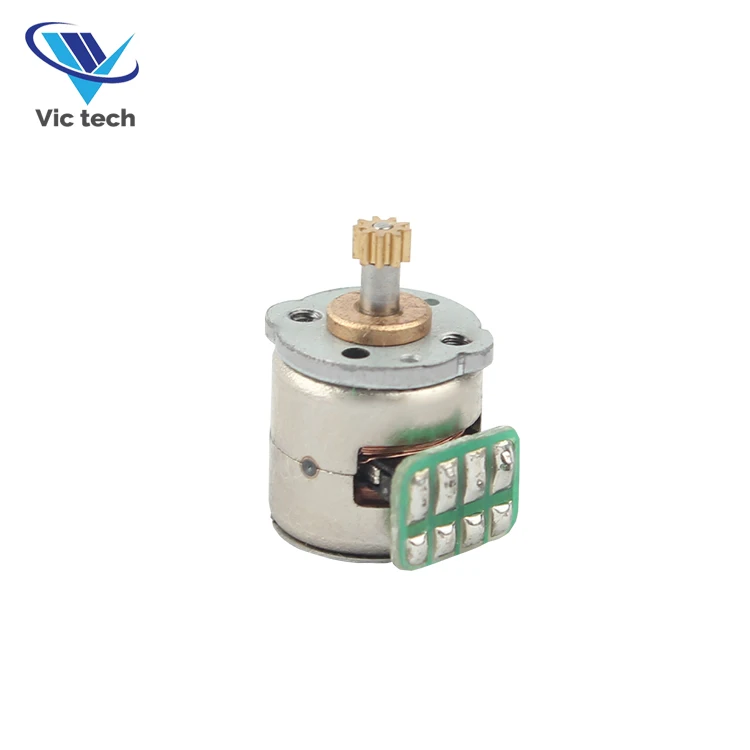

VSM08133 8mm micro Long life 2 phase 4 wire stepper stepping motor

Product Overview

Description

 8mm small step motor for permanent magnet micro stepper motor



VSM08133 is  a precision micro stepping motor body outer diameter 8MM, body length 8.2MM, shaft outer diameter 1MM, the shaft length can be changed according to the needs, and can be equipped with gears, pulleys,
Corresponding output devices such as worm and screw.
The motor has a basic step angle of 18 degrees and the motor runs 20 steps per week.
Because of its small size, high precision, and easy control, this miniature stepper motor is widely used in cameras, optical instruments, lenses, flashlights, precision medical equipment, automatic door locks and other fields.

The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
The mounting bracket can be changed according to the customer's request.

At the same time, we can match the corresponding drive system to meet the needs of customers!

Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!





PRODUCT NAME	8 MM MICRO STEPPER MOTOR
MODEL	VSM08133
MAX. STARTING FREQUENCY	1000 PPS min. (AT 3.3 V DC)
MAX. SLEWING FREQUENCY	1200  PPS min. (AT 3.3 V DC)
PULL IN TORQUE	0.8gf-cm min. (AT 900PPS , 3.3V DC)
PULL OUT TORQUE	1.0gf-cm min. (AT 900 PPS , 3.3V DC)
INSULATION CLASS	CLASS E FOR COILS
INSULATION STRENGTH	3.0mA (max.)100V AC FOR ONE SECOND
INSULATION RESISTENCE	1MΩ (DC 100V)
OPERATING TEMPERATURE RANGE	-30~+70 ℃
OEM & ODM SERVICE	AVAILABLE

PM stepper motor 8mm stepper motor price8mm micro stepper motor

TYPE of FIXTURE COVER:

The regular models are shown in the figure, and the special sizes can be customized.



TYPE of WIRE CONNECT:

Motor input method with Pin type

, FPC, PCB, Lead wire etc. These can be customized according to customer needs.
