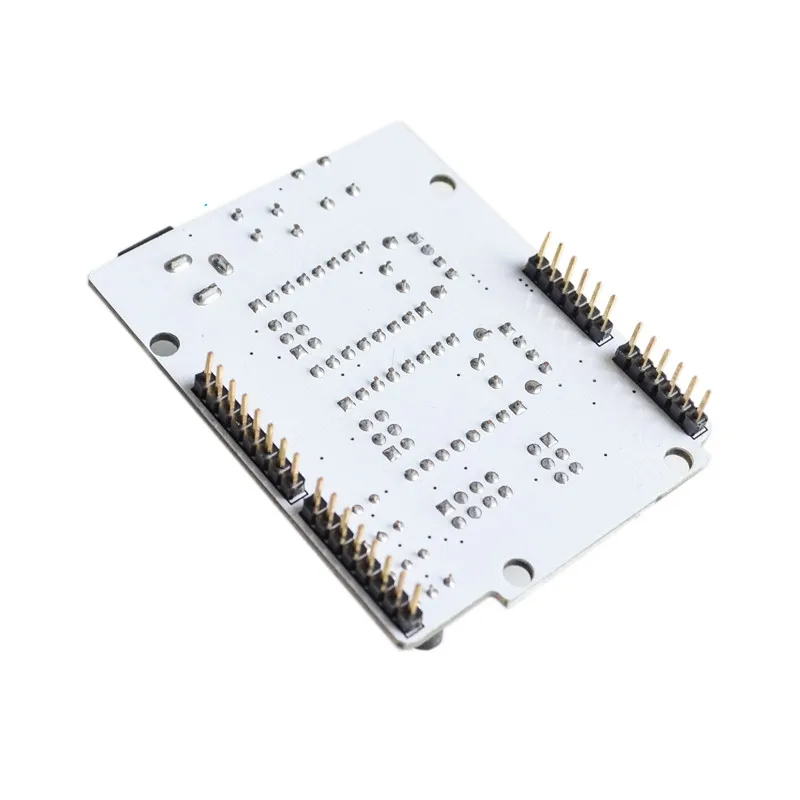

BQ ZUM driver board 3D printer scanner mainboard Ciclop expansion board
- Category: Electronic Accessories & Supplies >>>
- Supplier: EC Mart Trading (Shenzhen) Limited
Share on (60781998954):
Product Overview
Description
Product Description

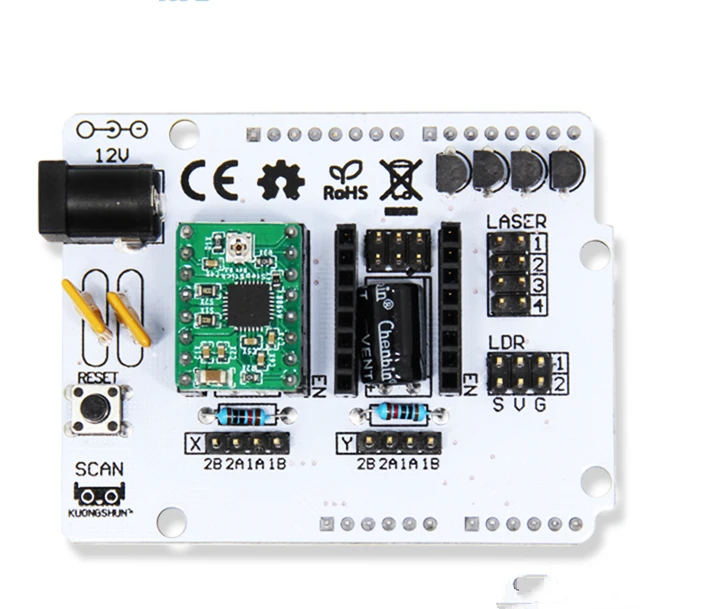

This electronic board has been designed to be used in 3D scanners, like Ciclop4. Although Ciclop uses one stepper motor and two laser modules, ZUM SCAN allows you to control up to two stepper motors, four laser modules and two LDR sensors. The shield can thus be used with other versions and future evolutions of this 3D scanner.
Specifications
Model： bq ZUM SCAN
Dimensions ：67 (L) x 54 (W) mm
Input voltage：8V – 16 V
Nominal voltage： 12 V
Motor driver socket ：2 units
Laser control transistor ：4 units
Analogue sensor connector： 2 units
Other features ：Power jack connector. Reset button. Fuse protection for stepper motors. Compatible with UNO*This electronic board has been designed to be used in 3D scanners, like Ciclop4. Although Ciclop uses one stepper motor and two laser modules, ZUM SCAN allows you to control up to two stepper motors, four laser modules and two LDR sensors. The shield can thus be used with other versions and future evolutions of this 3D scanner.
