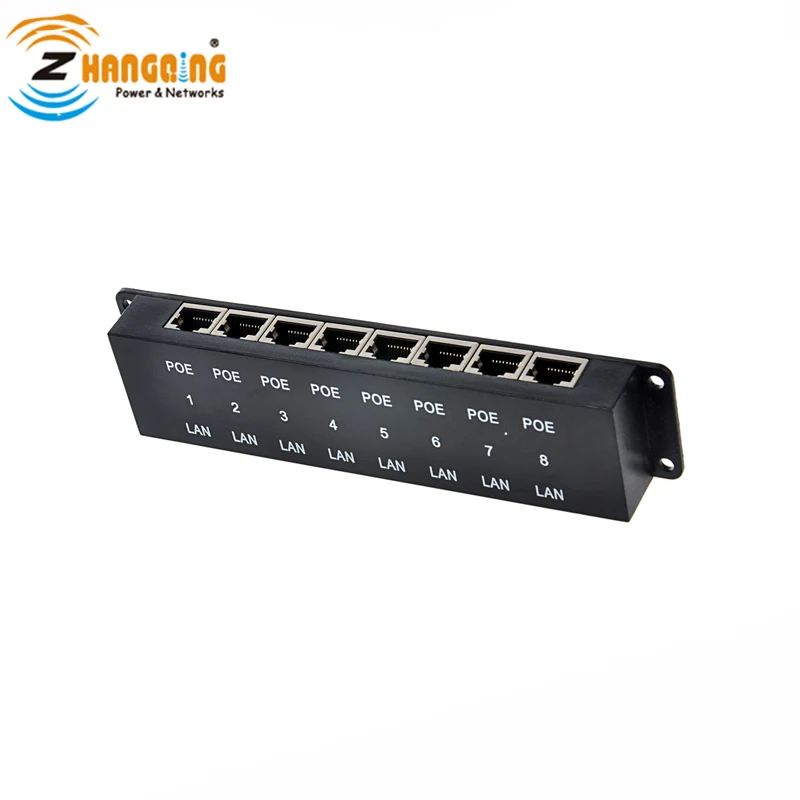

Passive 8 Port PoE Injector 10/100 Mbps Multi Port Patch Panel

Product Overview

Description

Product Description

Overview

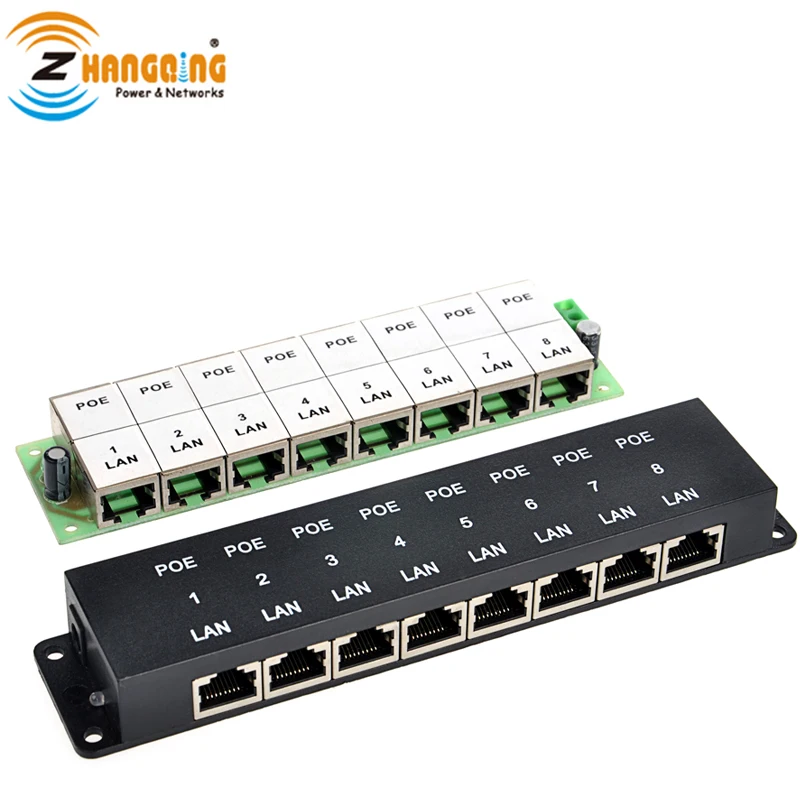

The 8port passive Poe Injector is used 10/100M Ethernet, can use with any ethernet switch. The LAN RJ45 sockets is form “Switch/PC/HUB” 1/2&3/6 are transmitting data. The POE RJ45 (power + data) socket is to deliver data and power. Pin 1/2 & 3/6 transmitting data, Pin 4/5(+) & 7/8(-) for power. Passive PoE is composed of 8 set of Rj45 sockets and one

60V DC power jack. Input power requests 60W or more Ac to Dc Power converter. The input dc hole diameter

is 2.1mm and the other end OD id is 5.5mm

The sum total output power must be lower than the Max input power of AC-DC power converter. If not, it is necessary to consider taking higher AC-DC power converter. There commended formula for AC-DC power converter is: 10W per RJ45 set (1 set = 2 x Rj45 sockets). For example, 8 x 10W = 80W for 8 port Passive

PoE panel.





Welcome to contact us

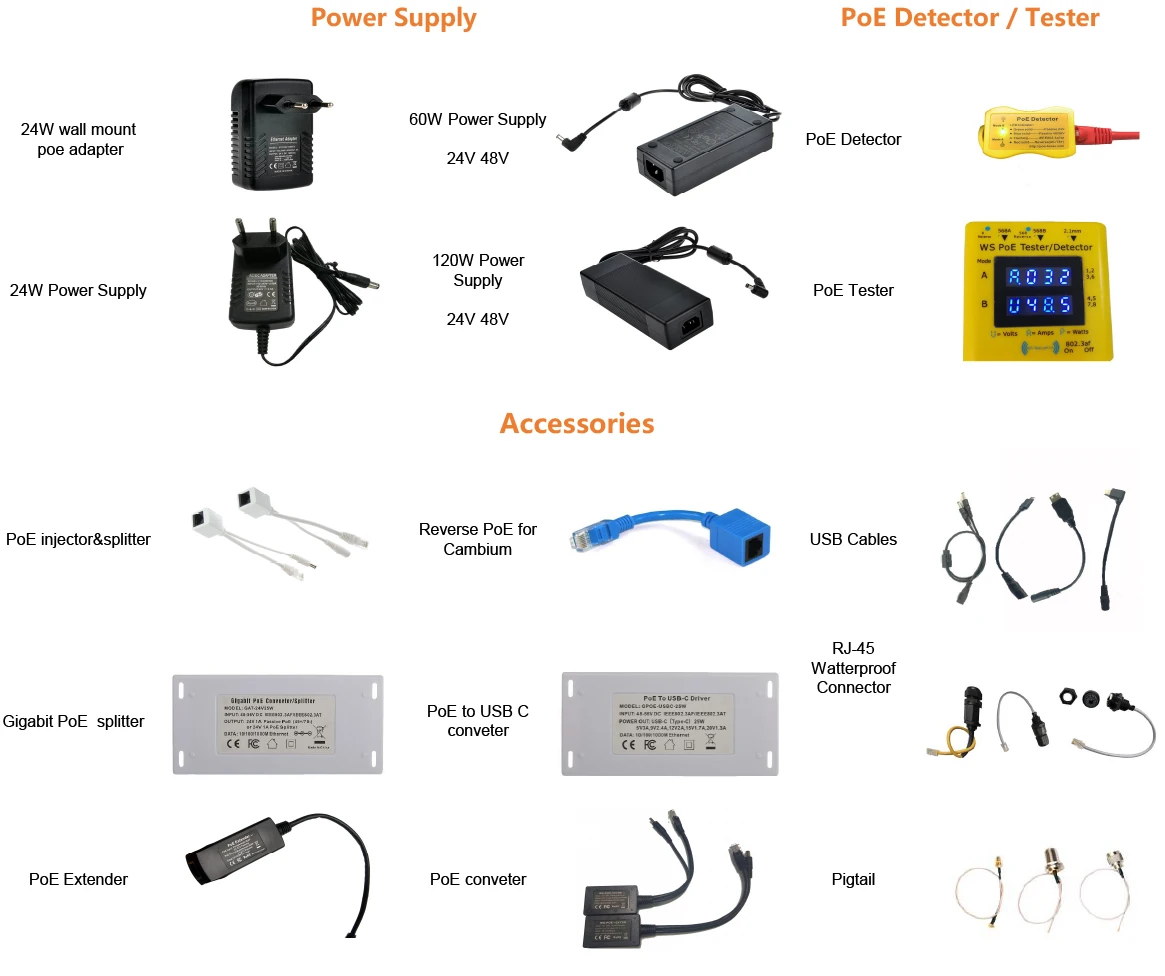

For cables and power supply - see our web.





Features





Input : 12-56V DC 2.1MM
Output: 12-56V PER PORT(30W Max)
Data: 1/2&3/6
Power: 4/5 V+ & 7/8 VData In :Connects PC/HUB/Switch
Weight : 140g
Dimensions: 175mm×37mm×20mm
Ethernet Cable : TIA/EIA 568 Cat. 5
Data rate : 10/100Mbps
Connector: RJ-45
Operating Temperature : 0°C ~ 40°C
Storage Temperature : -40°C~+70°C
Operating Humidity : 10%~80%RH
Storage Humidity :5%~90%RH

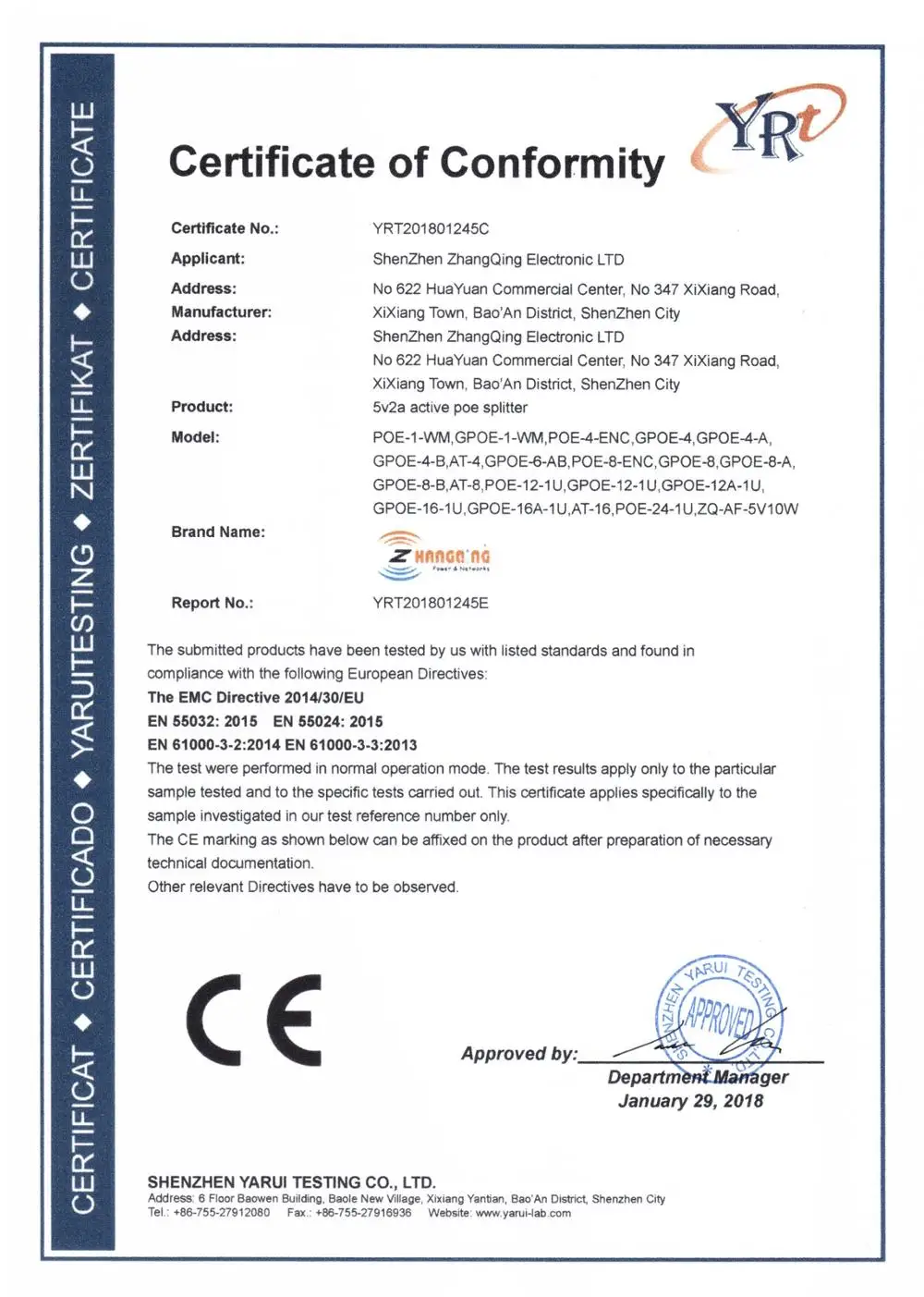

Certification: CE

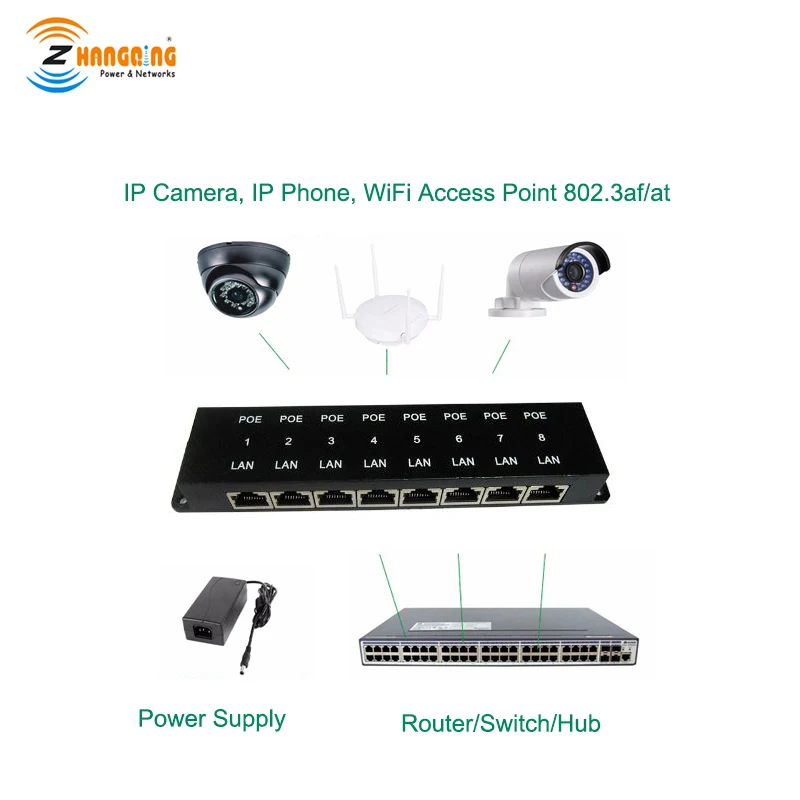

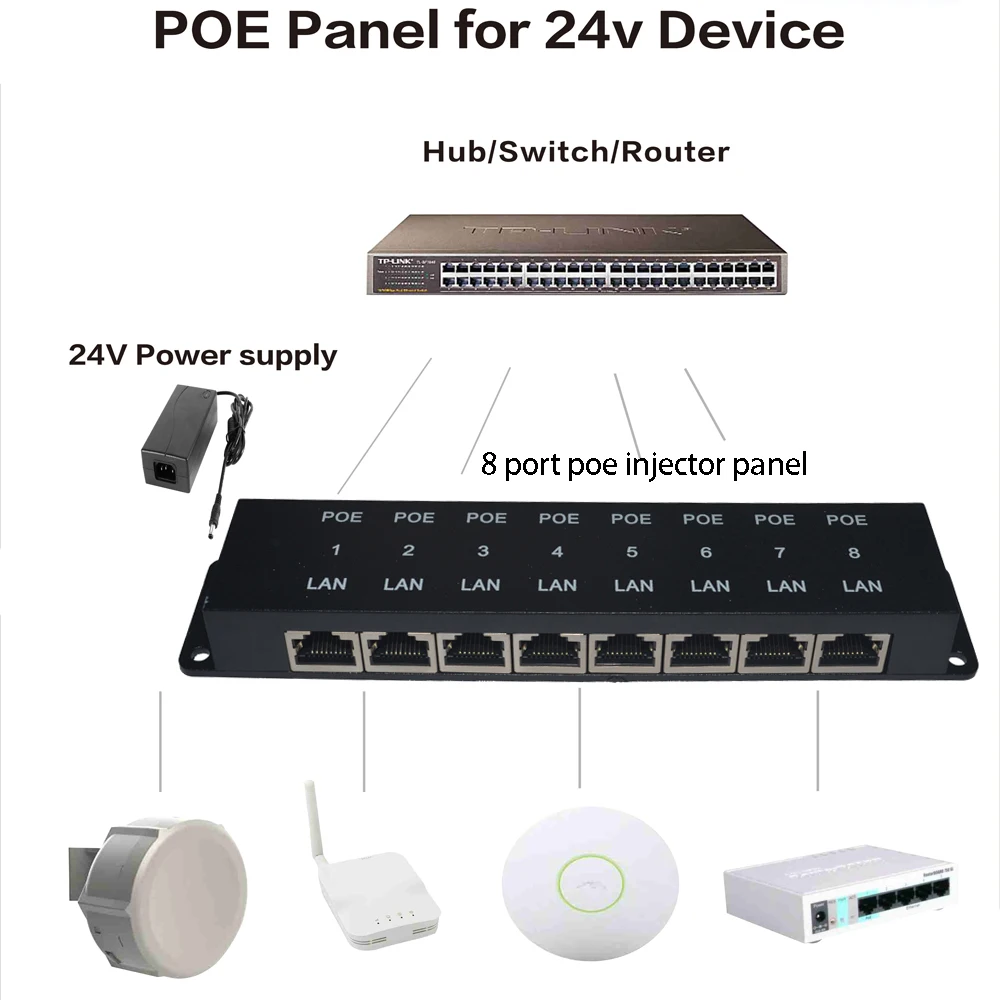

Application



Wireless Access Point (WiFi AP), such as MikroTik, Ubiquiti, OpenMesh etc

IP Phone
WiMAX Basestation
IP Survellance Camera
Door Security
POS
Netbook/mini Notebook

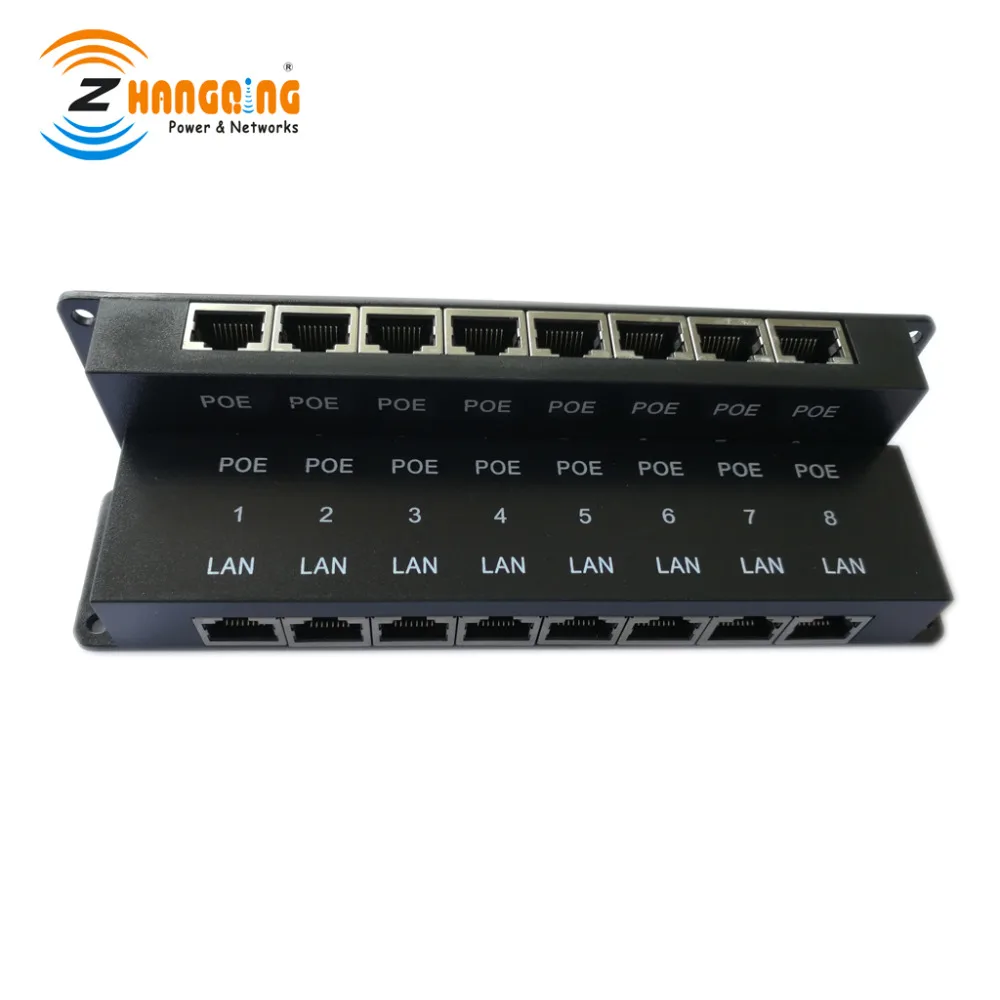

Detailed Images

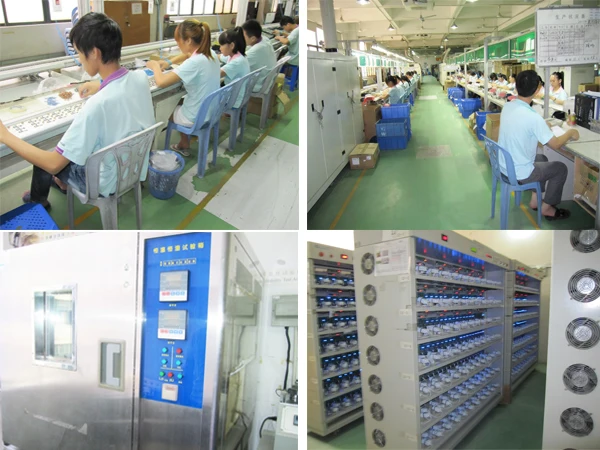

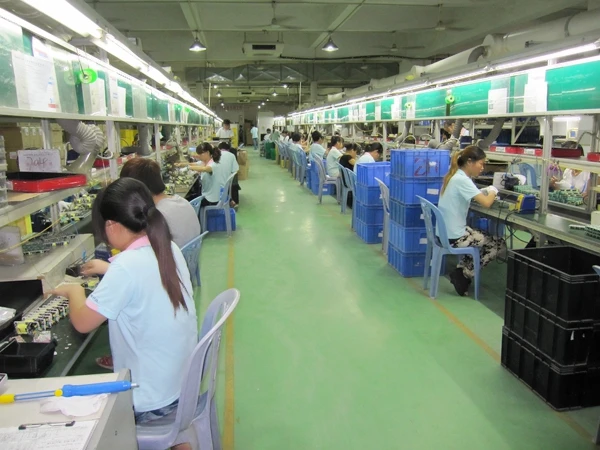

                                          About Us
