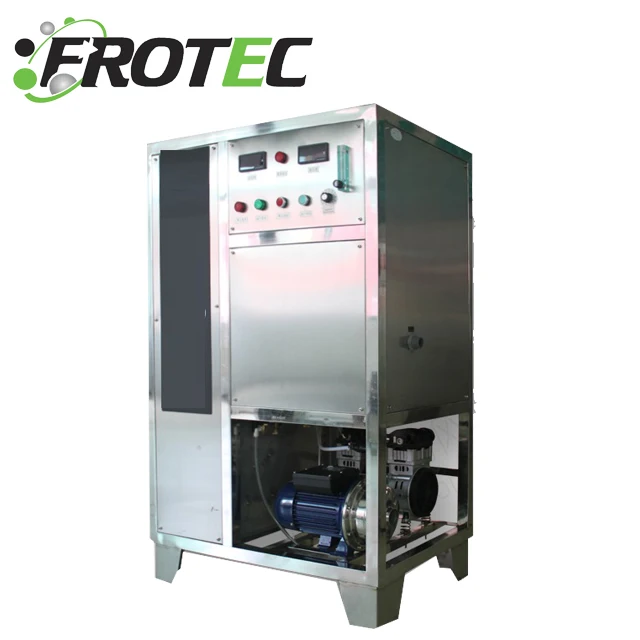

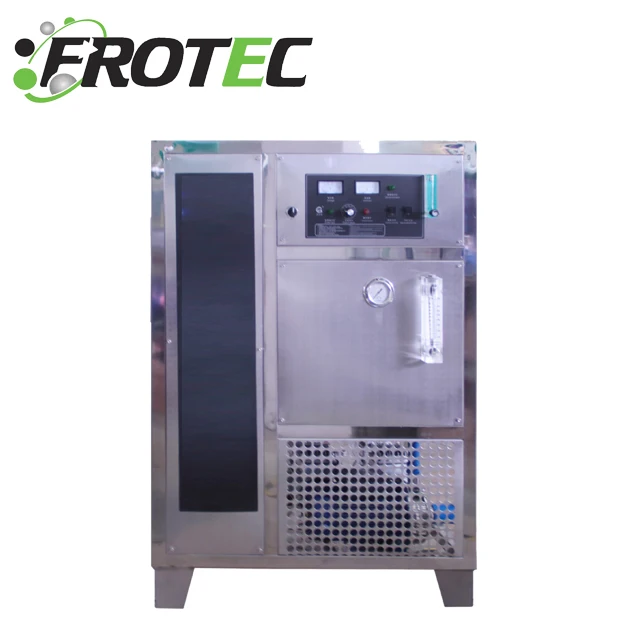

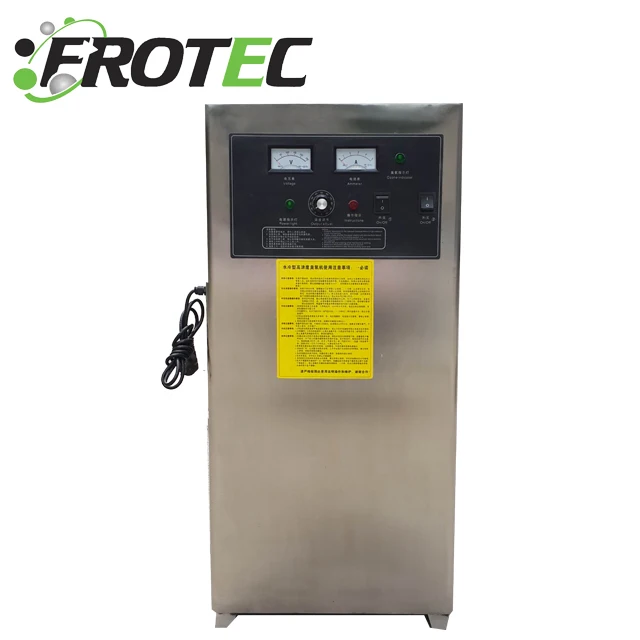

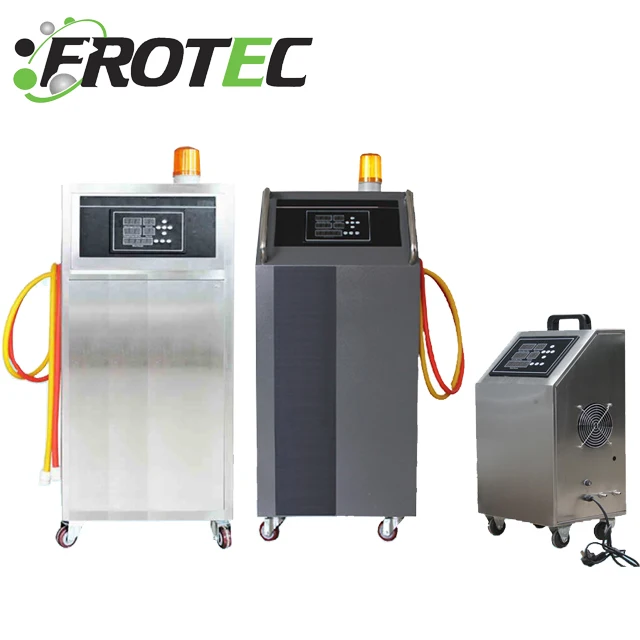

Industrial ozone generator drinking water ozonation of water treatment

♦ Part one: Frotec Ozone Generator Description



1.Brief introduction and Technical Specification





    Due to the instability of ozone molecule, which embodies the ozone with property of inconvenience of transporting and store, ozone must be produced on spot.

Titanium – quartzose tube discharging, which is applied for the OZ series ozone generator is popular and effective and economical method to produce ozone. When passing through the chamber which is constituted with high voltage tolerant quartzose insulator and titanium board, the oxygen molecules are obtained energy and combine as ozone molecules. Then ozone gas is generated. The ozone molecules are much instable and apt to react with each other into oxygen molecules.



Model NO.	Ozone  capacity g/h	Size cm	Power W	Weight kg	Cooled Method	Remarks
HY-001	3g	32*25*52	100	9.9	Air cooled	Portable
HY-001	5g	32*25*52	120	10.3	Air cooled	Portable
HY-002	2g	23*18*42	60	6.82	Air cooled	Portable
HY-002	3g	23*18*42	80	7.1	Air cooled	Portable
HY-009	3g	45*16*22	80	6.3	Air cooled	Wall-mounted
HY-009	5g	45*16*22	120	6.4	Air cooled	Wall-mounted
HY-009	10g	58*26*28	180	9.5	Air cooled	Wall-mounted
HY-005	10g	32*26*58	180	12.3	Air cooled	Vertical
HY-006	15g	40*30*71	300	19.1	Air cooled	Vertical
HY-006	20g	40*30*83	320	19.9	Air cooled	Vertical
HY-003	30g	40*30*95	350	22.6	Air cooled + Water cooled	Vertical
HY-015	40g	55*40*85	480	36.5	Air cooled + Water cooled	Vertical
HY-015	50g	55*40*100	530	37.5	Air cooled + Water cooled	Vertical
HY-015	60g	55*40*113	680	41	Air cooled + Water cooled	Vertical
HY-016	80g	55*40*124	1020	71.6	Air cooled + Water cooled	Vertical
HY-017	100g	55*40*133	1140	72.5	Air cooled + Water cooled	Vertical
HY-018	150g	60*50*143	2000	90	Air cooled + Water cooled	Split type
HY-018	200g	60*50*143	2300		Air cooled + Water cooled	Split type
Oxygen source ozone generator
Model NO.	Ozone capacity g/h	Size cm	Power W	Weight kg	Cooled Method	Remarks
YT-015	5g	55*40*73	660	40	Air cooled	multi function Ozone Generator
YT-015	10g	55*40*73	680	43	Air cooled	multi function Ozone Generator
YT-016	15g	55*40*88	780	50.8	Air cooled	multi function Ozone Generator
YT-016	20g	55*40*88	850	50.8	Air cooled + Water cooled	multi function Ozone Generator
YT-016	30g	55*40*103	950	52	Air cooled + Water cooled	multi function Ozone Generator
YT-016	40g	55*40*103	1100		Air cooled + Water cooled	multi function Ozone Generator
YT-017	50g	55*40*133	1200	75.5	Air cooled + Water cooled	multi function Ozone Generator
YT-017	60g	55*40*133	1300		Air cooled + Water cooled	multi function Ozone Generator
YT-017	80g	55*40*138	1750	86.5	Air cooled + Water cooled	multi function Ozone Generator
YT-018	100g	60*50*143	2650	106.5	Air cooled + Water cooled	multi function Ozone Generator
YT-018	150g	70*75*143	3200	151.5
YT-019	200g	70*75*143	3600	157
ZL-3L	3L/min	40*30*71	450	35
ZL-5L	5L/min	40*30*76	520	38
ZL-10L	10L/min	55*40*113	1200	48
ZL-15L	15L/min	55*40*124	1600	56

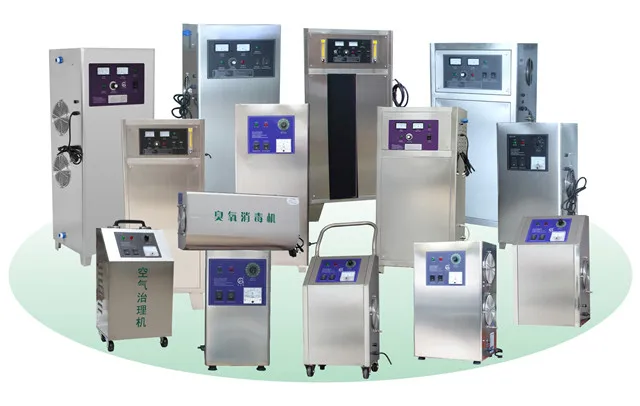

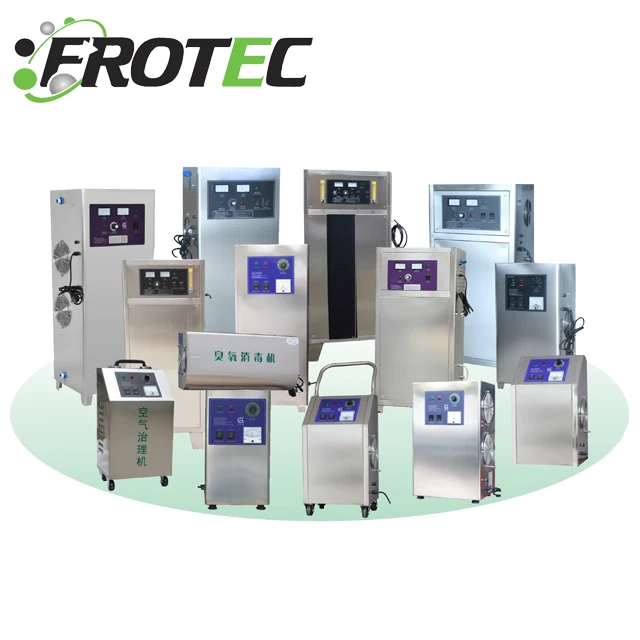

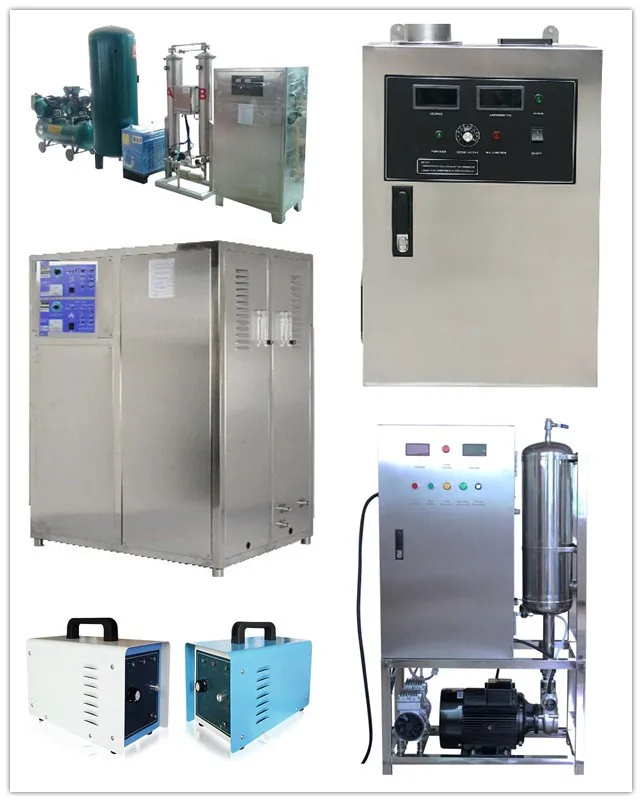

 2. Product Show

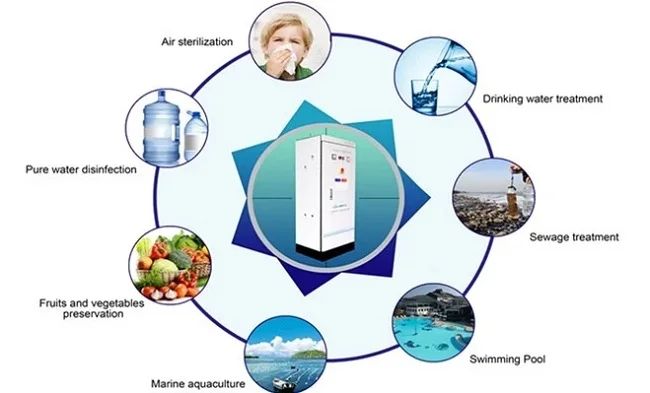

3. Application







♦ Part two: Frotec Ozone Generator  Packaging







♦ Part three: Frotec Serivce



1. Our Service



Welcome to your inquiry,you are promised to get our quotation withing 24 hours

We are pleased to send you a sample on you confirm

We promise that we will implement your order on time

You are promised to get the best quality at the best price with the best service



2.FAQ



a.OEM service available for filter cartridge?

Yes,  OEM service is available, but the Frotec brand price better than OEM



b.Payment Term

We can accept  L/C, T/T, Western Union, MoneyGram and paypal



c.Certicification

We had passed ISO9001



d.Shipping

If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,EMS.

For big quantity, by air or by sea through your forwarder is one Normal Way , we also can provide cost-effective forwarder for your reference.



e. Lead  time

The normal lead time is 7-15 days, which depends on your quantity.
