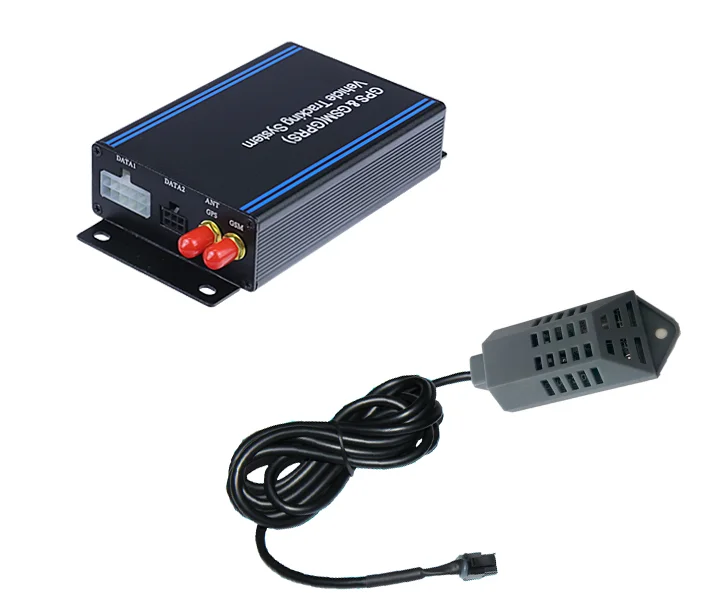

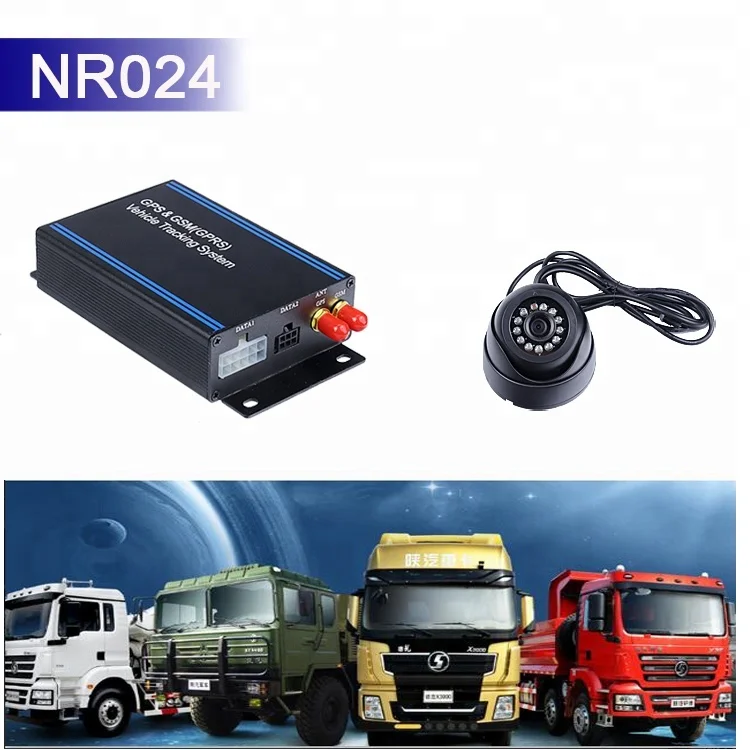

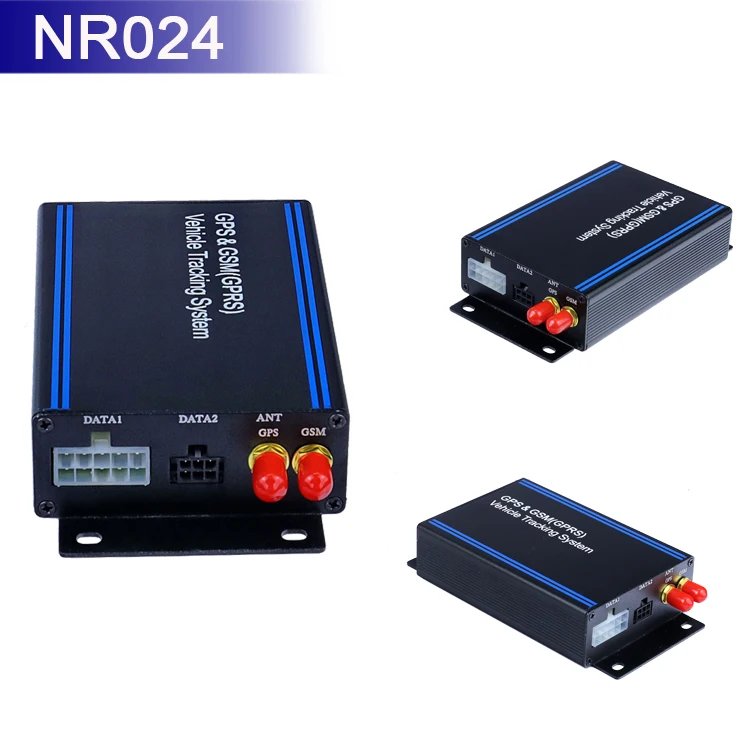

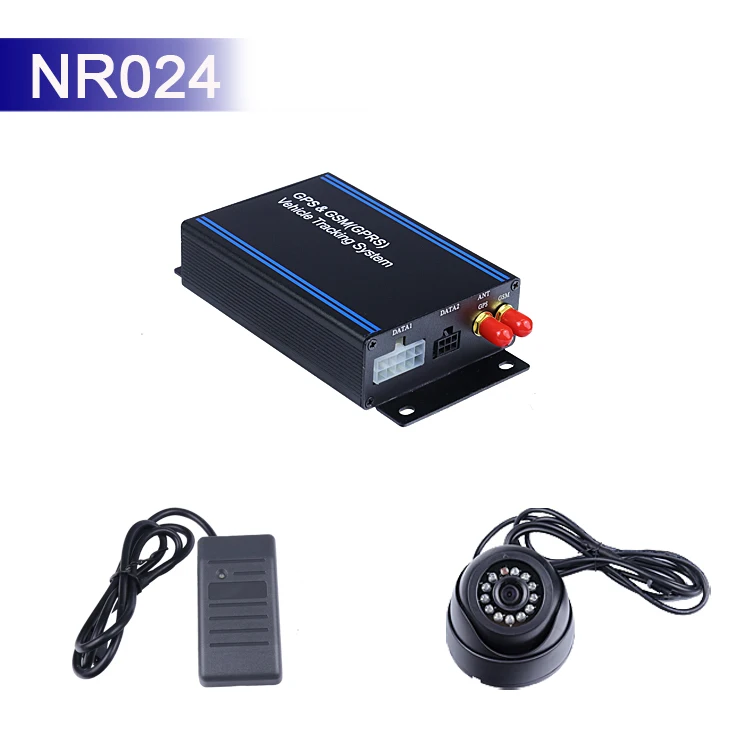

gps tracking device Noran NR024 with camera and rfid reader
gps tracking device Noran NR024 with camera and rfid reader
gps tracking device Noran NR024 with camera and rfid reader
gps tracking device Noran NR024 with camera and rfid reader
gps tracking device Noran NR024 with camera and rfid reader
gps tracking device Noran NR024 with camera and rfid reader
gps tracking device Noran NR024 with camera and rfid reader

gps tracking device Noran NR024 with camera and rfid reader

Share on (60782093397):


Price:

Quantity:


Product Overview

Description


Product Description
\t
Working life
\t
80,000 Hours
\t
Voltage
\t
DC 12V-14V
\t
Size
\t
137*75*29mm
\t
Function
\t
Fuel monitor
\t
Voltage
\t
DC:6.3~40V
\t
Certification
\t
CE
\t
interface
\t
2 RS232
\t
Warranty
\t
2 years
\t
Item Name
\t
Top selling camera gps tracker
\t
Fuel sensor
\t
Ultrasonic
\t
Sort
\t
rfid camera gps tracker
\t
MOQ
\t
1 Piece
\t
Model Number
\t
Gps Tracker NR024 of Noran
\t
Price
\t
21-50 PCS USD 70.00
\t
Car tracker
\t
Truck Vehicle Car
\t
Port
\t
Shenzhen/Guangdong

Specifications

1. 10 PIN interface
2. 2G 3G 4G module(GSM WCDMA LTE )
3. Sirf4 GPS module
4. 5 input IO ports , 1 analog port, 2 output ports
5. 2 RS232& RS485 interface for camera / RFID reader/ LCD screen
6. Alarm buzzer.
7. Inbuilt memory and backup battery
8. Position mode :GPS+LBS position
9. Size:142.5mm*75.5mm*24mm
10. Micphone&earphone interface:3.5mm
11. Support TCP/UDP/HTTP protocol

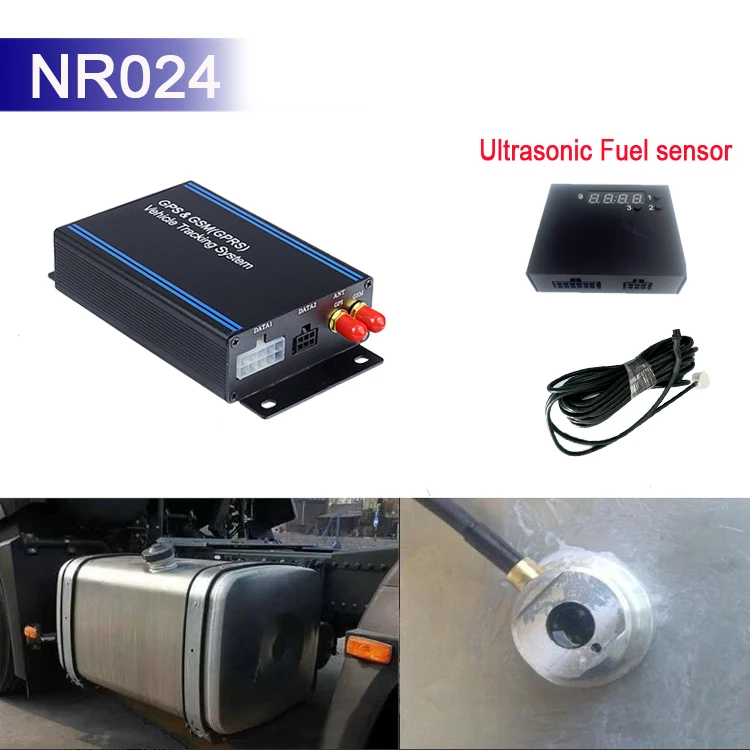

12. Optional:Fuel sensor / temperature sensor
13. Work voltage: 9V~ 60V
14. Operating Temperature:-45°C ~75°C
15. Working current:<110mA@12V,Standby current:<10mA@12V
16. Humidity: 5%~95%

Detailed Images
Wiring diagram
Tracking Platform


1. Use Google map, Global free
2. Real-time locating / inquiry
3. SOS button/Power-cut Alarm
4. Listen by telephone
5. E-fence/Over-speed Alarm
6. Compatible original anti-theft
7. Remote control engine


NORAN vehicle gps online tracking system have Chinese/English/French/Spanish/Vietnamese /Polish /Arabic And other languages in different countries

Other Products
Packing & Delivery

Package Details: Color Box

                              10pcs/carton

                              Carton Size:50*43*31cm


Delivery time: 1-3 day after payment

Company information

Shenzhen Noran Technology LTD was found in April 2012. We are engaged in the R&D manufacture of vehicle GPS tracking series products. Our main products including GPS trackers, Vehicle GPS Navigator & Vehicle Location Trackers. We also provide professional GPS Tracking Platform for both enterprise users and personal users. We have our own R&D team. All our products have independent intellectual property rights. We can provide whole solutions, products and excellent services for our customers with high efficiency.

Our Service

1. We provide free web tracking system, Android and IOS APP.


2. Our device can send data to your own server, we can provide SDK and API for integrate (sample source code:C/C++,Java,C#)


3. we can guide you to install the tracking system into your server if you have own server.


4. We provide OEM and ODM services, it is free if you only add logo and company name.


5. Warranty: 24-month
