Water PP Sanitary Grade Stainless Steel Micro Filter Housing with Cartridge

Product Overview

Description

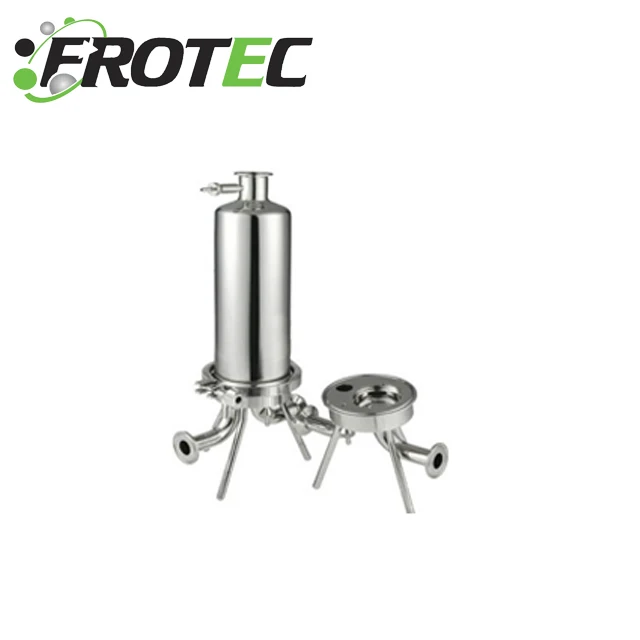

Water PP Sanitary Grade Stainless Steel Micro Filter Housing with Cartridge

♦ Part one: Frotec Filter Housing Description



1.Brief introduction and Technical Specification



SS Filter Housing consists of SUS316L or SUS304, and take filter cartridge as its element. The SS filter housing can be used for filtration of liquid, gas and 0.1um above particles and bacteria, with high removal rating and flow rate. It possess properties of lower absorption, no medium shedding, no leakage, acid and alkali Resistance, and corrosion resistance. In addition, it is easy to wash and function as back flush, and is ideal filtration equipment for the industry of biology & pharmacy, beer & beverage, chemical, and water treatment etc.



SFH Series

Material:SUS304L, SUS316L

Max working pressure:150PSI

Making method: Polished

Cartridge Configuration Accepted: 222/Fin, 226Fin

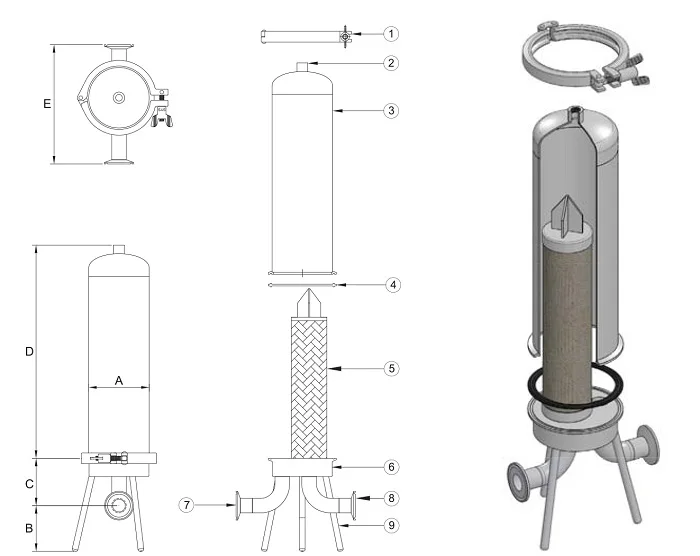

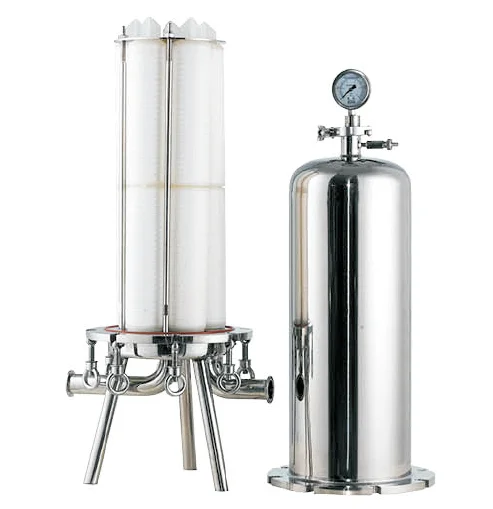

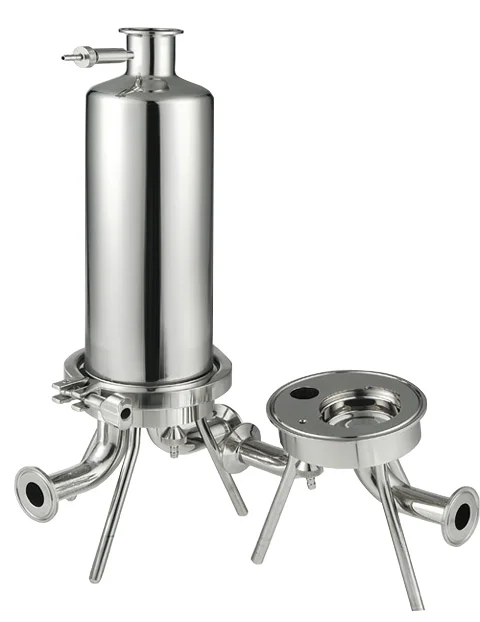

 2. Product Show







No.	Name	No.	Name
1	Clamp	6	Base
2	Vent	7	Port inlet
3	Shell	8	Port outlet
4	Gasket	9	Support Leg
5	Filter Cartridge



Model	B mm	B+C mm	B+C+D mm	A mm	E mm	Inlet/outlet (connection parts)
1element-10"L	550	400	80	102	200	50mm
1element-20"L	800	650	80	102	200	50mm
1element-30"L	1050	900	80	102	200	50mm
1element-40"L	1300	1150	80	102	200	50mm







Model	B mm	B+C mm	B+C+D mm	A mm	E mm	Inlet/outlet (connection parts)
3element-10"L	650	450	120	200	300	50mm
3element-20"L	900	700	120	200	300	50mm
3element-30"L	1150	950	120	200	300	50mm
3element-40"L	1400	1200	120	200	300	50mm
5element-10"L	650	450	120	220	350	115mm
5element-20"L	900	700	120	220	350	115mm
5element-30"L	1150	950	120	220	350	115mm
5element-40"L	1400	1200	120	220	350	115mm
7element-10"L	700	450	150	250	400	140mm
7element-20"L	950	700	150	250	400	140mm
7element-30"L	1200	950	150	250	400	140mm
7element-40"L	1450	1200	150	250	400	140mm
9element-10"L	750	450	150	300	450	145mm
9element-20"L	1000	700	150	300	450	145mm
9element-30"L	1250	950	150	300	450	145mm
9element-40"L	1500	1200	150	300	450	145mm
12element-10"L	800	550	200	350	500	150mm
12element-20"L	1100	800	200	350	500	150mm
12element-30"L	1350	1050	200	350	500	150mm
12element-40"L	1600	1300	200	350	500	150mm
15element-10"L	850	550	200	400	550	165mm
15element-20"L	1100	800	200	400	550	165mm
15element-30"L	1350	1050	200	400	550	165mm
15element-40"L	1600	1300	200	400	550	165mm
21element-10"L	900	600	200	450	600	185mm
21element-20"L	1150	850	200	450	600	185mm
21element-30"L	1400	1100	200	450	600	185mm
21element-40"L	1650	1350	200	450	600	185mm





3. Application



• Prefiltration of RO,Pretreatment of sea water desalination

• Bottled water, high Fructose,edible oil,soft drinks

• API, solvents,and water filtration in BioPharm market

• Paints and coatings,Petrochemical,Refineries

• Microelectronics
