China Hight Quality Conventional Lathe Machine Price
US $3850-$4520

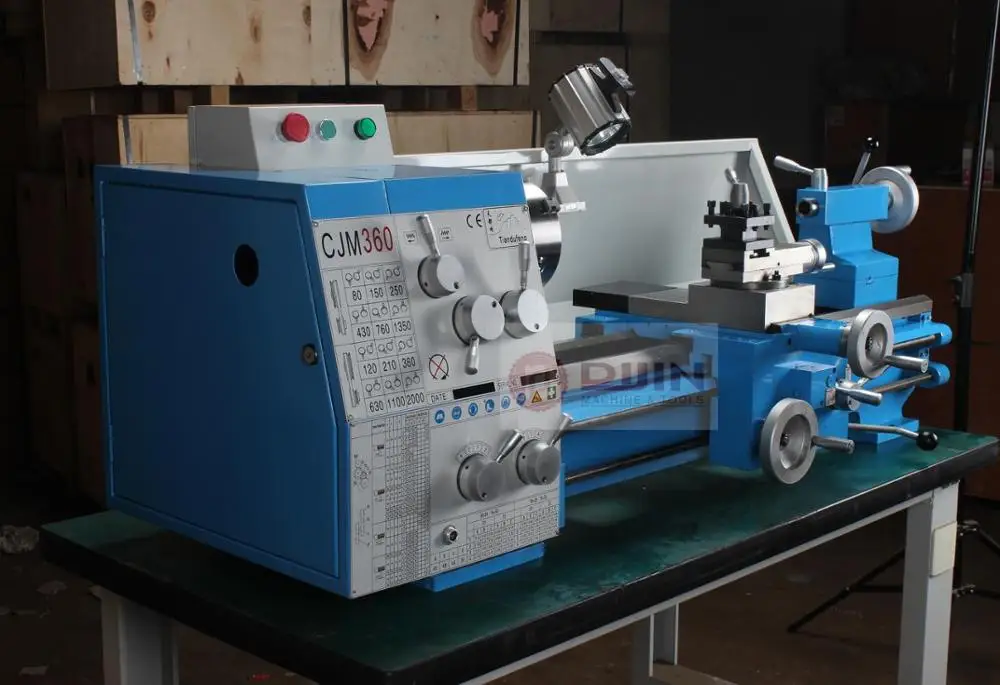

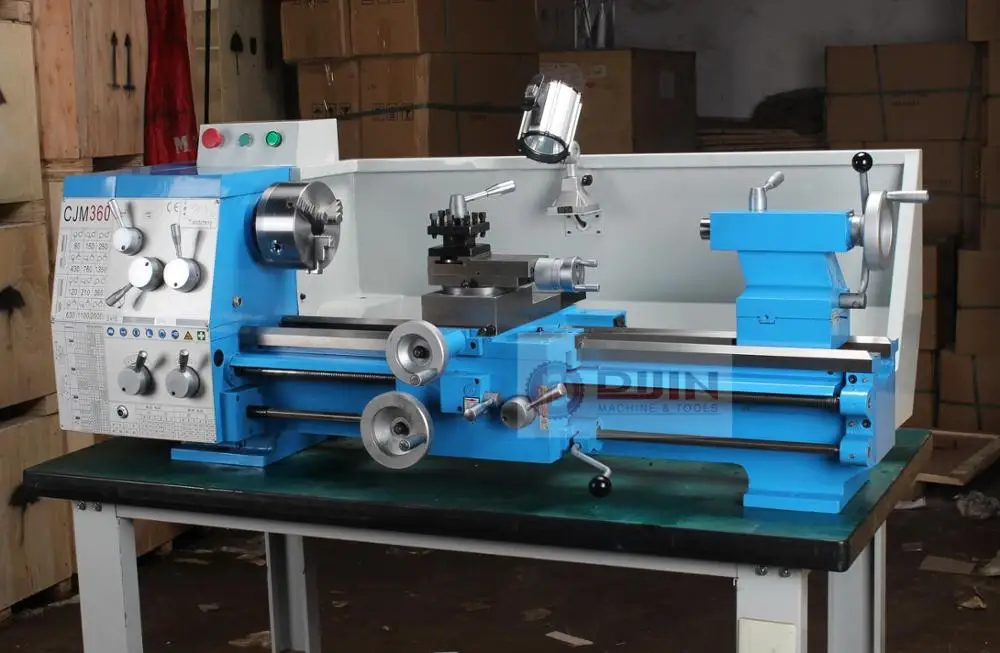

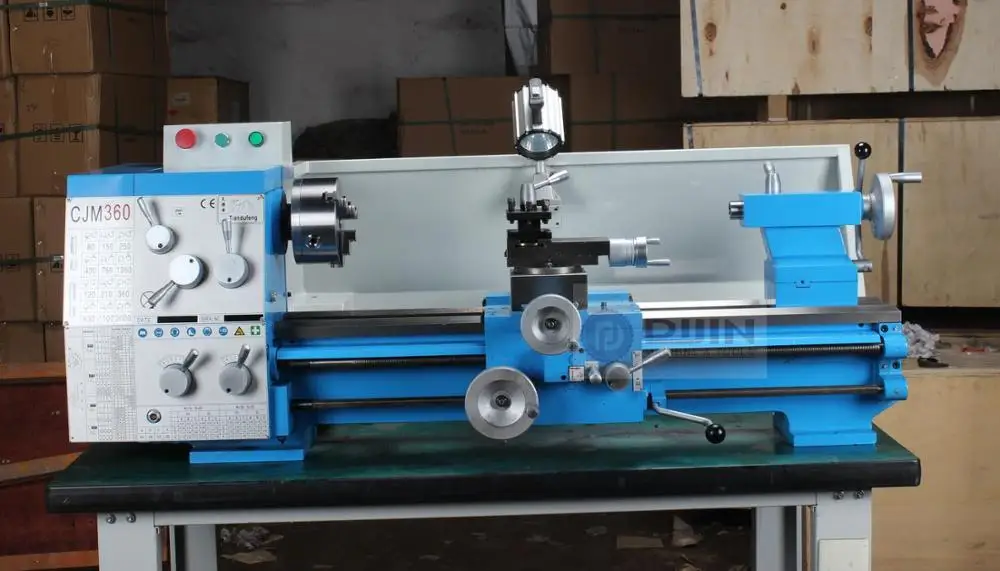

shenzhen small bench lathe CJM360 manual metal lathe 1.5KW spindle bore 38mm have stocks with low price
- Category: Manual Lathe >>>
- Supplier: Shenzhen Dijin Machine Equipment Co. Ltd.
Share on (60782117337):
Product Overview
Description
Small bench lathe CJM360
NOTE: This mini lathe inch threading change gear and stand are optional ,need to extra pay ,It’s not come along with machine
Model | CJM360 |
Swing over bed | 360mm |
Distance between center | 800mm |
Swing over cross slide | 240mm |
Spindle bore | 40.5mm |
Spindle taper | MT5 |
Range of spindle speeds | 80-2000rpm |
Spindle speed steps | 12 |
Number of metric threads | 22 |
Range of metric threads | 0.2-7mm |
Number of imperial threads | 45 |
Range of imperial threads | 21/2-48 T.P.I |
Range of longitudinal feed | 0.1-1.4mm |
Cross slide travel | 180mm |
Top slide travel | 100mm |
Tail stock sleeve travel | 100mm |
Tail stock taper | MT3 |
Main motor | 1.5KW |
N.W/G.W | 350/380KGS |
Dimension |
