150m deep gasoline water well drilling machine/ borehole drilling machine with gasoline motor drilling

Product Overview

Description

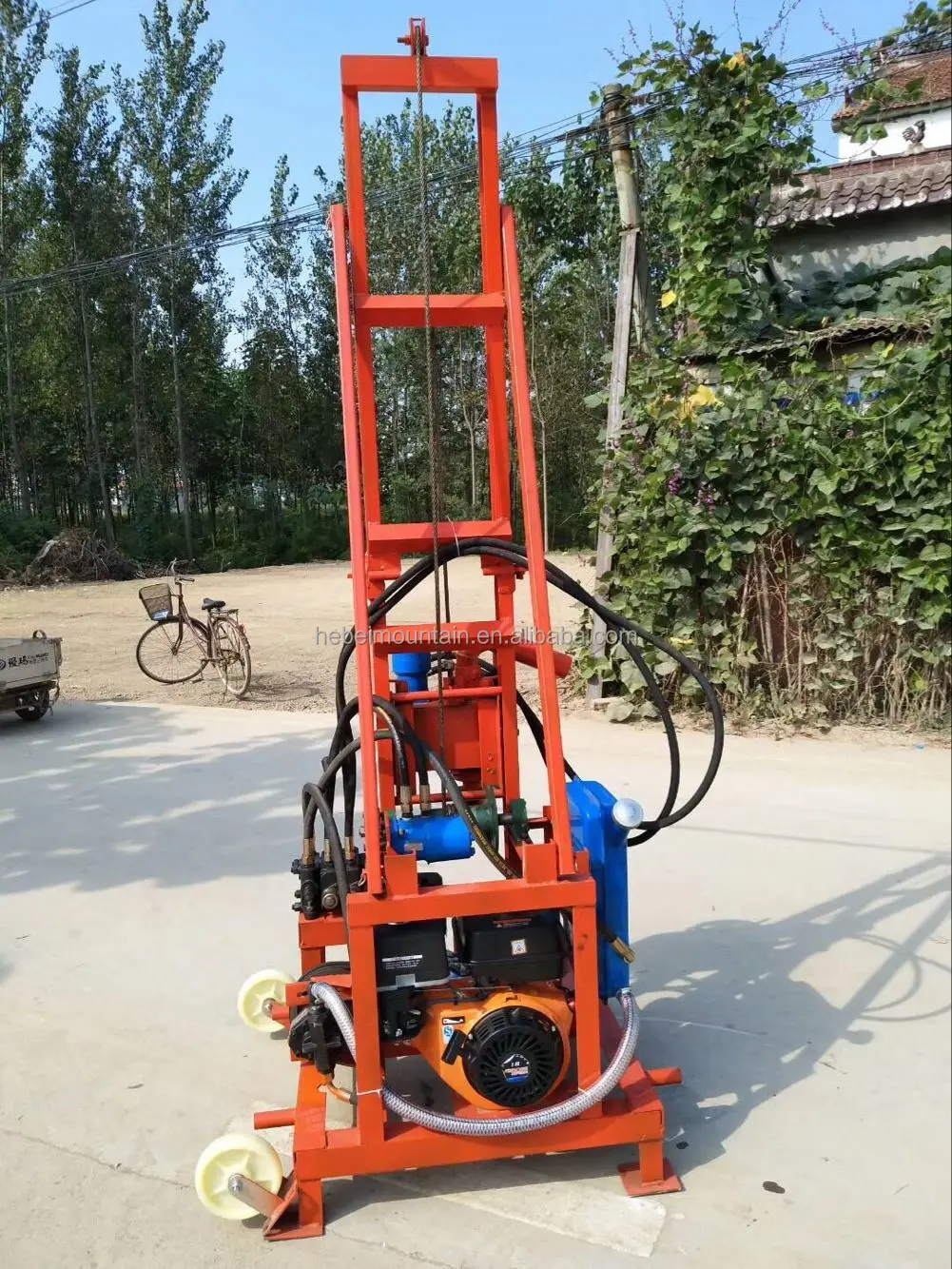

Diesel or gasoline motor Water Well Drilling Rig:

I. Introduction

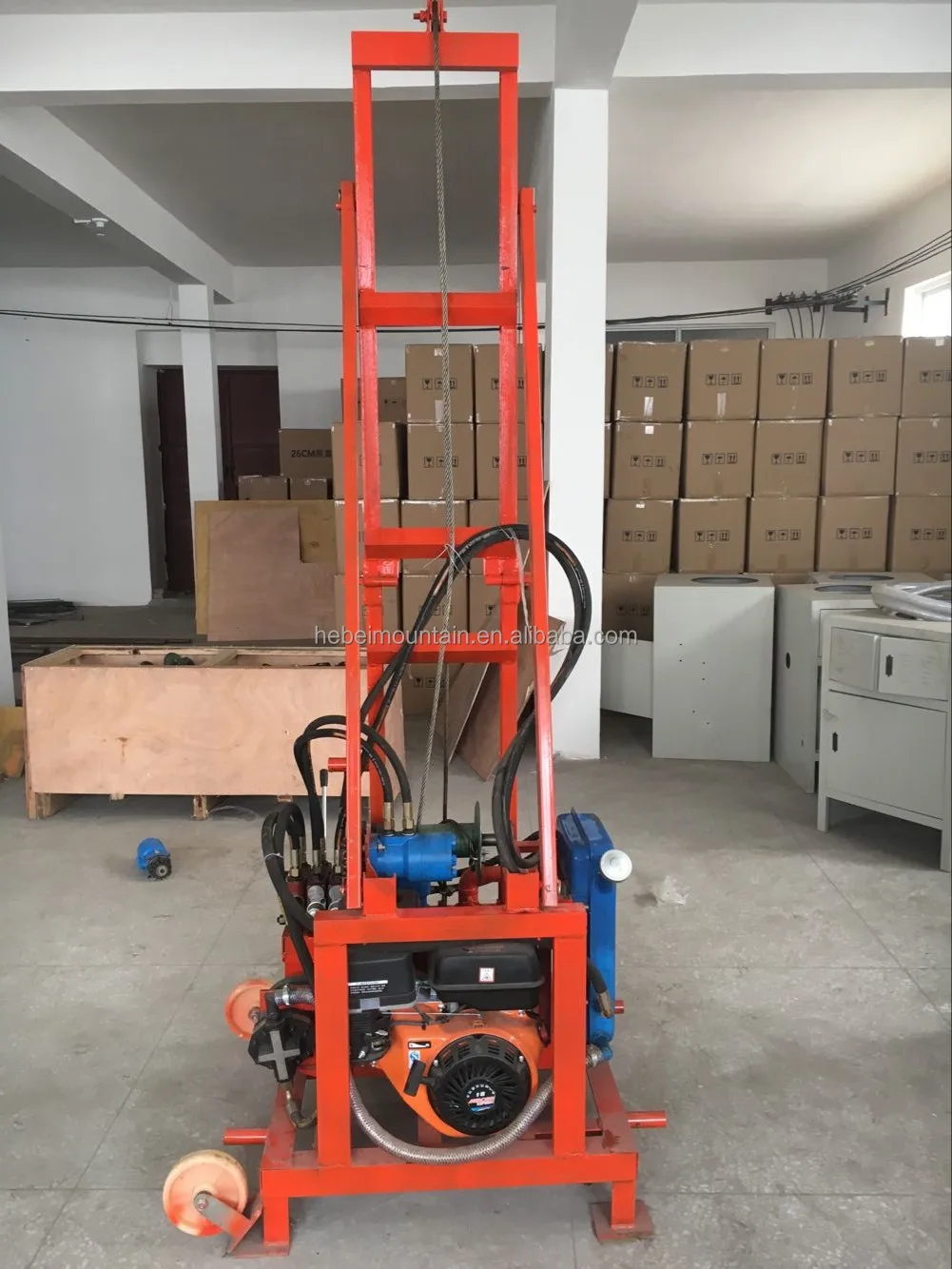

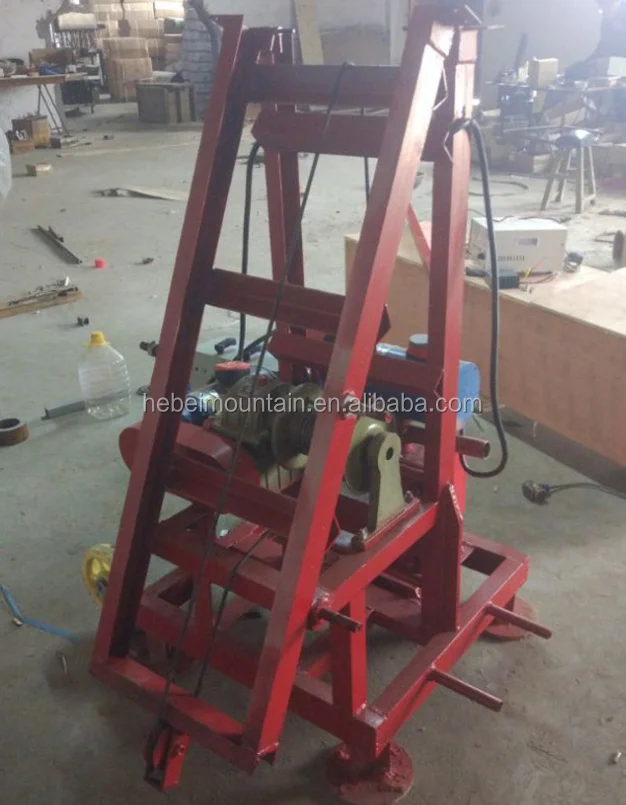

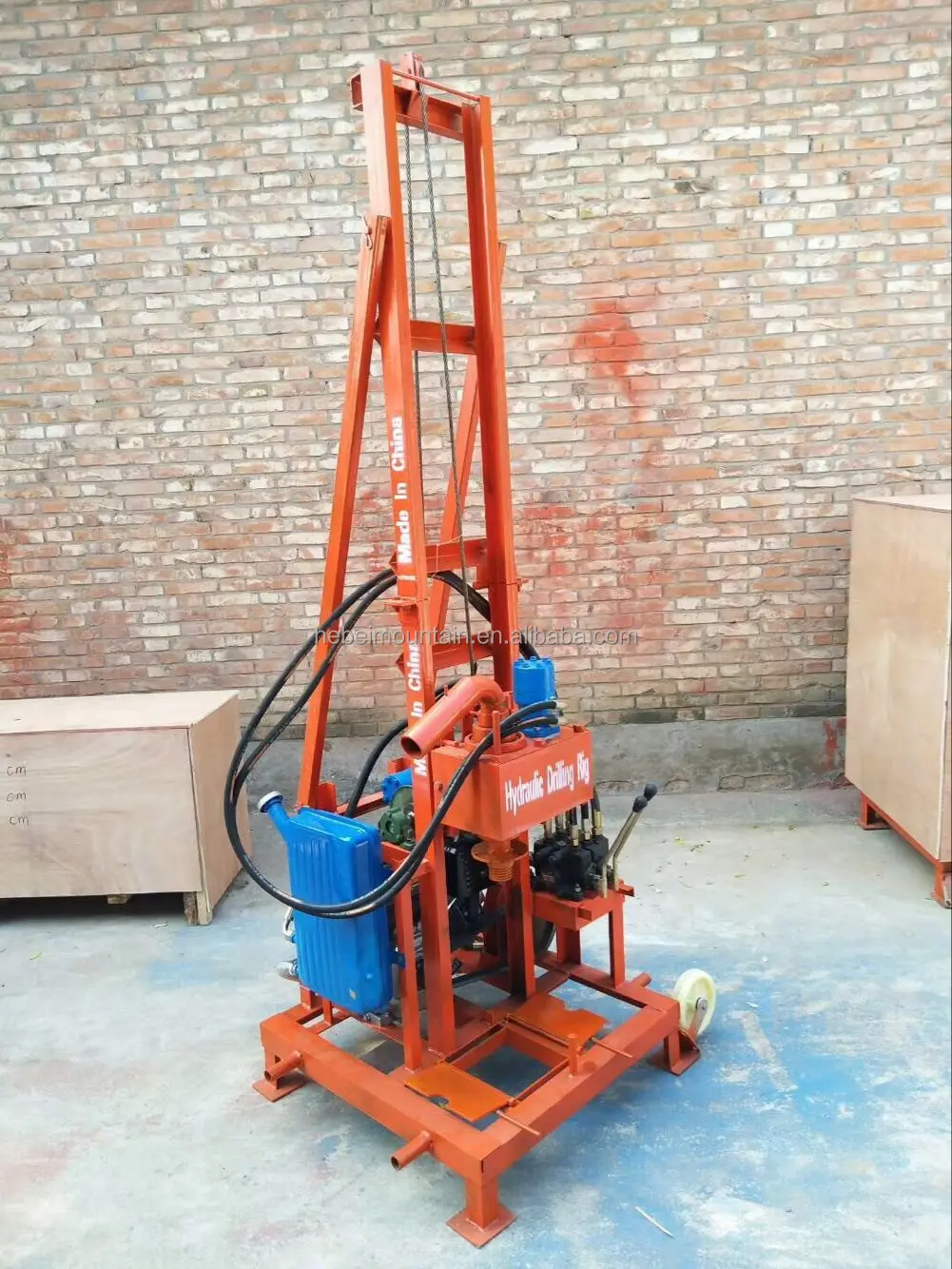

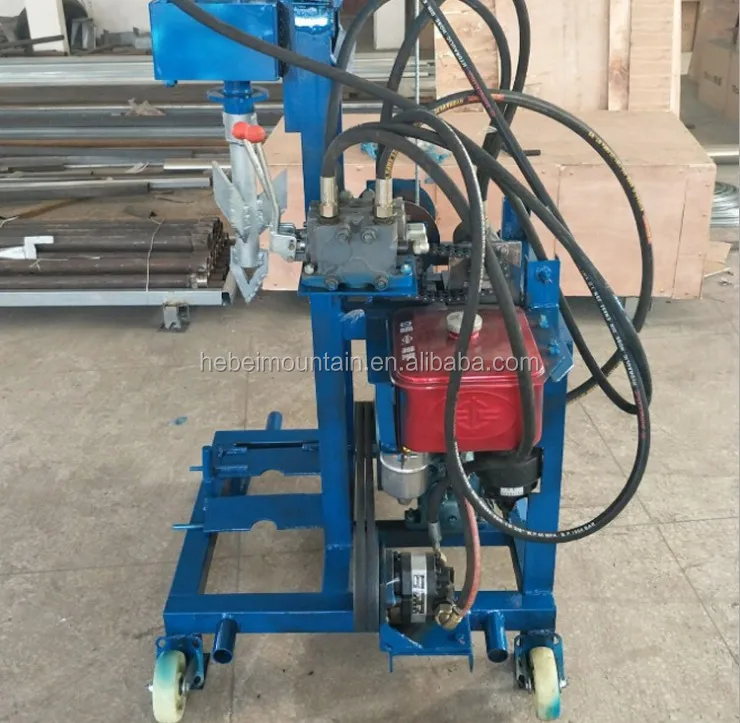

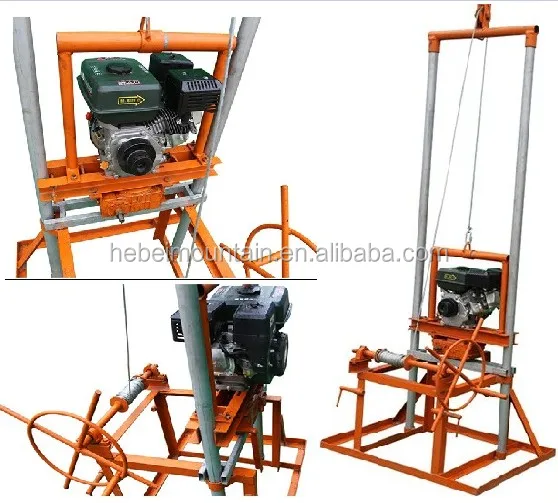

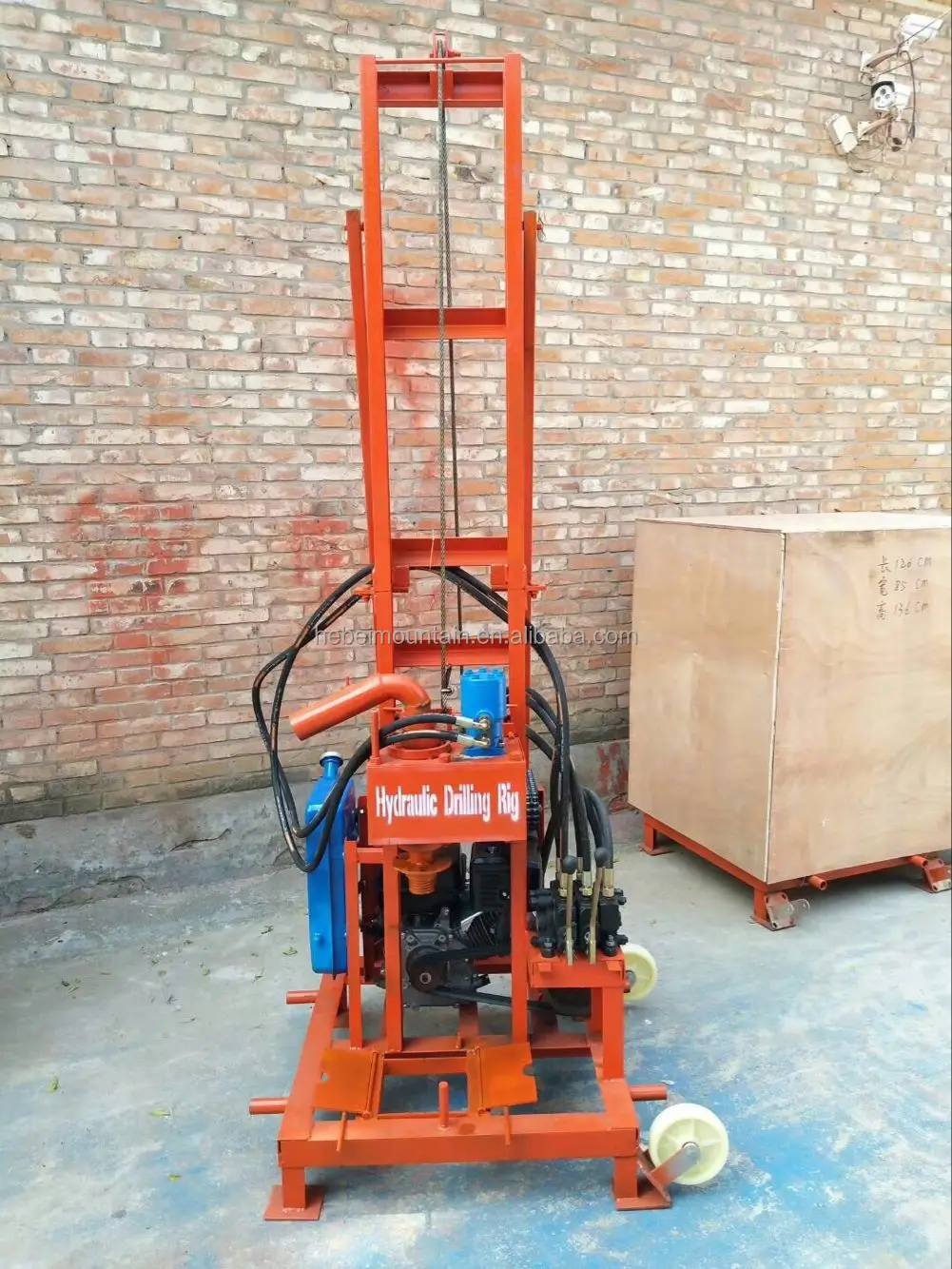

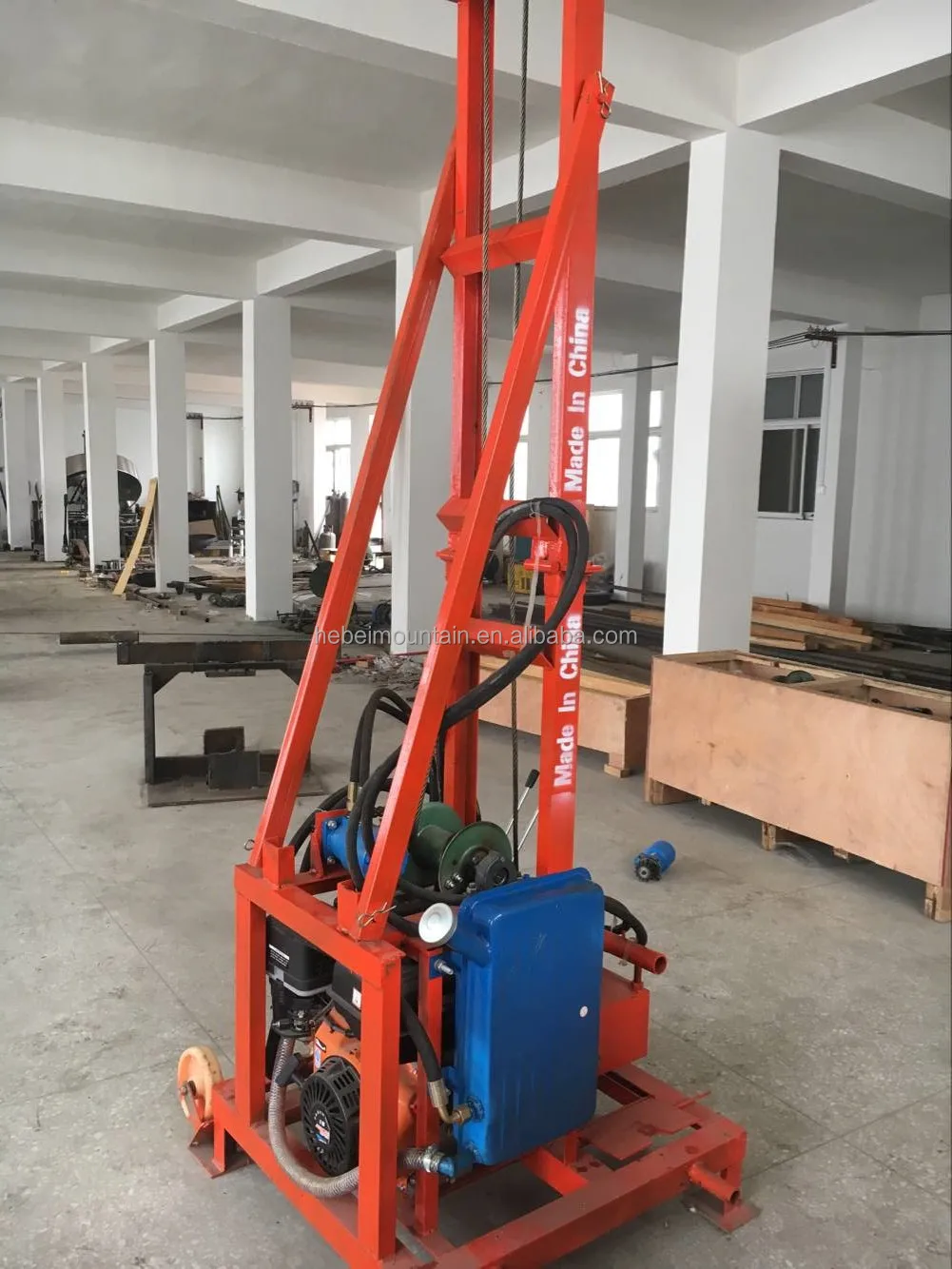

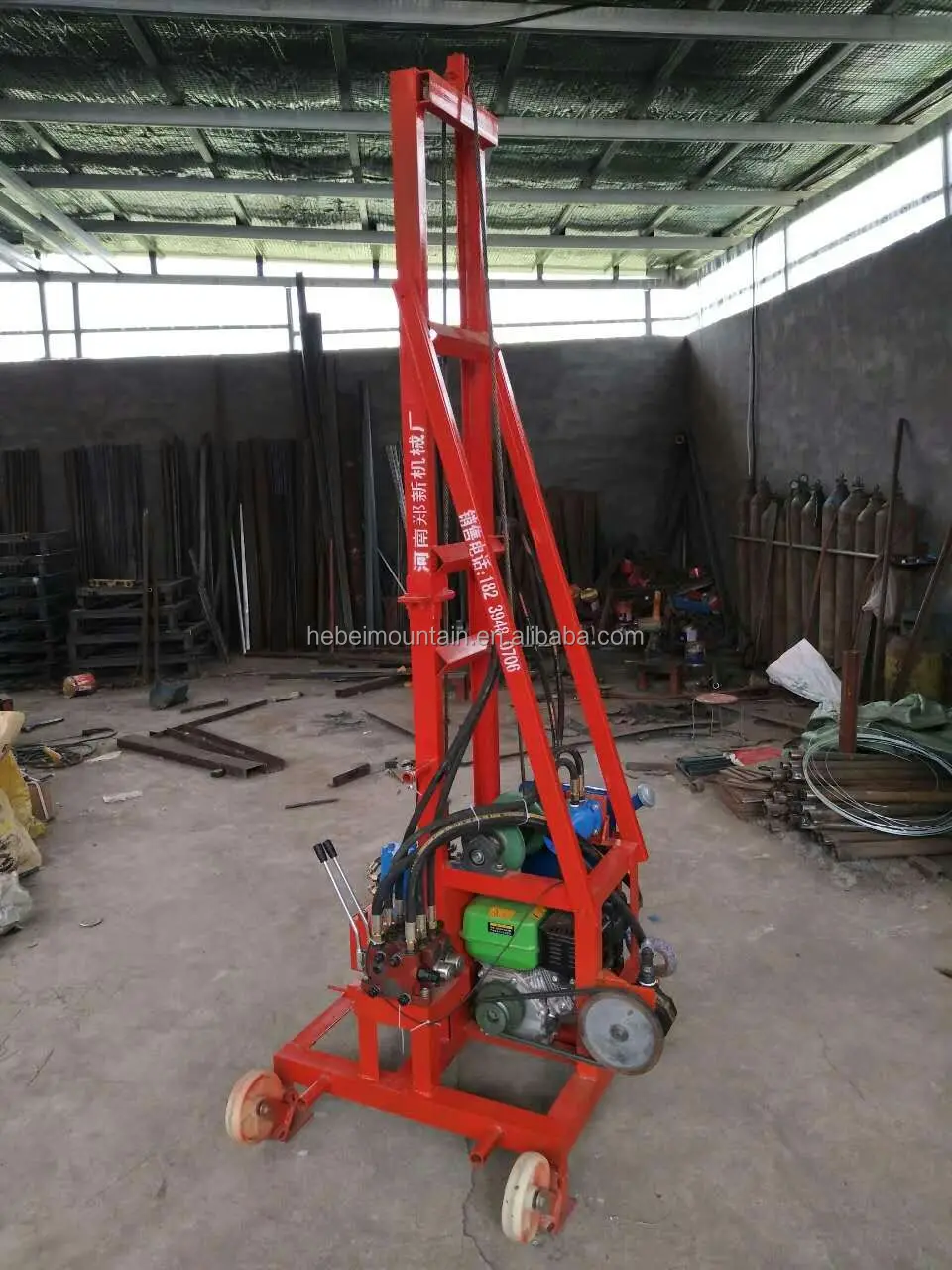

MT-150DMDG drilling rig is a new-type, portable engineering drilling machine .



 Foundation holes of small buildings;

 Drilling of water wells;

 Core sample,soil investigation etc







 II. Characteristics

1. Power can be equipped by electrical motor ,gasoline or diesel engine, as per your project needs;



2. Hoist adopts Frictional clutch mechanism, using powder metallurgy friction plate,with good

performance and long service life; With stainless steel base, reliable , greatly improve the working efficiency before drilled hole, such as

adding and taking off the drill rods ;



3.good sealing performance and durability;





4. Easy to be disassembled, installed and operation.



5. With large rotary torque which are better than the other same level drilling machines.



III . Parameters of Water well Drilling Rig MT-150DMDG



1.Overall parameters



Drilling depth:150m



Maximum open hole caliber:200mm



End hole caliber:60mm



Diameter of drill rod:60mm



Rod changing method:Full automatic screw thread

Weight(not include power):280kg



Dimension:1100*1100*2200mm



2.Hoist



Max. single line hoisting capacity:1500Kg



Hoisting height:2000mm



3.Mud pump



Type

Horizontal single urn twin-action



Rate of flow

95/77L/min



MAX. pressure

1.2MPa



Working pressure

0.7MPa



Diameter of  water inlet tube

42mm



Diameter of  water outlet tube

32mm



4.Power



Gasoline

15HP



Diesel engine

15HP



Electrical motor

3.7KW



Applications:

Water Well, Irrigation wells, etc.



Warranty:

One year guarentee excluding wearing parts
