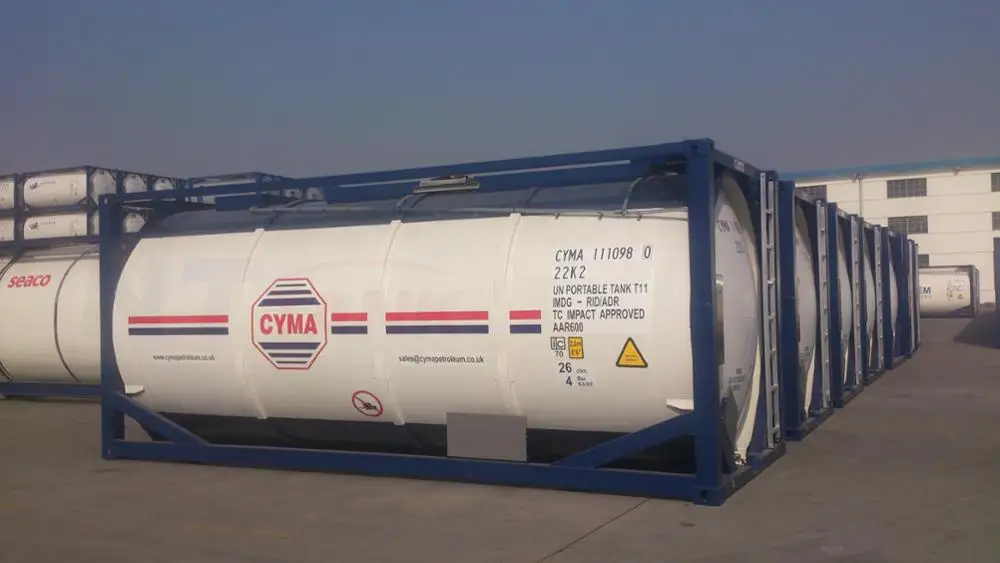

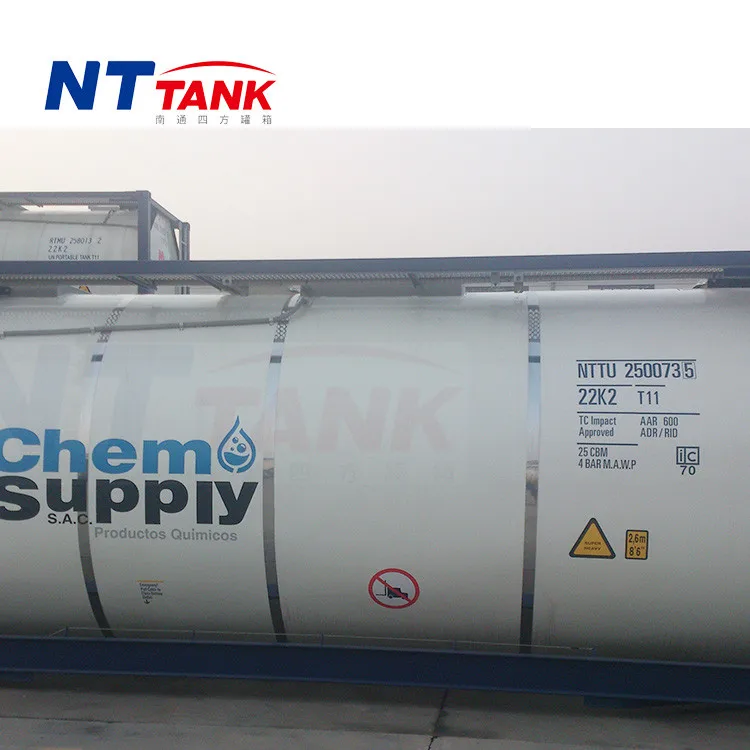

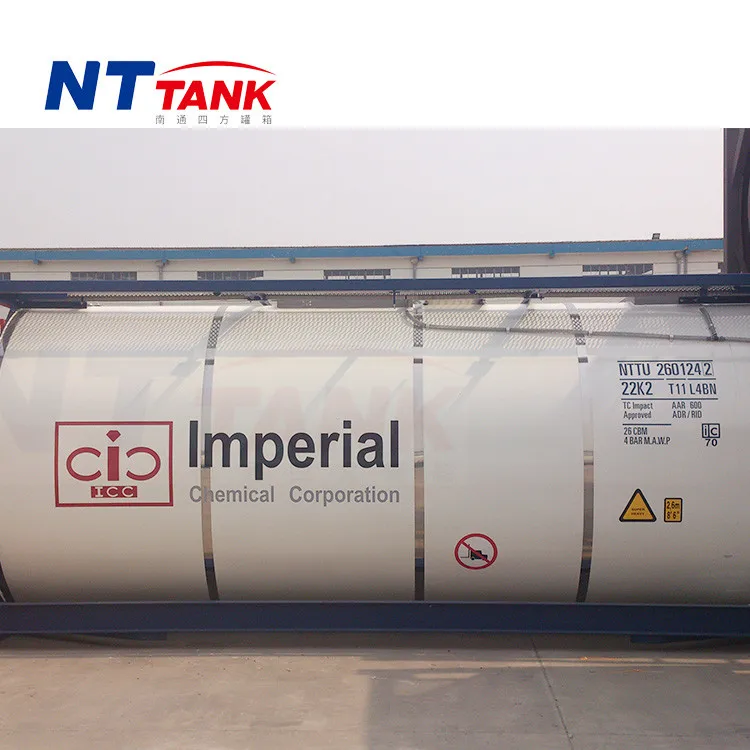

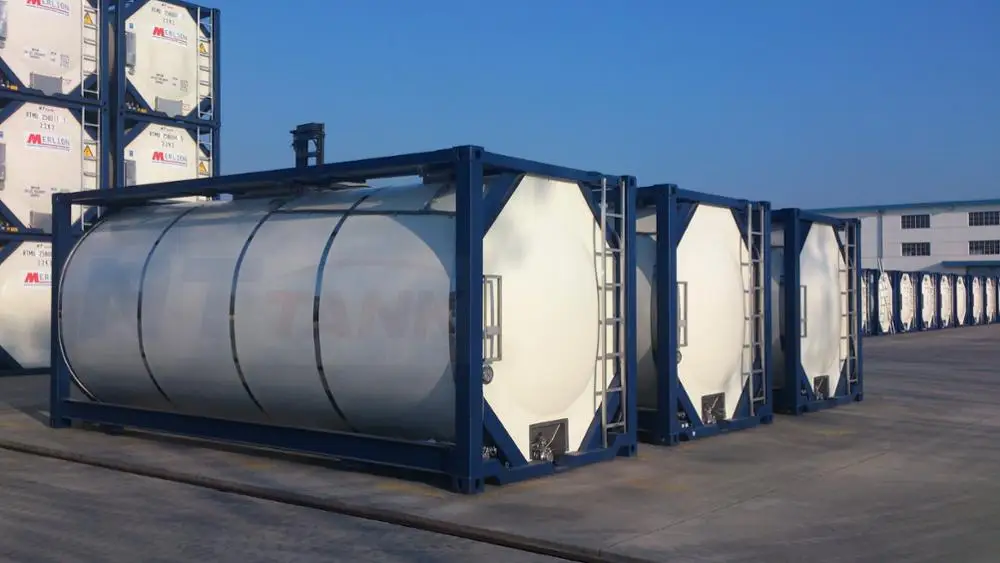

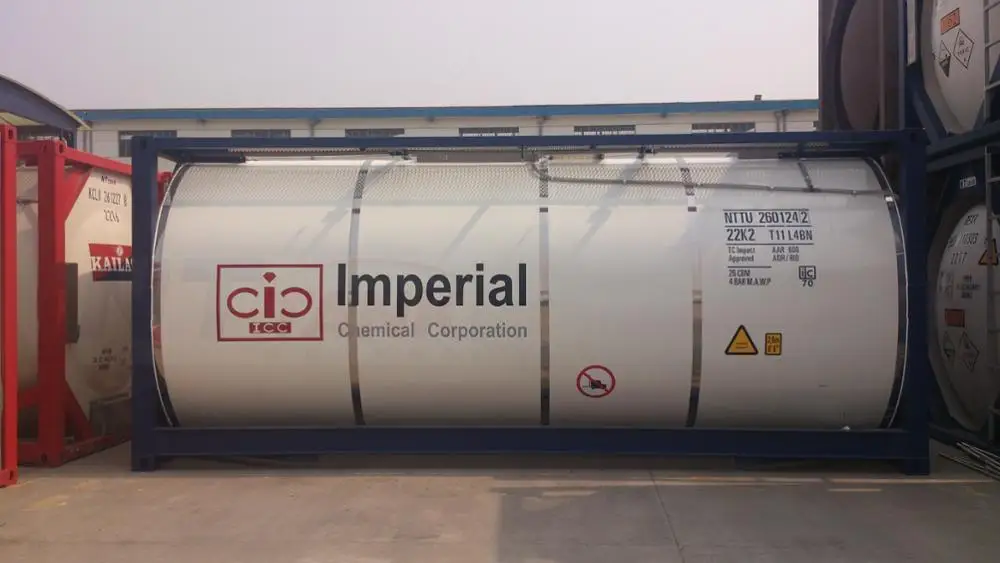

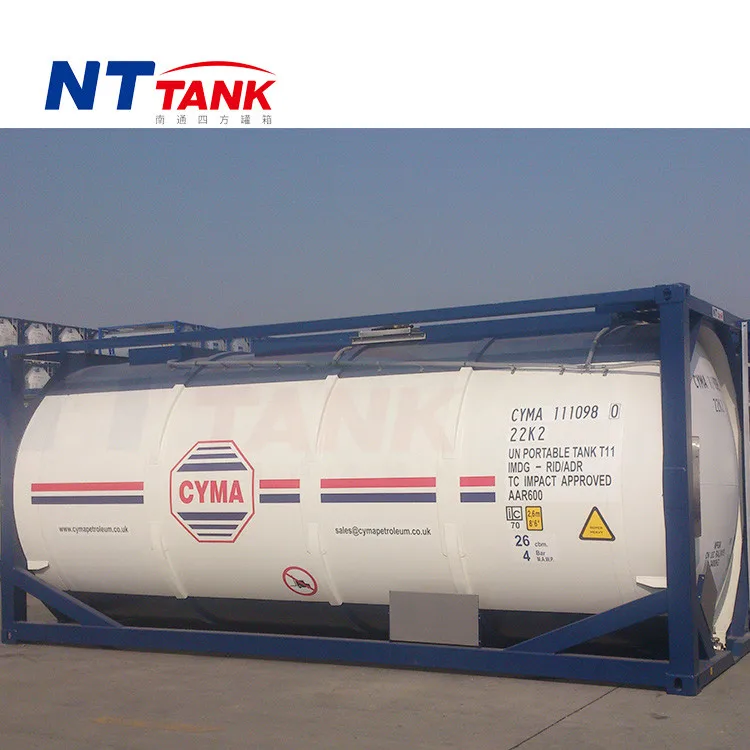

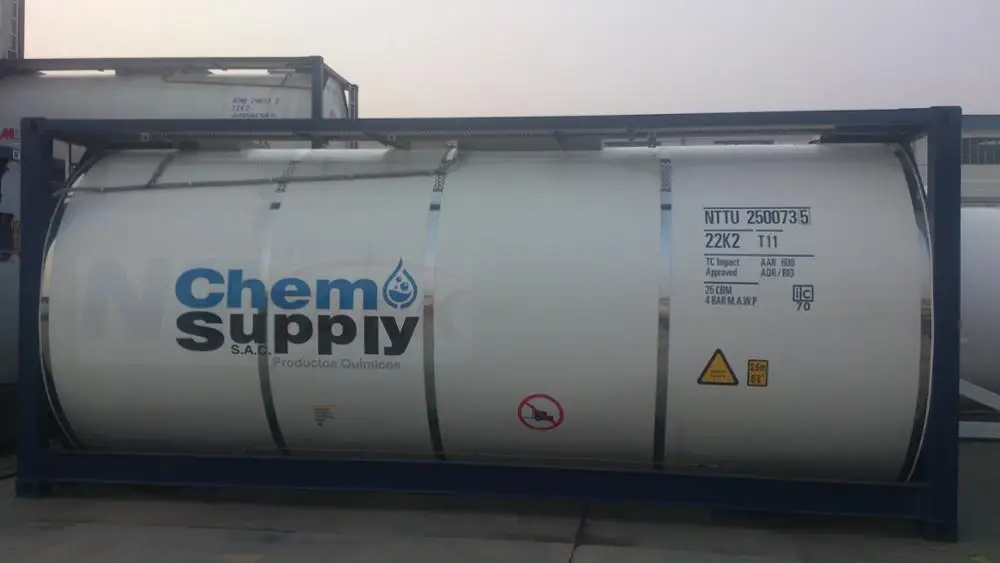

10900L ISO full frame collar transport portable tank container

Tank Type

20’ ISO full frame collar tank, Type UN Portable Tank T11, insulated, steam heated, top side rails fitted

Frame Dimensions

20’ x 8’ x 8’6”

Capacity

21,000 Litres (+ /- 1%)

24,000 Litres (+ /- 1%)

25,000 Litres (+ /- 1%)

26,000 Litres (+0 /- 1%)

M.G.W.

36,000 kg

Tare (est.)

3,550 kg +/- 3%

3,650 kg +/- 3%

3,750 kg +/- 3%

3,800 kg +/- 3%

Max Payload

32,450 kg

32,350 kg

32,250 kg

32,200 kg

Working Pressure

4 Bar

Test Pressure

6 Bar

Design Temp

40℃ to +130℃

Vessel Material

SANS 50028-7 WNr 1.4402/14404 (C<0.03%), equivalent to 316L

Shell: Cold Rolled 2B finish

Ends: Hot rolled or Cold Rolled, polished internally to 1.2 Micron CLA

Shell Thickness

4.4 nominal

Ends Thickness(B.F)

4.5 mm nominal

4.6 mm nominal

Max. Allowable Vacuum

0.41 Bar

Corrosion allowance

0.2mm

Frame Material

GB/T 1591-Q345D or SPA-H (or equivalent)

Frame to Shell

304 stainless steel

Corner castings

ISO 1161 - 8 off

Vessel Design Code

ASME VIII Div 1 where applicable

Radiography

Shell

Ends

ASME Spot

ASME Full

Inspection Agency

LR or BV

Cargo carried

See dangerous cargo lists for UN Portable T11 tank

Stacking

Each container approved for 10 high stacking

Design Approvals

IMDG T11, CFR 49, ADR/RID, CSC, TC, TIR, ISO, UIC, US DOT
