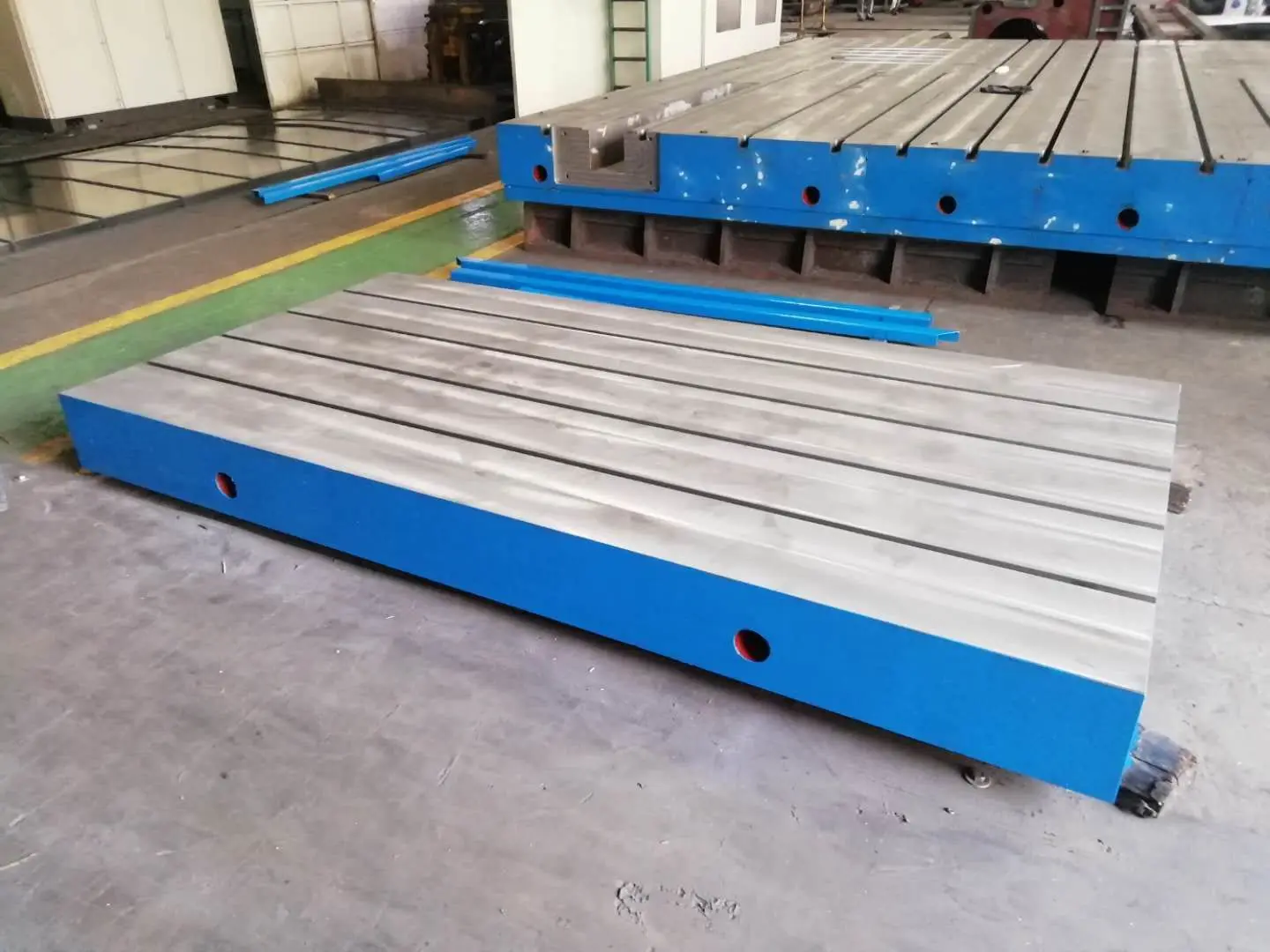

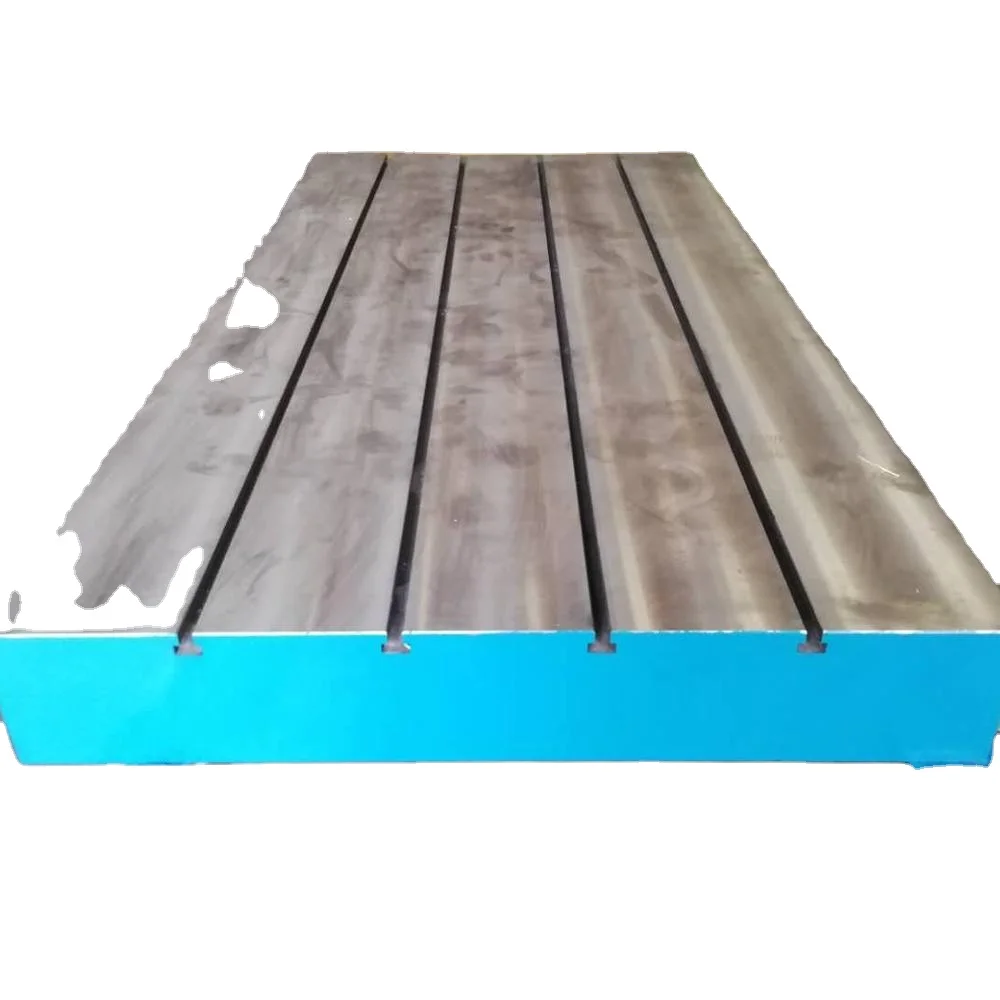

Willing Cast Iron T-Slotted Bed Plates / Floor Plates are being used in various industries for varied application like mounting of large jobs while machining, used as precision base for Marking, Inspection, Assembly, Fabrication, checking accuracy of other surfaces and many other types of operations. Willing Bed Plates manufactured completely in house, with world class manufacturing facility equipped with CNC machines, starting from Design, Casting, Machining and till finish and packing to ensure product quality, with international standards like IS and DIN having Cored and ribbed construction, Cast Iron of grade starting from FG 200 (as per IS 210) OR GG-20 to FG-300 OR GG-30 (or higher) having hardness minimum 160 BHN.
Basic Features:

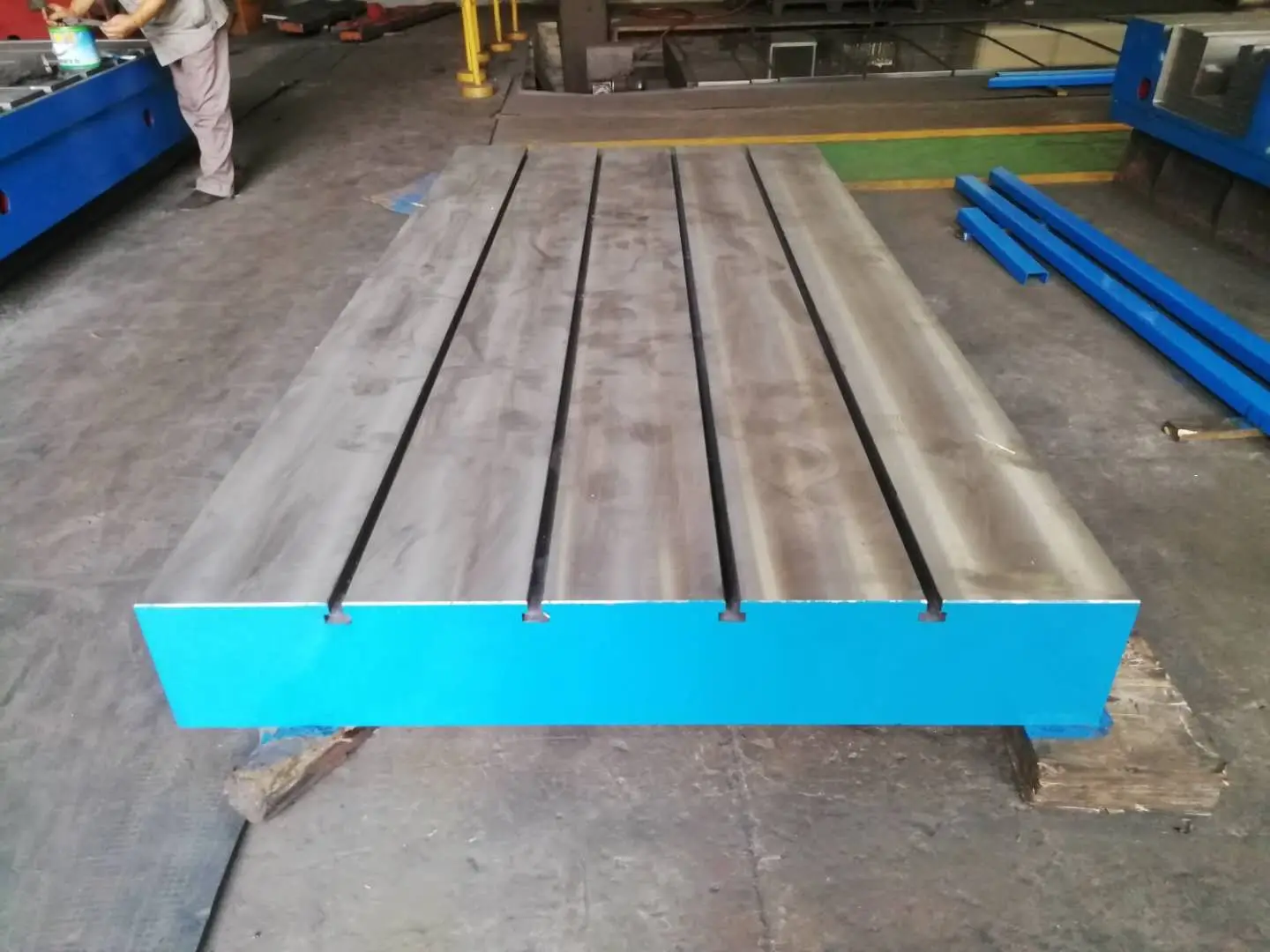

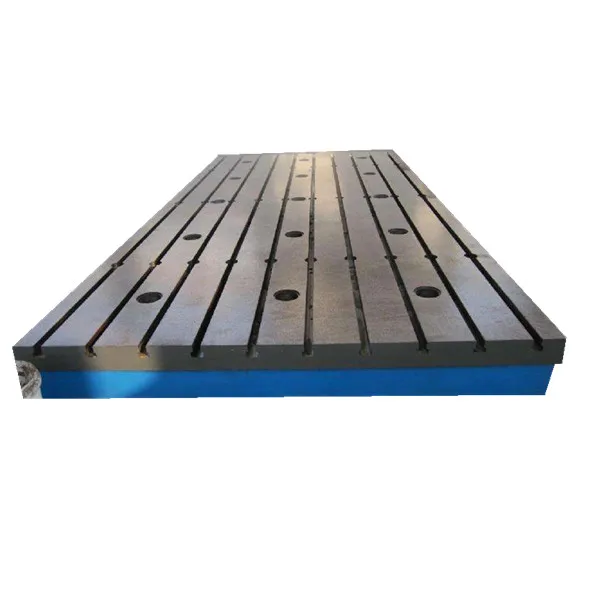

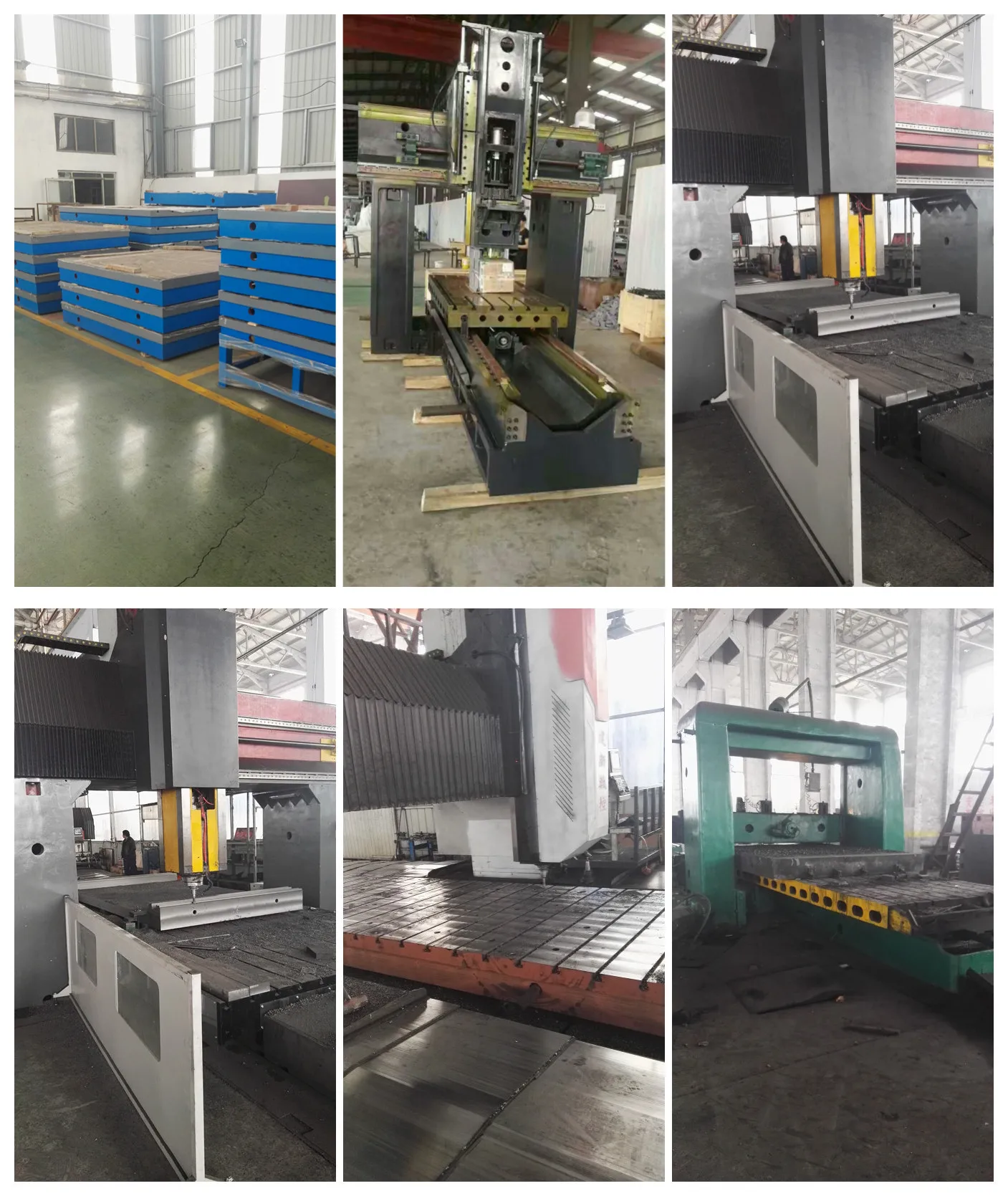

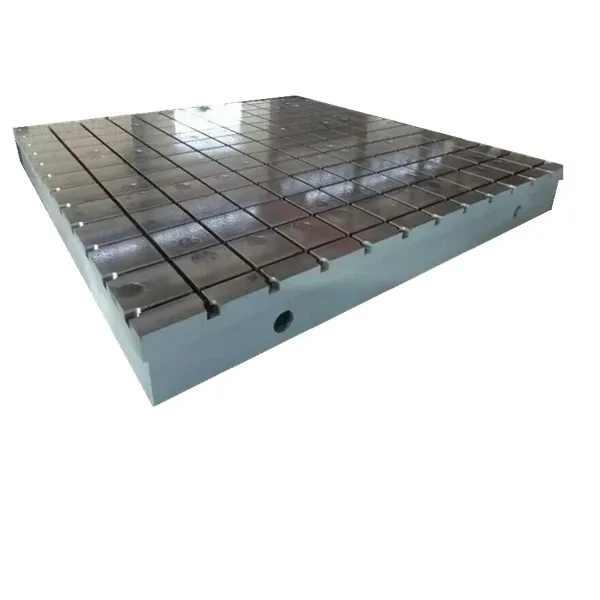

Profiles: Generally provided with T-slots sizes 14, 18, 22, 28, 36 or 42 mm conforming to IS:2013 / DIN 650 in tolerance from H12 to H7. Holes, square slots, guiding slots or other profiles on top as well as sides may be provided as per requirement of customers. Stress Relieving: Bed Plates shall be manufactured with castings duly stress relieved, after rough machining to prevent distortion. Height:Willing plates shall be manufactured in various heights 150, 175, 250, 300, 350, 400, 450, 500mm depending upon application and load carrying capacity Starting from 1 ton/m2 to 150 tons/m2. Flatness Accuracy: Grade I, II or III as per DIN-876 OR as per IS-10602. Surface Finish: CNC finish or Hand Scrapped finish can be provided as per requirement. Installation & Commissioning Accessories: Plates shall be provided with suitable Leveling & Anchoring accessories or Floor Stand as per requirement of customer
Precision: According to the national standards measurement examination regulations execution,
respectively is 1,2,3, fine polish.
Specification (mm)
Flatness tolerance (um)
Grade1
Grade2
Grade 3
Finihs plane
400x400
12
24
600x400
14
28
800x500
16
32
80
900x600
16
32
80
1000x750
18
36
90
1000x1000
20
39
96
1500x1000
25
48
120
2000x1000
26
52
129
2000x1500
56
140
2000x2000
60
152
230
2500x1500
68
168
248
3000x1000
174
248
3000x2000
184
275
3000x3000
210
300
4000x1000
210
300
4000x2000
219
310
4000x3000
240
360
5000x2000
255
375
5000x3000
287
420
6000x2000
293
430
6000x3000
308
460
8000x2000
370
520
8000x3000
382
570
Installation and adjustment
When used surface plate ,you should first installation debugging,then you can use it . No significance work on surface plate if they aren't properly positioned .Surface plate should setup on level off, firm without shock place .please first put the pad iron down ,then put the surface plate on the pad iron ,removal the wooden case and oil . Measurement with the levelness of the surface plate ,when the surface plate isn't level ,please adjust the pad iron .( In the process of adjusting attention to safety)
Nocie for use
1: To the best uniform use of the flat plate throughout, to avoid local grinding concave. 2: Keep the plate clean, prevent be wroned by iron scrap, sand ... 3: Put down workpieces on the plate gently, prevent the flat surface be impacted, once the plate surface hit the workpiece or other objects,repair impact and the convex part immediately. 4: Do not do any hammer work on the surface plate . 5: After use, should be clean it. If long time no use should not be coated with anti rust oil to prevent corrosion.
