Bar code and QR code RFID access control reader

Product Overview

Description

 Bar code and QR code RFID access control reader

SMQT, 13 YEARS gold supplier in Alibaba platform

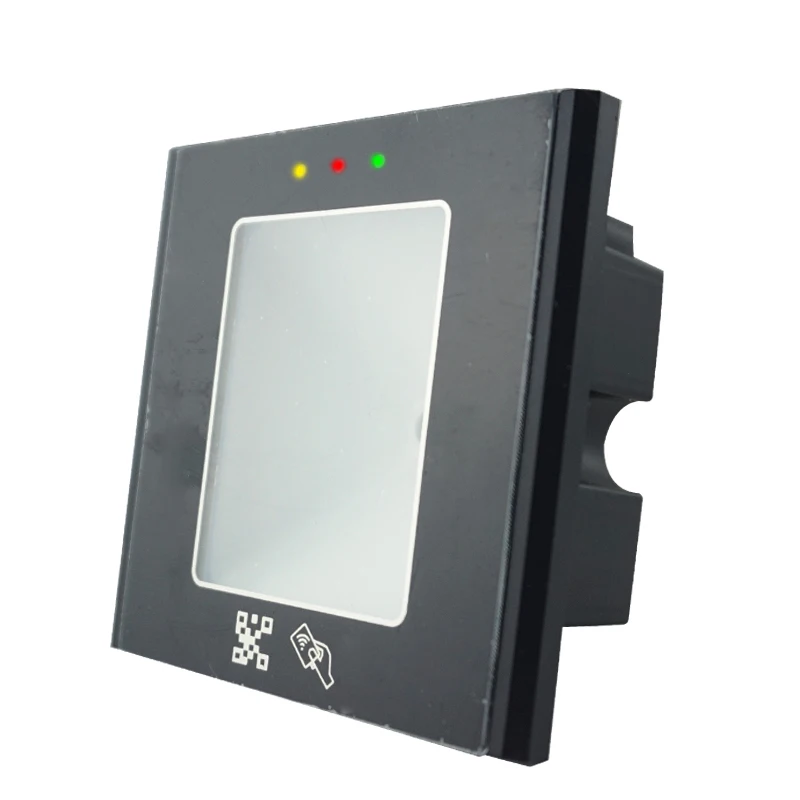

WHAT DOES EA-90Q  LOOK LIKE ?



EA-90Q'S MAIN PARAMETER

Product Name:	Bar code and QR code RFID access control reader
Model number:	EA-90Q
Power supply:	DC 5~12V
Working current:	800mA

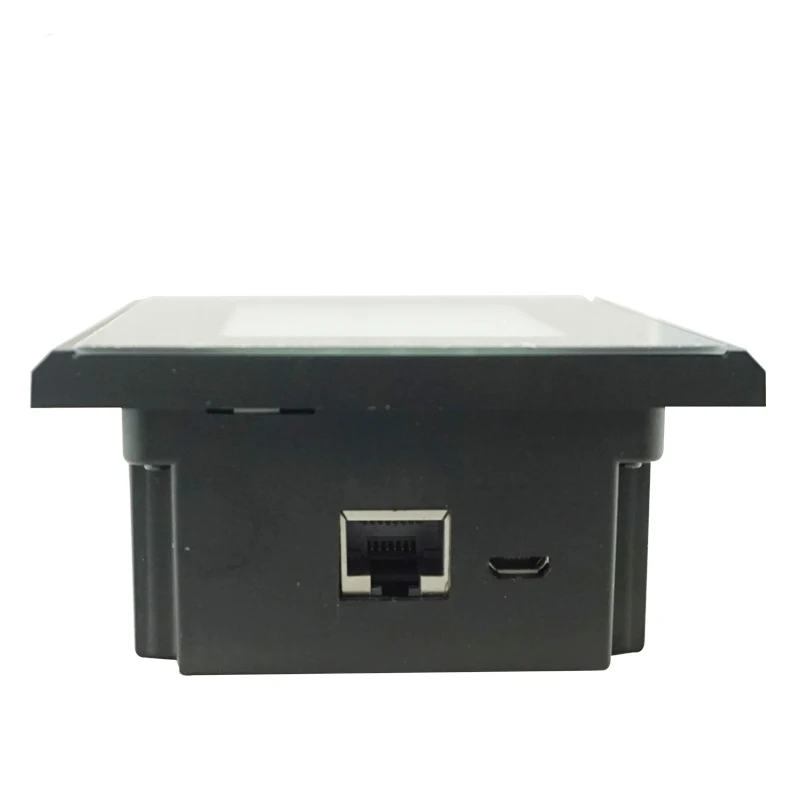

Interface:	WG/RS485/RS232/USB/TCP/IP
Card type:	IC card(13.56MHz)/ID card(125KHz)(optional)
Readable code:	QR code, Bar code
QR code reading distance:	0~20cm
Card reading distance:	3~6cm
Induction way:	Automatic induction, beep prompt
LED light:	Red light:working light  Yellow light:feed back light   Green light:network light
Dimension:	86*86*46(mm)
Suitable for:	All kinds of entry access control system

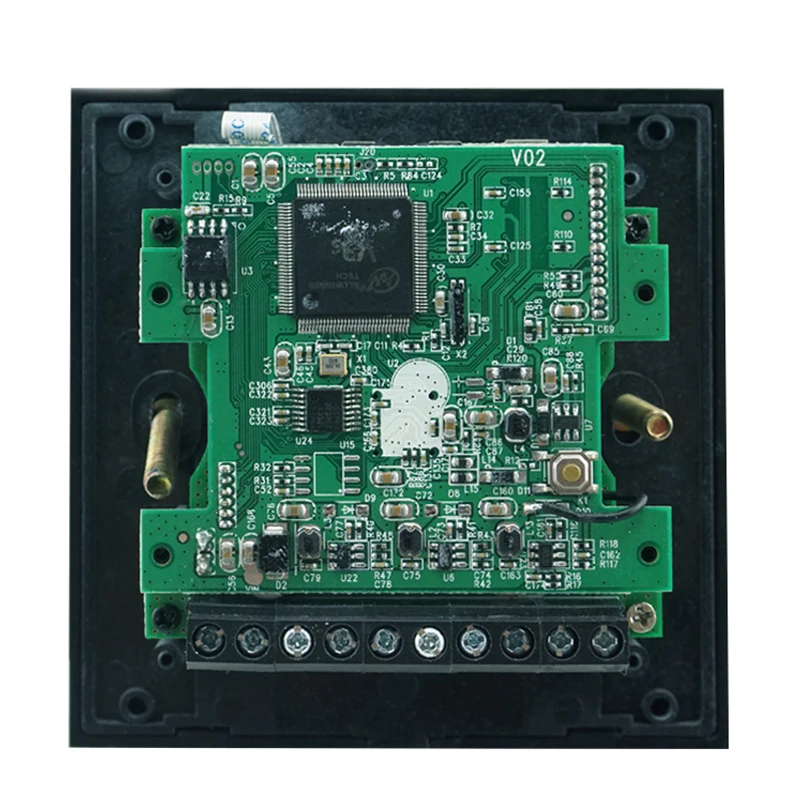

Material:	ABS housing+Plexiglass panel+ PCB board
Housing color:	Black
Weight:	0.2kg
Warranty:	2 years warranty
OEM:	Welcome OEM

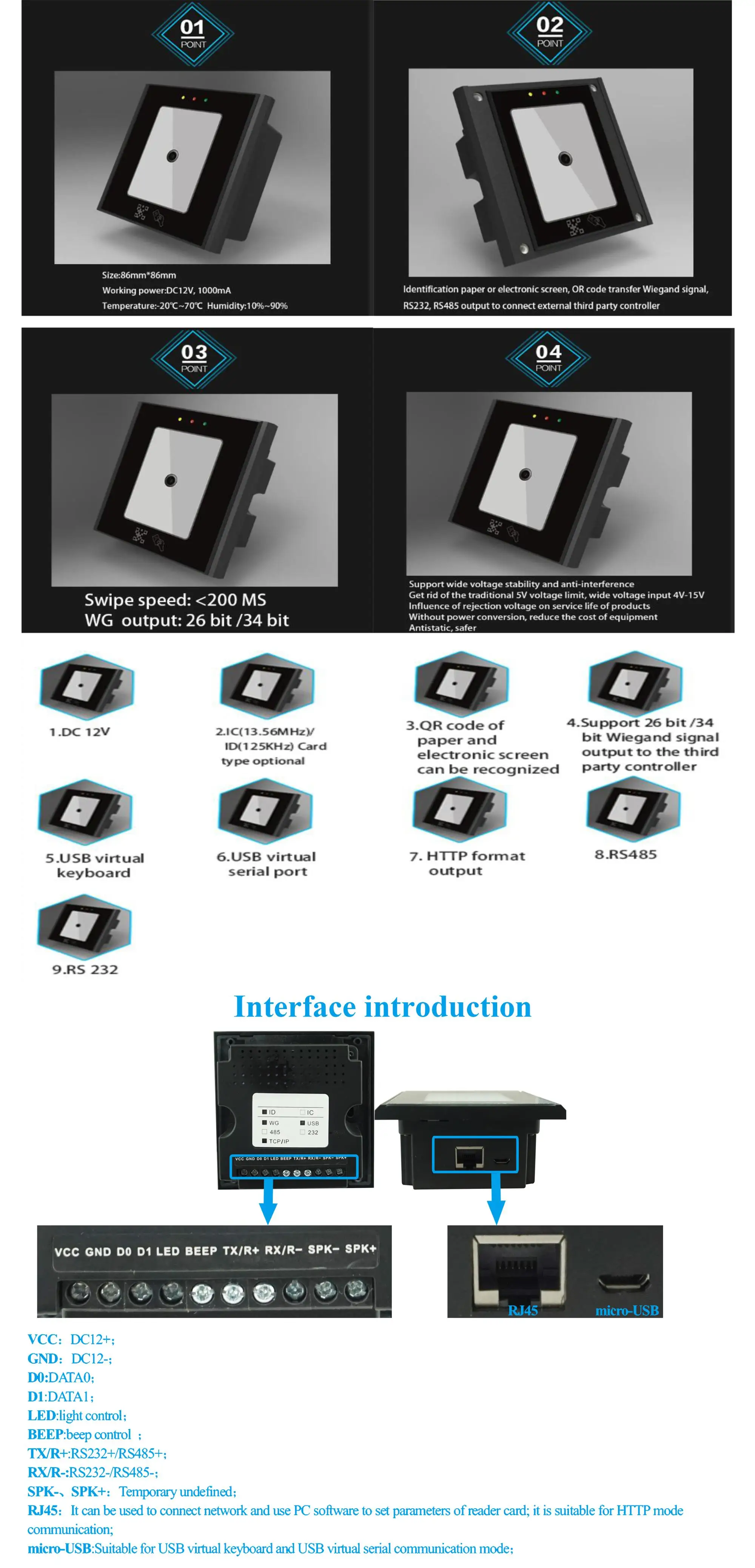

WHAT FEATURES EA-90Q HAVE?



WHERE IS THE EA-90Q SUITABLE FOR INSTALLATION?





Restore factory settings:

use sharp objects inserted into the QR code access card reader behind the REST hole, to be read card automatically restart, release can be

Note:

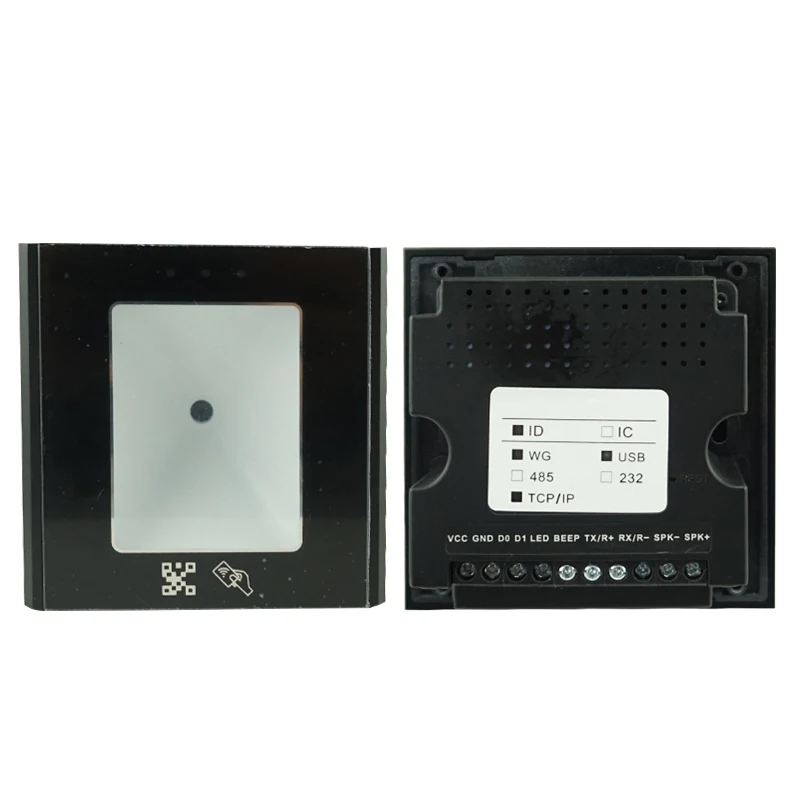

1.please do not access SPK+, SPK- port with power supply;

2.Wiegand output, two-dimensional code scanning shall comply with the principle of combination of 16 hexadecimal number 0~F, in accordance with the principle of two-dimensional code can be heard a sound drop, controller can receive the card data; do not conform to the principle of two-dimensional code can be heard by two sound, the controller can not receive the card data;

3.when the output of Wiegand , scanning two-dimensional code number principle is high before, automatically scan two-dimensional code identified as 16 decimal;

4.WG34 output, two-dimensional code card number must be 4 bytes, insufficient in high fill fill 4 byte number 0;

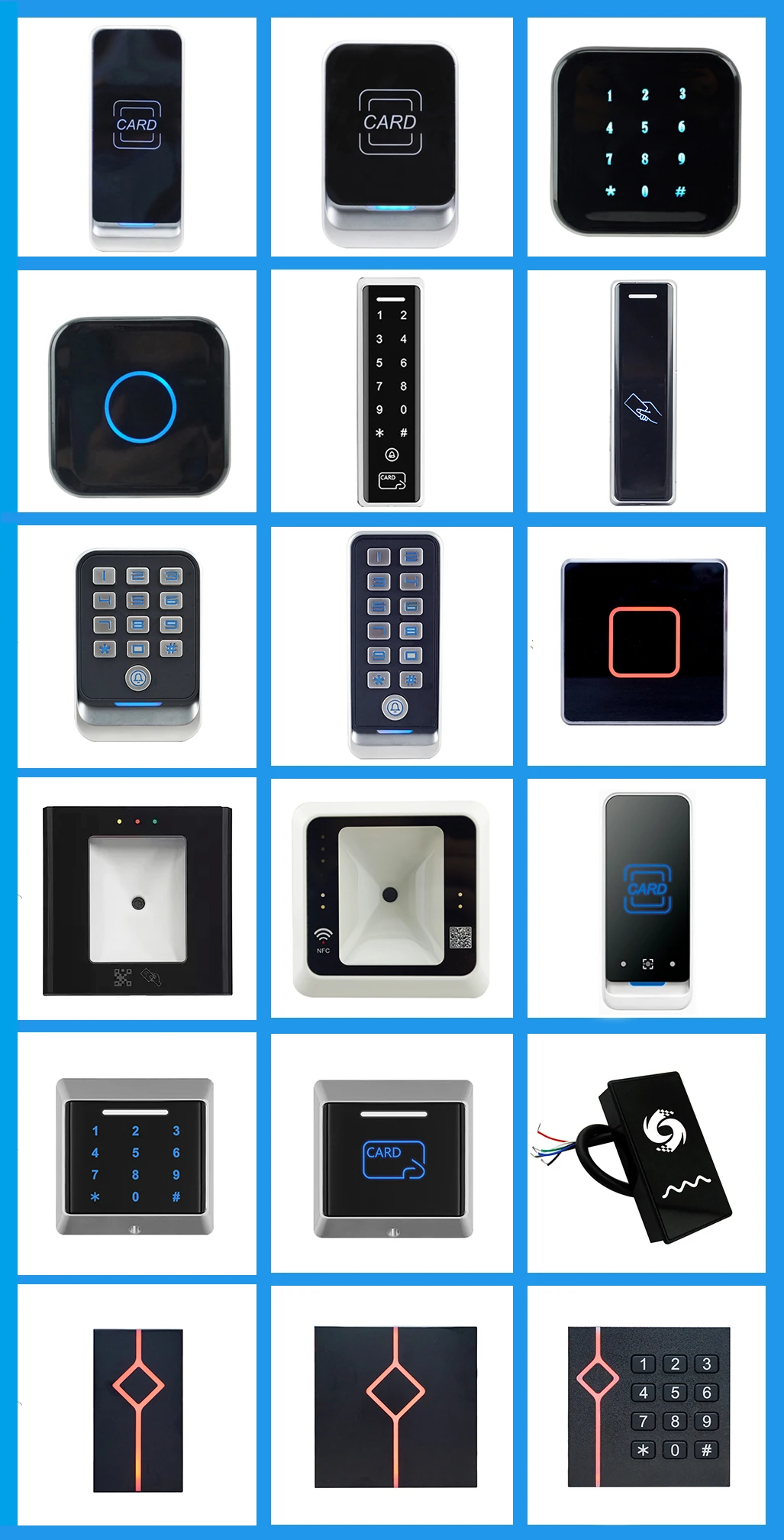

HOW ABOUT OTHER CHOICE?
