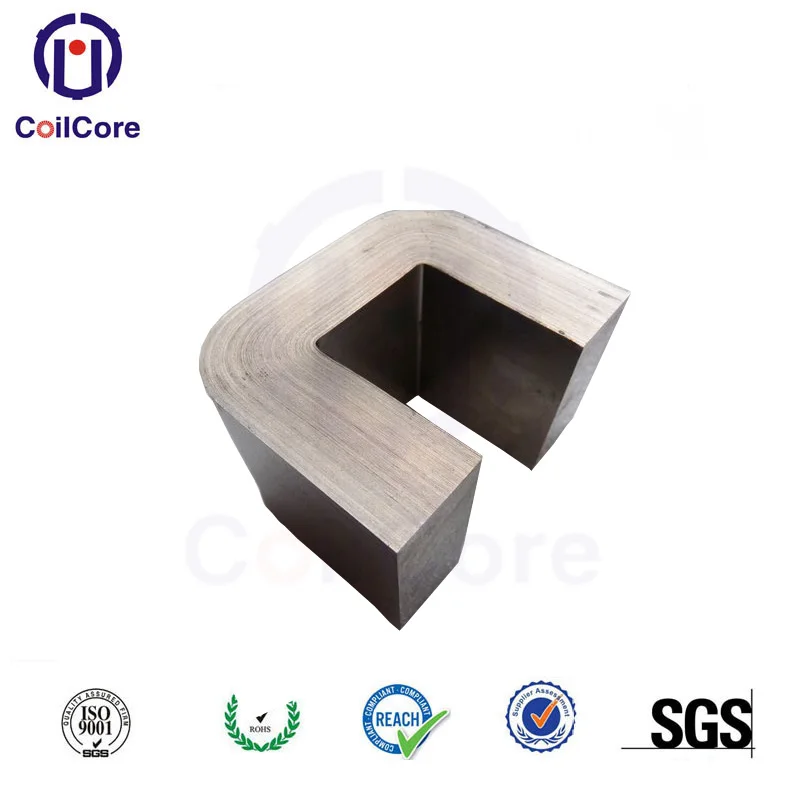

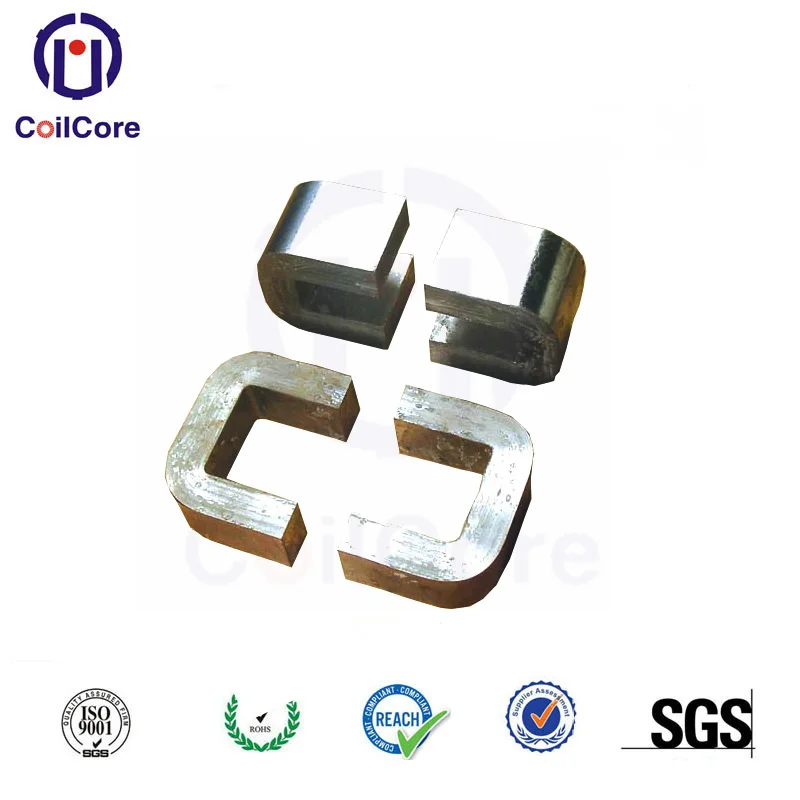

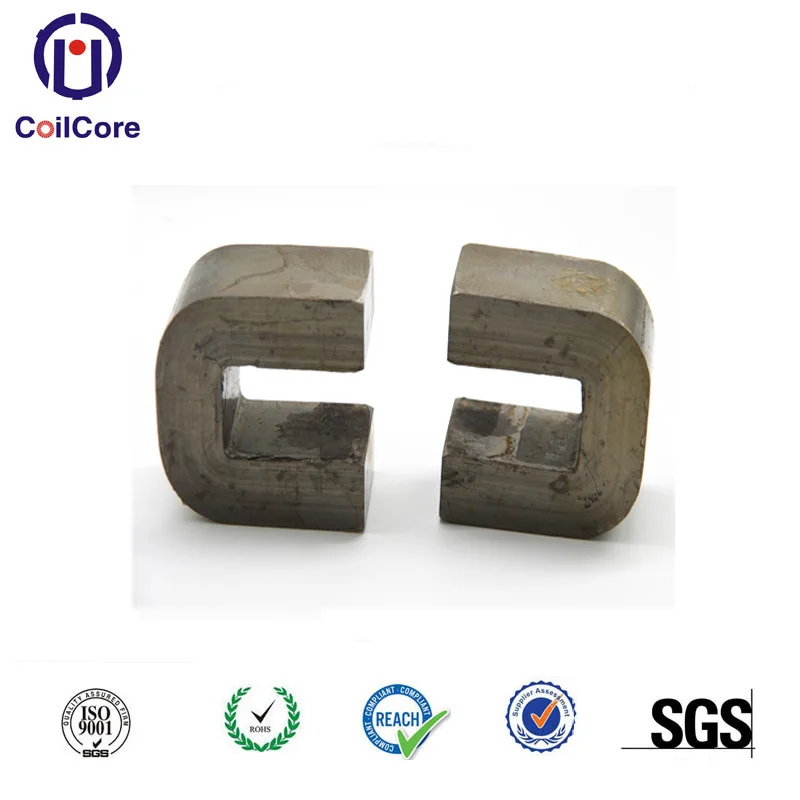

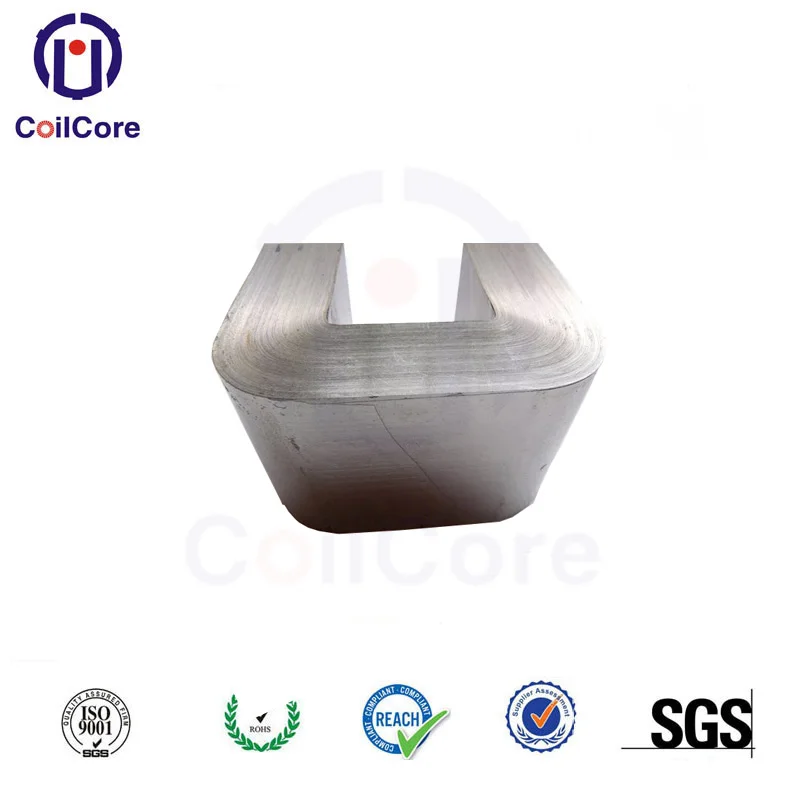

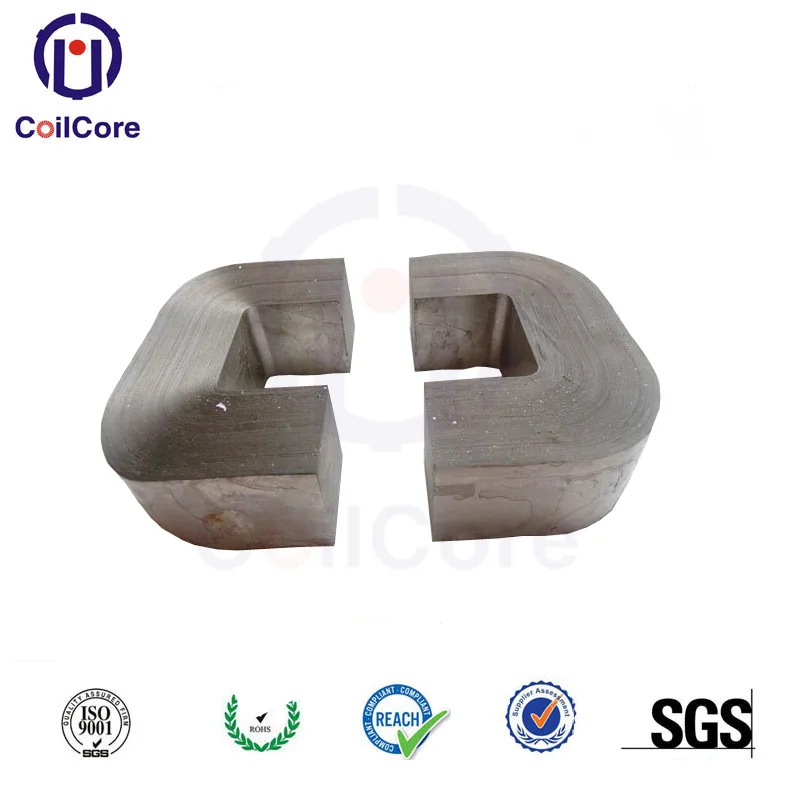

AMCC25 Magnet Amorphous C Core Cutting For UPS
- Category: >>>
- Supplier: Guangzhou Amorphous Electronic Technology Co. Ltd.
Share on (60782266928):
Product Overview
Description
Kindly note on this page you'll buy AMCC25 Amorphous Core, AMC25 details sa below:
| Core Mo. | Core Dimension | Perfromance Parameters | |||||||||||||
| a(mm) | ± | b(mm) ref* | c(mm) ref* | d(mm) | ± | e(mm) | ± | f(mm) | ± | Im (cm) | Ac (cm2) | Wa (cm2) | Ap (cm4) | Mass (g) | |
| AMCC-25 | 13.0 | 0.80 | 15.0 | 56.00 | 25.0 | 0.50 | 41.0 | 1.00 | 82.00 | 2.00 | 19.60 | 2.70 | 8.40 | 22.40 | 379 |
| Note: Customized is available. | |||||||||||||||
Key Propertis:
· High Saturation Flux Density (1.56 T)
· Low Profile - enables weight and volume reductions of up to 50%
· Low Temperature Rise - enabling smaller compact designs,working temperature -55°C~130°C.
· Low Core Loss - resulting from micro-thin amorphous ribbon (20-30µm)
Loss Test | |
Magnetical Induction Density | B=0.037T |
Frequency | f=16KHz |
Test Equipment | 2010SA AC Soft Magnetic Tester |
Iron Loss | pFe “≤ 1.2 W/kg |
AL Test | |
| |
Note: | |
Fexible Design:
1. We produce from Amorphous Cut Core to Choke
2. We do Amorphous Cut Core based on Clients’ request
3. Other AMCC Series Amorphous C Core as below:
Main Application:
· UPS and SMPS Power Factor Correction Chokes
· UPS Harmonic Filter Inductors
· High-Power Outdoor Industrial Ballasts
· Welding Power Supplies
· High-Speed Rail Power Systems
· Choke coil for DC/DC converter
· Normal mode choke coil
· Choke coil for adapter and battery charger
· PFC choke cil
