10CBM Swing Arm Garbage Truck HOWO Skip Loader Refuse Truck for for sale
- Category: >>>
- Supplier: Chusheng Vehicle Group Co. Ltd.
Share on (60782281474):
Product Overview
Description
10CBM Swing Arm Garbage Truck HOWO Skip Loader Refuse Truck for for sale
Product Description
swing arm garbage truck is also called swing arm garbage truck, is mainly used in transporting kinds of garbage in residential areas, streets, and the factory,etc. Usually one skip loader refuse truck can be equipped with many skip loader refuse bin or bucket.
It can be increased a unified matching with hydraulic lifting assembly. Through the left and right arms shipment to a unified national arm garbage bucket. A car with more than one bucket, additional dump functions, to achieve security and stability, reliable performance.
Features of swing arm garbage truck
Chassia: HOMAN (midium duty of SINOTRUK series)
Other chassis brand: HOWO, Beiben, Dongfeng, Foton, FAW
Volume of the garbage tank: 10cbm
Material of the garbage tank: carbon steel
Thickness: 5mm
Other similar products: compressor garbage truck, skip loader garbage truck, hook lift garbage trucks etc
Parameters of the swing arm garbage truck:
Cabin | Driving type 4x2 | |
H5 Cabin with two seats,with A/C. Right Hand Driven. 70°hydraulically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8000x2500x3500 |
Wheel base (mm) | 4200 | |
Wheel track (front/rear) (mm) | 1980/1860 | |
Approach/Departure angle(°) | 24/15 | |
Weight in KGS | Tare Weight | 8000 |
Loading Capacity | 10000 | |
Front axles loading capacity | 1×6000 | |
Rear axles loading capacity | 1x12000 | |
Max. driving speed(km/h) | 90 | |
Engine | Brand | YUCHAI |
Model | YC6J220-33 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power(HP) | 220 HP | |
Emission standard | Euro Ⅲ | |
Gearbox | DC6J65TC, 6 forwards &1 reverse | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Steering Gear | ZF steering, hydraulic steering with power assistance | |
Fuel tank (L) | 300 L | |
Tire | 10.00R20 tires with one spare, totally 7 pcs. | |
Swing arm system with cargo box | ||
l Garbage cargo box :10CBM , Carbon steel material , underground type or aboveground type can be optional. l PTO motivated hydraulic system, two hydraulic cylinders with lifting arm and two hydraulic cylinders with landing leg l Swing arm maximum pivot angle 145 ; hoisting time 30s ; Unloading time 50s. | ||

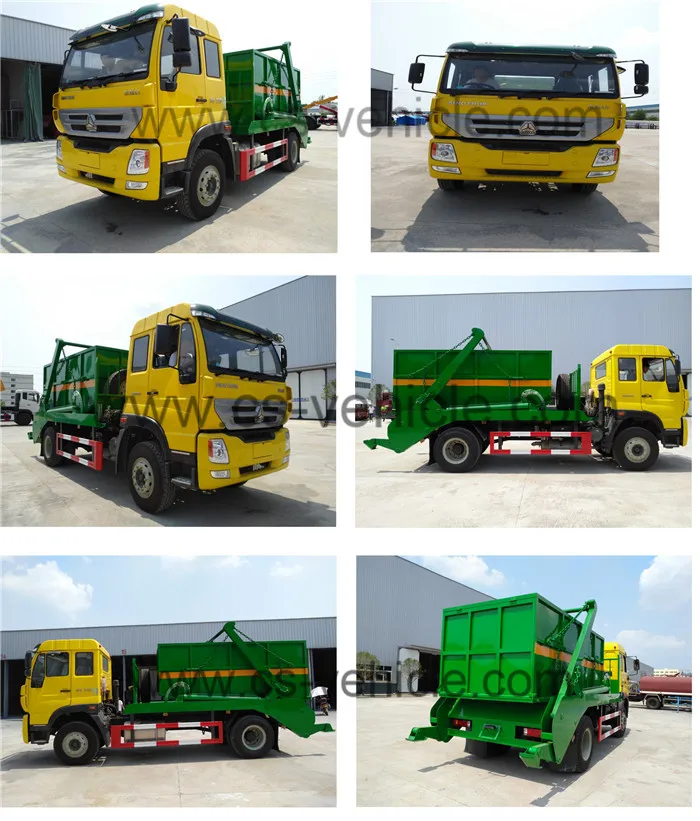

Detailed Images

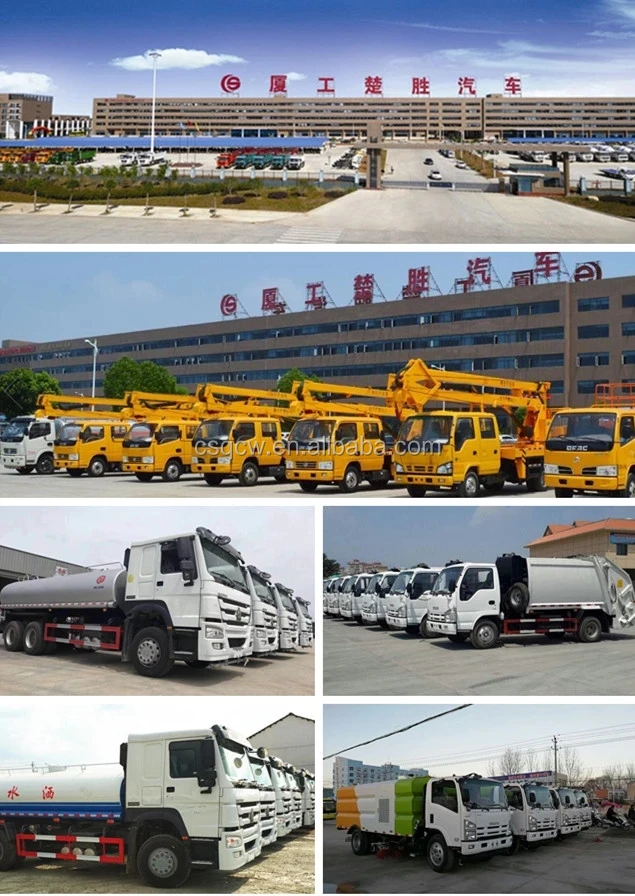

Company Information
Xiagong Chusheng has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Packaging & Shipping
Our Services
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
